Ingersoll Rand QP1S10S1TD Pneumatic Screwdriver | 1,000 RPM | 2.7 - 39.8 (In-lbs) Torque Range | Trigger-Start

For repetitive assembly operations that require a broader torque range and deliberate operator control, the Ingersoll Rand QP1S10S1TD Pneumatic Screwdriver combines 1,000 RPM free speed with a 2.7 to 39.8 in-lb torque range and trigger-start operation. The lower speed and higher maximum torque capability make this model a practical choice for compatible fastening joints that need more turning force than higher-speed screwdriver configurations while still supporting productive fastener rundown.

The Ingersoll Rand QP1S10S1TD allows operators to position the bit on the fastener before intentionally starting the tool with the trigger, providing direct control over cycle initiation. Its adjustable torque capability can be matched to different assembly requirements within the specified range, while the 1,000 RPM speed balances rundown efficiency with increased torque capacity for production fastening tasks. Final tool settings should be established and verified on the actual production joint.

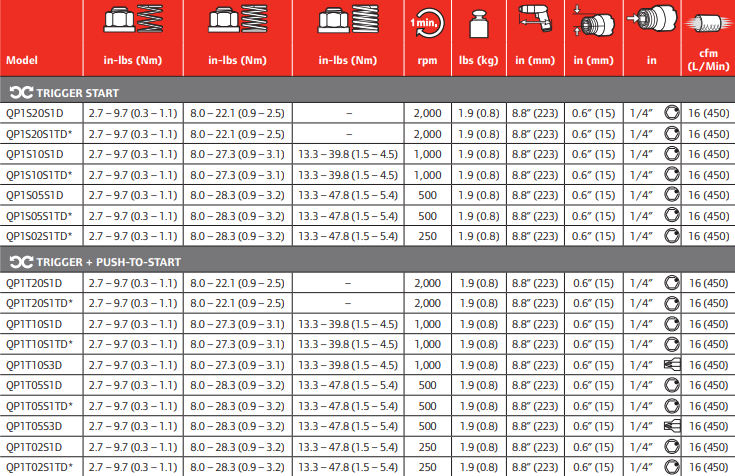

Type: Pneumatic Screwdriver | Model: QP1S10S1TD | Free Speed: 1,000 RPM | Torque Range: 2.7 - 39.8 in-lbs | Start Type: Trigger-Start

Features: 1,000 RPM free speed provides controlled fastener rundown for repetitive pneumatic assembly operations. 2.7 to 39.8 in-lb torque range supports compatible fastening applications requiring adjustable torque output. Trigger-start operation gives the operator deliberate control over when the screwdriver begins each fastening cycle. Lower-speed configuration provides greater maximum torque capability than the supplied 2,000 RPM QP1S20S1TD model. Operator-controlled activation allows the bit to be positioned on the fastener before rotation is initiated. Adjustable torque capability allows tool output to be matched to the fastener, joint characteristics, component material, and assembly requirements. Pneumatic operation supports repeated fastening cycles when the tool is supplied with properly conditioned compressed air. Made in USA:

Applications:

• Appliance manufacturing — tightening compatible screws in housings, panels, brackets, and mechanical subassemblies.
• Automotive component assembly — completing controlled fastening operations on production parts and assemblies within the specified torque range.
• Electrical equipment production — installing fasteners in cabinets, enclosures, controls, and related equipment assemblies.
• General manufacturing — handling repetitive screwdriving tasks where controlled rundown and deliberate trigger activation suit the production process.
• Assembly workstations — supporting fastening operations that require more torque capability than higher-speed, lower-torque screwdriver configurations.

FAQs:

• Q: What does trigger-start mean on the Ingersoll Rand QP1S10S1TD?
  A: Trigger-start means the operator manually activates the screwdriver with its trigger. This allows the tool and bit to be positioned on the fastener before rotation begins.
• Q: What torque range does the QP1S10S1TD provide?
  A: The specified torque range is 2.7 to 39.8 in-lbs. The appropriate setting should be selected according to the fastener, joint characteristics, component material, and assembly specification.
• Q: How does the QP1S10S1TD differ from the QP1S20S1TD?
  A: The QP1S10S1TD operates at 1,000 RPM with a torque range of 2.7 to 39.8 in-lbs, while the QP1S20S1TD operates at 2,000 RPM with a torque range of 2.7 to 22.1 in-lbs. The QP1S10S1TD provides the lower-speed option with greater maximum torque capability.
• Q: When is trigger-start operation useful?
  A: Trigger activation is useful when the operator needs deliberate control over startup, including applications where the bit should be fully positioned and aligned with the fastener before rotation begins.
• Q: Does the selected tool setting guarantee the final joint torque?
  A: Final fastening results can vary with joint characteristics, fastener condition, component material, bit fit, and air-supply conditions. Verify the resulting torque on the actual production joint using the quality-control method required for the assembly process.
