Ingersoll Rand QP1T02S1D Pistol Grip Air Screwdriver | 250 RPM | 2.7 - 47.8 (In-lbs) Torque Range | Adjustable Shut-Off Clutch

For assembly operations that require deliberate screw rundown and controlled torque shut-off, the Ingersoll Rand QP1T02S1D Pistol Grip Air Screwdriver combines 250 RPM free speed with a 2.7 to 47.8 in-lb torque range and an adjustable shut-off clutch. The slower speed supports a careful fastener approach and controlled tightening, while the clutch automatically stops the tool when the preset torque point is reached to help reduce overtightening and improve fastening consistency across repeated production cycles.

The Ingersoll Rand QP1T02S1D uses a pistol-grip configuration that supports controlled handling during horizontal, angled, and bench-level assembly work. Its 250 RPM speed provides the slowest rundown rate among the supplied QP1T configurations while maintaining the same upper torque capability as the 500 RPM models. This makes it a focused choice for compatible joints where a controlled approach and operator oversight matter more than rapid cycle completion.

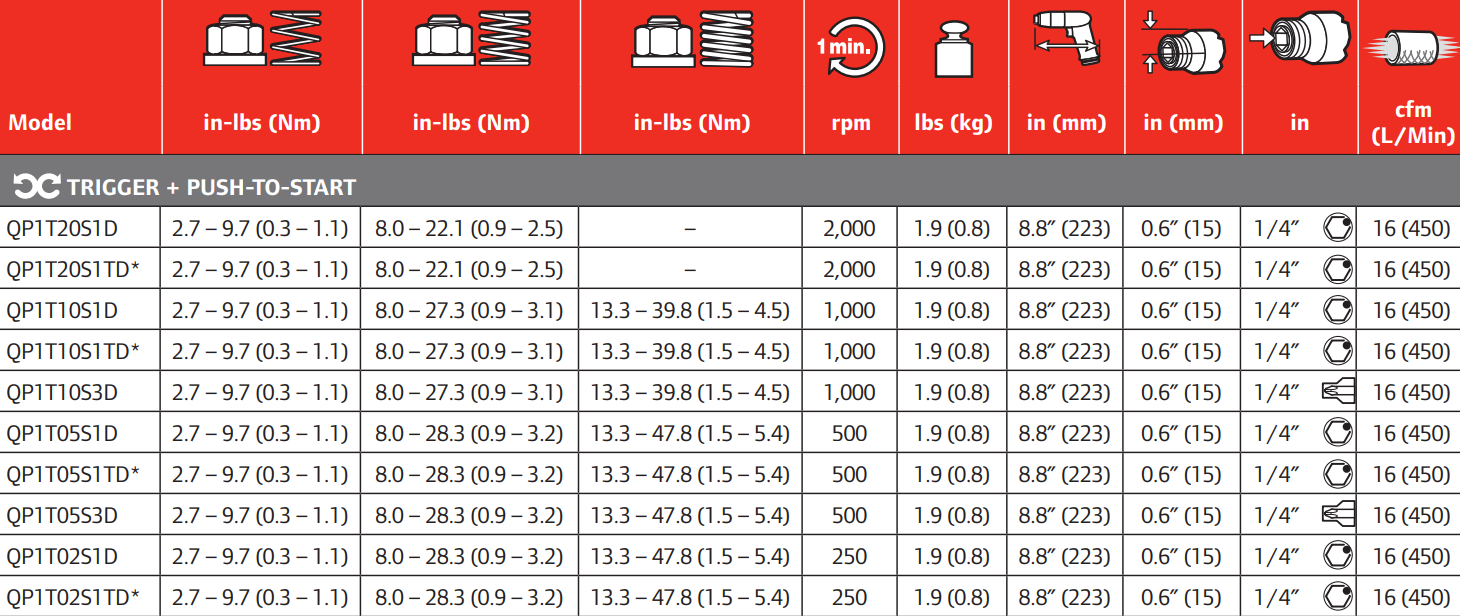

Type: Pistol Grip Air Screwdriver | Model: QP1T02S1D | Configuration: Pistol Grip | Free Speed: 250 RPM | Torque Range: 2.7 - 47.8 in-lbs | Clutch Type: Adjustable Shut-Off

Features: Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached. 250 RPM free speed provides slow, controlled screw rundown for compatible assembly applications. 2.7 to 47.8 in-lb torque range offers adjustment flexibility for fastening requirements within the tool's specified capability. Pistol-grip configuration supports controlled handling during horizontal, angled, and general bench-level fastening tasks. Automatic clutch shut-off helps reduce overtightening and supports more repeatable fastening from cycle to cycle. Slow-speed configuration favors deliberate fastener approach over maximum rundown speed. Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air. Made in USA:

Applications:

• Appliance manufacturing — tightening compatible screws in housings, frames, brackets, panels, and mechanical subassemblies.
• Automotive component assembly — completing controlled fastening operations where slower rundown suits the joint and production process.
• Electrical equipment production — installing fasteners in cabinets, controls, enclosures, and related assemblies.
• General manufacturing — handling repetitive screwdriving tasks where deliberate speed and automatic torque shut-off support consistency.
• Bench assembly stations — performing horizontal and angled fastening tasks where pistol-grip handling and controlled approach are preferred.

FAQs:

• Q: What does the adjustable shut-off clutch do on the QP1T02S1D?
  A: The clutch allows the screwdriver to be set for the required fastening torque within its specified range. Once the preset torque point is reached, the tool automatically shuts off to help reduce overtightening and support repeatable fastening results.
• Q: Why choose a 250 RPM screwdriver instead of a faster model?
  A: The slower speed gives the operator a more deliberate rundown rate and can suit joints where controlled approach is more important than minimizing cycle time. The correct choice depends on the fastener, joint behavior, and required production process.
• Q: How does the QP1T02S1D compare with the QP1T05S1D?
  A: Both supplied models have a 2.7 to 47.8 in-lb torque range and adjustable shut-off clutch. The QP1T02S1D operates at 250 RPM, while the QP1T05S1D operates at 500 RPM, making the QP1T02S1D the slower-rundown option.
• Q: Why use a pistol-grip air screwdriver for production assembly?
  A: A pistol-grip configuration can provide practical hand positioning for horizontal, angled, and bench-level fastening tasks. Tool style should be matched to fastener orientation, workstation layout, and operator access.
• Q: Does automatic shut-off guarantee identical final torque on every joint?
  A: Final results can vary with joint hardness, fastener condition, component material, bit fit, and air-supply conditions. Establish the clutch setting on the actual production joint and verify completed fasteners using the required quality-control method.
