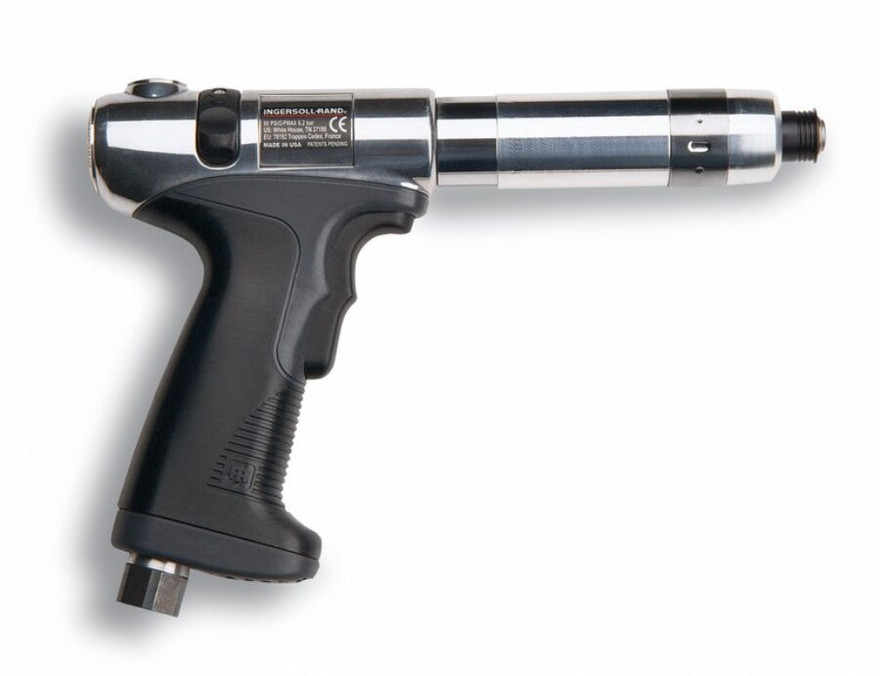

Ingersoll Rand QP1S10S1D Pistol Grip Air Screwdriver | 1,000 RPM | 2.7 - 39.8 (In-lbs) Torque Range | Adjustable Shut-Off Clutch

For repetitive assembly work that calls for more torque capacity than a high-speed screwdriver while retaining automatic fastening control, the Ingersoll Rand QP1S10S1D Pistol Grip Air Screwdriver combines 1,000 RPM free speed with a 2.7 to 39.8 in-lb torque range and an adjustable shut-off clutch. The clutch stops the tool when its preset torque point is reached, helping support repeatable tightening while reducing reliance on the operator to judge when each fastening cycle is complete.

The Ingersoll Rand QP1S10S1D balances controlled screw rundown with greater maximum torque capability than the 2,000 RPM QP1S20S1D configuration. Its pistol-grip layout supports natural handling during bench-level, horizontal, and general assembly tasks, while the 1,000 RPM speed provides a practical middle ground for applications where both cycle time and tightening capability matter. Adjustable clutch control allows the tool to be set for compatible production joints throughout its specified torque range.

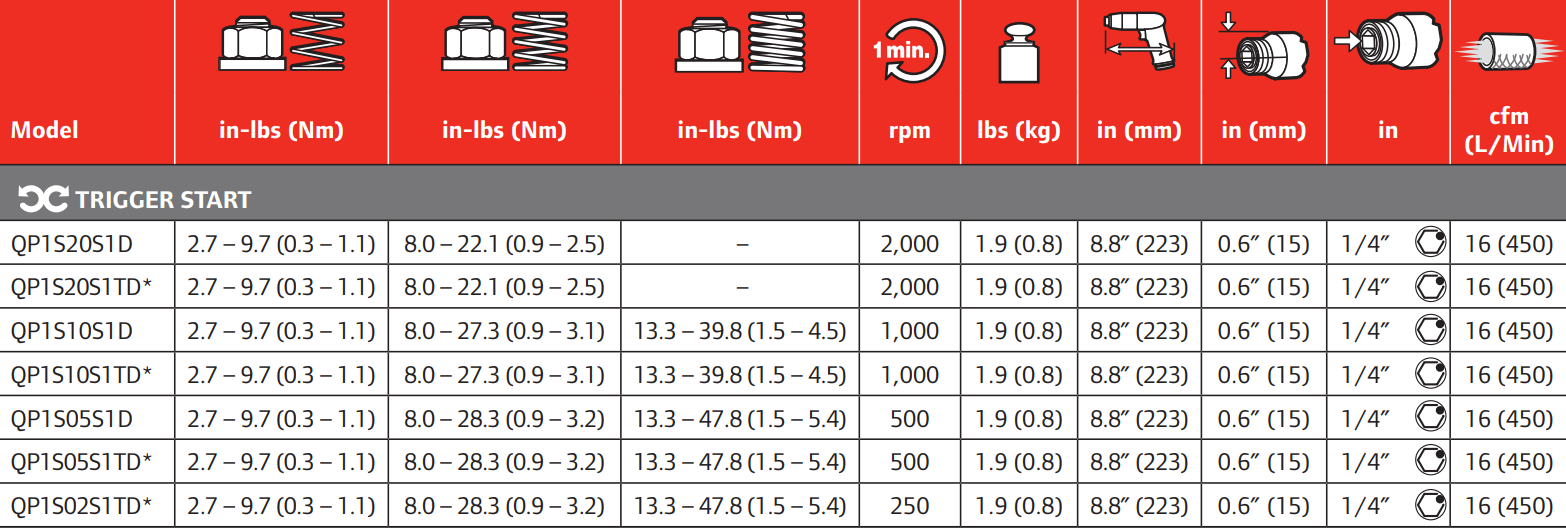

Type: Pistol Grip Air Screwdriver | Model: QP1S10S1D | Configuration: Pistol Grip | Free Speed: 1,000 RPM | Torque Range: 2.7 - 39.8 in-lbs | Clutch Type: Adjustable Shut-Off

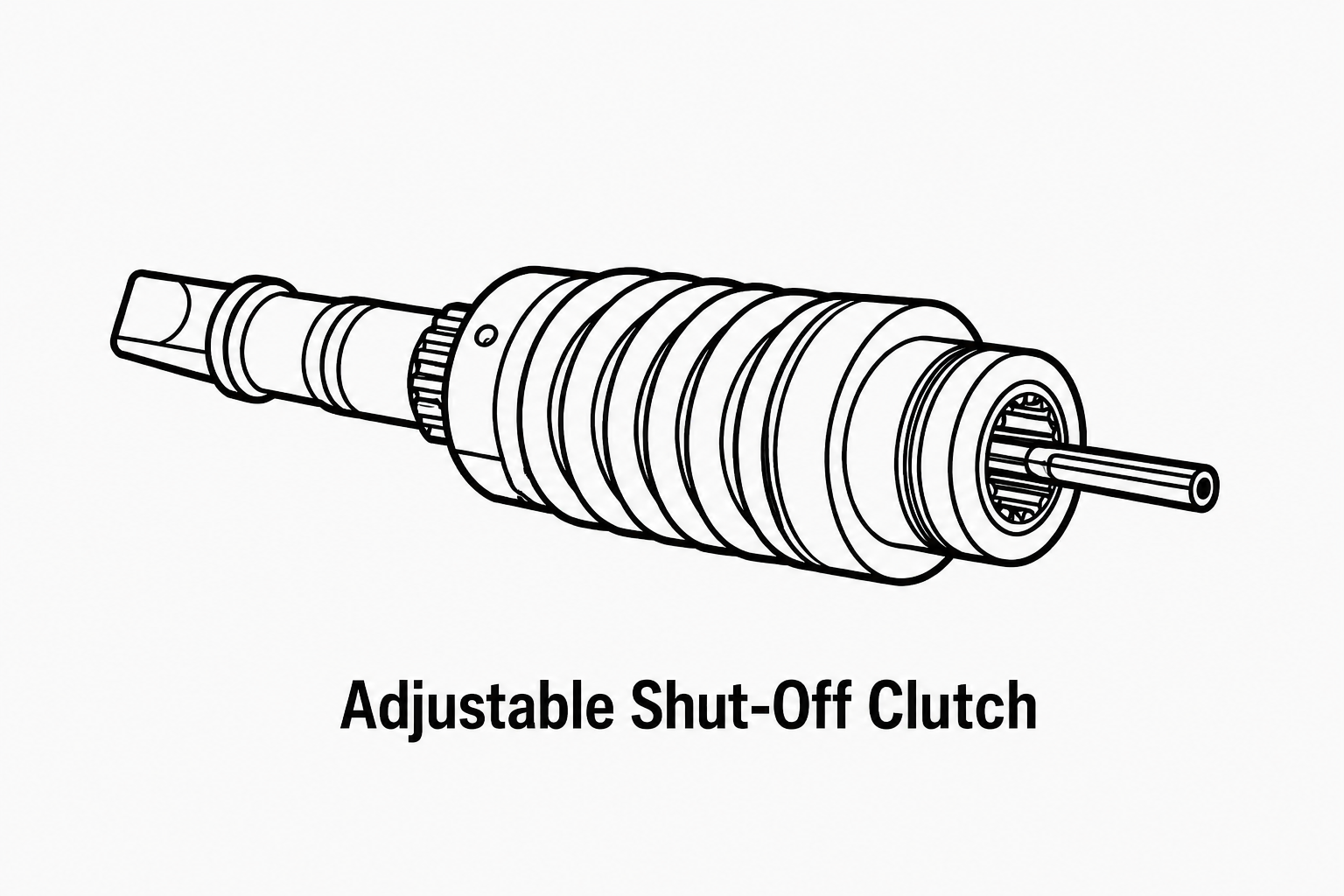

Features: Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached. 1,000 RPM free speed balances productive screw rundown with increased maximum torque capability. 2.7 to 39.8 in-lb torque range provides adjustment flexibility for compatible production fastening requirements. Pistol-grip configuration supports controlled handling during horizontal, angled, and bench-level assembly tasks. Automatic clutch shut-off helps reduce overtightening and supports more consistent fastening across repetitive production cycles. Adjustable torque output allows the screwdriver to be set according to the fastener, joint characteristics, component material, and assembly requirements. Pneumatic operation supports repeated fastening at production workstations supplied with properly conditioned compressed air. Made in USA:

Applications:

• Appliance production — fastening housings, panels, brackets, frames, and mechanical subassemblies within the specified torque range.
• Automotive component assembly — completing repetitive fastening on compatible interior components and production subassemblies.
• Electrical equipment manufacturing — installing screws in cabinets, controls, enclosures, and related equipment assemblies.
• Light manufacturing — handling repeated screwdriving operations where automatic torque shut-off supports process consistency.
• Bench and production assembly stations — completing horizontal and general fastening tasks that benefit from pistol-grip handling and controlled 1,000 RPM rundown.

FAQs:

• Q: What does the adjustable shut-off clutch do on the QP1S10S1D?
  A: The clutch allows the tool to be adjusted for the required fastening torque within its specified range. Once the preset clutch point is reached during tightening, the screwdriver shuts off automatically to help support repeatable fastening results.
• Q: How does the QP1S10S1D compare with the QP1S20S1D?
  A: The QP1S10S1D operates at 1,000 RPM with a 2.7 to 39.8 in-lb torque range, while the QP1S20S1D operates at 2,000 RPM with a 2.7 to 22.1 in-lb range. Choose between them based on whether the application prioritizes greater torque capability or faster fastener rundown.
• Q: When is a 1,000 RPM pneumatic screwdriver a good choice?
  A: This speed can suit repetitive assembly joints that require more torque capacity than higher-speed configurations without moving to the slower rundown of lower-speed models. Tool selection should ultimately be based on the required torque and characteristics of the actual production joint.
• Q: Why use a pistol-grip screwdriver for production assembly?
  A: A pistol-grip configuration can provide practical hand positioning for horizontal, angled, and bench-level fastening. The preferred configuration depends on fastener orientation, workstation layout, and operator access.
• Q: Does automatic clutch shut-off guarantee the same final torque on every fastener?
  A: Joint hardness, fastener condition, component materials, bit fit, and air-supply conditions can affect final results. Establish the clutch setting on the actual production joint and verify completed fasteners using the required quality-control method.
