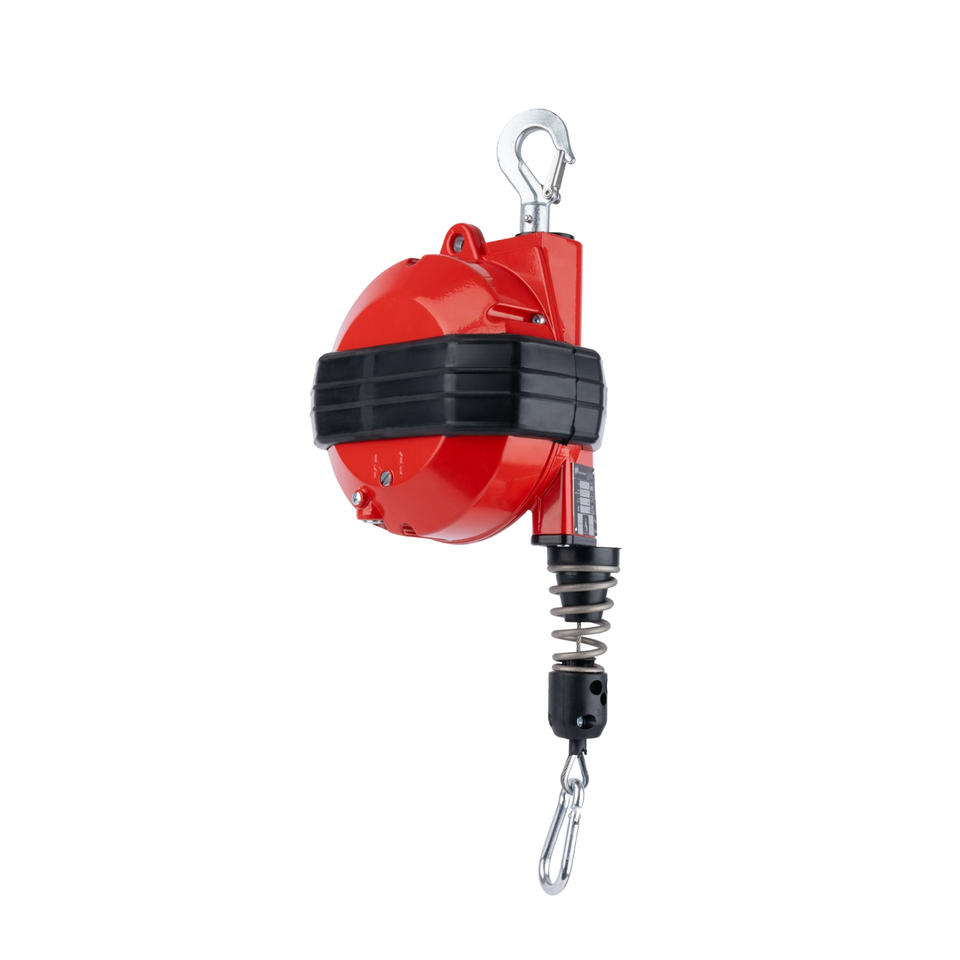

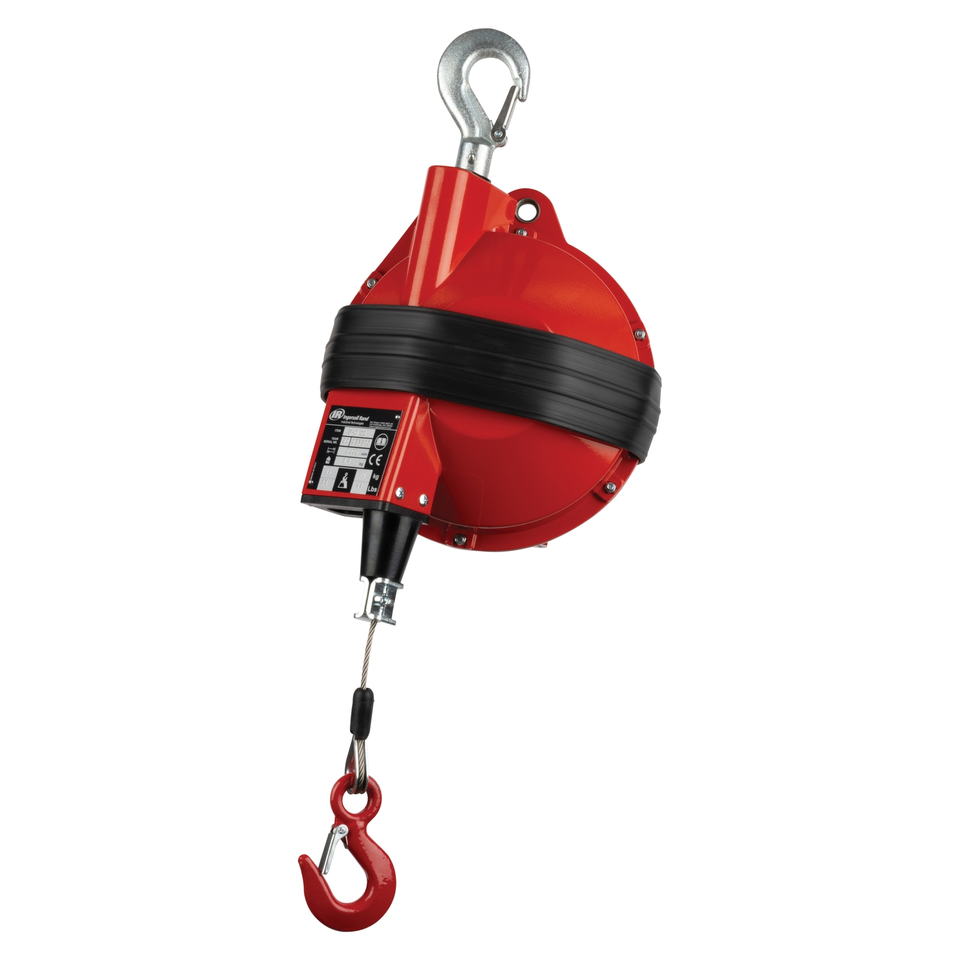

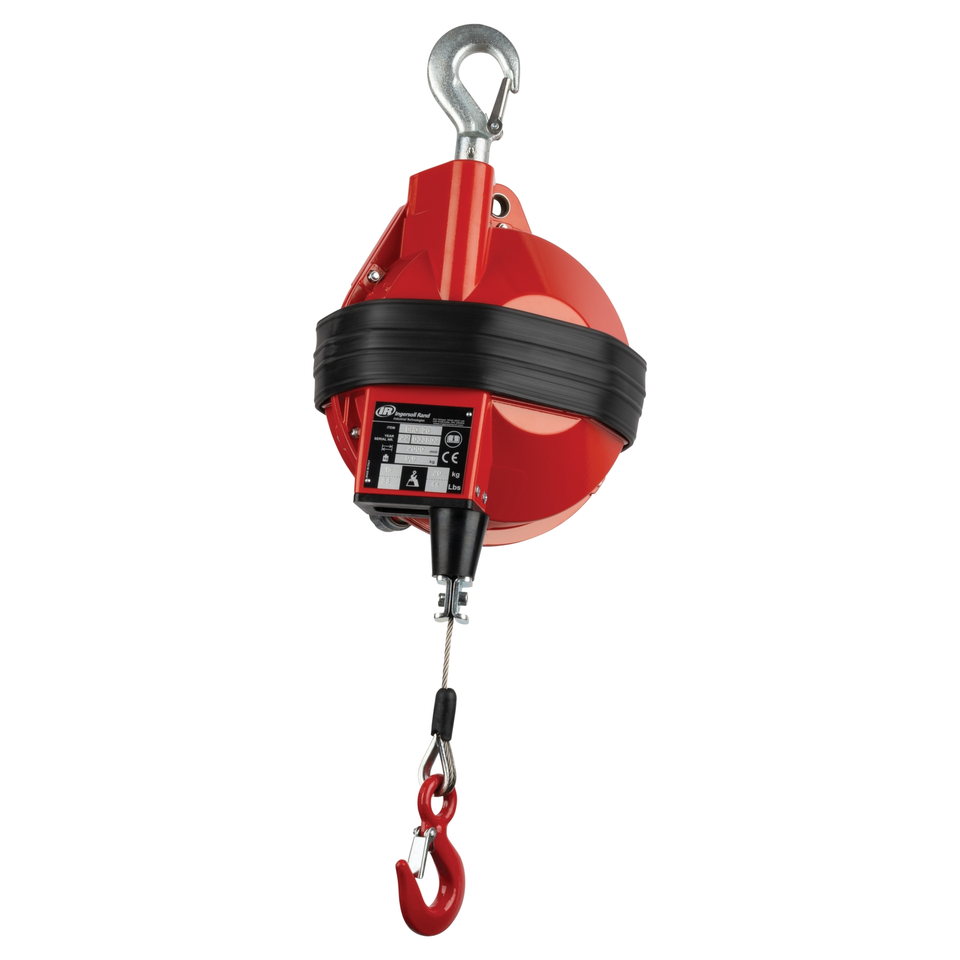

Ingersoll Rand BIDS-7 Intermediate-Duty Spring Balancer with Safety Hook is designed to support tools and other fixed loads during repetitive vertical movement in assembly, production, maintenance, and MRO applications. It provides an 8.8–15.4 lbs load capacity and 6.5 ft lift, helping compensate for the weight of supported equipment so operators can move compatible tools with minimal effort along the cable travel.
The BIDS-7 combines a stainless-steel cable with an anti-friction cable guide and ribbed, sealed monobloc construction in aluminum alloy. Its intermediate-duty design includes a locking device to block the load at any height, an adjustable stroke-limiting device, and an upper rotary suspension with safety hook. The manufacturer also specifies a safety device against load dropping due to spring breakage for the BIDS Series.
Type: Intermediate-Duty Spring Balancer | Series: BIDS Series | Model: BIDS-7 | Load Capacity: 8.8–15.4 lbs | Lift: 6.5 ft | Balancer Weight: 5 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel
Features:
- Intermediate-duty spring-balancer design provides gravity-free suspension capability for supported tools and equipment.
- 8.8–15.4 lbs capacity accommodates compatible loads within the specified operating range.
- 6.5 ft lift provides controlled vertical cable travel.
- Stainless-steel cable provides the specified cable construction.
- Anti-friction cable guide helps guide the cable during operation.
- Ribbed and sealed monobloc construction in aluminum alloy provides the specified housing construction.
- Locking device blocks the load at any height when required.
- Adjustable stroke-limiting device allows the cable travel to be controlled.
- Upper rotary suspension with safety hook provides the specified overhead suspension arrangement.
- Safety device helps prevent load dropping due to spring breakage.
Made in Italy:
Applications:

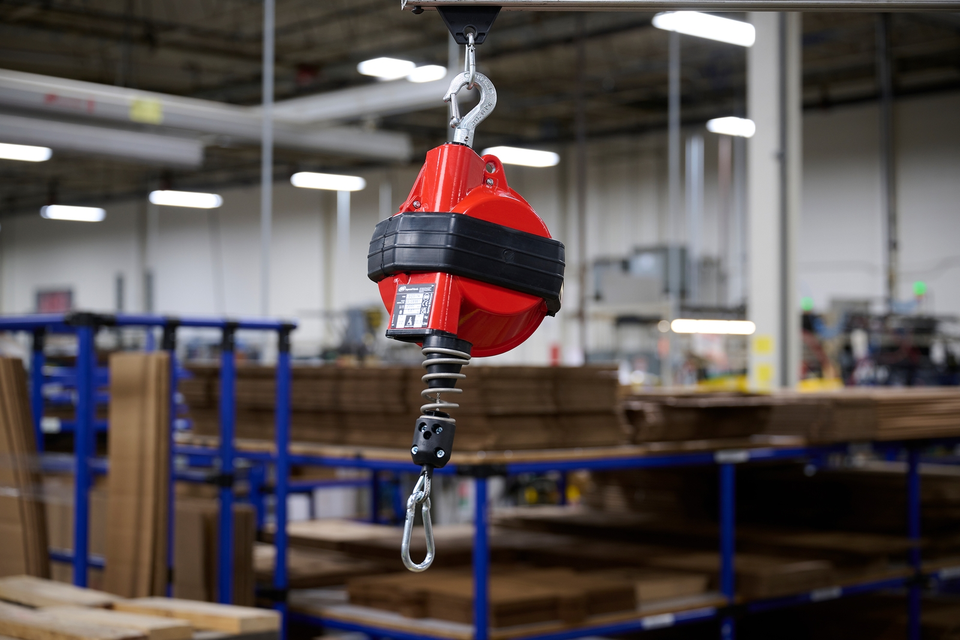

- Assembly workstations requiring overhead support for tools weighing within the 8.8–15.4 lbs capacity range.
- Production environments where supported tools are repeatedly raised, lowered, and repositioned.
- Automotive service and maintenance stations requiring controlled vertical tool movement.
- Industrial MRO workstations using compatible equipment within the balancer's rated capacity.
- Repetitive tool-use applications where gravity-free suspension can reduce the effort required to move supported equipment.
FAQs:
- Q: What is the load capacity of the BIDS-7?
A: The BIDS-7 is rated for loads from 8.8 to 15.4 lbs. - Q: How much lift does the BIDS-7 provide?
A: The BIDS-7 provides 6.5 ft of vertical cable travel. - Q: What is the purpose of the safety hook?
A: The BIDS-7 has an upper rotary suspension with a safety hook for the specified overhead suspension arrangement. - Q: Can the BIDS-7 hold a load at a selected height?
A: Yes. The BIDS-7 includes a locking device designed to block the load at any height. - Q: What is the purpose of the spring-break safety device?
A: The safety device is designed to prevent the load from dropping due to spring breakage.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Intermediate Duty | |||||
| BIDS-7 | 8.8 - 15.4 (4 - 7) | 5 (2.3) | 6.5 (2,000) | - | - |
| BIDS-10 | 15.4 - 22 (7 - 10) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-14 | 22 - 30.8 (10 - 14) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-18 | 30.8 - 39.6 (14 - 18) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-22 | 39.6 - 48.4 (18 - 22) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-26 | 48.4 - 55 (22 - 25) | 6.5 (2.9) | 6.5 (2,000) | - | - |

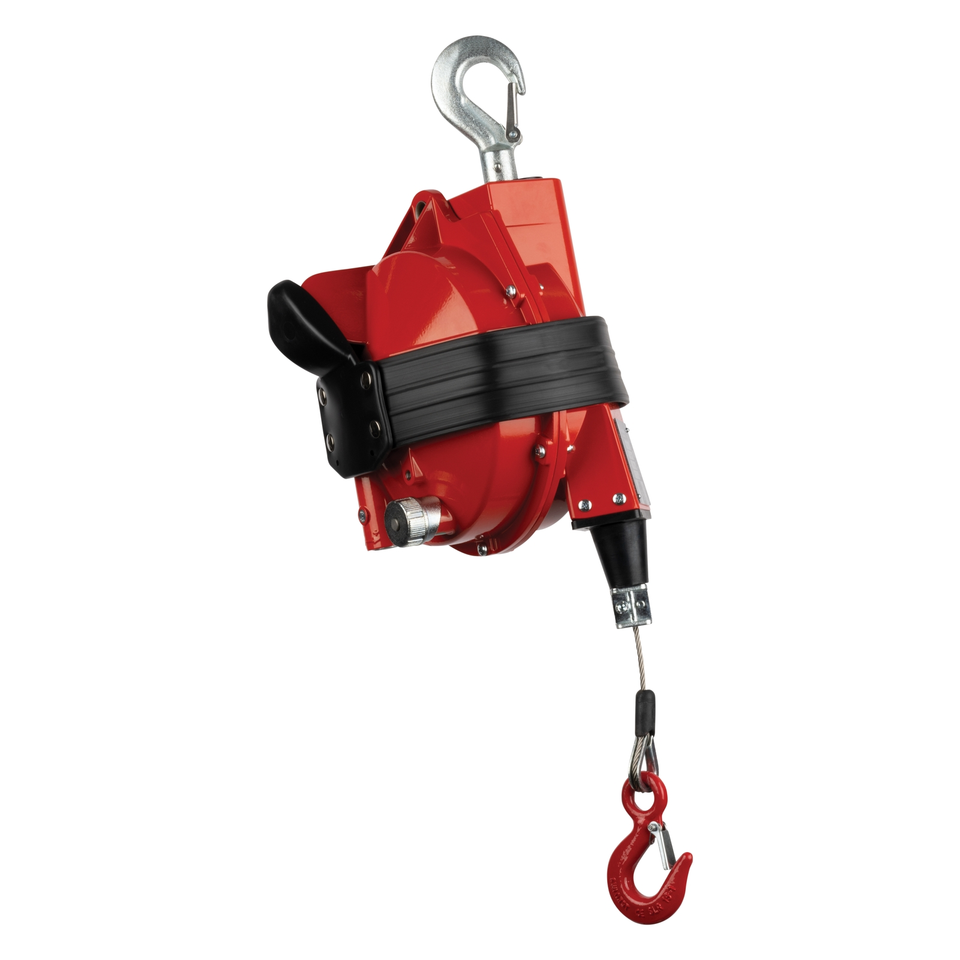

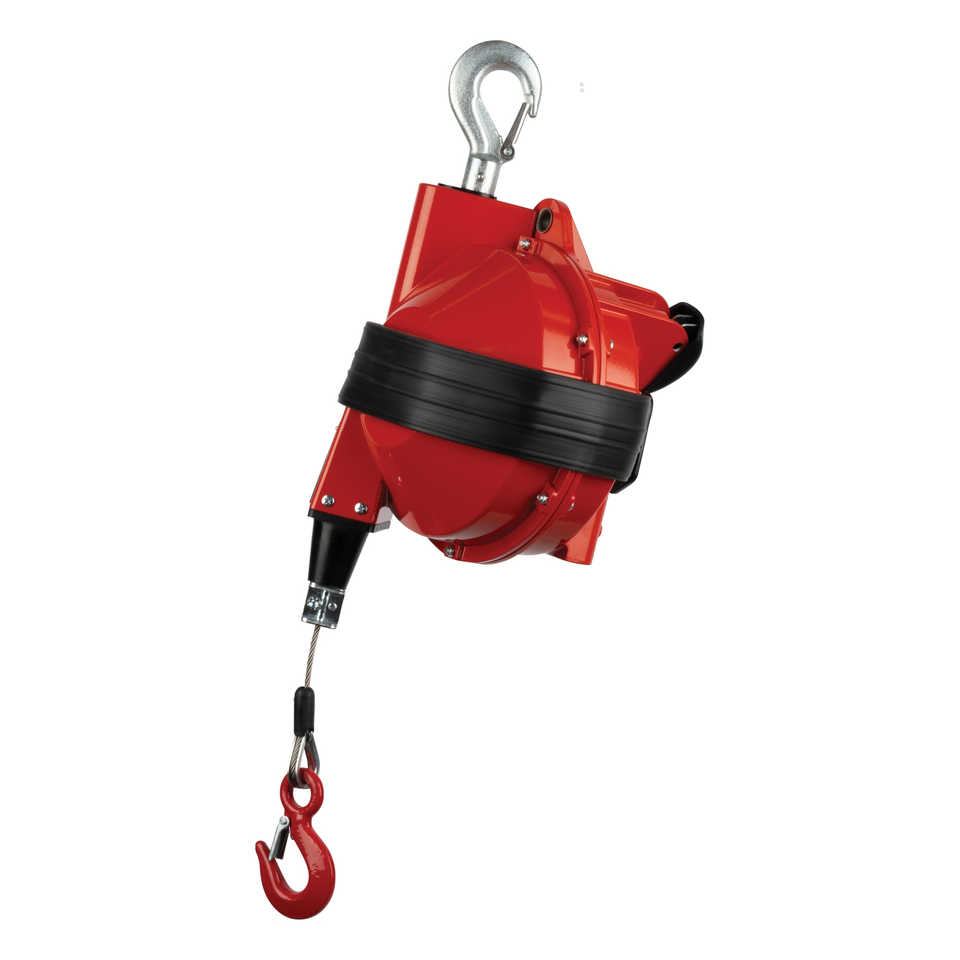

| BHD-15 | 22 - 33 (10 - 15) | 22.7 (10.3) | 6.5 (2,000) | - | - |
| BHD-20 | 33 - 44 (15 - 20) | 23.4 (10.6) | 6.5 (2,000) | - | - |
| BHD-25 | 44 - 55 (20 - 25) | 24.7 (11.2) | 6.5 (2,000) | - | - |
| BHD-30 | 55 - 66 (25 - 30) | 25.4 (11.5) | 6.5 (2,000) | - | - |
| BHD-35 | 66 - 77 (30 - 35) | 26 (11.8) | 6.5 (2,000) | - | - |
| BHD-45 | 77 - 99 (35 - 45) | 27.3 (12.4) | 6.5 (2,000) | - | - |
| BHD-55 | 99 - 121 (45 - 55) | 27.6 (12.5) | 6.5 (2,000) | - | - |
| BHD-65 | 121 - 143 (55 - 65) | 30 (13.6) | 6.5 (2,000) | - | - |
