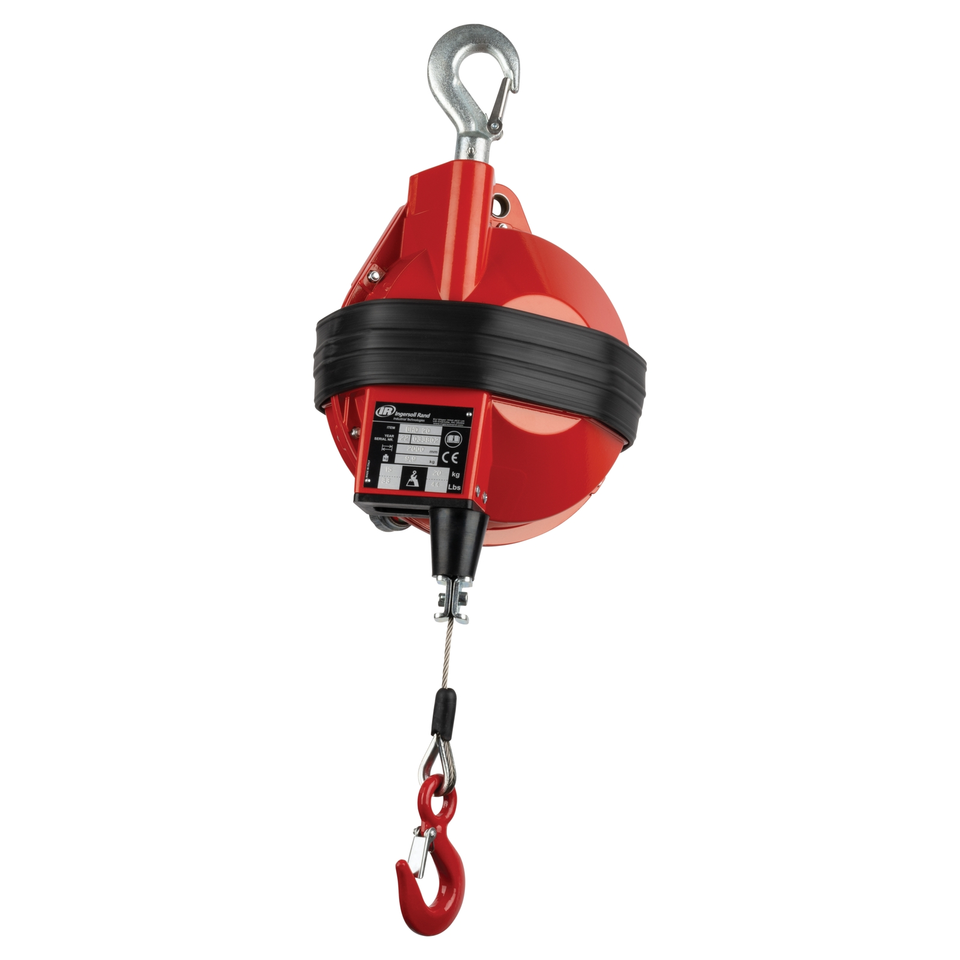

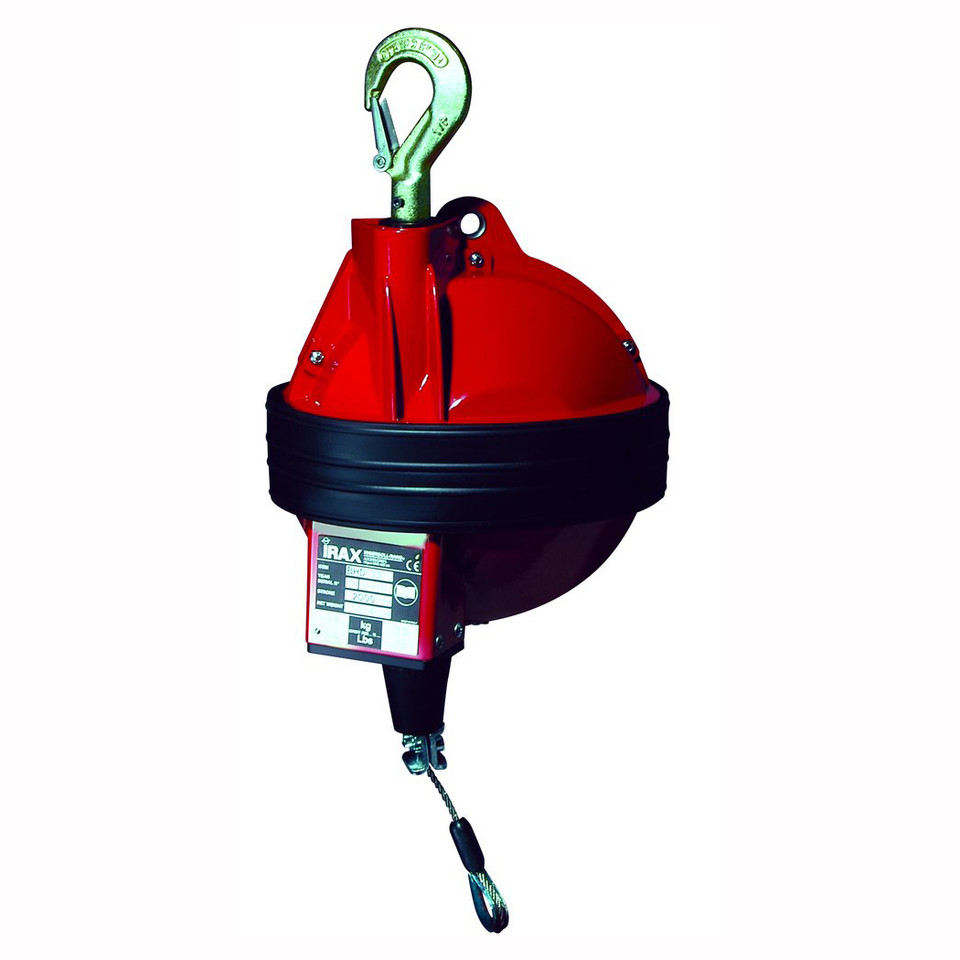

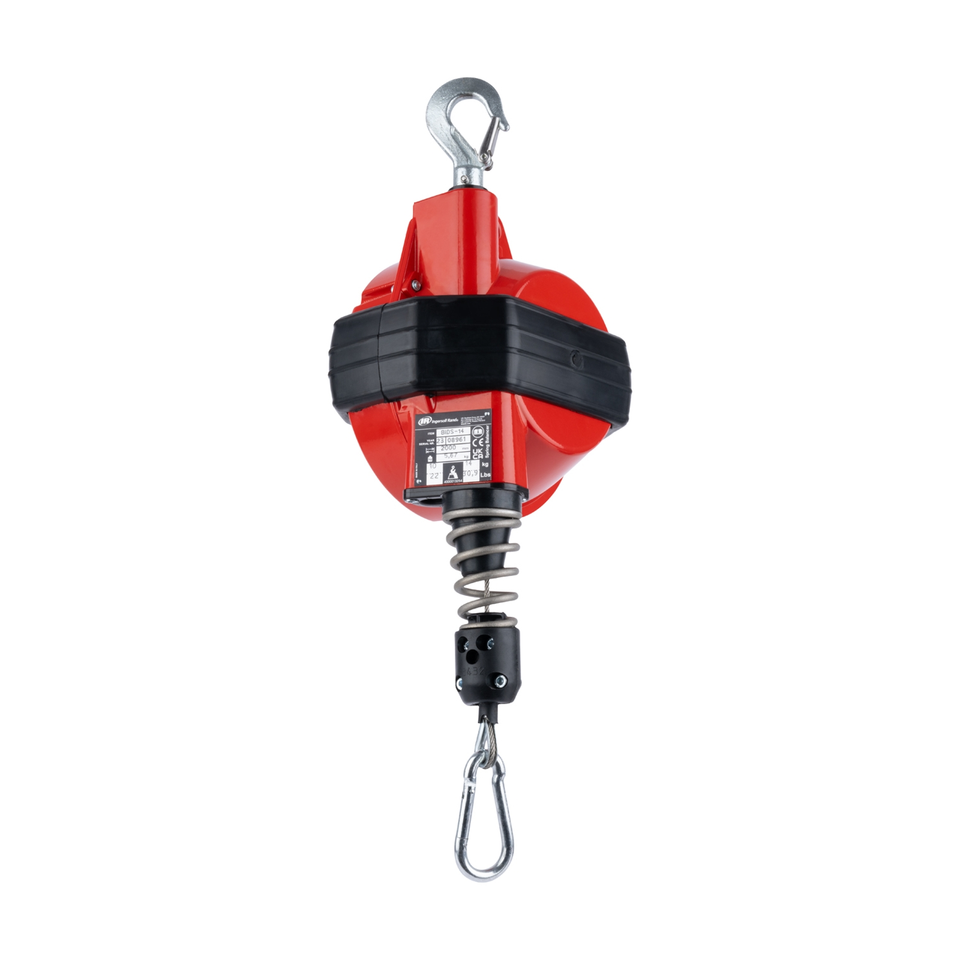

Ingersoll Rand BHD-65 Heavy-Duty Spring Balancer | BHD Series | 6.5' Lift | 121-143 (lbs.) Load Capacity

Ingersoll Rand BHD-65 Heavy-Duty Spring Balancer is designed to support heavier tools and equipment during repetitive assembly, production, service, maintenance, and MRO operations. It provides a 121–143 lbs load capacity and 6.5 ft lift, helping counter the weight of supported equipment while allowing compatible loads to move through the available vertical travel.

The BHD-65 is part of the BHD Series of heavy-duty spring balancers and has a listed 30 lbs balancer weight. The manufacturer describes the spring-balancer family as providing a gravity-free effect that counters the weight of tools while in use. The BHD Series is intended for applications requiring spring-assisted support of heavier tools and equipment.

Type: Heavy-Duty Spring Balancer | Series: BHD Series | Model: BHD-65 | Load Capacity: 121–143 lbs | Lift: 6.5 ft | Balancer Weight: 30 lbs

Features:

• Heavy-duty spring-balancer design provides spring-assisted support for compatible tools and equipment.
• 121–143 lbs load capacity accommodates supported equipment within the specified operating range.
• 6.5 ft lift provides controlled vertical cable travel.
• The spring-balancer mechanism counters the weight of supported tools while they are in use.
• The BHD Series is designed for heavier supported loads than the intermediate-duty BIDS Series.
• The BHD Series is suited to repetitive tool-use applications requiring controlled vertical movement of supported equipment.

Made in Italy:

Applications:

• Assembly workstations requiring overhead support for tools weighing within the 121–143 lbs capacity range.
• Production environments where heavier tools or equipment are repeatedly raised, lowered, and repositioned.
• Automotive service and maintenance applications requiring spring-assisted support for compatible heavy equipment.
• Industrial MRO workstations using equipment within the balancer's rated capacity.
• Manufacturing applications requiring controlled vertical movement of heavier suspended tools or equipment.

FAQs:

• Q: What is the load capacity of the BHD-65?
  A: The BHD-65 is specified for loads from 121 to 143 lbs.
• Q: How much lift does the BHD-65 provide?
  A: The BHD-65 provides 6.5 ft of vertical lift.
• Q: What is the weight of the BHD-65 balancer?
  A: The manufacturer lists the BHD-65 balancer weight as 30 lbs.
• Q: What type of application is the BHD-65 intended for?
  A: It is intended for compatible tools and equipment requiring spring-assisted overhead support within the specified 121–143 lbs load range.
• Q: Can the BHD-65 support more than 143 lbs?
  A: No. The specified load capacity is 121–143 lbs, so the complete supported load should remain within that range.
• Q: What should I verify before selecting the BHD-65?
  A: Verify that the complete suspended load falls within the 121–143 lbs capacity range and that the required vertical movement is within the 6.5 ft lift.
