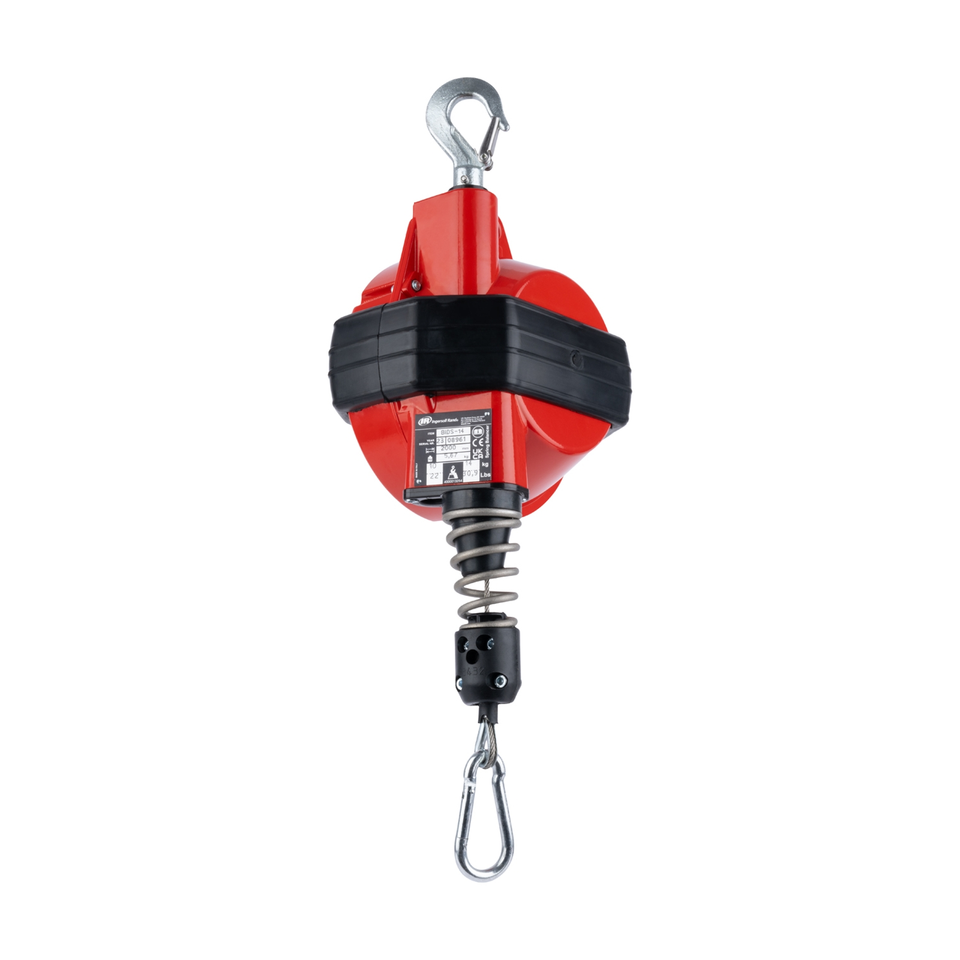

Ingersoll Rand BHD-30 Heavy-Duty Spring Balancer | BHD Series | 6.5' Lift | 55-66 (lbs.) Load Capacity

Ingersoll Rand BHD-30 Heavy-Duty Spring Balancer is designed to support heavier tools and manufacturing equipment during repetitive vertical movement in assembly, production, service, maintenance, and MRO applications. It provides a 55–66 lbs load capacity and 6.5 ft lift, helping counter the weight of supported equipment so operators can raise and lower compatible loads with minimal effort along the cable travel. Ingersoll Rand describes the B Series as providing a gravity-free suspension effect for supported tools.

The BHD-30 is part of the BHD Series and has a listed 25.4 lbs balancer weight. It uses a stainless-steel cable with an anti-friction cable guide and an aluminum housing. The heavy-duty series also incorporates precision-guided cable winding, worm-screw capacity adjustment, a spring drum assembly, a safety device against load dropping due to spring breakage, and an upper rotary suspension with safety hook.

Type: Heavy-Duty Spring Balancer | Series: BHD Series | Model: BHD-30 | Load Capacity: 55–66 lbs | Lift: 6.5 ft | Balancer Weight: 25.4 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel

Features:

• Heavy-duty spring-balancer design provides gravity-free suspension capability for compatible tools and manufacturing equipment.
• 55–66 lbs load capacity accommodates supported equipment within the specified operating range.
• 6.5 ft lift provides controlled vertical cable travel.
• Aluminum housing provides the specified housing material.
• Stainless-steel cable provides the specified cable construction.
• Anti-friction cable guide helps guide the cable during operation.
• Precision-guided cable winding is designed to prevent jamming during cable movement.
• Worm-screw capacity adjustment allows the spring balance to be adjusted for the supported load.
• Spring drum assembly provides the spring-based balancing mechanism.
• Safety device helps prevent load dropping due to spring breakage.
• Upper rotary suspension with safety hook provides the specified overhead suspension arrangement.

Made in Italy:

Applications:

• Assembly workstations requiring overhead support for tools weighing within the 55–66 lbs capacity range.
• Production environments where heavier tools or manufacturing equipment are repeatedly raised, lowered, and repositioned.
• Automotive service and maintenance stations requiring supported vertical tool movement.
• Industrial MRO workstations using compatible equipment within the balancer's rated capacity.
• Manufacturing applications where spring-assisted support is needed for repetitive handling of heavier equipment.

FAQs:

• Q: What is the load capacity of the BHD-30?
  A: The BHD-30 is specified for loads from 55 to 66 lbs.
• Q: How much lift does the BHD-30 provide?
  A: The BHD-30 provides 6.5 ft of vertical cable travel.
• Q: What is the weight of the BHD-30 balancer?
  A: The manufacturer lists the BHD-30 balancer weight as 25.4 lbs.
• Q: What type of cable does the BHD-30 use?
  A: The BHD-30 uses a stainless-steel cable with an anti-friction cable guide.
• Q: How is the BHD-30 capacity adjusted?
  A: The BHD Series uses a worm-screw capacity adjustment.
• Q: Does the BHD-30 have a safety hook?
  A: Yes. The BHD Series uses an upper rotary suspension with a safety hook.
• Q: Can the BHD-30 support more than 66 lbs?
  A: No. The specified load capacity is 55–66 lbs, so the complete supported load should remain within that range.
