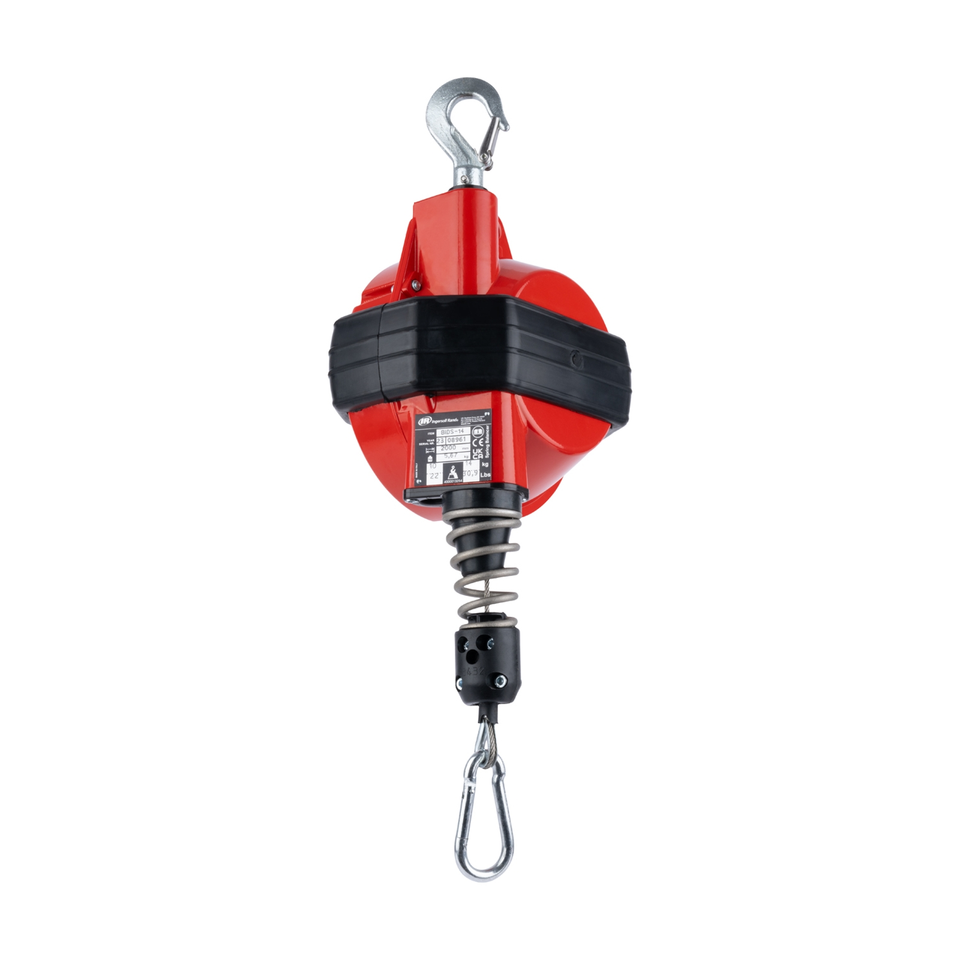

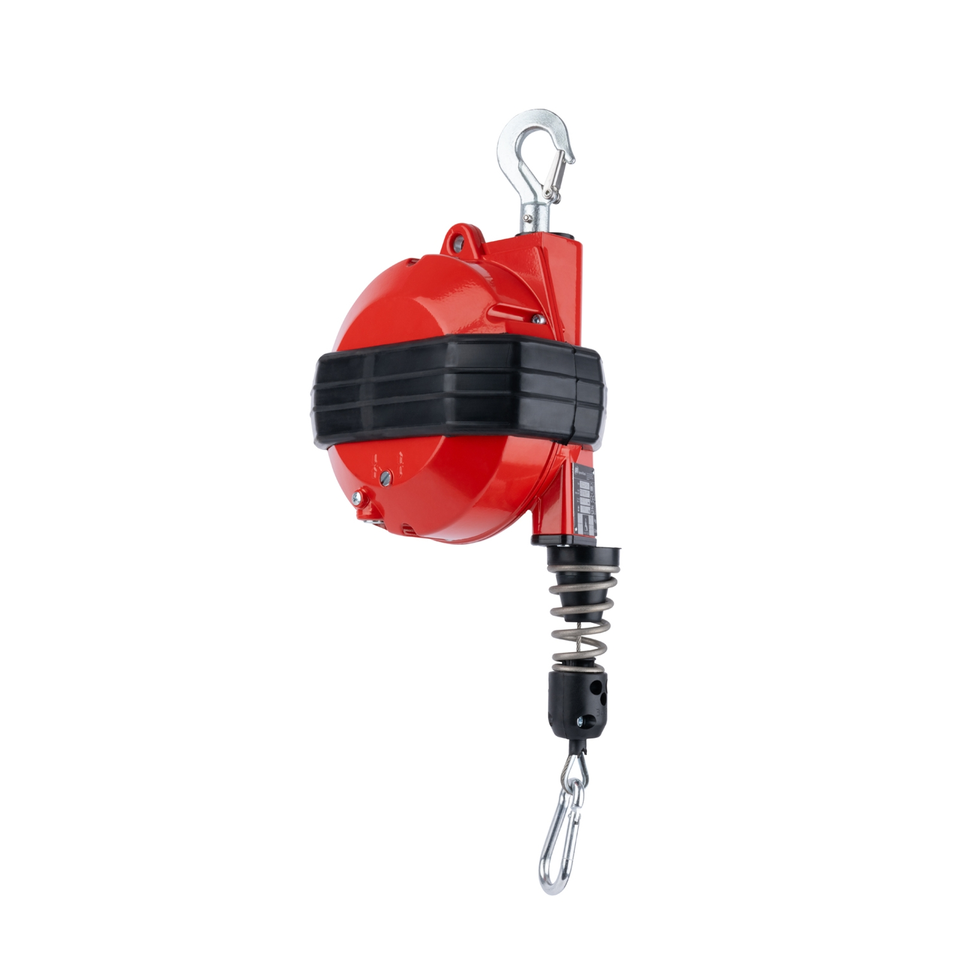

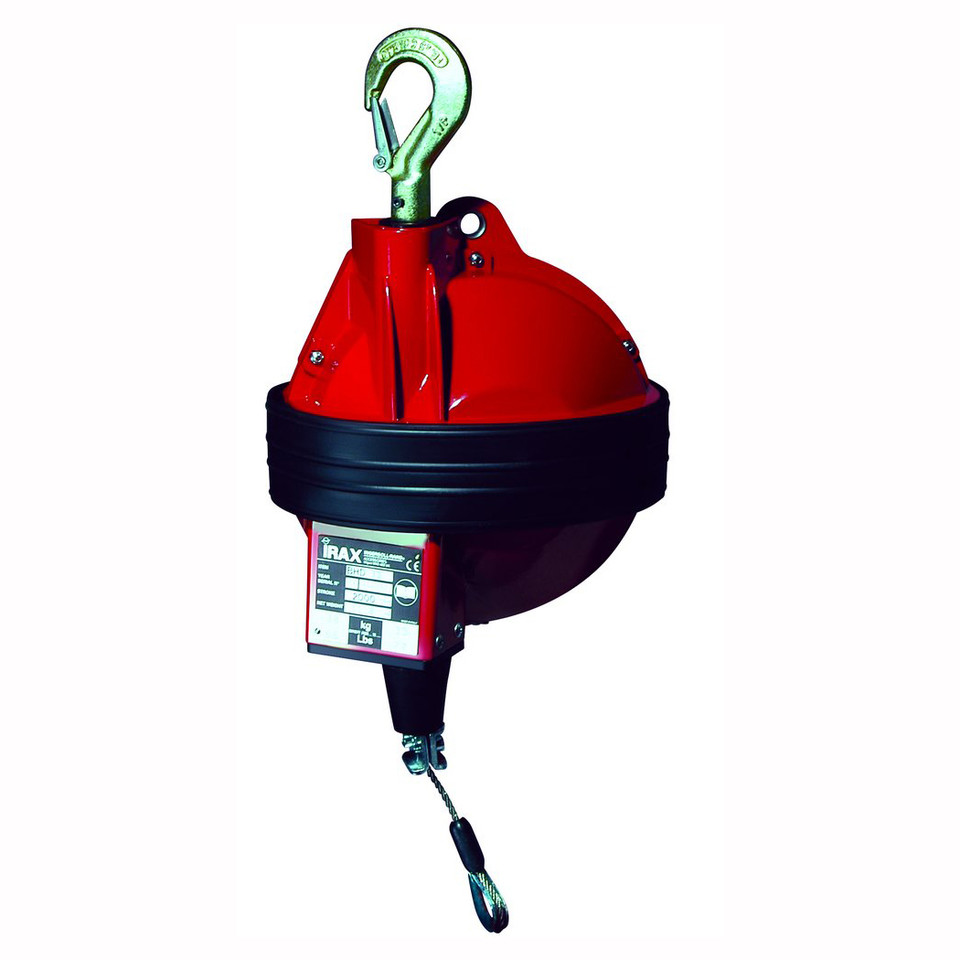

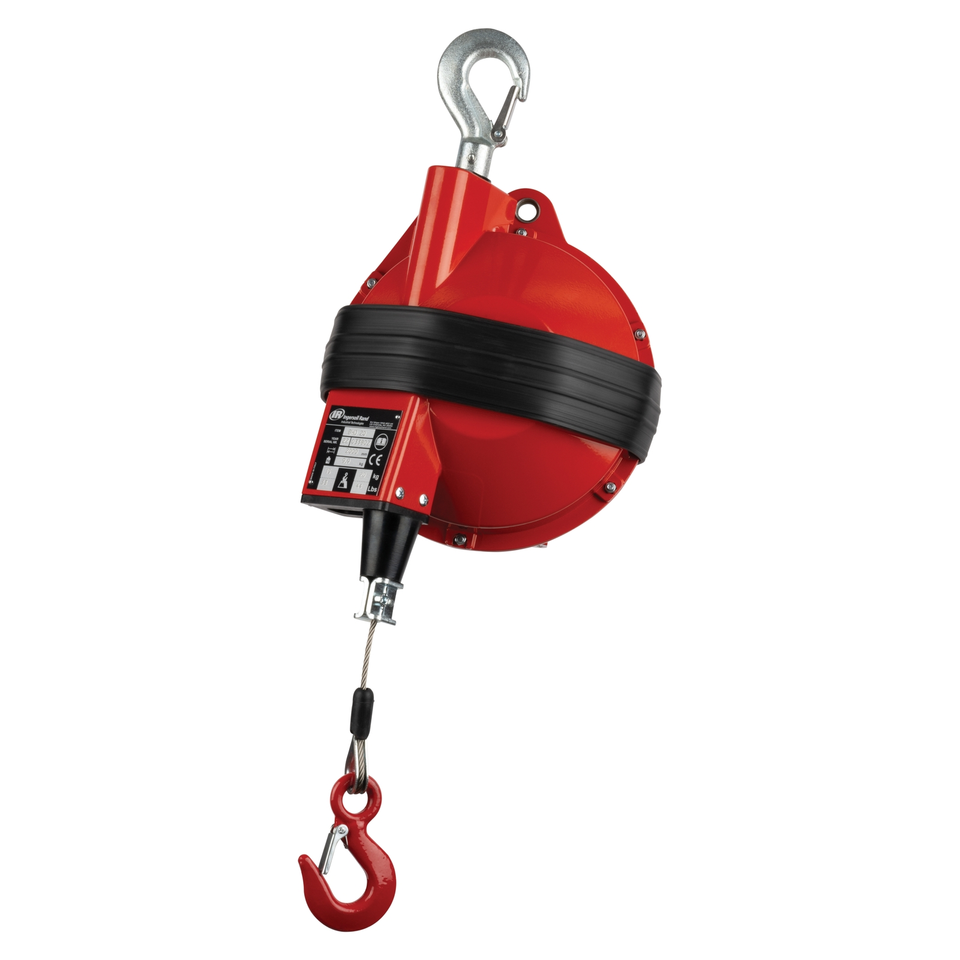

Ingersoll Rand BHD-20 Heavy-Duty Spring Balancer | BHD Series | 6.5' Lift | 33-44 (lbs.) Load Capacity

Ingersoll Rand BHD-20 Heavy-Duty Spring Balancer is designed to support heavier tools and equipment during repetitive assembly, production, service, maintenance, and MRO operations. It provides a 33–44 lbs load capacity and 6.5 ft lift, helping counter the weight of supported equipment and providing controlled vertical movement within the available cable travel.

The BHD-20 is part of the BHD Series of heavy-duty spring balancers. Its heavy-duty design is suited to supported loads within the specified 33–44 lbs range, while the 6.5 ft lift provides the required vertical cable travel for compatible workstation applications. The manufacturer specifies this series for applications requiring spring-assisted support of tools and equipment.

Type: Heavy-Duty Spring Balancer | Series: BHD Series | Model: BHD-20 | Load Capacity: 33–44 lbs | Lift: 6.5 ft

Features:

• Heavy-duty spring-balancer design provides support for compatible tools and equipment during vertical movement.
• 33–44 lbs load capacity accommodates supported equipment within the specified operating range.
• 6.5 ft lift provides controlled vertical cable travel for supported equipment.
• BHD Series design is suited to applications requiring spring-assisted overhead support for heavier loads.
• The spring-balancer mechanism helps counter the weight of supported equipment during positioning.
• Designed for repetitive tool-use applications where supported equipment needs controlled vertical movement.

Made in Italy:

Applications:

• Assembly workstations requiring overhead support for tools weighing within the 33–44 lbs capacity range.
• Production environments where heavier supported tools are repeatedly raised, lowered, and repositioned.
• Automotive service and maintenance stations requiring supported vertical tool movement.
• Industrial MRO workstations using compatible equipment within the balancer's rated capacity.
• Manufacturing applications where spring-assisted support is needed for repetitive handling of heavier tools or equipment.

FAQs:

• Q: What is the load capacity of the BHD-20?
  A: The BHD-20 is specified for loads from 33 to 44 lbs.
• Q: How much lift does the BHD-20 provide?
  A: The BHD-20 provides 6.5 ft of vertical lift.
• Q: What type of equipment can be supported by the BHD-20?
  A: It is intended for compatible tools and equipment whose complete supported load falls within the specified 33–44 lbs capacity range.
• Q: Is the BHD-20 suitable for repetitive tool use?
  A: Yes. Its spring-balancer design provides overhead support for compatible equipment during repetitive vertical movement.
• Q: Can the BHD-20 support a load above 44 lbs?
  A: No. The specified load capacity is 33–44 lbs, so the complete supported load should remain within that range.
• Q: What should I check before selecting the BHD-20?
  A: Verify that the complete suspended load is within the 33–44 lbs capacity range and that the required vertical movement is within the 6.5 ft lift.

Looking for more information about the Ingersoll Rand Spring Balancer? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
