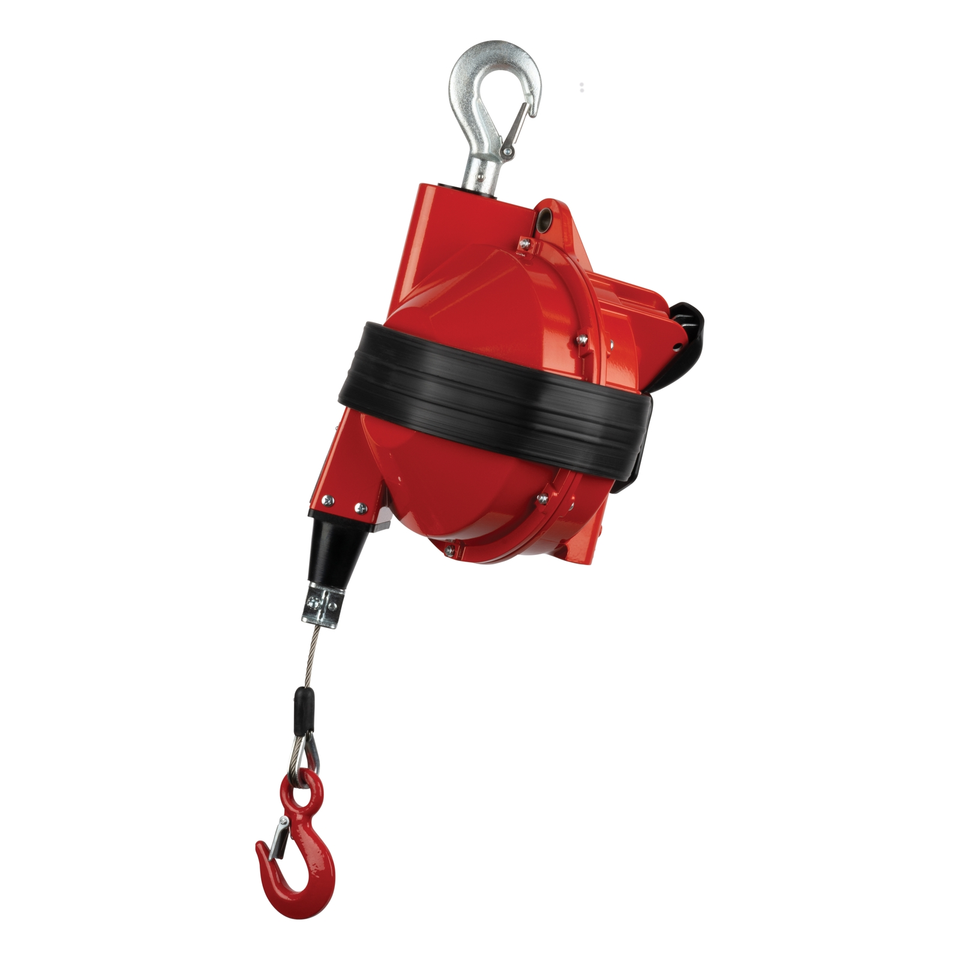

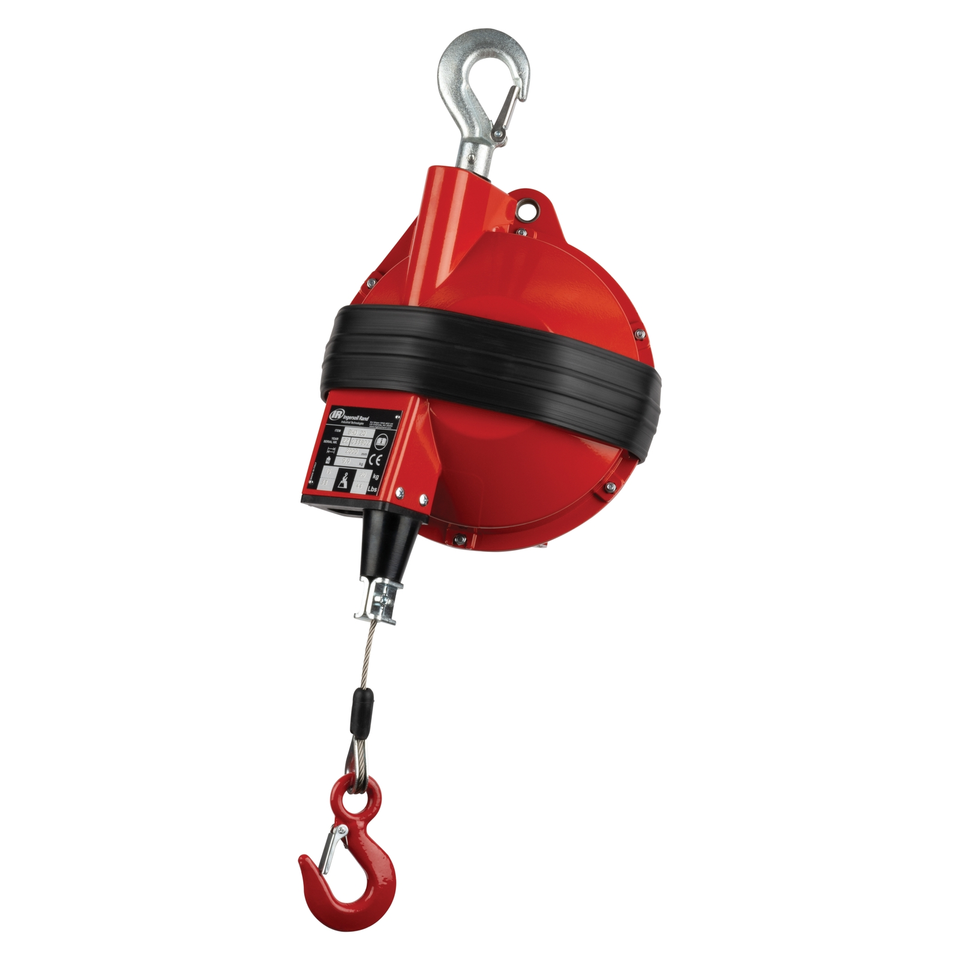

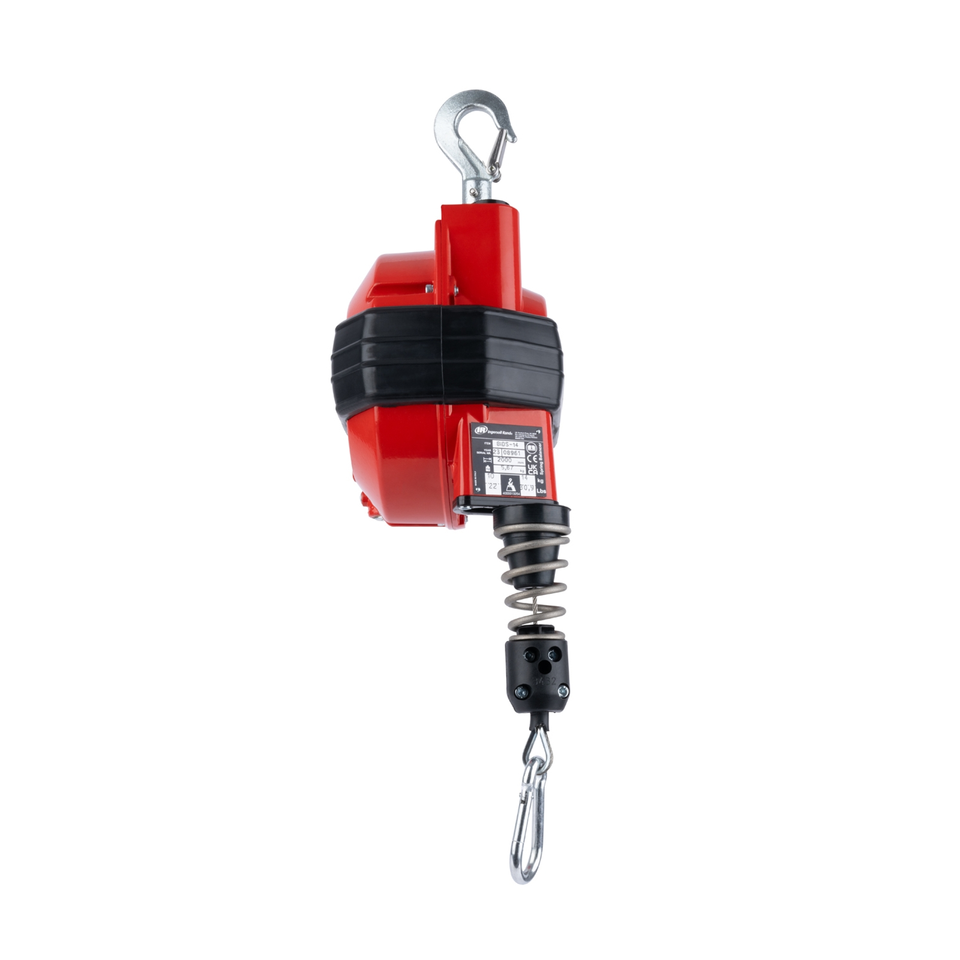

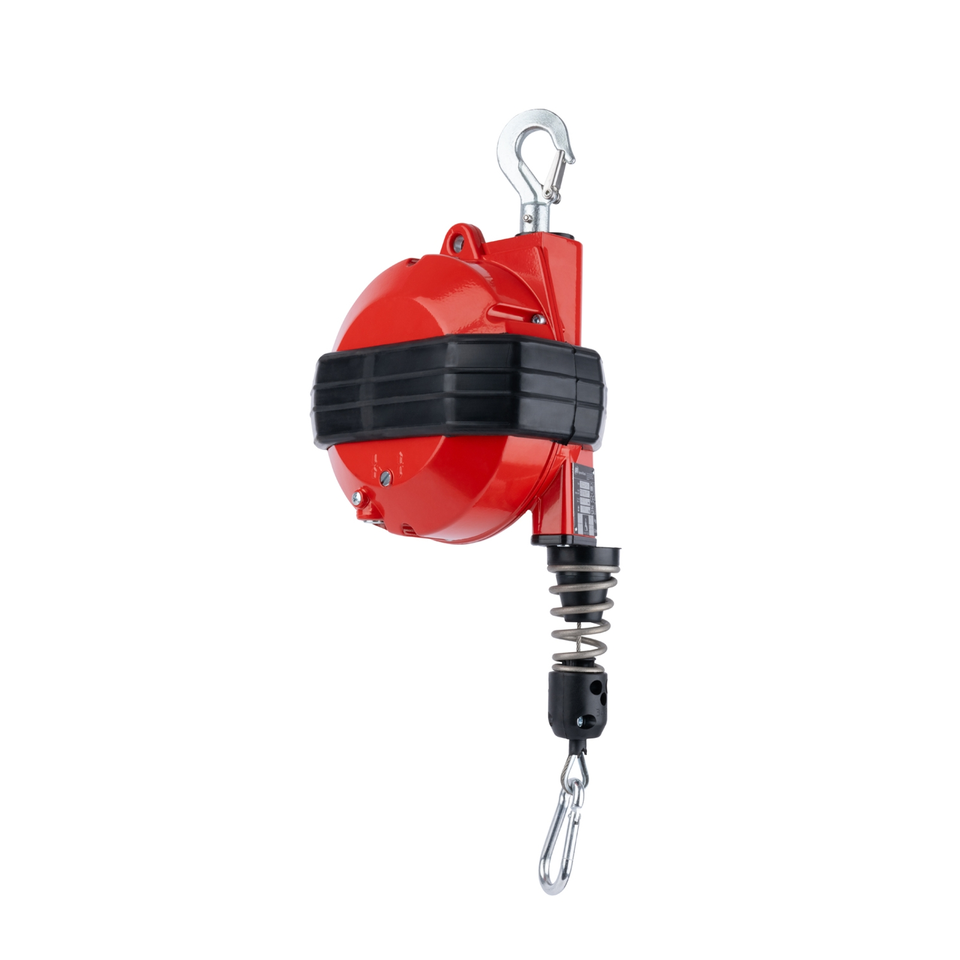

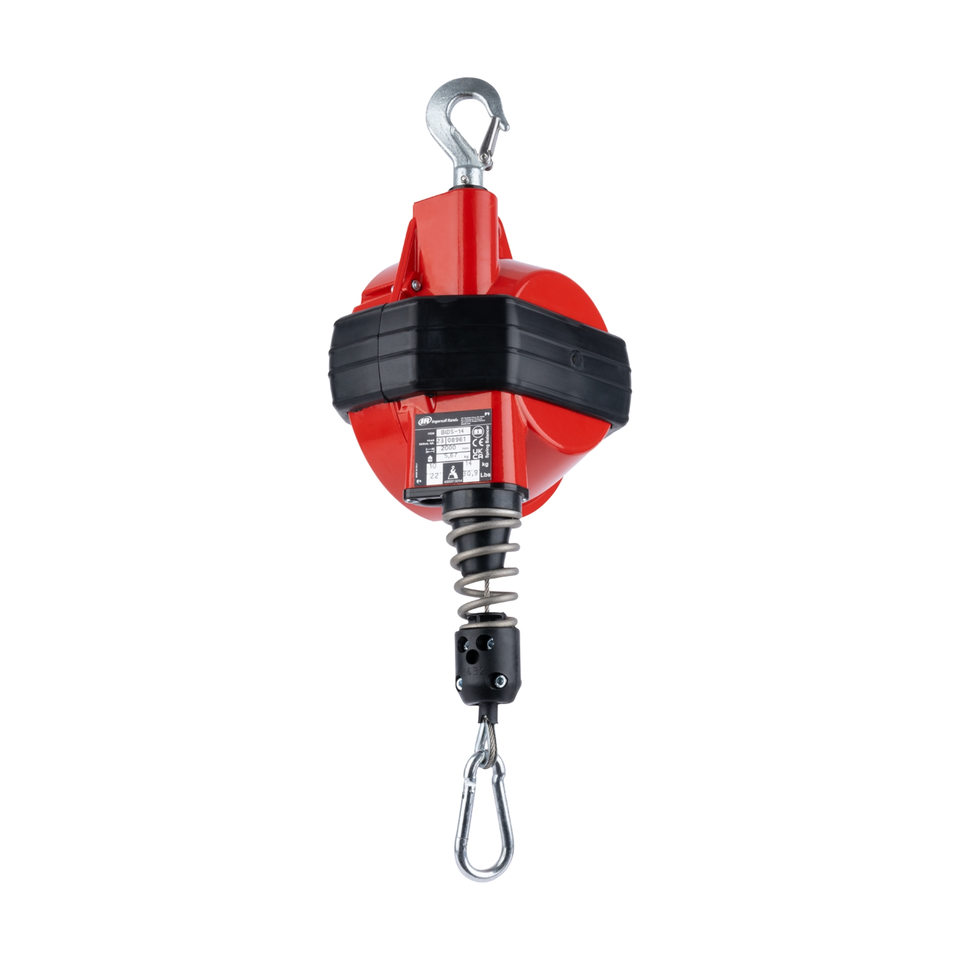

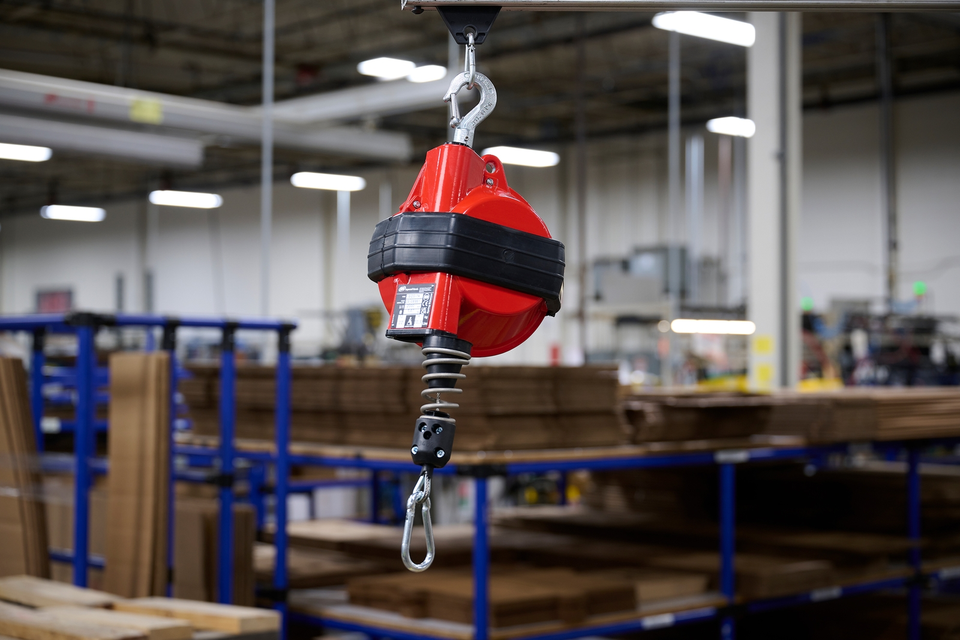

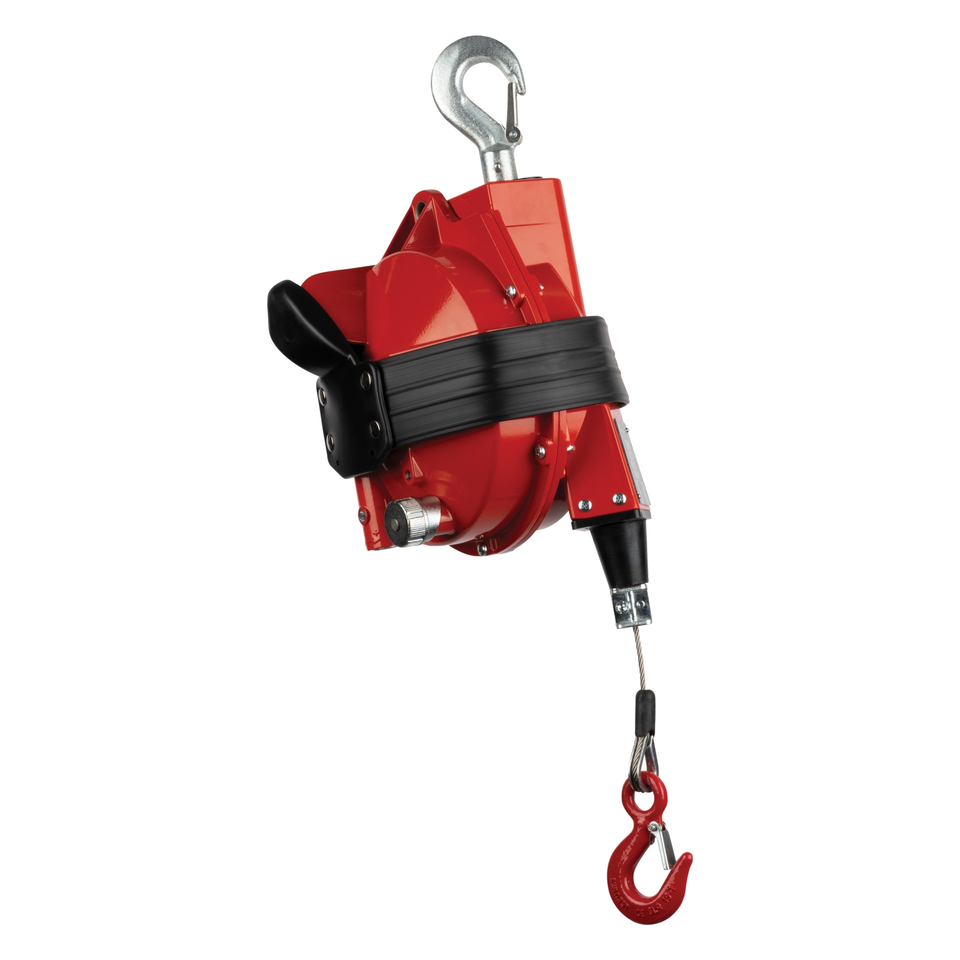

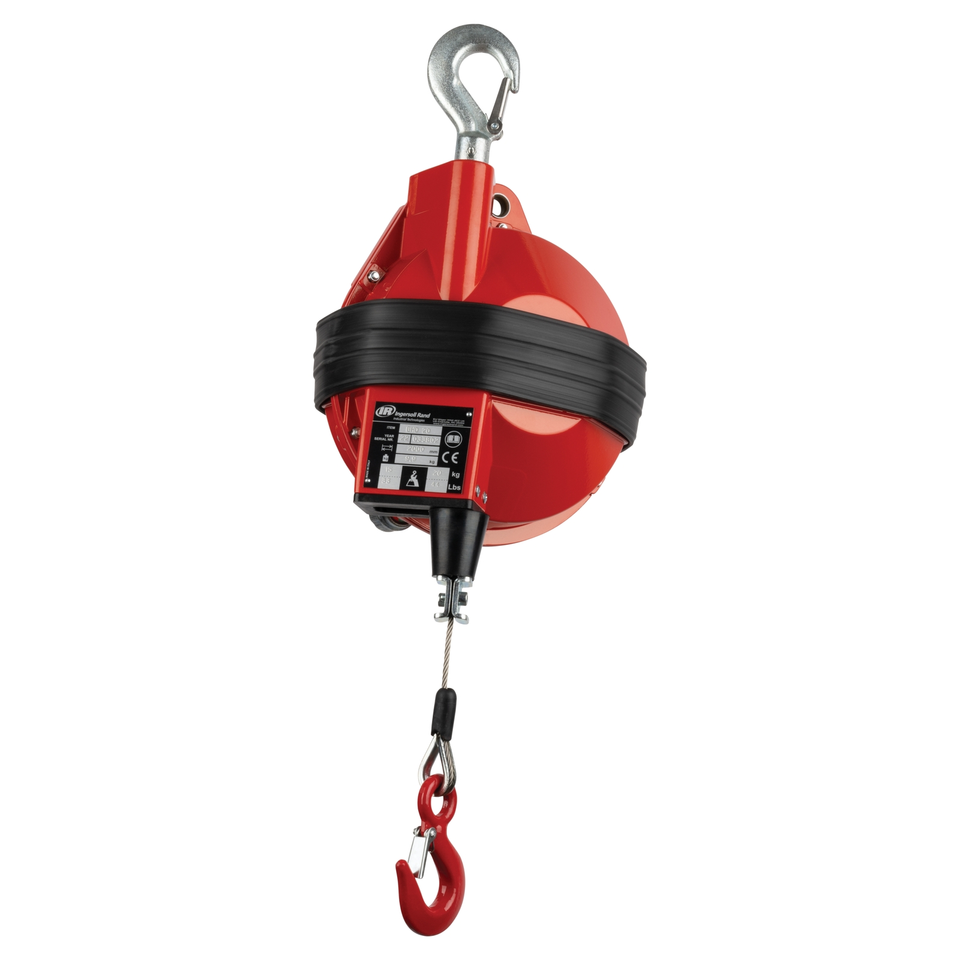

Ingersoll Rand BIDS-22 Intermediate Duty Spring Balancer with Safety Hook is designed to support compatible tools and equipment during repetitive assembly, production, service, and maintenance operations. It provides a 39.6–48.4 lbs load capacity and 6.5 ft lift, helping counter the weight of suspended equipment while providing controlled vertical movement within the available cable travel.
The BIDS-22 is part of the BIDS Series of intermediate-duty spring balancers. The series is designed to effortlessly counter gravity and take away the weight of tools while in use. The BIDS-22 has a listed 6.5 lbs balancer weight and uses a 6.5 ft lift configuration, making it suitable for supported loads that fall within its specified 39.6–48.4 lbs capacity range.
Type: Intermediate-Duty Spring Balancer | Series: BIDS Series | Model: BIDS-22 | Load Capacity: 39.6–48.4 lbs | Lift: 6.5 ft | Balancer Weight: 6.5 lbs
Features:
- Intermediate-duty spring-balancer design counters gravity to help take the weight of supported tools away while they are in use.
- 39.6–48.4 lbs load capacity accommodates compatible supported equipment within the specified operating range.
- 6.5 ft lift provides controlled vertical travel for supported equipment.
- Safety hook provides the specified overhead suspension arrangement.
- The BIDS Series incorporates enhanced safety features intended to better protect the user and the supported load.
- Upgraded ergonomics are designed to provide a more comfortable work environment during highly repetitive tool use.
- The spring-balancer design is suited to applications requiring supported tools to move vertically within the available lift.
Made in Italy:
Applications:
- Assembly workstations requiring overhead support for tools weighing within the 39.6–48.4 lbs capacity range.
- Production environments where supported tools are repeatedly raised, lowered, and repositioned.
- Automotive service and maintenance stations requiring supported vertical tool movement.
- Industrial MRO workstations using compatible equipment within the balancer's rated capacity.
- Repetitive tool-use applications where spring-assisted support can help counter the weight of suspended equipment.
FAQs:
- Q: What is the load capacity of the BIDS-22?
A: The BIDS-22 is specified for loads from 39.6 to 48.4 lbs. - Q: How much lift does the BIDS-22 provide?
A: The BIDS-22 provides 6.5 ft of vertical lift. - Q: What is the purpose of the safety hook?
A: The BIDS-22 is identified as a spring balancer with a safety hook for overhead suspension of the supported load. - Q: What is the weight of the BIDS-22 balancer?
A: The manufacturer brochure lists the BIDS-22 balancer weight as 6.5 lbs. - Q: What type of application is the BIDS-22 intended for?
A: It is intended for compatible tools and equipment requiring spring-assisted overhead support within the specified 39.6–48.4 lbs load range. - Q: Can the BIDS-22 support more than 48.4 lbs?
A: No. The specified load capacity is 39.6–48.4 lbs, so the complete supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Intermediate Duty | |||||
| BIDS-7 | 8.8 - 15.4 (4 - 7) | 5 (2.3) | 6.5 (2,000) | - | - |
| BIDS-10 | 15.4 - 22 (7 - 10) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-14 | 22 - 30.8 (10 - 14) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-18 | 30.8 - 39.6 (14 - 18) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-22 | 39.6 - 48.4 (18 - 22) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-26 | 48.4 - 55 (22 - 25) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BHD-15 | 22 - 33 (10 - 15) | 22.7 (10.3) | 6.5 (2,000) | - | - |
| BHD-20 | 33 - 44 (15 - 20) | 23.4 (10.6) | 6.5 (2,000) | - | - |
| BHD-25 | 44 - 55 (20 - 25) | 24.7 (11.2) | 6.5 (2,000) | - | - |
| BHD-30 | 55 - 66 (25 - 30) | 25.4 (11.5) | 6.5 (2,000) | - | - |
| BHD-35 | 66 - 77 (30 - 35) | 26 (11.8) | 6.5 (2,000) | - | - |
| BHD-45 | 77 - 99 (35 - 45) | 27.3 (12.4) | 6.5 (2,000) | - | - |
| BHD-55 | 99 - 121 (45 - 55) | 27.6 (12.5) | 6.5 (2,000) | - | - |
| BHD-65 | 121 - 143 (55 - 65) | 30 (13.6) | 6.5 (2,000) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
