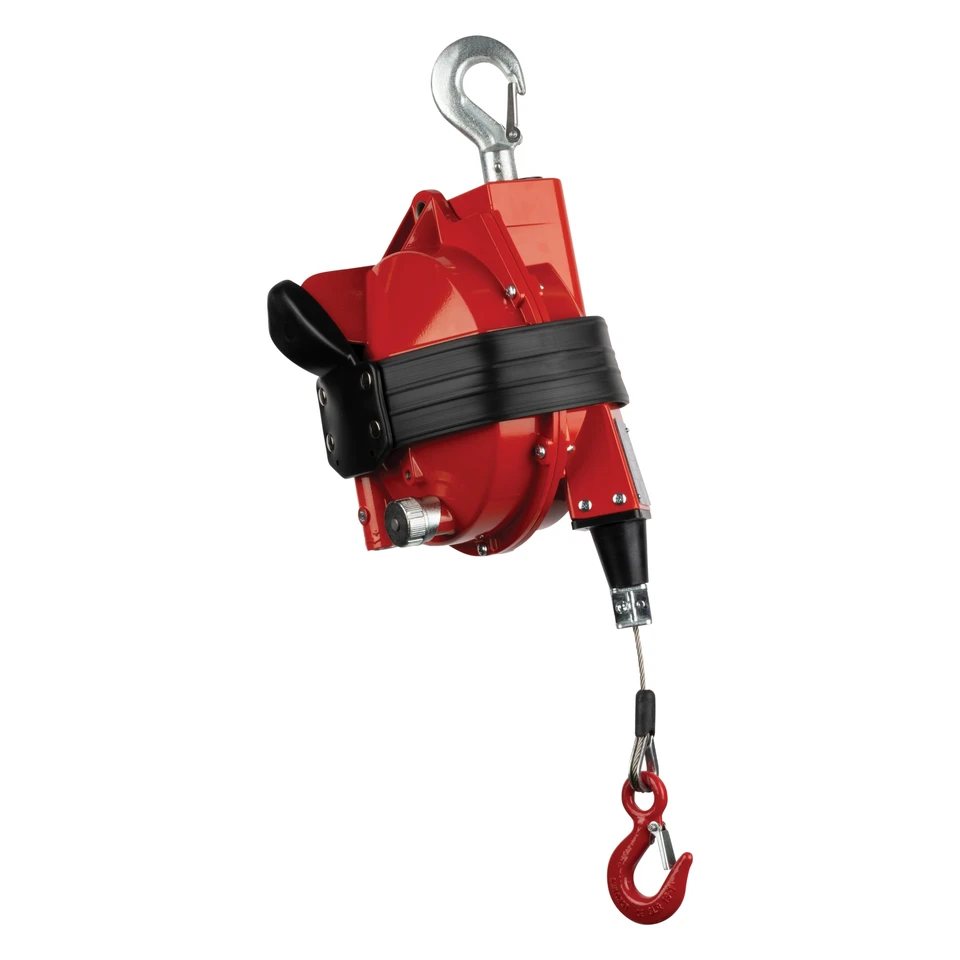

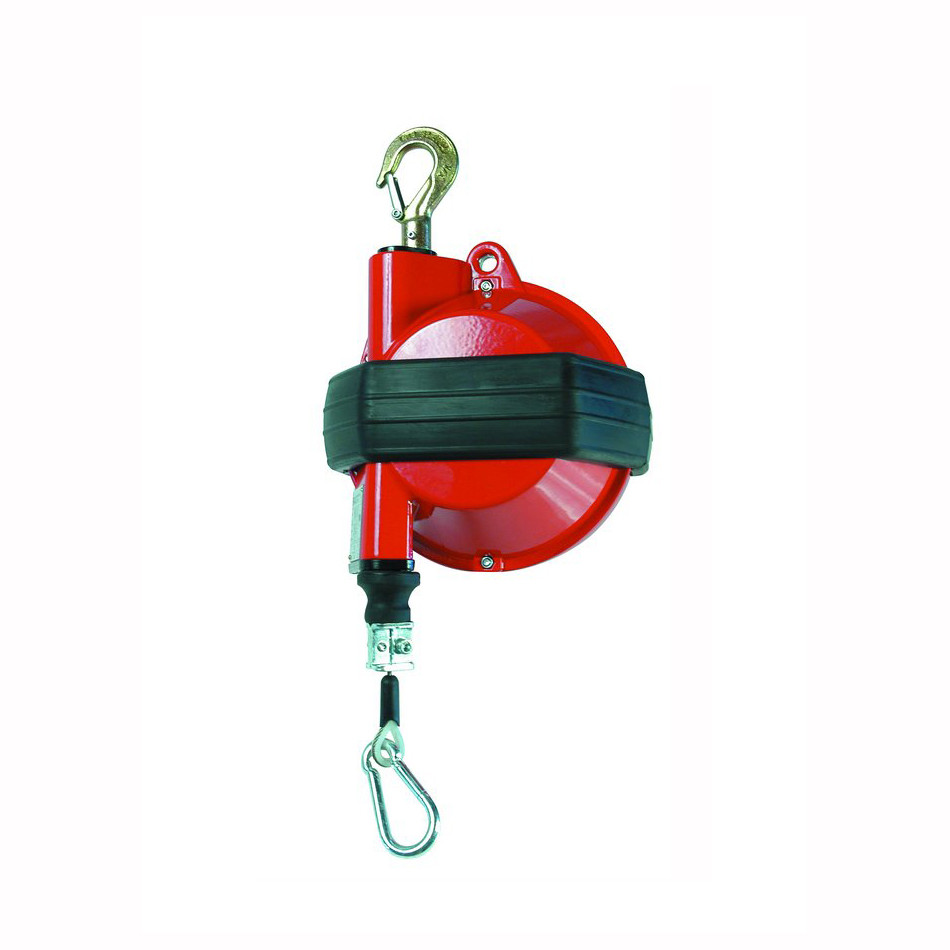

Ingersoll Rand BIDS-10 Intermediate Duty Spring Balancer with Safety Hook is designed to support tools and other suspended loads during repetitive assembly, production, service, and maintenance operations. It provides a 15.4–22 lbs load capacity and 6.5 ft lift, helping counter the weight of supported equipment so it can be positioned more easily throughout the available cable travel.
The BIDS-10 is part of the BIDS Series of intermediate-duty spring balancers and has a listed 5.5 lbs balancer weight. It uses a stainless-steel cable with an anti-friction cable guide and features ribbed, sealed monobloc construction in aluminum alloy. The series also includes a locking device to block the load at any height, an adjustable stroke-limiting device, upper rotary suspension with a safety hook, and a safety device intended to prevent load dropping in the event of spring breakage.
Type: Intermediate-Duty Spring Balancer | Series: BIDS Series | Model: BIDS-10 | Load Capacity: 15.4–22 lbs | Lift: 6.5 ft | Balancer Weight: 5.5 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel
Features:
- Intermediate-duty spring-balancer design provides gravity-free suspension capability for compatible tools and equipment.
- 15.4–22 lbs load capacity accommodates supported loads within the specified operating range.
- 6.5 ft lift provides controlled vertical cable travel.
- Ribbed and sealed monobloc construction in aluminum alloy provides the specified housing construction.
- Stainless-steel cable provides the specified cable construction.
- Anti-friction cable guide helps guide the cable during operation.
- Locking device allows the load to be blocked at any height.
- Adjustable stroke-limiting device allows the cable travel to be controlled.
- Upper rotary suspension with safety hook provides the specified overhead suspension arrangement.
- Safety device helps prevent the load from dropping in the event of spring breakage.
Made in Italy:
Applications:
- Assembly workstations requiring overhead support for tools weighing within the 15.4–22 lbs capacity range.
- Production environments where supported tools are repeatedly raised, lowered, and repositioned.
- Automotive service and maintenance stations requiring controlled vertical tool movement.
- Industrial MRO workstations using compatible equipment within the balancer's rated capacity.
- Repetitive tool-use applications where spring-assisted support can help counter the weight of suspended equipment.
FAQs:
- Q: What is the load capacity of the BIDS-10?
A: The BIDS-10 is rated for loads from 15.4 to 22 lbs. - Q: How much lift does the BIDS-10 provide?
A: The BIDS-10 provides 6.5 ft of vertical cable travel. - Q: What is the purpose of the safety hook?
A: The BIDS-10 uses an upper rotary suspension with a safety hook for overhead suspension of the supported load. - Q: Can the BIDS-10 hold a load at a selected height?
A: Yes. The BIDS-10 includes a locking device designed to block the load at any height. - Q: What is the weight of the BIDS-10 balancer?
A: The listed balancer weight is 5.5 lbs. - Q: What type of cable does the BIDS-10 use?
A: The BIDS-10 uses a stainless-steel cable with an anti-friction cable guide. - Q: Can the BIDS-10 support more than 22 lbs?
A: No. The specified load capacity is 15.4–22 lbs, so the complete supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Intermediate Duty | |||||
| BIDS-7 | 8.8 - 15.4 (4 - 7) | 5 (2.3) | 6.5 (2,000) | - | - |
| BIDS-10 | 15.4 - 22 (7 - 10) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-14 | 22 - 30.8 (10 - 14) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-18 | 30.8 - 39.6 (14 - 18) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-22 | 39.6 - 48.4 (18 - 22) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-26 | 48.4 - 55 (22 - 25) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BHD-15 | 22 - 33 (10 - 15) | 22.7 (10.3) | 6.5 (2,000) | - | - |
| BHD-20 | 33 - 44 (15 - 20) | 23.4 (10.6) | 6.5 (2,000) | - | - |
| BHD-25 | 44 - 55 (20 - 25) | 24.7 (11.2) | 6.5 (2,000) | - | - |
| BHD-30 | 55 - 66 (25 - 30) | 25.4 (11.5) | 6.5 (2,000) | - | - |
| BHD-35 | 66 - 77 (30 - 35) | 26 (11.8) | 6.5 (2,000) | - | - |
| BHD-45 | 77 - 99 (35 - 45) | 27.3 (12.4) | 6.5 (2,000) | - | - |
| BHD-55 | 99 - 121 (45 - 55) | 27.6 (12.5) | 6.5 (2,000) | - | - |
| BHD-65 | 121 - 143 (55 - 65) | 30 (13.6) | 6.5 (2,000) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
