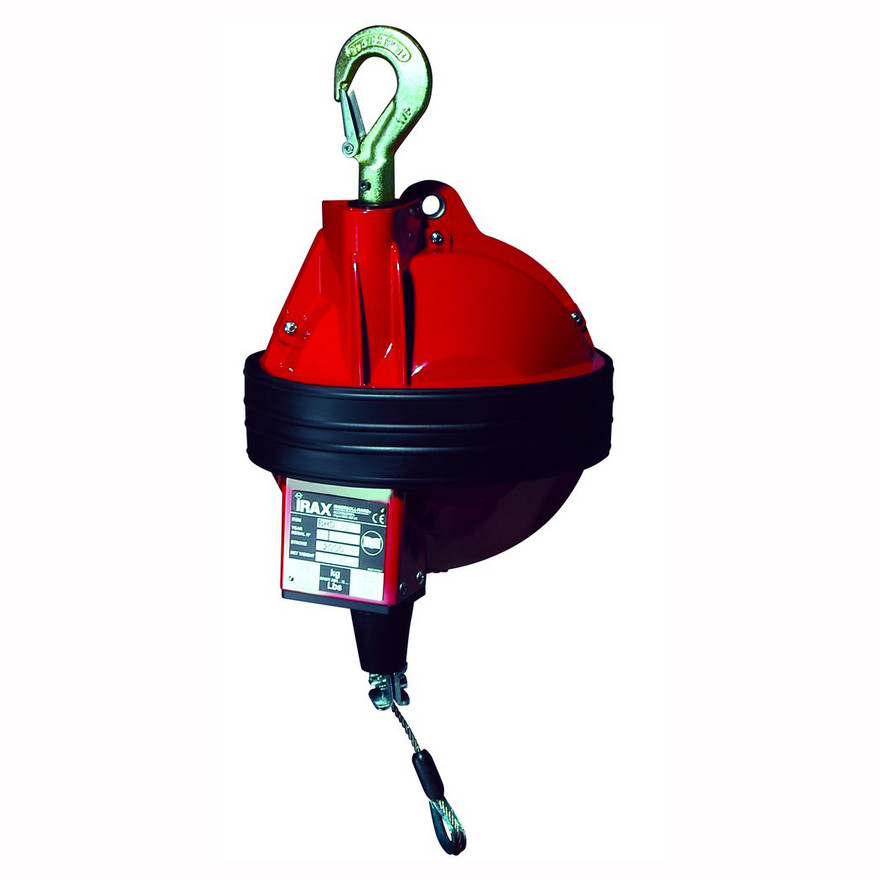

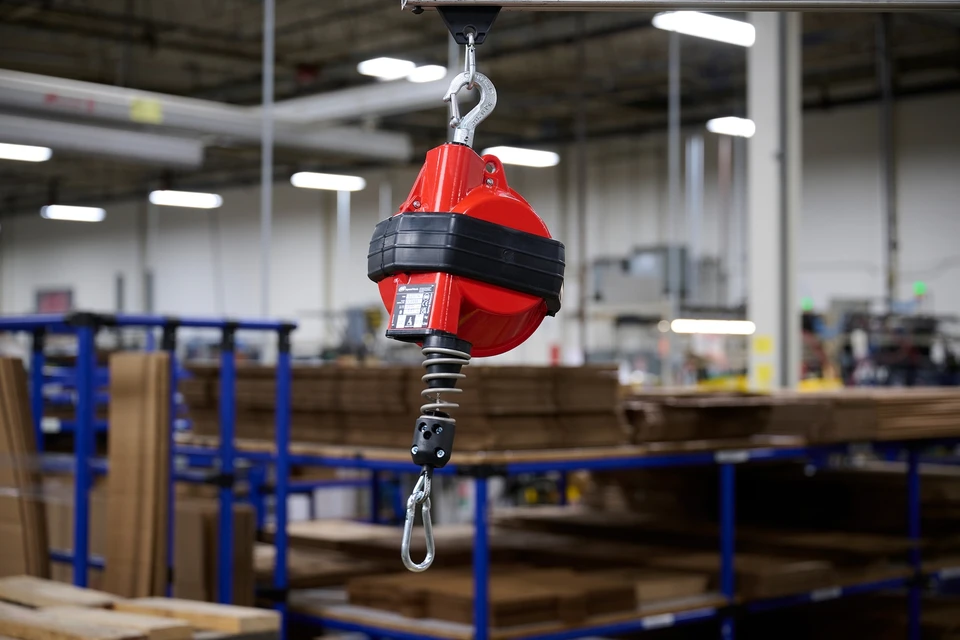

Ingersoll Rand BHD-35 Heavy-Duty Spring Balancer | BHD Series | 6.5' Lift | 66-77 (lbs.) Load Capacity

Ingersoll Rand BHD-35 Heavy-Duty Spring Balancer is designed to support heavier power tools and manufacturing equipment where repetitive or frequent vertical movement of a fixed load is required. It provides a 66–77 lbs load capacity and 6.5 ft lift, compensating for the weight of supported equipment so operators can lift and lower compatible loads with minimal effort along the cable travel. Ingersoll Rand describes this spring-balancer design as providing a “gravity-free” effect for supported tools.

The BHD-35 is part of the BHD Series of heavy-duty spring balancers and has a listed 26 lbs balancer weight. It uses a stainless-steel cable and aluminum housing. BHD Series features include precision-guided cable winding, an anti-friction cable guide, worm-screw capacity adjustment, a spring drum assembly, a safety device against load dropping due to spring breakage, and an upper suspension with rotary safety hook.

Type: Heavy-Duty Spring Balancer | Series: BHD Series | Model: BHD-35 | Load Capacity: 66–77 lbs | Lift: 6.5 ft | Balancer Weight: 26 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel

Features:

• Heavy-duty spring-balancer design compensates for the weight of supported tools and manufacturing equipment.
• 66–77 lbs load capacity accommodates compatible equipment within the specified operating range.
• 6.5 ft lift provides controlled vertical cable travel.
• Aluminum housing provides the specified housing material.
• Stainless-steel cable provides the specified cable construction.
• Precision-guided cable winding helps prevent jamming during cable movement.
• Anti-friction cable guide helps guide the cable during operation.
• Worm-screw capacity adjustment allows the balancer to be adjusted for the supported load.
• Spring drum assembly provides the spring-based balancing mechanism.
• Safety device helps prevent load dropping due to spring breakage.
• Upper suspension with rotary safety hook provides the specified overhead suspension arrangement.

Made in Italy:

Applications:

• Assembly workstations requiring overhead support for tools weighing within the 66–77 lbs capacity range.
• Production environments where heavier tools or manufacturing equipment are repeatedly raised, lowered, and repositioned.
• Automotive service and maintenance stations requiring supported vertical movement of compatible equipment.
• Industrial MRO workstations using equipment within the balancer's rated capacity.
• Manufacturing applications requiring spring-assisted support for repetitive vertical movement of heavier fixed loads.

FAQs:

• Q: What is the load capacity of the BHD-35?
  A: The BHD-35 is specified for loads from 66 to 77 lbs.
• Q: How much lift does the BHD-35 provide?
  A: The BHD-35 provides 6.5 ft of vertical cable travel.
• Q: What is the weight of the BHD-35 balancer?
  A: The manufacturer specification lists the BHD-35 balancer weight as 26 lbs.
• Q: What type of cable does the BHD-35 use?
  A: The BHD-35 uses a stainless-steel cable.
• Q: How is the BHD-35 capacity adjusted?
  A: The BHD Series uses a worm-screw capacity adjustment.
• Q: Does the BHD-35 include a safety hook?
  A: Yes. The BHD Series uses an upper suspension with a rotary safety hook.
• Q: Can the BHD-35 support more than 77 lbs?
  A: No. The specified load capacity is 66–77 lbs, so the complete supported load should remain within that range.
