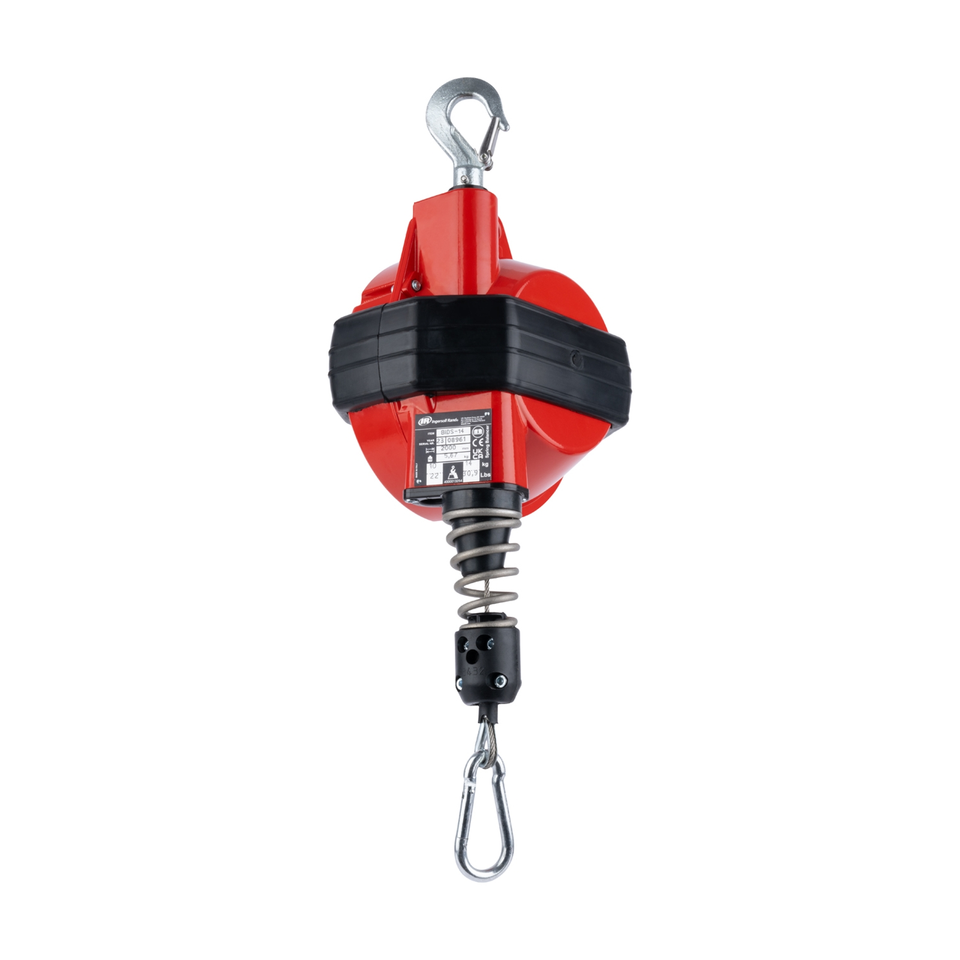

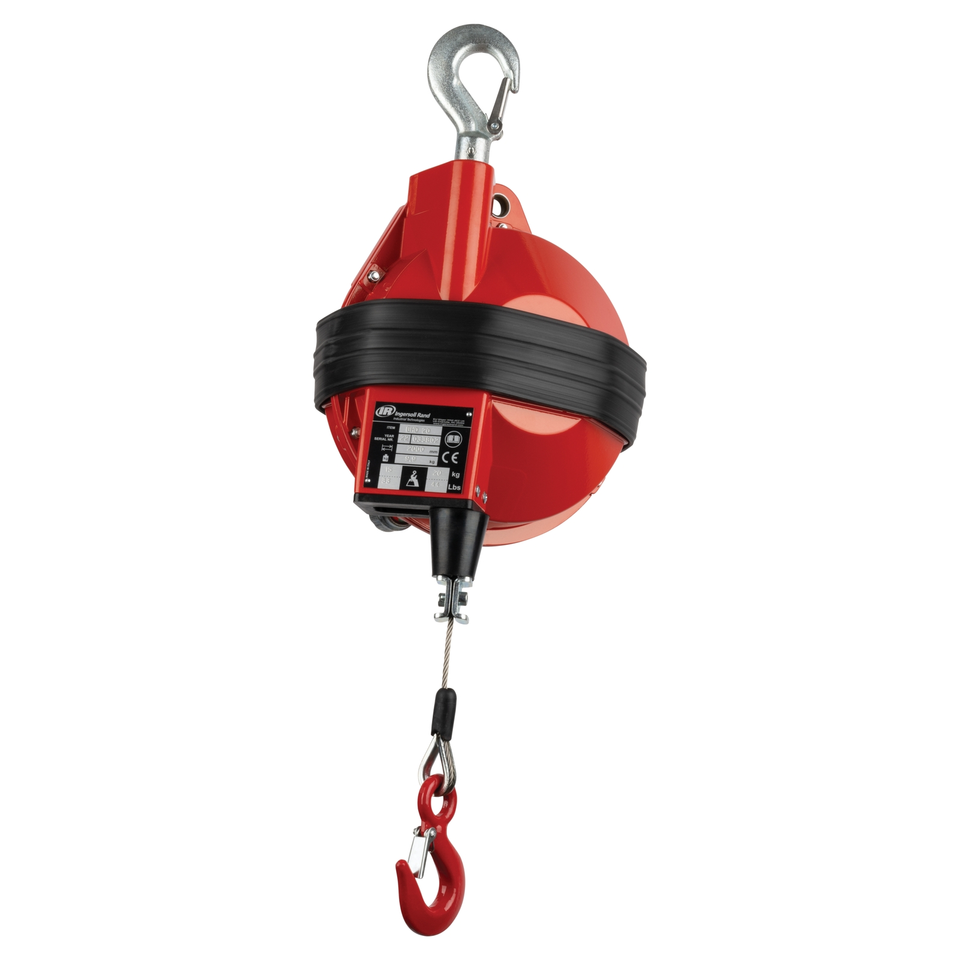

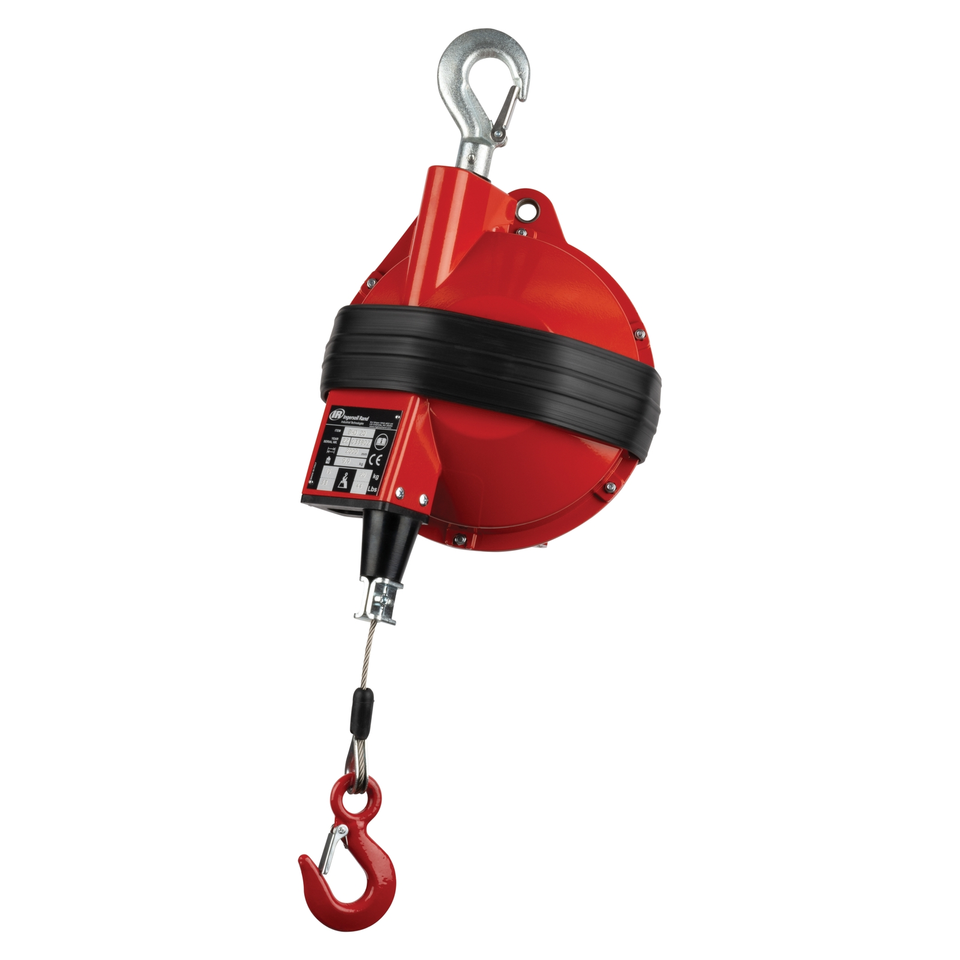

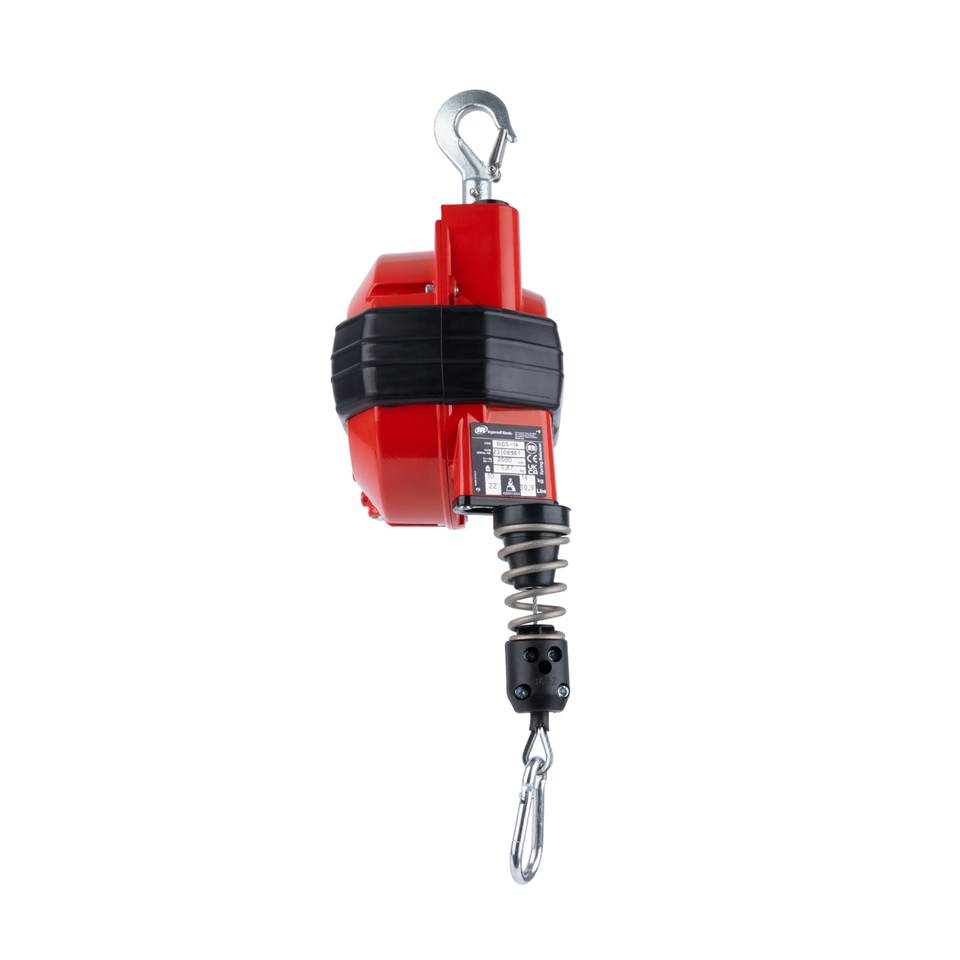

Ingersoll Rand BHD-45 Heavy-Duty Spring Balancer | BHD Series | 6.5' Lift | 77-99 (lbs.) Load Capacity

Ingersoll Rand BHD-45 Heavy-Duty Spring Balancer is designed to support heavier power tools and manufacturing equipment where repetitive or frequent vertical movement of a fixed load is required. It provides a 77–99 lbs load capacity and 6.5 ft lift, helping compensate for the weight of supported equipment so operators can lift and lower compatible loads with less effort along the cable travel.

The BHD-45 is part of the BHD Series and has a listed 27.3 lbs balancer weight. It features an aluminum housing and stainless-steel cable. The BHD Series also includes an anti-friction cable guide, precision-guided cable winding, worm-screw capacity adjustment, a spring drum assembly, a safety device against load dropping due to spring breakage, and an upper suspension with rotary safety hook.

Type: Heavy-Duty Spring Balancer | Series: BHD Series | Model: BHD-45 | Load Capacity: 77–99 lbs | Lift: 6.5 ft | Balancer Weight: 27.3 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel

Features:

• Heavy-duty spring-balancer design compensates for the weight of supported tools and manufacturing equipment.
• 77–99 lbs load capacity accommodates compatible equipment within the specified operating range.
• 6.5 ft lift provides controlled vertical cable travel.
• Aluminum housing provides the specified housing material.
• Stainless-steel cable provides the specified cable construction.
• Anti-friction cable guide helps guide the cable during operation.
• Precision-guided cable winding is designed to prevent jamming during cable movement.
• Worm-screw capacity adjustment allows the balancer to be adjusted for the supported load.
• Spring drum assembly provides the spring-based balancing mechanism.
• Safety device helps prevent load dropping due to spring breakage.
• Upper suspension with rotary safety hook provides the specified overhead suspension arrangement.

Made in Italy:

Applications:

• Assembly workstations requiring overhead support for tools weighing within the 77–99 lbs capacity range.
• Production environments where heavier tools or manufacturing equipment are repeatedly raised, lowered, and repositioned.
• Automotive service and maintenance stations requiring supported vertical movement of compatible equipment.
• Industrial MRO workstations using equipment within the balancer's rated capacity.
• Manufacturing applications requiring spring-assisted support for repetitive vertical movement of heavier fixed loads.

FAQs:

• Q: What is the load capacity of the BHD-45?
  A: The BHD-45 is specified for loads from 77 to 99 lbs.
• Q: How much lift does the BHD-45 provide?
  A: The BHD-45 provides 6.5 ft of vertical cable travel.
• Q: What is the weight of the BHD-45 balancer?
  A: The manufacturer lists the BHD-45 balancer weight as 27.3 lbs.
• Q: What type of cable does the BHD-45 use?
  A: The BHD-45 uses a stainless-steel cable with an anti-friction cable guide.
• Q: How is the BHD-45 capacity adjusted?
  A: The BHD Series uses a worm-screw capacity adjustment.
• Q: Does the BHD-45 include a safety hook?
  A: Yes. The BHD Series uses an upper suspension with a rotary safety hook.
• Q: Can the BHD-45 support more than 99 lbs?
  A: No. The specified load capacity is 77–99 lbs, so the complete supported load should remain within that range.

Looking for more information about the Ingersoll Rand Spring Balancer? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
