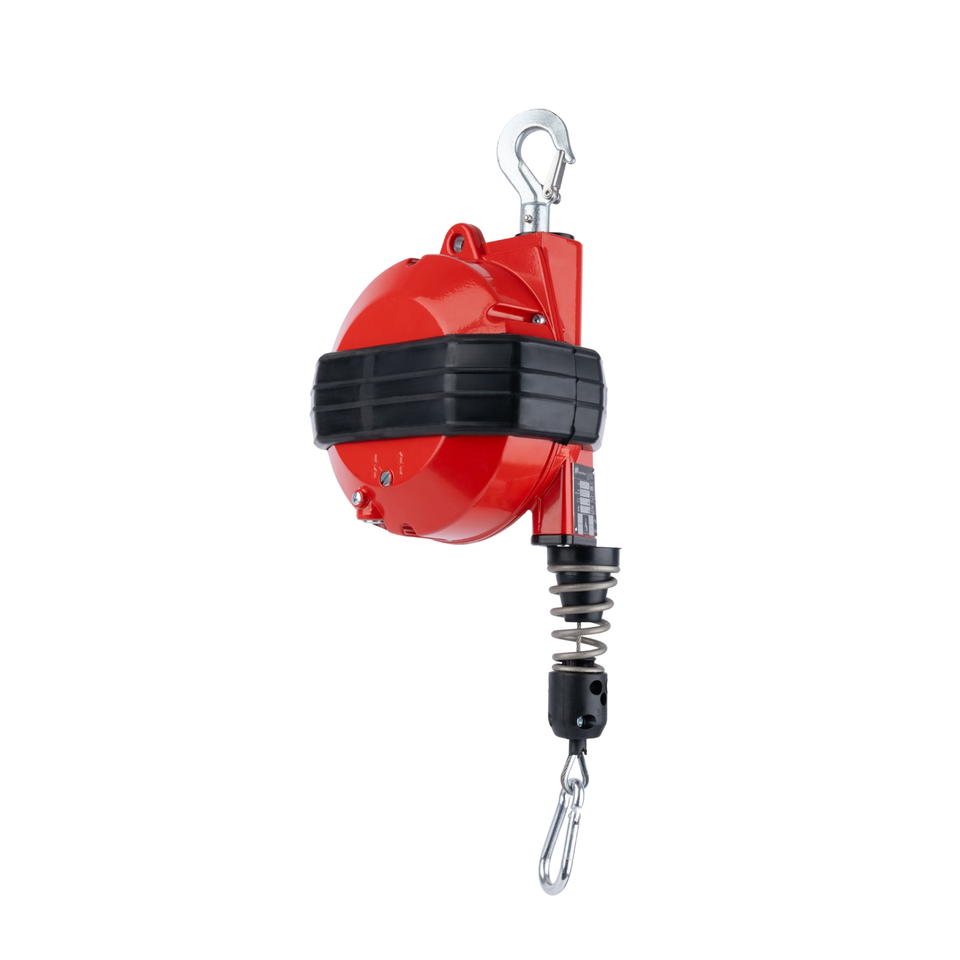

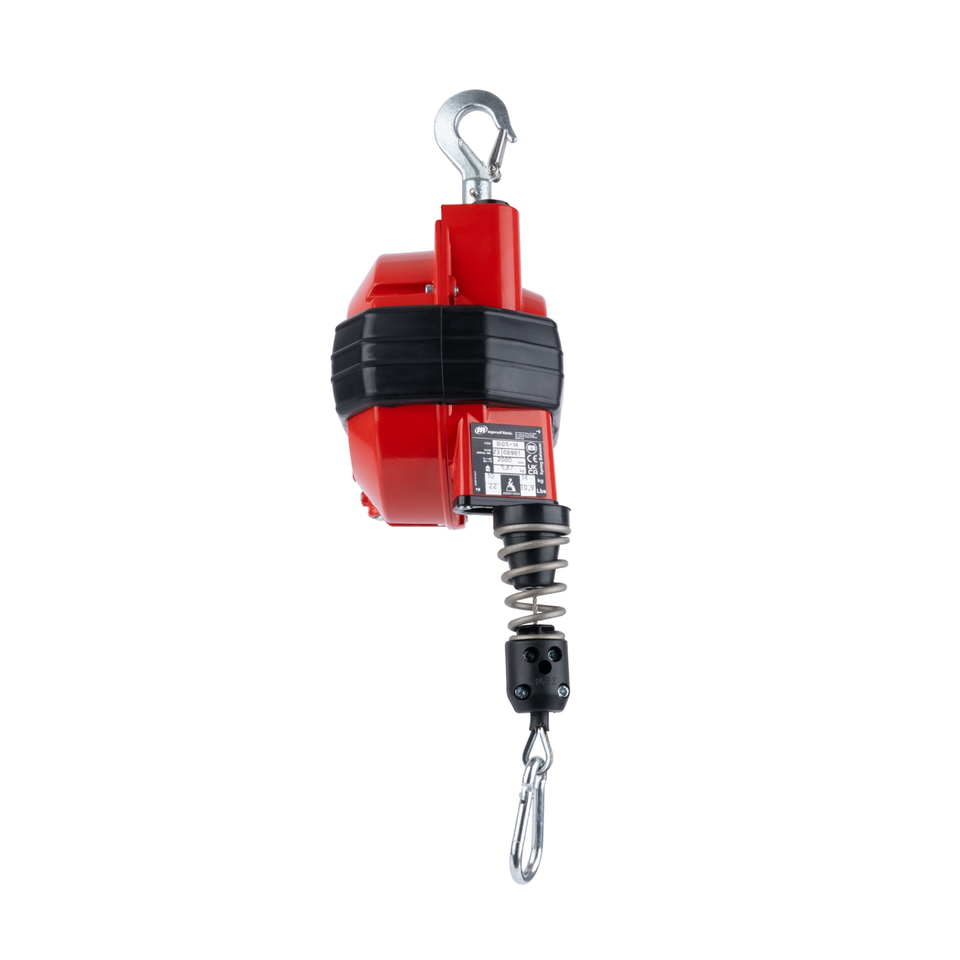

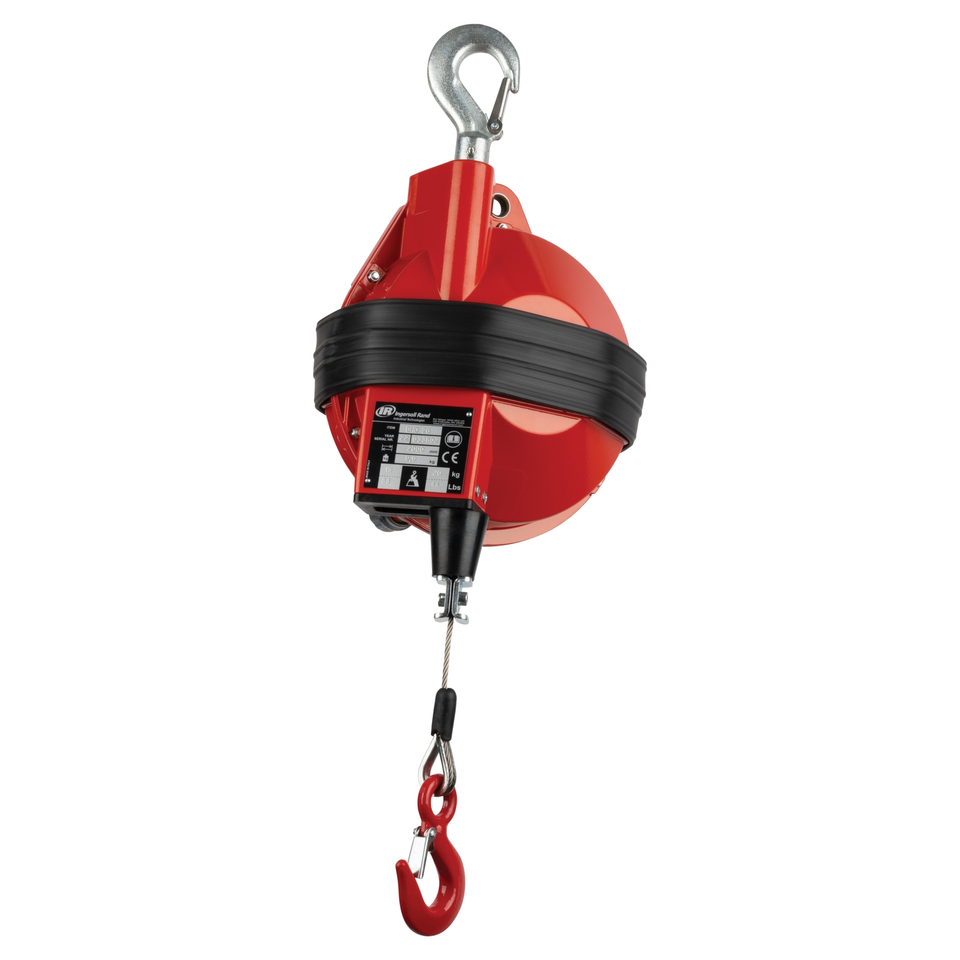

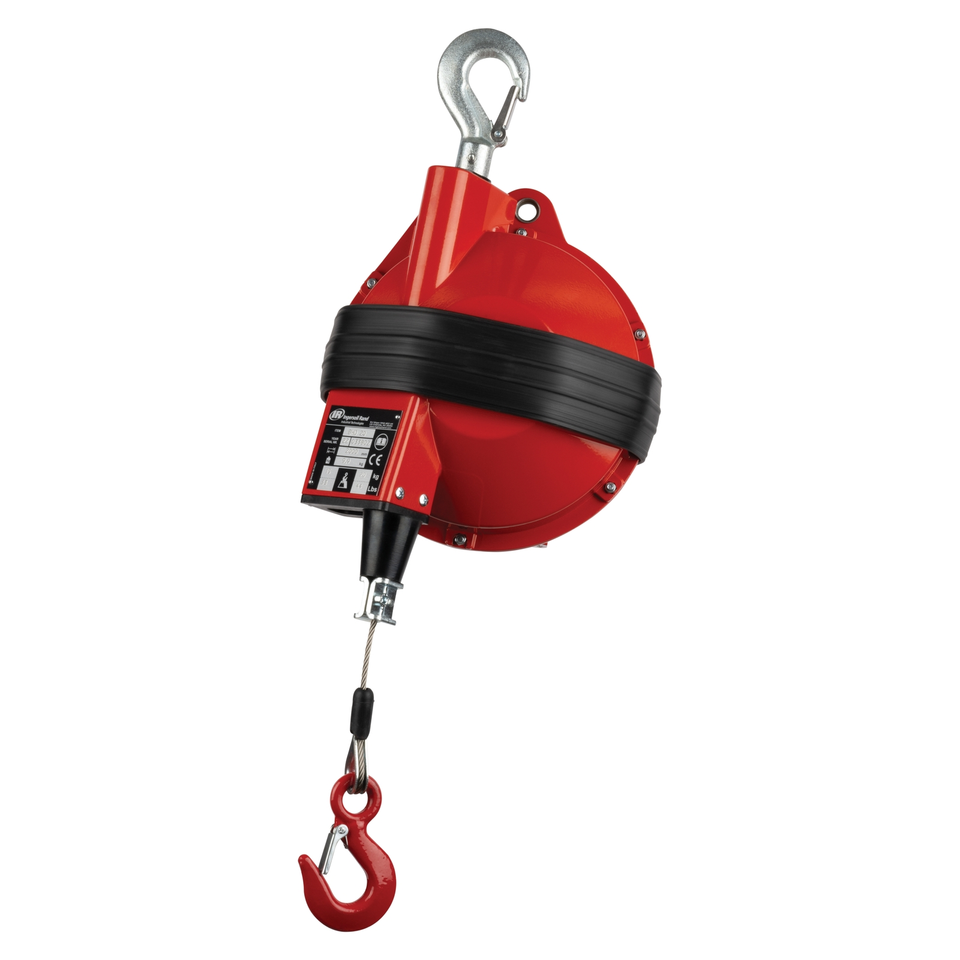

Ingersoll Rand BHD-25 Heavy-Duty Spring Balancer is designed to support heavier tools and equipment during repetitive assembly, production, service, maintenance, and MRO operations. It provides a 44–55 lbs load capacity and 6.5 ft lift, helping counter the weight of supported equipment and providing controlled vertical movement throughout the available cable travel.
The BHD-25 is part of the BHD Series of heavy-duty spring balancers and has a listed 24.7 lbs balancer weight. It features a ribbed and sealed monobloc aluminum-alloy housing and stainless-steel cable with an anti-friction cable guide. The series also includes a safety device against load dropping due to spring breakage, upper rotary suspension with safety hook, locking device, adjustable stroke limiting, and precision-guided cable winding.
Type: Heavy-Duty Spring Balancer | Series: BHD Series | Model: BHD-25 | Load Capacity: 44–55 lbs | Lift: 6.5 ft | Balancer Weight: 24.7 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel
Features:
- Heavy-duty spring-balancer design provides gravity-free suspension capability for compatible tools and equipment.
- 44–55 lbs load capacity accommodates supported equipment within the specified operating range.
- 6.5 ft lift provides controlled vertical cable travel.
- Ribbed and sealed monobloc construction in aluminum alloy provides the specified housing construction.
- Stainless-steel cable provides the specified cable construction.
- Anti-friction cable guide helps guide the cable during operation.
- Safety device helps prevent load dropping due to spring breakage.
- Upper rotary suspension with safety hook provides the specified overhead suspension arrangement.
- Locking device allows the supported load to be blocked at any height.
- Adjustable stroke-limiting device allows the available cable travel to be controlled.
- Precision-guided cable winding is designed to prevent jamming during cable movement.
Made in Italy:
Applications:
- Assembly workstations requiring overhead support for tools weighing within the 44–55 lbs capacity range.
- Production environments where heavier supported tools are repeatedly raised, lowered, and repositioned.
- Automotive service and maintenance stations requiring supported vertical tool movement.
- Industrial MRO workstations using compatible equipment within the balancer's rated capacity.
- Manufacturing applications where spring-assisted support is needed for repetitive handling of heavier tools or equipment.
FAQs:
- Q: What is the load capacity of the BHD-25?
A: The BHD-25 is specified for loads from 44 to 55 lbs. - Q: How much lift does the BHD-25 provide?
A: The BHD-25 provides 6.5 ft of vertical lift. - Q: What is the weight of the BHD-25 balancer?
A: The manufacturer lists the BHD-25 balancer weight as 24.7 lbs. - Q: What type of cable does the BHD-25 use?
A: The BHD-25 uses a stainless-steel cable with an anti-friction cable guide. - Q: Does the BHD-25 have a safety hook?
A: Yes. The BHD Series uses an upper rotary suspension with a safety hook. - Q: Can the BHD-25 hold a supported load at a selected height?
A: Yes. The BHD Series includes a locking device designed to block the load at any height. - Q: Can the BHD-25 support more than 55 lbs?
A: No. The specified load capacity is 44–55 lbs, so the complete supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Intermediate Duty | |||||
| BIDS-7 | 8.8 - 15.4 (4 - 7) | 5 (2.3) | 6.5 (2,000) | - | - |
| BIDS-10 | 15.4 - 22 (7 - 10) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-14 | 22 - 30.8 (10 - 14) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BIDS-18 | 30.8 - 39.6 (14 - 18) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-22 | 39.6 - 48.4 (18 - 22) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BIDS-26 | 48.4 - 55 (22 - 25) | 6.5 (2.9) | 6.5 (2,000) | - | - |
| BHD-15 | 22 - 33 (10 - 15) | 22.7 (10.3) | 6.5 (2,000) | - | - |
| BHD-20 | 33 - 44 (15 - 20) | 23.4 (10.6) | 6.5 (2,000) | - | - |
| BHD-25 | 44 - 55 (20 - 25) | 24.7 (11.2) | 6.5 (2,000) | - | - |
| BHD-30 | 55 - 66 (25 - 30) | 25.4 (11.5) | 6.5 (2,000) | - | - |
| BHD-35 | 66 - 77 (30 - 35) | 26 (11.8) | 6.5 (2,000) | - | - |
| BHD-45 | 77 - 99 (35 - 45) | 27.3 (12.4) | 6.5 (2,000) | - | - |
| BHD-55 | 99 - 121 (45 - 55) | 27.6 (12.5) | 6.5 (2,000) | - | - |
| BHD-65 | 121 - 143 (55 - 65) | 30 (13.6) | 6.5 (2,000) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
