Built for facilities that need substantial hose reach without introducing a conventional painted-steel reel into wet or corrosive surroundings, the Coxreels TSHL-N-450-SS stainless steel spring rewind hose reel stores up to 50 feet of 1/2-inch I.D. hose. Its 300 PSI maximum pressure rating supports compatible low-pressure air, water, or oil service when the separately selected hose, fittings, and connected equipment meet the application's pressure, temperature, and fluid-compatibility requirements.
The T-SS Series combines electro-polished stainless steel construction with stainless steel fluid paths for clean, non-corrosive hose management in food and chemical processing plants, marinas, washdown areas, and other environments where rust and contamination can thrive. A sturdy dual-pedestal structure and Coxreels Super Hub triple-axle support reinforce the drum assembly, while the enclosed cartridge-style spring motor automatically rewinds the hose after each use.

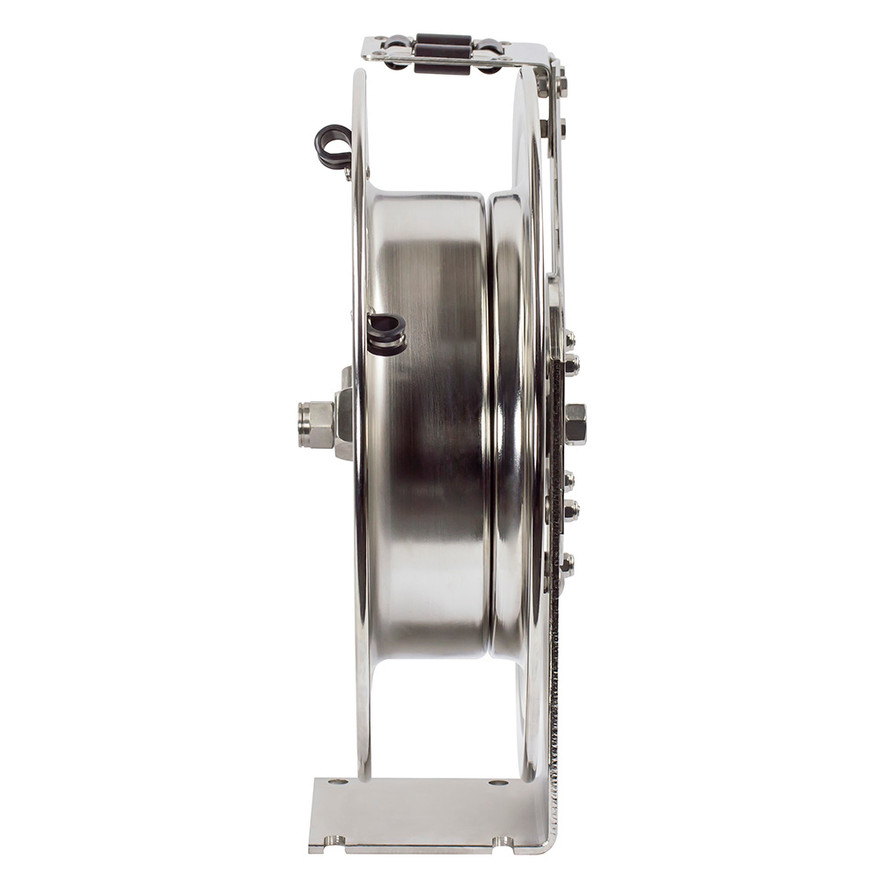

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Spring Rewind Hose Reel | Series: T-SS Series | Model: TSHL-N-450-SS | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 50 ft | Maximum Pressure: 300 PSI | Overall Dimensions: 9.38" W x 21.25" H x 19.5" L | Mounting Pattern: 7" M x 8" N | Base Dimensions: 8" X x 9" Y
Features:
- Electro-polished stainless steel construction and stainless steel fluid paths provide clean, non-corrosive performance.
- Machined stainless steel 90-degree full-flow NPT swivel inlet supports fluid movement through the external flow path.
- Nitrile swivel seals are lubricated with non-toxic food-grade grease.
- Sturdy dual-pedestal design uses a solid one-piece stainless steel base and support posts for maximum stability.
- Super Hub triple-axle support reinforces the reel drum and axle assembly during repeated extension and rewind cycles.
- Electro-polished stainless steel, lubricated, enclosed cartridge-style spring motor is removable for safer and more convenient maintenance.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Stainless steel guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
Made in USA:
Applications:
- Food and beverage processing facilities managing compatible hose near production, sanitation, or washdown equipment.
- Chemical processing operations requiring corrosion-resistant hose storage for compatible low-pressure fluid lines.
- Marinas, docks, boat-service facilities, and coastal work areas exposed to moisture or salt air.
- Bottling, packaging, and meat-processing plants where cleanable stainless steel equipment is preferred.
- Pulp and paper facilities using hose around wet-process machinery and cleanup stations.
- Industrial maintenance bays and mobile service installations that require 50 feet of 1/2-inch hose capacity.
FAQs:
- Q: Does the Coxreels TSHL-N-450-SS include hose?
A: No. This model is supplied less hose, so no hose is installed. The buyer must provide compatible 1/2-inch I.D. hose and fittings for the intended fluid, pressure, temperature, and operating environment. - Q: What hose outside diameter fits the TSHL-N-450-SS?
A: The stated 50-foot capacity applies to hose with a maximum outside diameter of 3/4 inch. Exceeding that outside diameter may reduce the length that fits correctly on the drum. - Q: What does the Super Hub triple-axle support provide?
A: The Super Hub™ system adds support at the reel drum and axle assembly within the dual-pedestal structure. This arrangement helps maintain stable rotation as the hose is pulled out and rewound. - Q: Can this reel be mounted on a wall or ceiling?
A: Yes. The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions. The mounting structure and hardware must support the reel, installed hose, fittings, and operating forces. - Q: Can the reel be used for oil service?
A: Coxreels identifies its less-hose low-pressure stainless steel models for compatible air, water, or oil applications. The hose, fittings, seals, and remaining system components must also be verified for the specific oil and operating conditions.
| LESS HOSE | SIZE INDEX |
|||||
|---|---|---|---|---|---|---|
| LESS HOSE SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | |
|
P SERIES
|
||||||
| P-LPL-335-SS | 3/8" | 1/2" | 35 | 300 | 34 | 1 |
| P-LPL-350-SS | 3/8" | 5/8" | 50 | 300 | 39 | 1 |
| P-LPL-425-SS | 1/2" | 3/4" | 25 | 300 | 39 | 2 |
|
SH & MP SERIES
|
||||||
| SHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 44 | 3 |
| SHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 46 | 3 |
| SHL-N-525-SS | 3/4" | 1-1/16" | 25 | 300 | 45 | 4 |
| MPL-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 53 | 3 |
| MPL-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 53 | 3 |
|
T SERIES
|
||||||
| TSHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 55 | 5 |
| TSHL-N-375-SS | 3/8" | 5/8" | 75 | 300 | 73 | 6 |
| TSHL-N-3100-SS | 3/8" | 5/8" | 100 | 300 | 74 | 6 |
| TSHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 55 | 5 |
| TSHL-N-475-SS | 1/2" | 3/4" | 75 | 300 | 71 | 6 |
| TSHL-N-4100-SS | 1/2" | 3/4" | 100 | 300 | 80 | 6 |
| TSHL-N-550-SS | 3/4" | 1-1/16" | 50 | 300 | 70 | 7 |
| TMPL-N-3100-SS | 3/8" | 1-1/16" | 100 | 3,000 | 82 | 6 |
| TMPL-N-4100-SS | 1/2" | 1-3/16" | 100 | 3,000 | 80 | 6 |
|
EN SERIES
|
||||||
| ENL-N-335-SS | 3/8" | 5/8" | 35 | 300 | 46 | 8 |
| ENL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 58 | 9 |
| ENL-N-425-SS | 1/2" | 3/4" | 25 | 300 | 63 | 8 |
| ENL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 61 | 9 |
| ENML-N-335-SS | 3/8" | 1-1/16" | 35 | 3,000 | 64 | 8 |
| ENML-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 80 | 9 |
| ENML-N-425-SS | 1/2" | 1-3/16" | 25 | 2,500 | 61 | 8 |
| ENML-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 82 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T-SS Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 3/4
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
- Width (in.)
- 9.38
- Height (in.)
- 21.25
- Length (in.)
- 19.5
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
