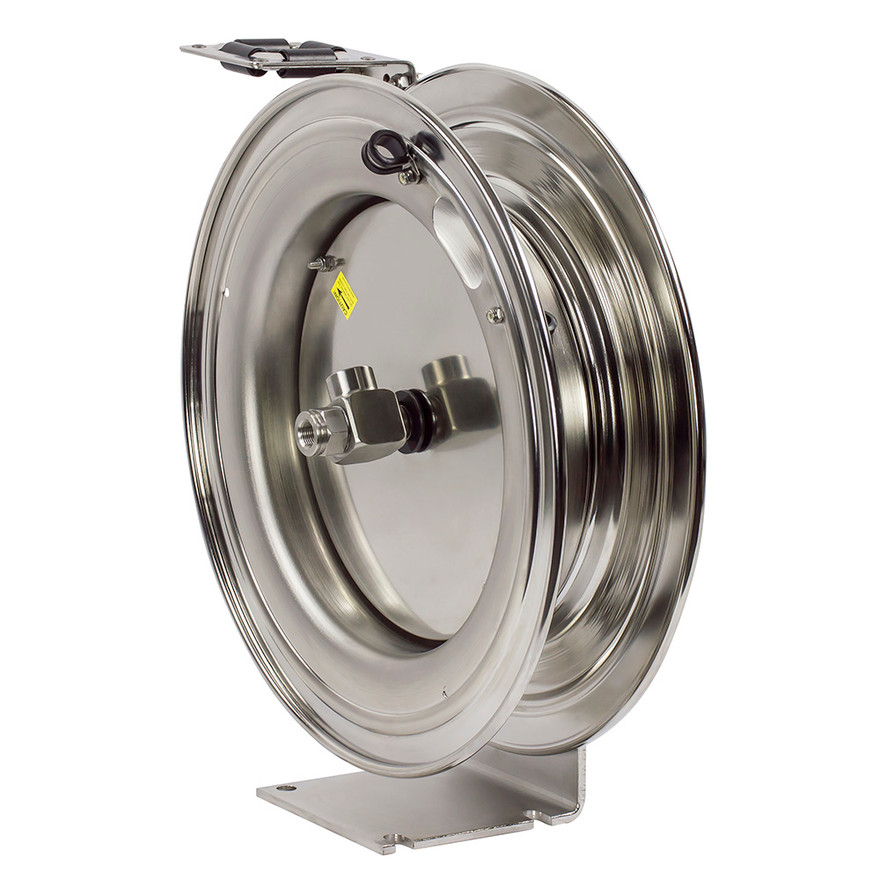

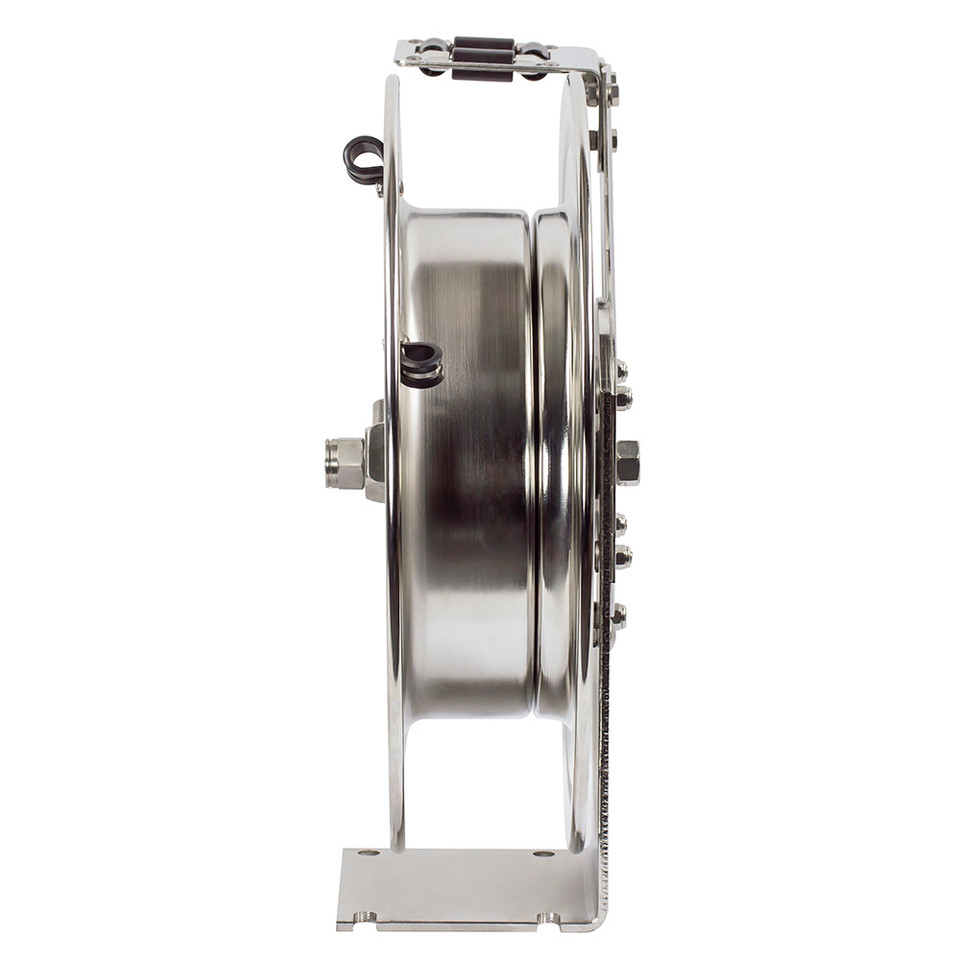

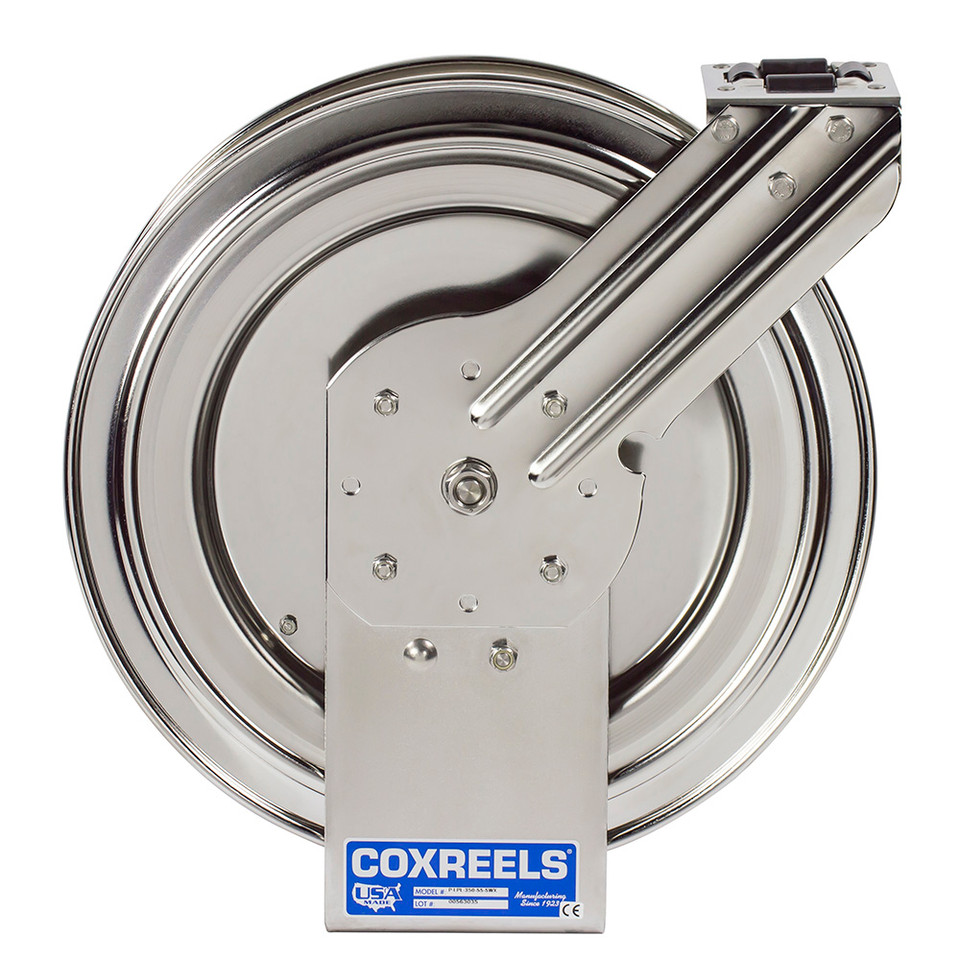

Coxreels P-LPL-425-SS Stainless Steel Spring Rewind Hose Reel is designed for applications requiring corrosion resistance and dependable automatic hose management. As part of the SS-P Series, this less hose model is designed to accommodate 25 ft of 1/2 in. I.D. hose and is rated for a 300 PSI maximum working pressure. Its enclosed, factory-tuned spring motor automatically retracts the hose after use, helping maintain an organized work area while allowing the user to install the hose best suited to the application.
Constructed from stainless steel, the reel is designed for environments where corrosion resistance is important. The reel incorporates a full-flow swivel, adjustable guide arm, and heavy-duty frame for reliable hose handling while maintaining the durability expected from the SS-P Series.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Spring Rewind Hose Reel | Series: SS-P Series | Model: P-LPL-425-SS | Configuration: Less Hose | Hose I.D.: 1/2 in. | Hose O.D.: 3/4 in. | Hose Capacity: 25 ft | Maximum Working Pressure: 300 PSI | Overall Width: 7 in. | Overall Height: 18-5/8 in. | Overall Length: 17-1/8 in. | Base Dimensions: 6 in. X × 6 in. Y | Mounting Pattern: 4 in. M × 5 in. N
Features:
- Stainless steel construction provides corrosion resistance for demanding environments.
- Spring-driven rewind automatically retracts the hose after use.
- Supplied less hose, allowing installation of a compatible 1/2 in. I.D. hose.
- Externally mounted full-flow swivel improves serviceability and fluid flow.
- Multi-position guide arm supports wall, floor, ceiling, vehicle, and overhead mounting.
- Heavy-duty stainless steel frame provides strength and durability.
Made in USA:
Applications:
- Food processing facilities.
- Washdown and sanitation areas.
- Marine and coastal environments.
- Chemical processing applications using a compatible hose.
- Commercial and industrial locations requiring corrosion-resistant hose management.
FAQs:
- Q: Does the Coxreels P-LPL-425-SS include a hose?
A: No. This is a less hose model and requires a compatible 1/2 in. I.D. hose supplied separately. - Q: What is the maximum working pressure?
A: The manufacturer rates this reel for a maximum working pressure of 300 PSI. - Q: Why choose a stainless steel reel?
A: Stainless steel construction offers improved corrosion resistance for demanding environments. - Q: What hose capacity does this reel provide?
A: It is designed to accommodate up to 25 ft of 1/2 in. I.D. hose. - Q: Can the guide arm be repositioned?
A: Yes. The adjustable guide arm supports multiple mounting orientations.
| LESS HOSE | SIZE INDEX |
|||||
|---|---|---|---|---|---|---|
| LESS HOSE SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | |
|
P SERIES
|
||||||
| P-LPL-335-SS | 3/8" | 1/2" | 35 | 300 | 34 | 1 |
| P-LPL-350-SS | 3/8" | 5/8" | 50 | 300 | 39 | 1 |
| P-LPL-425-SS | 1/2" | 3/4" | 25 | 300 | 39 | 2 |
|
SH & MP SERIES
|
||||||
| SHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 44 | 3 |
| SHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 46 | 3 |
| SHL-N-525-SS | 3/4" | 1-1/16" | 25 | 300 | 45 | 4 |
| MPL-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 53 | 3 |
| MPL-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 53 | 3 |
|
T SERIES
|
||||||
| TSHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 55 | 5 |
| TSHL-N-375-SS | 3/8" | 5/8" | 75 | 300 | 73 | 6 |
| TSHL-N-3100-SS | 3/8" | 5/8" | 100 | 300 | 74 | 6 |
| TSHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 55 | 5 |
| TSHL-N-475-SS | 1/2" | 3/4" | 75 | 300 | 71 | 6 |
| TSHL-N-4100-SS | 1/2" | 3/4" | 100 | 300 | 80 | 6 |
| TSHL-N-550-SS | 3/4" | 1-1/16" | 50 | 300 | 70 | 7 |
| TMPL-N-3100-SS | 3/8" | 1-1/16" | 100 | 3,000 | 82 | 6 |
| TMPL-N-4100-SS | 1/2" | 1-3/16" | 100 | 3,000 | 80 | 6 |
|
EN SERIES
|
||||||
| ENL-N-335-SS | 3/8" | 5/8" | 35 | 300 | 46 | 8 |
| ENL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 58 | 9 |
| ENL-N-425-SS | 1/2" | 3/4" | 25 | 300 | 63 | 8 |
| ENL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 61 | 9 |
| ENML-N-335-SS | 3/8" | 1-1/16" | 35 | 3,000 | 64 | 8 |
| ENML-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 80 | 9 |
| ENML-N-425-SS | 1/2" | 1-3/16" | 25 | 2,500 | 61 | 8 |
| ENML-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 82 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
