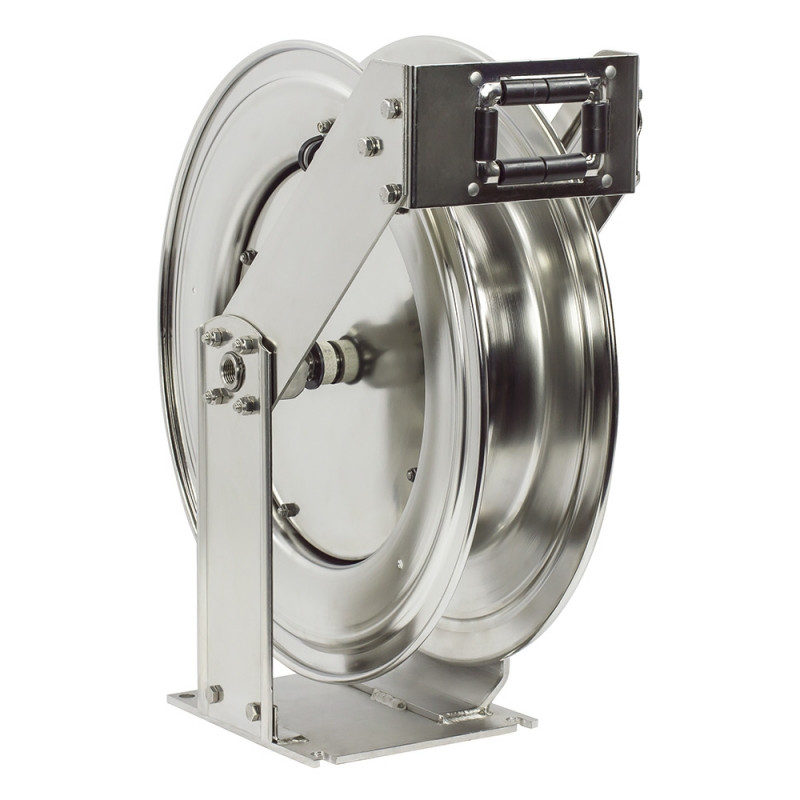

Built for washdown areas, marine service points, food and chemical processing facilities, and other corrosive environments, the Coxreels TSHL-N-375-SS stainless steel spring rewind hose reel provides organized hose storage for a 3/8" I.D. hose up to 75 ft long. Its 300 PSI pressure rating suits low-pressure air, water, and oil service when paired with a compatible hose, while the T-SS Series stainless construction helps reduce corrosion risk in areas where ordinary painted steel reels may deteriorate faster.
The T-SS Series combines Coxreels' truck-mount style reel structure with a clean electro-polished stainless steel finish, stainless steel fluid path components, and spring rewind operation for controlled hose storage after use. The multi-position lock ratchet mechanism secures the hose at the desired working length, and the adjustable guide arm supports wall, floor, vehicle, and overhead mounting layouts.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Spring Rewind Hose Reel | Series: T-SS Series | Model: TSHL-N-375-SS | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 75 ft | Max Pressure: 300 PSI | Inlet: 3/8" female NPT | Swivel: Stainless steel 90° full-flow NPT | Seal Type: Nitrile | Finish: Electro-polished stainless steel | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 7" x 8" | Approx. Ship Weight: 73 lbs
Features:
- Stainless steel 90° full-flow NPT swivel inlet supports a non-corrosive external fluid path for cleaner hose reel service.
- Nitrile swivel seals with non-toxic food grade grease help support use in environments where contamination control matters.
- Electro-polished stainless steel finish helps resist corrosion and provides a cleaner exterior surface for washdown-prone work areas.
- Dual pedestal reel construction with Coxreels' Super Hub triple axle support system provides added support for longer hose capacity.
- Guide arm adjusts for wall, floor, vehicle, and overhead positions, giving installers more flexibility during layout planning.
- Enclosed factory-tuned cartridge-style spring motor retracts the hose after use while protecting the spring mechanism inside the reel.
- Multi-position lock ratchet mechanism secures hose at the desired working length to reduce pullback during use.
- Stainless steel pawl spring supports corrosion resistance in the latch mechanism.
Made in USA:
Applications:
- Food and beverage processing areas where stainless construction and cleaner hose storage help support washdown routines.
- Marine, marina, and offshore service points where salt air and moisture can accelerate corrosion on standard painted reels.
- Chemical processing and transfer stations handling compatible low-pressure air, water, or oil lines.
- Fleet service trucks, mobile maintenance rigs, and utility skids that need a spring rewind reel with 75 ft hose capacity.
- Industrial maintenance and MRO areas where keeping hoses stored off the floor improves organization and reduces trip hazards.
FAQs:
- Q: What does less hose mean on the TSHL-N-375-SS?
A: It means the reel is supplied without hose installed. Select a compatible 3/8" I.D. hose with an outside diameter that does not exceed the reel's 5/8" hose O.D. capacity. - Q: Can this stainless steel reel be used for air, water, or oil?
A: Yes, this less-hose reel can be used for compatible low-pressure air, water, or oil service when the hose selected matches the fluid, pressure, temperature, and fitting requirements of the system. - Q: Why choose the T-SS Series instead of a standard painted steel T Series reel?
A: The T-SS Series uses electro-polished stainless steel construction and stainless steel fluid path components for applications where rust, corrosion, washdown exposure, or contamination concerns are more important than on standard shop reels. - Q: How can this reel be mounted?
A: The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions. Confirm the available space, mounting pattern, and structural support before installation. - Q: Does the 300 PSI rating apply to the hose too?
A: No. The reel is rated to 300 PSI, but the hose must be selected separately and must meet or exceed the pressure, temperature, and media requirements of the application.
| LESS HOSE | SIZE INDEX |
|||||
|---|---|---|---|---|---|---|
| LESS HOSE SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | |
|
P SERIES
|
||||||
| P-LPL-335-SS | 3/8" | 1/2" | 35 | 300 | 34 | 1 |
| P-LPL-350-SS | 3/8" | 5/8" | 50 | 300 | 39 | 1 |
| P-LPL-425-SS | 1/2" | 3/4" | 25 | 300 | 39 | 2 |
|
SH & MP SERIES
|
||||||
| SHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 44 | 3 |
| SHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 46 | 3 |
| SHL-N-525-SS | 3/4" | 1-1/16" | 25 | 300 | 45 | 4 |
| MPL-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 53 | 3 |
| MPL-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 53 | 3 |
|
T SERIES
|
||||||
| TSHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 55 | 5 |
| TSHL-N-375-SS | 3/8" | 5/8" | 75 | 300 | 73 | 6 |
| TSHL-N-3100-SS | 3/8" | 5/8" | 100 | 300 | 74 | 6 |
| TSHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 55 | 5 |
| TSHL-N-475-SS | 1/2" | 3/4" | 75 | 300 | 71 | 6 |
| TSHL-N-4100-SS | 1/2" | 3/4" | 100 | 300 | 80 | 6 |
| TSHL-N-550-SS | 3/4" | 1-1/16" | 50 | 300 | 70 | 7 |
| TMPL-N-3100-SS | 3/8" | 1-1/16" | 100 | 3,000 | 82 | 6 |
| TMPL-N-4100-SS | 1/2" | 1-3/16" | 100 | 3,000 | 80 | 6 |
|
EN SERIES
|
||||||
| ENL-N-335-SS | 3/8" | 5/8" | 35 | 300 | 46 | 8 |
| ENL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 58 | 9 |
| ENL-N-425-SS | 1/2" | 3/4" | 25 | 300 | 63 | 8 |
| ENL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 61 | 9 |
| ENML-N-335-SS | 3/8" | 1-1/16" | 35 | 3,000 | 64 | 8 |
| ENML-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 80 | 9 |
| ENML-N-425-SS | 1/2" | 1-3/16" | 25 | 2,500 | 61 | 8 |
| ENML-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 82 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- T-SS Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 75
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 300
