Built for washdown areas, food and chemical processing facilities, marinas, and other environments where rust or surface contamination can affect conventional steel equipment, the Coxreels SHL-N-525-SS stainless steel spring rewind hose reel stores up to 25 feet of 3/4-inch I.D. hose. Its 300 PSI maximum working pressure supports compatible low-pressure air and water applications when the separately selected hose, fittings, and system components meet the required pressure, temperature, and media specifications.
The SS-SH Series uses electro-polished stainless steel construction and a stainless steel external fluid path to provide clean, non-corrosive hose management. A single-pedestal configuration reduces reel width while a solid one-piece stainless steel base and support post provide a stable mounting platform without welded base construction. The enclosed cartridge-style spring motor automatically rewinds the hose, and the multi-position lock ratchet holds the hose at the working length selected by the operator.

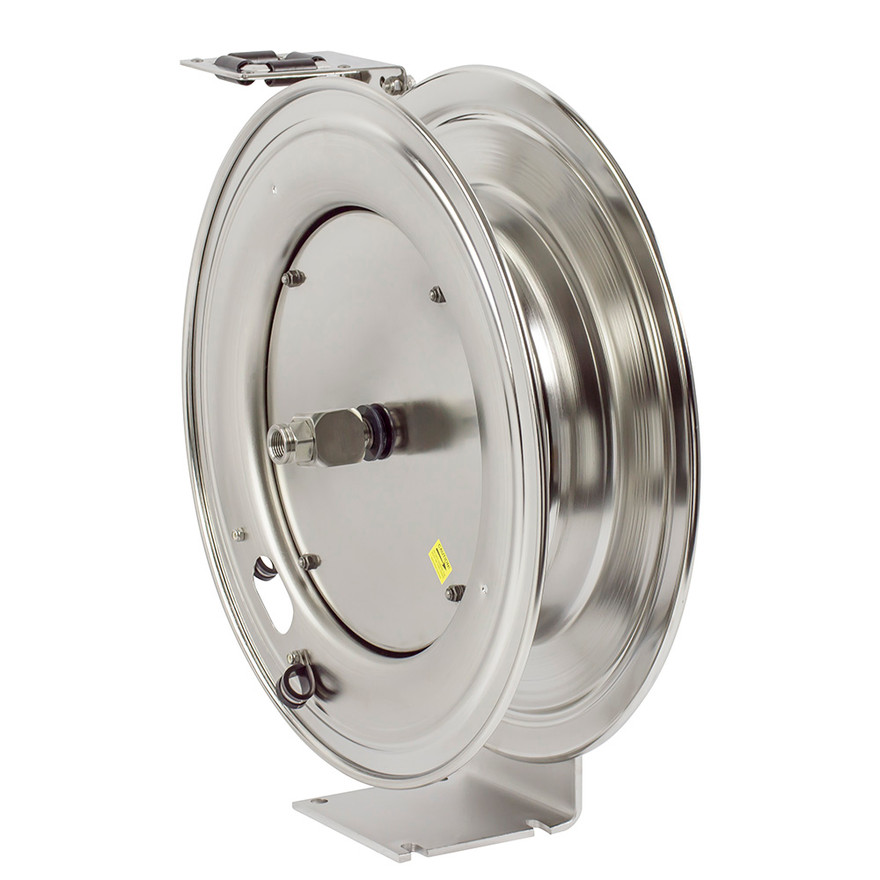

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Spring Rewind Hose Reel | Series: SS-SH Series | Model: SHL-N-525-SS | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 25 ft | Maximum Working Pressure: 300 PSI | Overall Dimensions: 9.38" W x 21 .25" H x 19.5" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Electro-polished stainless steel construction helps resist rust and corrosion in wet, sanitary, marine, and processing environments.
- Non-corrosive external fluid path includes a machined stainless steel 90-degree full-flow NPT swivel inlet.
- Nitrile swivel seals are lubricated with non-toxic food-grade grease.
- Electro-polished stainless steel, lubricated, enclosed cartridge-style spring motor is removable for more convenient maintenance.
- CNC robotically spun and ribbed discs feature rolled edges for added strength, hose protection, and safer handling.
- Solid one-piece 1/4-inch stainless steel base and support post provide single-pedestal stability without welded base construction.
- Super Hub dual axle support system and permanently lubricated precision bearings support smooth drum rotation.
- Multi-position stainless steel guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
Made in USA:
Applications:
- Food and beverage processing areas requiring corrosion-resistant hose storage around production or washdown equipment.
- Chemical processing facilities using compatible low-pressure air or water lines.
- Marinas, docks, boat-service areas, and other locations exposed to moisture or salt air.
- Bottling, meat packing, and sanitary processing operations where cleanable stainless steel equipment is preferred.
- Pulp and paper plants managing hose around wet-process machinery and cleanup stations.
- Service vehicles and compact work areas that benefit from a narrow single-pedestal reel configuration.
FAQs:
- Q: Does the Coxreels SHL-N-525-SS come with hose installed?
A: No. This model is supplied less hose. The buyer must provide compatible 3/4-inch I.D. hose with an outside diameter no greater than 1-1/16 inches. - Q: What is the difference between the SS-SH Series and a dual-pedestal reel?
A: The SS-SH Series uses a single-pedestal frame, which keeps the reel narrower and can simplify installation in restricted spaces. Dual-pedestal reels support the drum from both sides and are generally selected when that frame arrangement is preferred. - Q: Can this hose reel be mounted on a wall or ceiling?
A: Yes. The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions. The mounting structure and hardware must be capable of supporting the reel, installed hose, fittings, and operating forces. - Q: Is this reel suitable for food-processing facilities?
A: Its electro-polished stainless steel construction, stainless steel fluid path, and nitrile seals lubricated with non-toxic food-grade grease support use in processing environments where corrosion resistance and cleanliness matter. Verify that the hose and all connected components meet the facility's sanitation and media requirements. - Q: Can the SHL-N-525-SS operate above 300 PSI?
A: No. The reel has a maximum working pressure of 300 PSI. The assembled system must operate within the lowest pressure rating of the reel, hose, fittings, and connected equipment.
| LESS HOSE | SIZE INDEX |
|||||
|---|---|---|---|---|---|---|
| LESS HOSE SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | |
|
P SERIES
|
||||||
| P-LPL-335-SS | 3/8" | 1/2" | 35 | 300 | 34 | 1 |
| P-LPL-350-SS | 3/8" | 5/8" | 50 | 300 | 39 | 1 |
| P-LPL-425-SS | 1/2" | 3/4" | 25 | 300 | 39 | 2 |
|
SH & MP SERIES
|
||||||
| SHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 44 | 3 |
| SHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 46 | 3 |
| SHL-N-525-SS | 3/4" | 1-1/16" | 25 | 300 | 45 | 4 |
| MPL-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 53 | 3 |
| MPL-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 53 | 3 |
|
T SERIES
|
||||||
| TSHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 55 | 5 |
| TSHL-N-375-SS | 3/8" | 5/8" | 75 | 300 | 73 | 6 |
| TSHL-N-3100-SS | 3/8" | 5/8" | 100 | 300 | 74 | 6 |
| TSHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 55 | 5 |
| TSHL-N-475-SS | 1/2" | 3/4" | 75 | 300 | 71 | 6 |
| TSHL-N-4100-SS | 1/2" | 3/4" | 100 | 300 | 80 | 6 |
| TSHL-N-550-SS | 3/4" | 1-1/16" | 50 | 300 | 70 | 7 |
| TMPL-N-3100-SS | 3/8" | 1-1/16" | 100 | 3,000 | 82 | 6 |
| TMPL-N-4100-SS | 1/2" | 1-3/16" | 100 | 3,000 | 80 | 6 |
|
EN SERIES
|
||||||
| ENL-N-335-SS | 3/8" | 5/8" | 35 | 300 | 46 | 8 |
| ENL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 58 | 9 |
| ENL-N-425-SS | 1/2" | 3/4" | 25 | 300 | 63 | 8 |
| ENL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 61 | 9 |
| ENML-N-335-SS | 3/8" | 1-1/16" | 35 | 3,000 | 64 | 8 |
| ENML-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 80 | 9 |
| ENML-N-425-SS | 1/2" | 1-3/16" | 25 | 2,500 | 61 | 8 |
| ENML-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 82 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- SS-SH Series
- Hose Inside Diameter (in.)
- 3/4
- Hose Outside Diameter (in.)
- 1-1/16
- Hose Length (ft.)
- 25
- Maximum Working Pressure (PSI)
- 300
- Hose Included
- No
- Width (in.)
- 9.38
- Height (in.)
- 21 .25
- Length (in.)
- 19.5
- Mounting Pattern (in.)
- 4M
- Mounting Pattern (in.)
- 5N
- Base (in.)
- 6X
- Base (in.)
- 6Y
