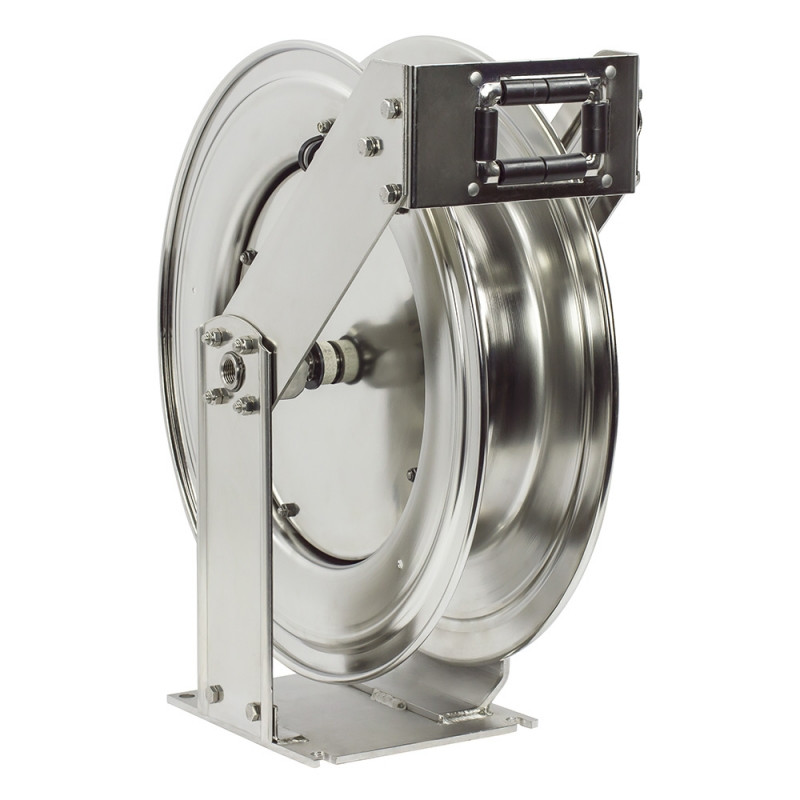

Built for hose handling in food and chemical processing areas, marinas, washdown stations, and other locations where corrosion or contamination is a concern, the Coxreels TSHL-N-550-SS stainless steel spring rewind hose reel provides storage capacity for 50 feet of 3/4-inch I.D. hose. Its 300 PSI maximum pressure rating supports compatible low-pressure air, water, or oil service when the buyer supplies hose and fittings suited to the intended fluid, pressure, and operating environment.
The SS-T Series combines an electro-polished stainless steel structure with a non-corrosive external fluid path. A machined stainless steel 90-degree full-flow NPT swivel inlet helps maintain fluid movement through the reel, while nitrile swivel seals are lubricated with non-toxic food-grade grease. The dual-pedestal frame incorporates Coxreels' Super Hub axle support system, a reinforced arrangement that supports the reel drum from both sides for improved stability in stationary and mobile installations.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Spring Rewind Hose Reel | Series: SS-T Series | Model: TSHL-N-550-SS | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 50 ft | Maximum Pressure: 300 PSI | Overall Dimensions: 9.88" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y
Features:
- High-quality electro-polished stainless steel construction supports use where rust, corrosion, and surface contamination are ongoing concerns.
- Non-corrosive external fluid path incorporates a machined stainless steel 90-degree full-flow NPT swivel inlet.
- Nitrile swivel seals use non-toxic food-grade grease.
- Dual-pedestal frame includes Coxreels Super Hub axle support system for stable drum support and reduced structural vibration.
- Enclosed, factory-tuned cartridge-style spring motor provides automatic hose retraction and can be removed for more convenient maintenance.
- Multi-position lock ratchet secures the hose at the required working length during use.
- Adjustable stainless steel guide arm supports wall, floor, ceiling, and vehicle mounting positions.
- Stainless steel rollers accommodate the larger hose size and help guide the hose during extension and rewind.
Made in USA:
Applications:
- Food and beverage processing facilities requiring organized hose storage in corrosion-prone or frequent-washdown areas.
- Chemical processing plants handling compatible low-pressure air, water, or oil lines.
- Marine facilities, docks, and marinas where moisture and salt exposure can accelerate corrosion on conventional steel reels.
- Meat packing and bottling operations that require a cleanable stainless steel reel structure.
- Pulp and paper facilities using hose lines around wet processing equipment and washdown stations.
- Mobile service vehicles that need a dual-pedestal reel capable of accommodating 50 feet of 3/4-inch hose.
FAQs:
- Q: Does the Coxreels TSHL-N-550-SS include hose?
A: No. This is a less-hose reel supplied without hose installed. Select a compatible hose with a 3/4-inch inside diameter, an outside diameter no greater than 1-1/16 inches, and a pressure and material rating appropriate for the intended service. - Q: What does the 50-foot rating represent?
A: It is the reel's maximum listed storage capacity for compatible 3/4-inch I.D. hose. Using hose with a larger outside diameter may reduce the amount that fits on the drum. - Q: Can this reel be mounted on a wall or service vehicle?
A: Yes. The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions. Confirm that the mounting surface and hardware can support the reel, hose, fittings, and operating loads. - Q: Is this reel suitable for food-processing areas?
A: Its electro-polished stainless steel construction, stainless steel fluid path, and nitrile seals with non-toxic food-grade grease support use in food and beverage environments. The separately selected hose, fittings, and transferred fluid must also meet the facility's sanitation and compatibility requirements. - Q: Can it be used above 300 PSI?
A: No. The reel is rated for a maximum of 300 PSI. Do not exceed the lowest pressure rating of the reel, hose, fittings, or any other component in the assembled system.
| LESS HOSE | SIZE INDEX |
|||||
|---|---|---|---|---|---|---|
| LESS HOSE SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | |
|
P SERIES
|
||||||
| P-LPL-335-SS | 3/8" | 1/2" | 35 | 300 | 34 | 1 |
| P-LPL-350-SS | 3/8" | 5/8" | 50 | 300 | 39 | 1 |
| P-LPL-425-SS | 1/2" | 3/4" | 25 | 300 | 39 | 2 |
|
SH & MP SERIES
|
||||||
| SHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 44 | 3 |
| SHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 46 | 3 |
| SHL-N-525-SS | 3/4" | 1-1/16" | 25 | 300 | 45 | 4 |
| MPL-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 53 | 3 |
| MPL-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 53 | 3 |
|
T SERIES
|
||||||
| TSHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 55 | 5 |
| TSHL-N-375-SS | 3/8" | 5/8" | 75 | 300 | 73 | 6 |
| TSHL-N-3100-SS | 3/8" | 5/8" | 100 | 300 | 74 | 6 |
| TSHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 55 | 5 |
| TSHL-N-475-SS | 1/2" | 3/4" | 75 | 300 | 71 | 6 |
| TSHL-N-4100-SS | 1/2" | 3/4" | 100 | 300 | 80 | 6 |
| TSHL-N-550-SS | 3/4" | 1-1/16" | 50 | 300 | 70 | 7 |
| TMPL-N-3100-SS | 3/8" | 1-1/16" | 100 | 3,000 | 82 | 6 |
| TMPL-N-4100-SS | 1/2" | 1-3/16" | 100 | 3,000 | 80 | 6 |
|
EN SERIES
|
||||||
| ENL-N-335-SS | 3/8" | 5/8" | 35 | 300 | 46 | 8 |
| ENL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 58 | 9 |
| ENL-N-425-SS | 1/2" | 3/4" | 25 | 300 | 63 | 8 |
| ENL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 61 | 9 |
| ENML-N-335-SS | 3/8" | 1-1/16" | 35 | 3,000 | 64 | 8 |
| ENML-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 80 | 9 |
| ENML-N-425-SS | 1/2" | 1-3/16" | 25 | 2,500 | 61 | 8 |
| ENML-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 82 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- SS-T Series
- Hose Inside Diameter (in.)
- 3/4
- Hose Outside Diameter (in.)
- 1-1/16
- Hose Length (ft.)
- 50
- Maximum Working Pressure (PSI)
- 300
- Hose Included
- No
- Width (in.)
- 9.88
- Height (in.)
- 25.5
- Length (in.)
- 24
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
