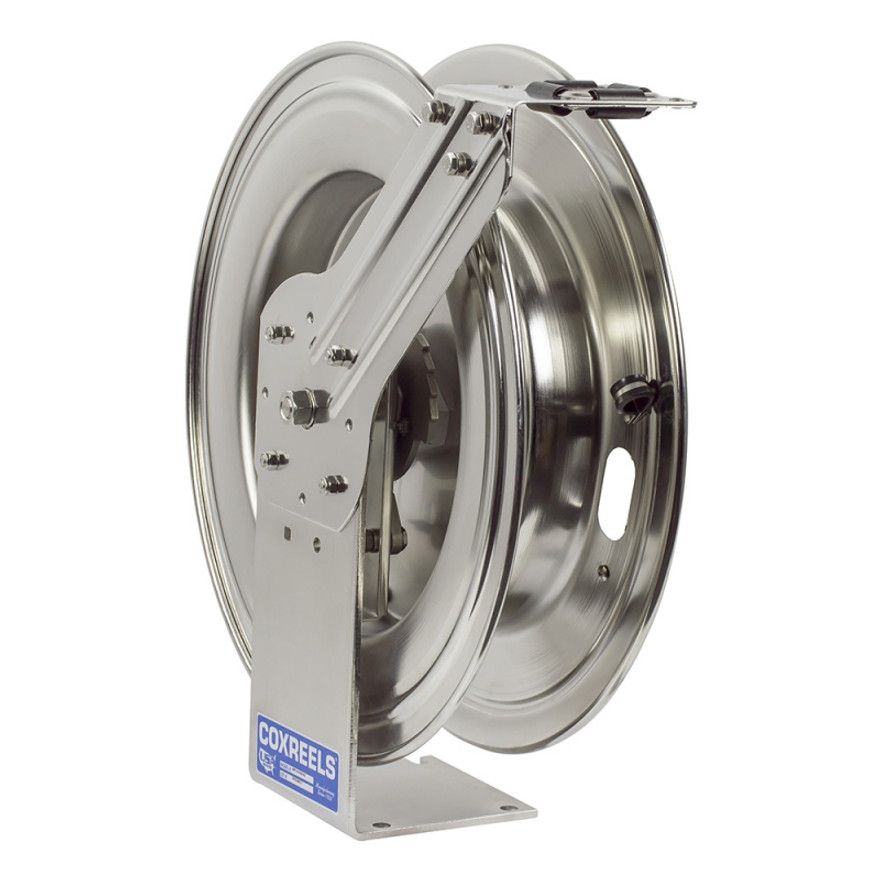

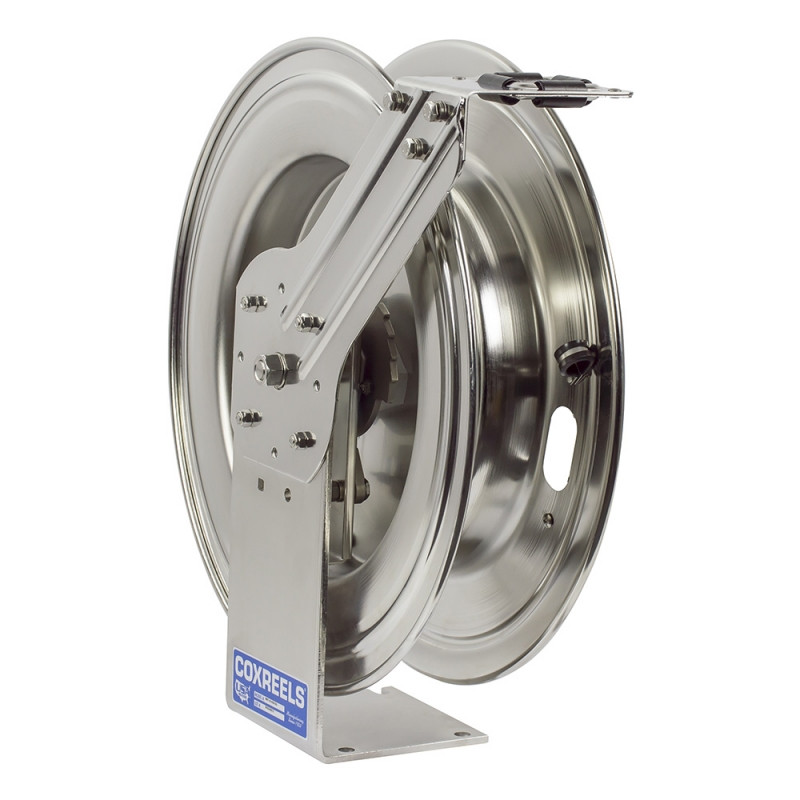

Built for higher-pressure hose service in wet, corrosive, and contamination-sensitive environments, the Coxreels MPL-N-350-SS stainless steel spring rewind hose reel stores up to 50 feet of 3/8-inch I.D. hose. Its 3,000 PSI maximum pressure rating provides the capacity needed for compatible pressure-washing, hydraulic, air, water, or oil applications when the separately selected hose, fittings, and connected equipment are rated for the intended pressure and media.
The MP-SS Series combines electro-polished stainless steel construction with a non-corrosive external fluid path for clean hose management where rust can shorten equipment life or create contamination concerns. Its single-pedestal frame limits overall reel width, while Coxreels Super Hub dual-axle support system reinforces the drum assembly for stable operation. An enclosed cartridge-style spring motor automatically returns the hose to the reel, and the multi-position lock ratchet holds it at the extension required for the job.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Spring Rewind Hose Reel | Series: MP-SS Series | Model: MPL-N-350-SS | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Capacity: 50 ft | Maximum Pressure: 3,000 PSI | Overall Dimensions: 8.25" W x 21.25" H x 19.5" L
Features:
- Electro-polished stainless steel construction supports clean, corrosion-resistant operation in wet and contamination-sensitive locations.
- Non-corrosive external fluid path incorporates a machined stainless steel 90-degree full-flow NPT swivel inlet.
- Nitrile swivel seals are lubricated with non-toxic food-grade grease.
- Single-pedestal configuration provides substantial hose capacity while conserving mounting width.
- Super Hub dual-axle support system reinforces the reel drum for stable rotation during hose extension and rewind.
- Electro-polished stainless steel, lubricated, enclosed cartridge-style spring motor is removable for more convenient maintenance.
- CNC robotically spun and ribbed discs feature rolled edges for strength, hose protection, and safer handling.
- Multi-position stainless steel guide arm supports wall, floor, ceiling, and vehicle mounting arrangements.
Made in USA:
Applications:
- Pressure-washing systems requiring organized storage for compatible 3,000 PSI hose.
- Food and beverage processing facilities managing higher-pressure hose near sanitation or washdown equipment.
- Chemical processing operations where stainless steel construction helps limit corrosion and surface contamination.
- Marine maintenance, docks, and boat-service areas exposed to moisture, spray, or salt air.
- Industrial hydraulic and lubrication stations using compatible oil or fluid-delivery hose.
- Mobile service vehicles that need 50 feet of hose capacity from a compact single-pedestal reel.
FAQs:
- Q: Does the Coxreels MPL-N-350-SS include hose?
A: No. This model is supplied less hose, so the buyer must provide a compatible 3/8-inch I.D. hose. The hose, fittings, and other components must be rated for the intended fluid, temperature, and operating pressure. - Q: Can any 3/8-inch hose be installed on this reel?
A: No. The hose must have a 3/8-inch inside diameter and an outside diameter no greater than 11/16 inch to obtain the listed 50-foot capacity. It must also have a working-pressure rating that meets or exceeds the application requirements. - Q: Is 3,000 PSI the pressure rating of the supplied hose?
A: No hose is supplied with this model. The 3,000 PSI figure is the reel's maximum pressure rating; the completed assembly must operate within the lowest rating of the reel, hose, fittings, swivel, and connected equipment. - Q: Can the MPL-N-350-SS be mounted on a wall or ceiling?
A: Yes. Its adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions. The mounting surface and hardware must support the reel, installed hose, fittings, and forces created during extension and rewind. - Q: How does the MP-SS Series differ from the SH-SS Series?
A: The MP-SS Series is configured for higher-pressure service, with this model rated up to 3,000 PSI. Comparable SH-SS models are intended for lower-pressure applications, so buyers should select the series according to the pressure requirements of the complete system.
| LESS HOSE | SIZE INDEX |
|||||
|---|---|---|---|---|---|---|
| LESS HOSE SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | |
|
P SERIES
|
||||||
| P-LPL-335-SS | 3/8" | 1/2" | 35 | 300 | 34 | 1 |
| P-LPL-350-SS | 3/8" | 5/8" | 50 | 300 | 39 | 1 |
| P-LPL-425-SS | 1/2" | 3/4" | 25 | 300 | 39 | 2 |
|
SH & MP SERIES
|
||||||
| SHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 44 | 3 |
| SHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 46 | 3 |
| SHL-N-525-SS | 3/4" | 1-1/16" | 25 | 300 | 45 | 4 |
| MPL-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 53 | 3 |
| MPL-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 53 | 3 |
|
T SERIES
|
||||||
| TSHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 55 | 5 |
| TSHL-N-375-SS | 3/8" | 5/8" | 75 | 300 | 73 | 6 |
| TSHL-N-3100-SS | 3/8" | 5/8" | 100 | 300 | 74 | 6 |
| TSHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 55 | 5 |
| TSHL-N-475-SS | 1/2" | 3/4" | 75 | 300 | 71 | 6 |
| TSHL-N-4100-SS | 1/2" | 3/4" | 100 | 300 | 80 | 6 |
| TSHL-N-550-SS | 3/4" | 1-1/16" | 50 | 300 | 70 | 7 |
| TMPL-N-3100-SS | 3/8" | 1-1/16" | 100 | 3,000 | 82 | 6 |
| TMPL-N-4100-SS | 1/2" | 1-3/16" | 100 | 3,000 | 80 | 6 |
|
EN SERIES
|
||||||
| ENL-N-335-SS | 3/8" | 5/8" | 35 | 300 | 46 | 8 |
| ENL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 58 | 9 |
| ENL-N-425-SS | 1/2" | 3/4" | 25 | 300 | 63 | 8 |
| ENL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 61 | 9 |
| ENML-N-335-SS | 3/8" | 1-1/16" | 35 | 3,000 | 64 | 8 |
| ENML-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 80 | 9 |
| ENML-N-425-SS | 1/2" | 1-3/16" | 25 | 2,500 | 61 | 8 |
| ENML-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 82 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
