For higher-pressure hose management in wet, corrosive, or cleanliness-sensitive work areas, the Coxreels MPL-N-450-SS stainless steel spring rewind hose reel stores up to 50 feet of 1/2-inch I.D. hose. Its 2,500 PSI maximum pressure rating supports compatible medium-pressure fluid systems, while the reel-only configuration lets buyers select hose and fittings that match the application's pressure, temperature, and media requirements.
The MP-SS Series combines electro-polished stainless steel construction with a non-corrosive external fluid path for hose storage around processing equipment, marine facilities, washdown stations, and mobile service operations. Coxreels Super Hub dual-axle support system reinforces the drum within a space-saving single-pedestal frame, helping maintain stable rotation as the hose is extended and retracted. An enclosed cartridge-style spring motor provides automatic rewind, while the multi-position lock ratchet holds the hose at the selected working length.

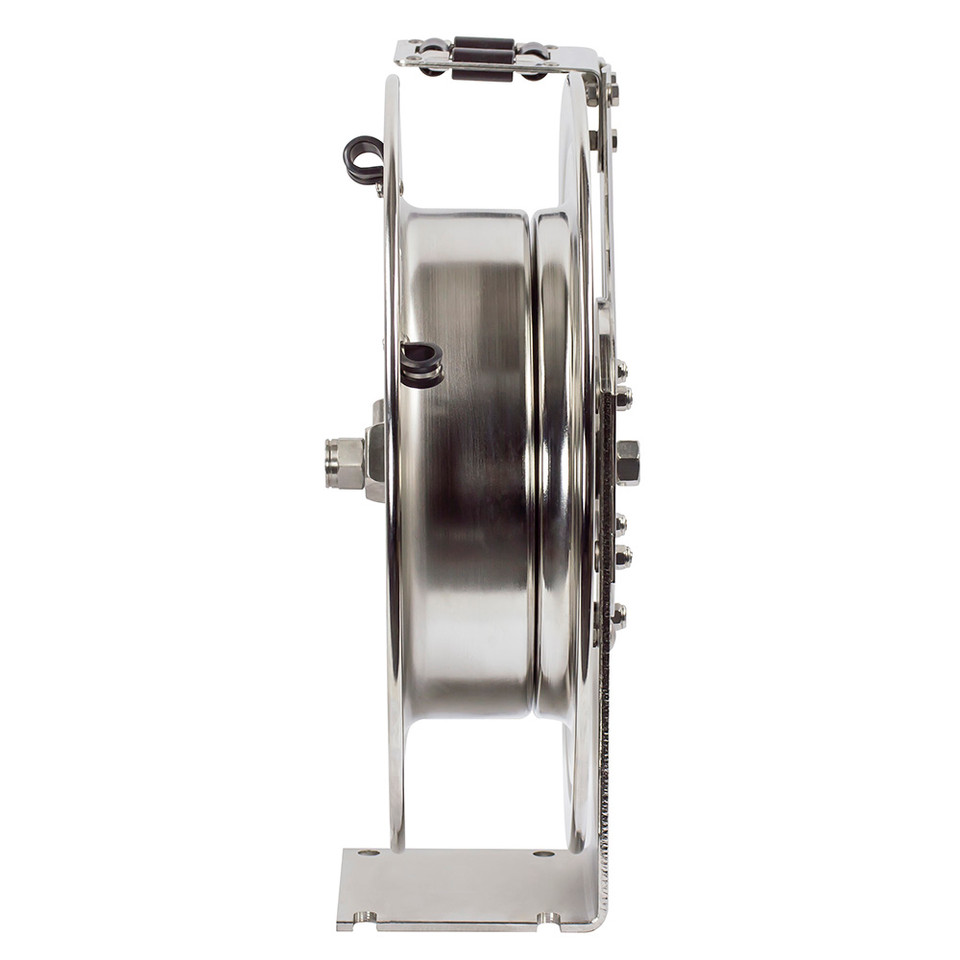

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Spring Rewind Hose Reel | Series: MP-SS Series | Model: MPL-N-450-SS | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Capacity: 50 ft | Maximum Pressure: 2,500 PSI | Overall Dimensions: 8-1/4" W x 21-1/4" H x 19-1/2" L | Mounting Pattern: 4" M x 5" N | Base Dimensions: 6" X x 6" Y
Features:
- Electro-polished stainless steel construction supports corrosion-resistant hose storage in wet and contamination-sensitive environments.
- Non-corrosive external fluid path incorporates a machined stainless steel 90-degree full-flow NPT swivel inlet.
- Nitrile swivel seals are lubricated with non-toxic food-grade grease.
- Super Hub dual-axle support system increases reel stability, reduces vibration, and strengthens the drum assembly.
- Single-pedestal frame provides 50-foot hose capacity without requiring the width of a dual-pedestal reel.
- Lubricated and enclosed cartridge-style spring motor is removable for safer and more convenient maintenance.
- CNC robotically spun and ribbed discs feature rolled edges for strength, hose protection, and safer handling.
- Multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting arrangements.
Made in USA:
Applications:
- Industrial hydraulic and lubrication stations managing compatible medium-pressure oil hose.
- Food and beverage processing facilities requiring corrosion-resistant hose storage around sanitation or washdown equipment.
- Chemical processing areas where the hose, seals, and fittings are verified for the transferred media.
- Marine maintenance facilities, docks, and boat-service areas exposed to moisture or salt air.
- Pressure-washing and equipment-cleaning systems operating within the reel and hose assembly ratings.
- Mobile maintenance vehicles that require 50 feet of 1/2-inch hose capacity from a compact reel frame.
FAQs:
- Q: Is hose included with the Coxreels MPL-N-450-SS?
A: No. This model is supplied less hose. The buyer must provide compatible 1/2-inch I.D. hose and fittings rated for the intended pressure, fluid, temperature, and operating environment. - Q: What hose outside diameter fits this reel?
A: The listed 50-foot capacity applies to hose with a maximum outside diameter of 13/16 inch. A thicker hose may reduce the amount that can be stored correctly on the drum. - Q: Is the complete hose assembly automatically rated to 2,500 PSI?
A: No. The reel has a maximum pressure rating of 2,500 PSI, but no hose is included. The completed system must operate within the lowest pressure rating of the reel, hose, fittings, swivel, and connected equipment. - Q: How does this model differ from the MPL-N-350-SS?
A: Both models store up to 50 feet of hose, but the MPL-N-450-SS accommodates 1/2-inch I.D. hose and is rated to 2,500 PSI. The MPL-N-350-SS accommodates smaller 3/8-inch I.D. hose and carries a higher 3,000 PSI reel rating. - Q: Can the MPL-N-450-SS be mounted overhead?
A: Yes. Its adjustable guide arm supports overhead, wall, floor, and vehicle mounting positions. The supporting structure and installation hardware must carry the reel, installed hose, fittings, and operating loads.
| LESS HOSE | SIZE INDEX |
|||||
|---|---|---|---|---|---|---|
| LESS HOSE SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | |
|
P SERIES
|
||||||
| P-LPL-335-SS | 3/8" | 1/2" | 35 | 300 | 34 | 1 |
| P-LPL-350-SS | 3/8" | 5/8" | 50 | 300 | 39 | 1 |
| P-LPL-425-SS | 1/2" | 3/4" | 25 | 300 | 39 | 2 |
|
SH & MP SERIES
|
||||||
| SHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 44 | 3 |
| SHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 46 | 3 |
| SHL-N-525-SS | 3/4" | 1-1/16" | 25 | 300 | 45 | 4 |
| MPL-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 53 | 3 |
| MPL-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 53 | 3 |
|
T SERIES
|
||||||
| TSHL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 55 | 5 |
| TSHL-N-375-SS | 3/8" | 5/8" | 75 | 300 | 73 | 6 |
| TSHL-N-3100-SS | 3/8" | 5/8" | 100 | 300 | 74 | 6 |
| TSHL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 55 | 5 |
| TSHL-N-475-SS | 1/2" | 3/4" | 75 | 300 | 71 | 6 |
| TSHL-N-4100-SS | 1/2" | 3/4" | 100 | 300 | 80 | 6 |
| TSHL-N-550-SS | 3/4" | 1-1/16" | 50 | 300 | 70 | 7 |
| TMPL-N-3100-SS | 3/8" | 1-1/16" | 100 | 3,000 | 82 | 6 |
| TMPL-N-4100-SS | 1/2" | 1-3/16" | 100 | 3,000 | 80 | 6 |
|
EN SERIES
|
||||||
| ENL-N-335-SS | 3/8" | 5/8" | 35 | 300 | 46 | 8 |
| ENL-N-350-SS | 3/8" | 5/8" | 50 | 300 | 58 | 9 |
| ENL-N-425-SS | 1/2" | 3/4" | 25 | 300 | 63 | 8 |
| ENL-N-450-SS | 1/2" | 3/4" | 50 | 300 | 61 | 9 |
| ENML-N-335-SS | 3/8" | 1-1/16" | 35 | 3,000 | 64 | 8 |
| ENML-N-350-SS | 3/8" | 1-1/16" | 50 | 3,000 | 80 | 9 |
| ENML-N-425-SS | 1/2" | 1-3/16" | 25 | 2,500 | 61 | 8 |
| ENML-N-450-SS | 1/2" | 1-3/16" | 50 | 2,500 | 82 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- MP-SS Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 13/16
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 2500
- Width (in.)
- 8.75
- Height (in.)
- 25.5
- Length (in.)
- 19.5
- Mounting Pattern (in.)
- 4M
- Mounting Pattern (in.)
- 5N
- Base (in.)
- 6X
- Base (in.)
- 6Y
