Built for industrial applications where exceptionally long hose runs demand reliable powered retrieval, the Coxreels 1125-4-500-E electric motor rewind hose reel helps streamline hose handling in manufacturing facilities, maintenance operations, construction sites, and mobile service equipment. Powered by a 12V DC 1/3 HP electric motor, this reel provides efficient motorized rewind while accommodating up to 500 feet of 1/2-inch hose. Its 3000 PSI maximum operating pressure supports high-pressure fluid transfer systems where organized hose storage and reduced manual handling contribute to improved productivity.
As part of the 1125 Series, this reel is supplied in a Less Hose configuration, allowing users to select the hose best suited to their application and operating conditions. The powered rewind system reduces the effort required to retrieve extended hose lengths while helping minimize hose kinks, abrasion, and unnecessary wear during daily operation.

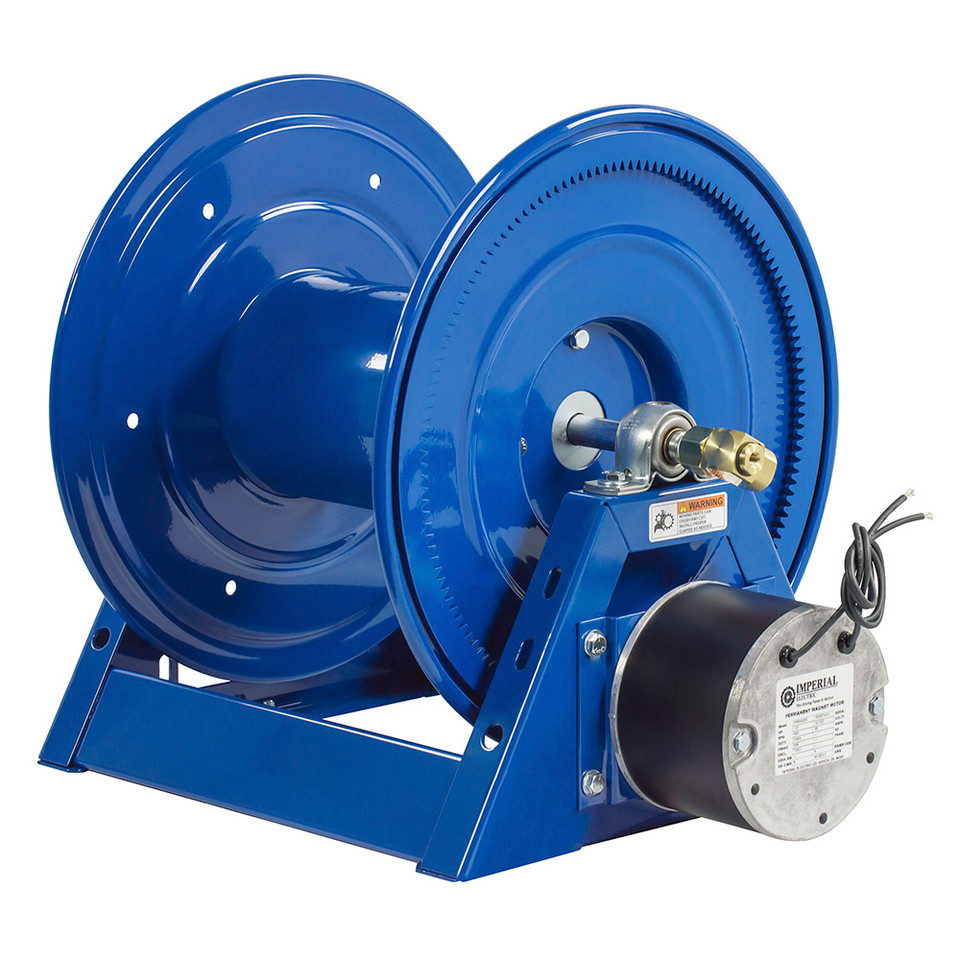

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-4-500-E | Motor: 12V DC, 1/3 HP | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 500 ft | Maximum Pressure: 3000 PSI
Features:
- 12V DC 1/3 HP electric motor provides powered hose rewind for quicker hose retrieval and reduced manual effort.
- Accommodates up to 500 feet of 1/2-inch hose for applications requiring exceptional hose reach.
- 3000 PSI maximum pressure rating supports demanding high-pressure service when paired with compatible hose and fittings.
- Less hose configuration allows users to install a hose that matches their specific fluid transfer requirements.
- 1125 Series construction promotes organized hose storage while helping reduce hose wear caused by dragging and improper coiling.
- Powered rewind improves operational efficiency where hoses are deployed and retrieved repeatedly throughout the workday.
Made in USA:
Applications:
- Mobile service trucks utilizing 12V DC electrical systems for extended high-pressure hose deployment.
- Industrial manufacturing facilities requiring efficient storage and retrieval of very long hose assemblies.
- Construction and heavy equipment maintenance where extended hose coverage reduces equipment repositioning.
- Plant maintenance departments performing pressure transfer and service operations across expansive work areas.
- General industrial fluid transfer systems using compatible 1/2-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose installed. A compatible 1/2-inch hose must be purchased separately and installed by the user. - Q: What powers the hose rewind system?
A: This model uses a 12V DC, 1/3 HP electric motor to provide powered hose rewind, making retrieval of long hose lengths faster and less labor-intensive. - Q: How much hose can this reel accommodate?
A: The reel is designed to store up to 500 feet of 1/2-inch hose, depending on the hose construction and outside diameter. - Q: Can this reel be used with high-pressure hose?
A: Yes. It is rated for a maximum operating pressure of 3000 PSI when used with compatible hose, fittings, and application requirements.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-500 | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 | 5 |
| 1125-4-500-A | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-A | 5,000 | 58 | 5 |
| 1125-4-500-AB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-AB | 5,000 | 58 | 5 |
| 1125-4-500-C | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-C | 5,000 | 58 | 5 |
| 1125-4-500-E | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-E | 5,000 | 58 | 5 |
| 1125-4-500-EA | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EA | 5,000 | 58 | 5 |
| 1125-4-500-EB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EB | 5,000 | 58 | 5 |
| 1125-4-500-ED | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-ED | 5,000 | 58 | 5 |
| 1125-4-500-EF | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EF | 5,000 | 58 | 5 |
| 1125-4-500-H | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-H | 5,000 | 58 | 5 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
