When you need to manage long hose runs without powered rewind, the Coxreels 1125-4-500-C bevel geared crank hose reel provides high-capacity storage for up to 500 ft of 1/2" I.D. hose while maintaining a 3000 PSI working pressure rating for medium-pressure air, water, oil, lubrication, spraying, and pressure-washing applications when paired with the proper hose. The 1125 Series uses a one-piece welded steel 'A' frame, a low-profile outlet riser, and an open drum slot design to help guide hose onto the drum in a flatter, less crimp-prone wrap. The front bevel geared crank gives the operator mechanical assistance during manual rewind, which is especially useful when retrieving longer hose lengths from plant floors, service yards, washdown areas, or mobile maintenance setups.
This model is supplied as a reel only, allowing the buyer to install a compatible hose selected for the fluid, temperature, pressure, and fitting requirements of the job. Its 1/2" F NPT inlet swivel and outlet riser support common industrial hose connections, while the 41.5" W x 18.75" H x 17.63" L overall footprint and 31.44" x 10" mounting pattern help maintenance teams plan bench, floor, truck, or skid-mounted installations before ordering.

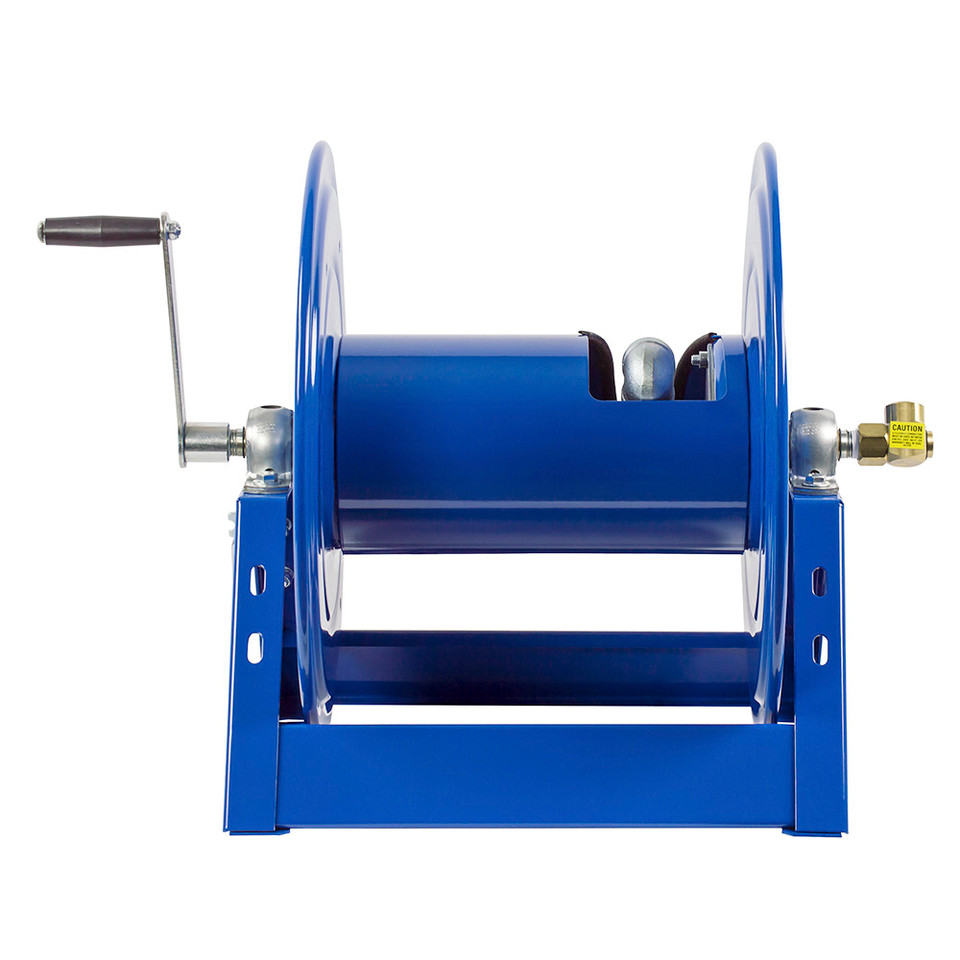

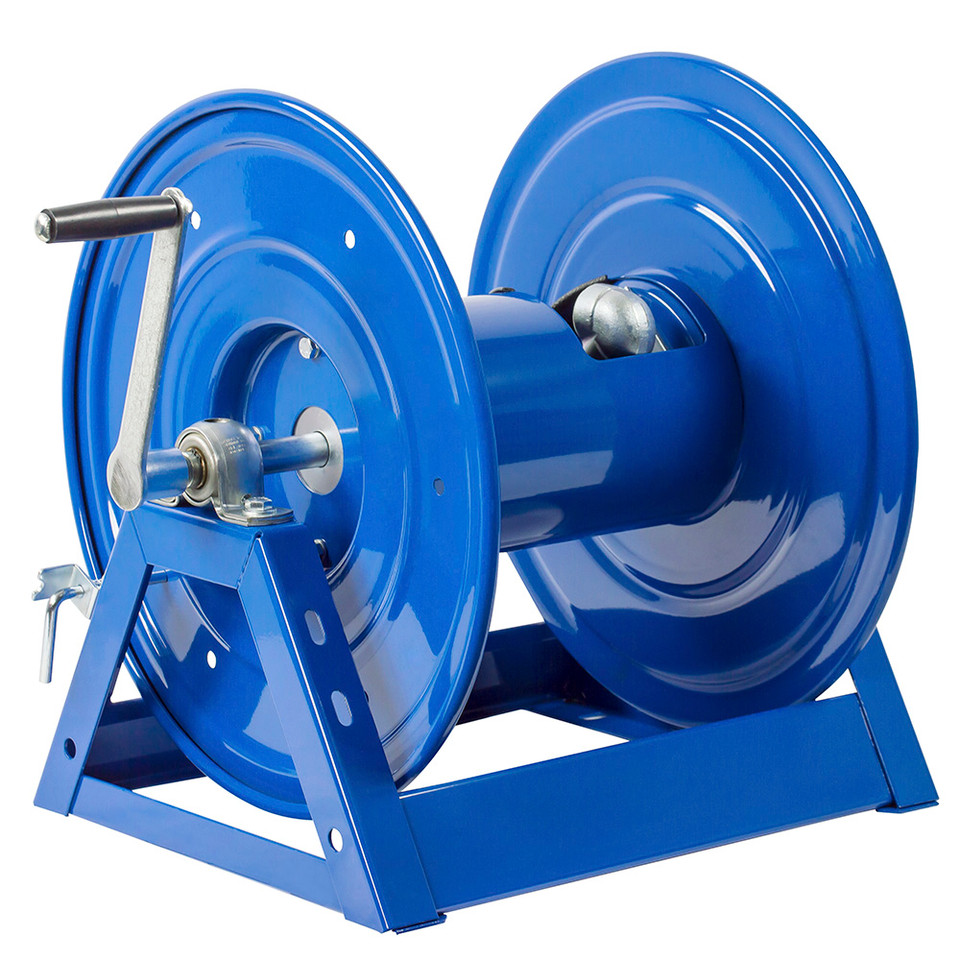

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Crank Hose Reel | Series: 1125 Series | Configuration: Less Hose | Model: 1125-4-500-C | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 500 ft | Inlet Swivel & Outlet Riser: 1/2" F NPT | Max Pressure: 3000 PSI | Drum Width: 28" | Overall Dimensions: 41.5" W x 18.75" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 15.38" Y | Ship Weight: 58 lbs
Features:
- Bevel geared crank configuration provides mechanical hand rewind for retrieving long hose lengths without an electric, air, or hydraulic motor.
- One-piece, all CNC robotically welded 12 gauge steel 'A' frame base is not bolted together, helping keep the reel structure rigid during installation and use.
- Low-profile outlet riser and open drum slot design support a flat, smooth hose wrap and help reduce hose crimping during rewind.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with reduced bearing maintenance.
- Adjustable tension brake helps prevent free-wheeling, which is uncontrolled drum rotation during hose payout or rewind.
- Electroless nickel-plated steel 90° full-flow NPT swivel inlet supports fluid flow through the reel while allowing the drum to rotate.
- CNC robotically spun and ribbed discs with rolled edges provide added drum strength, hose protection, and safer handling around the reel edges.
- Chip-resistant, rust-inhibiting CPC powder coat finish helps protect the steel reel frame and drum in shop, field, and washdown environments.
Made in USA:
Applications:
- Industrial plant and MRO maintenance: Managing long air, water, lubrication, or service hose runs around machinery, maintenance bays, and production support areas.
- Pressure washing and washdown: Storing extended hose lengths for cleaning equipment, floors, tanks, vehicles, and outdoor work areas when the selected hose matches the pressure and fluid requirements.
- Agricultural spraying and grounds maintenance: Keeping hose organized on farms, golf courses, landscaping trailers, and pest or weed control rigs.
- Construction sites and mobile service: Mounting to skids, service trucks, or shop structures where hand crank hose retrieval is preferred over powered rewind.
- Chemical fluid transfer and lubrication setups: Supporting compatible hose installations for transfer, oil, grease, or dispensing tasks when fluid compatibility is confirmed before use.
FAQs:
- Q: What does 'less hose' mean on the 1125-4-500-C?
A: It means the reel is supplied without hose installed. The buyer must select and install a compatible 1/2" I.D. hose rated for the required pressure, fluid, temperature, and fittings. - Q: What does the 'C' suffix mean?
A: The 'C' suffix identifies the front hand crank bevel geared crank option. This provides mechanical hand rewind assistance instead of a direct hand crank, electric motor, air motor, or hydraulic rewind. - Q: Can this reel be used for pressure washing?
A: Yes, the 1125 Series is listed for pressure washing applications, and this model is rated to 3000 PSI. The installed hose, fittings, swivel path, and fluid temperature must also be suitable for the pressure washer system. - Q: Does the reel include mounting hardware?
A: The manufacturer data provided lists the mounting pattern and base dimensions, but does not confirm included mounting hardware. Confirm hardware requirements before installation based on the mounting surface and load. - Q: How much hose can this model hold?
A: This model is rated for 500 ft of 1/2" I.D. hose with 7/8" O.D. The reel may also accept other hose sizes only when the installed hose dimensions fit within Coxreels' stated capacity limits.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-500 | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 | 5 |
| 1125-4-500-A | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-A | 5,000 | 58 | 5 |
| 1125-4-500-AB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-AB | 5,000 | 58 | 5 |
| 1125-4-500-C | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-C | 5,000 | 58 | 5 |
| 1125-4-500-E | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-E | 5,000 | 58 | 5 |
| 1125-4-500-EA | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EA | 5,000 | 58 | 5 |
| 1125-4-500-EB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EB | 5,000 | 58 | 5 |
| 1125-4-500-ED | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-ED | 5,000 | 58 | 5 |
| 1125-4-500-EF | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EF | 5,000 | 58 | 5 |
| 1125-4-500-H | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-H | 5,000 | 58 | 5 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
