Built for long high-pressure hose runs, the Coxreels HP1125-4-500-C is an HP1125 Series bevel geared crank hose reel with 500 ft of 1/2" I.D. hose capacity and a 5000 PSI maximum pressure rating. The bevel geared crank configuration uses a gear-assisted manual rewind to help manage longer, heavier hose lengths more smoothly than a direct crank setup, making it a practical choice for fixed maintenance stations, service vehicles, pressure washing systems, lubrication work, and high-pressure fluid transfer setups.
This HP1125 reel is built on Coxreels' one-piece all-welded steel 'A' frame, with a low-profile outlet riser and open drum slot design that help the hose lay into a flatter, smoother wrap during rewind. The -C suffix identifies the bevel geared crank option, while the reel's 1/2" hose I.D., 7/8" hose O.D., and 500 ft capacity give buyers a clear sizing reference when selecting compatible hose for the required media, pressure, and jobsite layout.

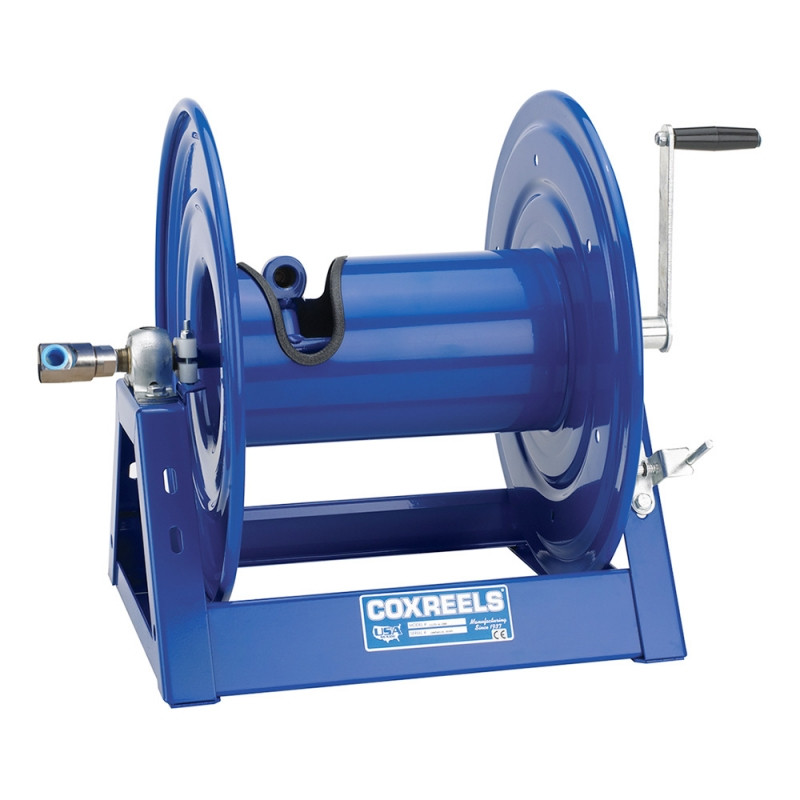

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Crank Hose Reel | Series: HP1125 Series | Model: HP1125-4-500-C | Configuration: Less Hose | Rewind: Bevel Geared Hand Crank | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 500 ft | Max Pressure: 5000 PSI | Ship Weight: 58 lbs | Overall Dimensions: 41.5" W x 18.75" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 15.38" Y
Features:
- Bevel geared hand crank supports smoother manual rewind on longer hose lengths.
- Removable crank handle allows more compact storage when the reel is not in use.
- Rated for high-pressure applications up to 5000 PSI when used with compatible hose and system components.
- All-welded steel 'A' frame construction provides a rigid mounting base for shop, vehicle, or equipment installations.
- Low-profile outlet riser and open drum slot design help guide hose into a flat, smooth wrap.
- External fluid path with electroless nickel-plated steel 90° full-flow NPT swivel inlet.
- AFLAS swivel seals support high-pressure reel performance in compatible service applications.
- Adjustable tension brake helps prevent free-wheeling during operation, transport, or storage.
Made in USA:
Applications:
- High-pressure grease, hydraulics, oil, lubrication, water, washdown, spraying, jetting, and pressure washing setups where the selected hose matches the media and working pressure.
- Fleet maintenance and field service trucks requiring long hose storage without a powered rewind system.
- Industrial MRO stations where 500 ft hose capacity helps organize extended reach service lines.
- Equipment maintenance bays, washdown areas, and utility stations where a gear-assisted crank is preferred for controlled rewind.
- Agricultural, construction, and grounds maintenance work where high-pressure hose must be deployed and stored from a fixed reel location.
FAQs:
- Q: What does 'less hose' mean for the HP1125-4-500-C?
A: It means the reel is supplied without hose installed. The reel has capacity for up to 500 ft of compatible 1/2" I.D. hose, but the hose must be purchased separately. - Q: What is the benefit of the bevel geared crank?
A: The bevel geared crank provides gear-assisted manual rewind, which is helpful when handling longer or heavier hose runs. It gives the operator more controlled hose retrieval compared with pulling hose back by hand. - Q: Can this reel be used for hydraulic or grease service?
A: Yes, this HP1125 Series reel is used for high-pressure applications such as grease, hydraulics, oil, and lubrication service when the hose, fittings, seals, and system components are compatible with the media and pressure. - Q: Is hose included with this reel?
A: No. This model is sold less hose. Buyers should select hose separately based on 1/2" I.D., 7/8" O.D., pressure rating, length requirement, and fluid compatibility. - Q: What pressure is this reel rated for?
A: The HP1125-4-500-C is rated for 5000 PSI maximum pressure. Always confirm that the hose and connected equipment are also rated for the operating pressure of the system.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-500 | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 | 5 |
| 1125-4-500-A | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-A | 5,000 | 58 | 5 |
| 1125-4-500-AB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-AB | 5,000 | 58 | 5 |
| 1125-4-500-C | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-C | 5,000 | 58 | 5 |
| 1125-4-500-E | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-E | 5,000 | 58 | 5 |
| 1125-4-500-EA | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EA | 5,000 | 58 | 5 |
| 1125-4-500-EB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EB | 5,000 | 58 | 5 |
| 1125-4-500-ED | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-ED | 5,000 | 58 | 5 |
| 1125-4-500-EF | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EF | 5,000 | 58 | 5 |
| 1125-4-500-H | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-H | 5,000 | 58 | 5 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Bevel Geared Crank Hose Reel
- Series
- HP1125 Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 7/8
- Hose Length (ft.)
- 500
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 5000
