When a hose reel needs to manage long hose runs without manual cranking, the Coxreels 1125-4-500-H provides hydraulic-powered rewind in a compact, open-drum layout built for service trucks, plant maintenance areas, washdown stations, lubrication systems, and other high-pressure fluid handling setups. This 1125 Series reel is sized for 1/2" I.D. hose up to 500 ft, giving buyers extended reach while keeping the reel footprint organized for mounted installation. Its 3,000 PSI maximum pressure rating supports medium-pressure applications where hose control, storage, and rewind consistency matter.
The 1125 Series uses Coxreels' all-welded steel 'A' frame construction, low-profile outlet riser, and open drum slot design to help the hose lay flat during rewind. The 'less hose' configuration lets maintenance teams select hose material, fitting style, and working length to match the fluid, pressure, and installation requirements of the job.

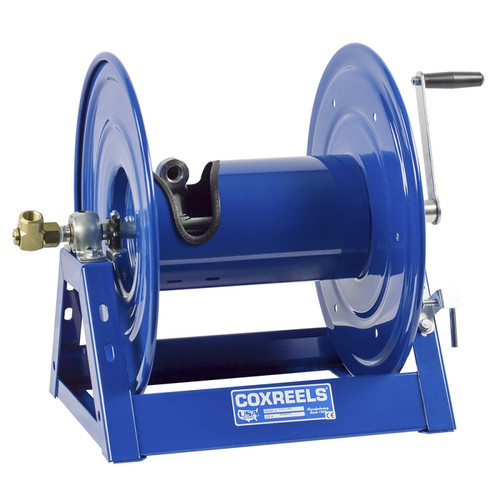

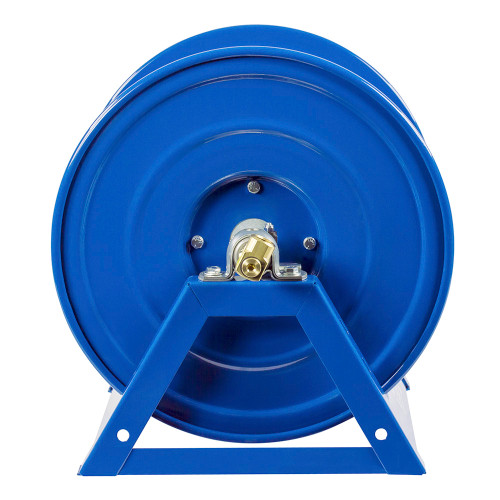

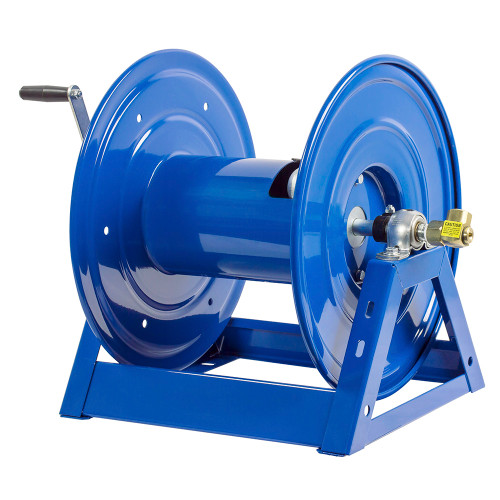

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hydraulic Rewind Hose Reel | Series: 1125 Series | Model: 1125-4-500-H | Configuration: Less Hose | Rewind Type: Hydraulic | Hydraulic Motor Port: End Ported 9/16-18 UNF | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 500 ft | Optional Hose Capacity: 3/8" I.D. x 3/4" O.D. x 700 ft, reducer required | Inlet Swivel & Outlet Riser: 1/2" F NPT | Max Pressure: 3,000 PSI | Ship Weight: 64 lbs | Overall Dimensions: 39" W x 19.25" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 16" Y
Features:
- Hydraulic rewind option reduces manual effort when retrieving long hose lengths in vehicle-mounted, plant, or field service installations.
- All welded steel 'A' frame construction provides a rigid reel base for mounted use and repeated hose cycling.
- Exclusive low profile outlet riser and open drum slot design help guide the hose into a flat, non-crimping wrap.
- Machined solid brass 90° full-flow NPT swivel supports fluid flow through the reel while allowing drum rotation.
- Nitrile swivel seals are supplied for standard 1125 Series models.
- Permanently lubricated self-aligning pillow block bearings promote smooth rotation during payout and rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Rolled edges and ribbed discs add strength while helping protect the hose during handling and rewind.
- Durable proprietary CPC™ powder coat process helps resist chipping and corrosion in shop, fleet, and outdoor work environments.
Made in USA:
Applications:
- Industrial plant and ground maintenance where long hose reach and mounted hose storage are needed.
- Fleet, utility, and service truck installations that benefit from hydraulic rewind and a less-hose configuration.
- Lubrication and fluid handling setups using compatible 1/2" hose and fittings matched to the reel pressure rating.
- Construction, agricultural, and field maintenance work where hose must be paid out over long distances and rewound after use.
- Washdown, spraying, and pressure-related applications when the hose, fluid compatibility, and system pressure are verified against the reel specifications.
FAQs:
- Q: What does 'less hose' mean on this Coxreels 1125-4-500-H reel?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately and confirm the hose I.D., O.D., length, pressure rating, and fluid compatibility before installation. - Q: Is the 1125-4-500-H a spring rewind reel?
A: No. The 'H' suffix identifies the hydraulic motor rewind option. This configuration is useful where hydraulic power is available and long hose retrieval would be impractical by hand. - Q: What hose size does this reel hold?
A: The standard capacity is 500 ft of 1/2" I.D. hose with 7/8" O.D. Coxreels also lists an optional capacity of 700 ft for 3/8" I.D. x 3/4" O.D. hose when a reducer is used. - Q: Can this reel be used for hydraulic service?
A: It can be used when the hose, fittings, fluid, temperature, and working pressure are compatible with the reels 3,000 PSI rating and 1/2" F NPT inlet/outlet configuration. Always verify the complete system requirements before ordering hose or fittings. - Q: What should be checked before mounting this reel?
A: Confirm the available mounting space, base pattern, hose exit direction, hydraulic motor clearance, and service access for the swivel and outlet riser. The 1125-4-500-H measures 39" W x 19.25" H x 17.63" L with a 31.44" x 10" mounting pattern.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-500 | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 | 5 |
| 1125-4-500-A | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-A | 5,000 | 58 | 5 |
| 1125-4-500-AB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-AB | 5,000 | 58 | 5 |
| 1125-4-500-C | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-C | 5,000 | 58 | 5 |
| 1125-4-500-E | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-E | 5,000 | 58 | 5 |
| 1125-4-500-EA | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EA | 5,000 | 58 | 5 |
| 1125-4-500-EB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EB | 5,000 | 58 | 5 |
| 1125-4-500-ED | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-ED | 5,000 | 58 | 5 |
| 1125-4-500-EF | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EF | 5,000 | 58 | 5 |
| 1125-4-500-H | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-H | 5,000 | 58 | 5 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
