When long hose runs need powered retrieval from a vehicle, skid, service cart, or DC-powered system, the Coxreels 1125-4-500-EB combines the high-capacity 1125 Series reel platform with an electric 24V DC 1/2 HP motor rewind. This model stores up to 500 ft of 1/2" I.D. hose and is rated for 3000 PSI, giving maintenance crews a practical reel option for medium-pressure air, water, oil, lubrication, pressure washing, spraying, washdown, pest control, and chemical fluid transfer applications when the installed hose and fittings are selected for the service. The 24V DC rewind configuration is especially useful where low-voltage DC power is already available and repeated manual hose retrieval would slow the job.
The 1125 Series motorized reel design uses a one-piece all-welded steel 'A' frame, a low-profile outlet riser, and an open drum slot to help guide hose into a flatter, smoother wrap during rewind. On motor-driven models, Coxreels uses a direct gear drive for quiet, smooth retraction with no chain, reducing chain-related adjustment and service points. The 1/2" F NPT inlet swivel and outlet riser, 41.75" W x 19.25" H x 17.63" L overall size, and 31.44" x 10" mounting pattern help buyers confirm connection size and mounting space before ordering.

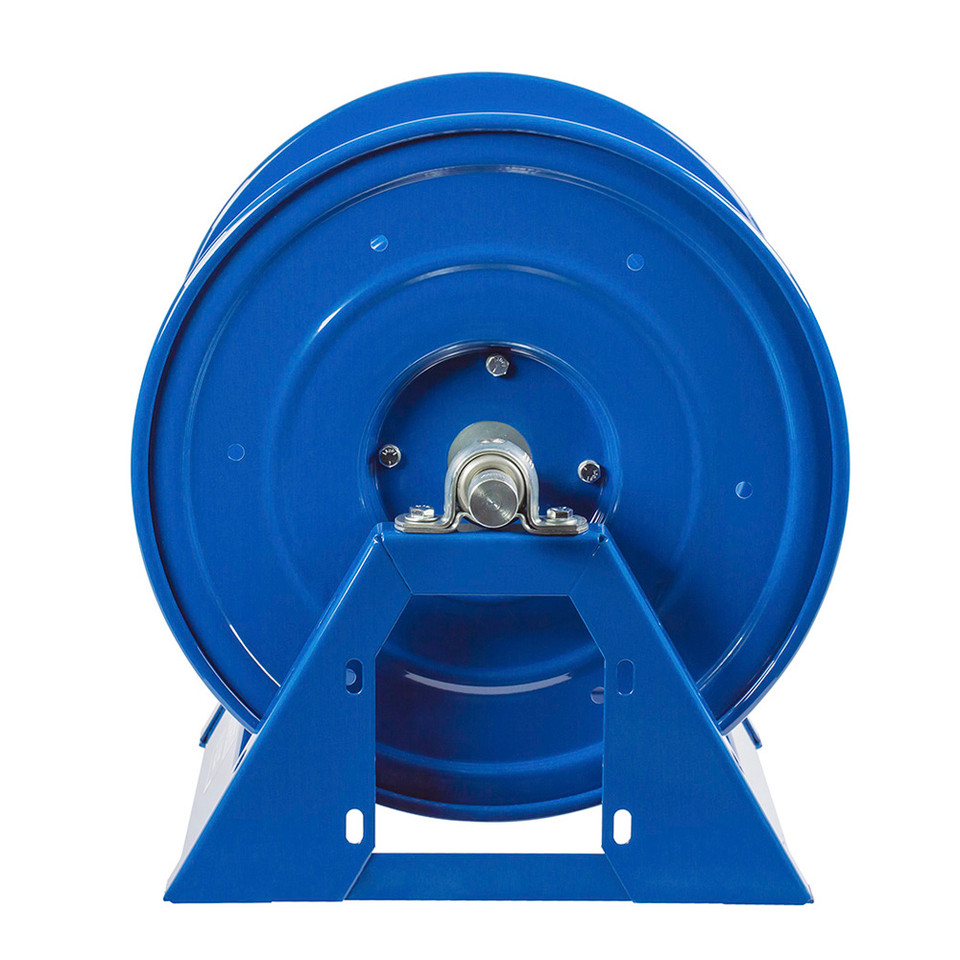

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Motorized Hose Reel | Series: 1125 Series | Configuration: Less Hose | Model: 1125-4-500-EB | Rewind: Electric 24V DC 1/2 HP Motor Rewind | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 500 ft | Hose Included: No | Inlet Swivel & Outlet Riser: 1/2" F NPT | Swivel: Machined solid brass 90° full-flow NPT | Swivel Seals: Nitrile | Max Pressure: 3000 PSI | Overall Dimensions: 41.75" W x 19.25" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 16" Y | Ship Weight: 84 lbs
Features:
- Electric 24V DC 1/2 HP motor rewind supports powered hose retrieval on mobile equipment, service vehicles, skids, and low-voltage DC installations.
- Reliable direct gear drive on motor-driven models provides quiet and smooth retraction with no chain.
- One-piece all-welded steel 'A' frame construction supports the drum and motor assembly without a bolted-together base structure.
- Exclusive low-profile outlet riser and open drum slot design help create a flat, smooth hose wrap and reduce hose crimping during rewind.
- Permanently lubricated self-aligning pillow block bearings support smooth drum rotation with reduced bearing maintenance.
- Adjustable tension brake helps prevent free-wheeling, which is uncontrolled drum rotation during hose payout or rewind.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Machined solid brass 90° full-flow NPT swivel with nitrile seals supports fluid flow through the reel while allowing the drum to rotate.
Made in USA:
Applications:
- Mobile service trucks and trailers: Powered hose retrieval for repair, lubrication, washdown, and fluid transfer systems using onboard 24V DC power.
- Industrial plant maintenance: Managing long air, water, oil, or service hose runs around maintenance bays, utility areas, and equipment service points.
- Pressure washing and washdown: Storing extended hose lengths for cleaning vehicles, equipment, floors, tanks, and outdoor work areas when the hose is rated for the system.
- Agricultural spraying and grounds care: Hose organization for farm, golf course, landscaping, pest control, and weed control equipment where DC-powered rewind is preferred.
- Construction and field service skids: Motorized hose rewind for remote jobsites where manual crank retrieval would be inefficient across repeated hose pulls.
FAQs:
- Q: What does 'less hose' mean on the 1125-4-500-EB?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/2" I.D. hose separately and confirm the hose pressure rating, outside diameter, fittings, temperature range, and fluid compatibility. - Q: What does the 'EB' suffix mean?
A: The EB suffix identifies the electric 24V DC 1/2 HP motor rewind option. It adds powered rewind to the 1125 Series reel platform for applications where 24V DC power is available. - Q: Is this the explosion-proof version?
A: No. Based on the provided title and model suffix, this is the 24V DC motor rewind version. Use the correct Coxreels explosion-proof motor option only when the installation requires that motor construction. - Q: Can this reel be used for pressure washing?
A: Yes, the 1125 Series is listed for pressure washing applications and this model is rated to 3000 PSI. The installed hose, fittings, temperature rating, and fluid compatibility must also match the pressure washer system. - Q: What should be checked before mounting this reel?
A: Confirm the mounting surface can support the reel, hose weight, and pulling forces, then verify the 31.44" x 10" mounting pattern and 33.38" x 16" base footprint. Also confirm the 24V DC power supply and wiring requirements before installation.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-500 | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 | 5 |
| 1125-4-500-A | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-A | 5,000 | 58 | 5 |
| 1125-4-500-AB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-AB | 5,000 | 58 | 5 |
| 1125-4-500-C | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-C | 5,000 | 58 | 5 |
| 1125-4-500-E | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-E | 5,000 | 58 | 5 |
| 1125-4-500-EA | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EA | 5,000 | 58 | 5 |
| 1125-4-500-EB | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EB | 5,000 | 58 | 5 |
| 1125-4-500-ED | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-ED | 5,000 | 58 | 5 |
| 1125-4-500-EF | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-EF | 5,000 | 58 | 5 |
| 1125-4-500-H | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500-H | 5,000 | 58 | 5 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
