For larger-diameter hose handling in pressure washing, washdown, water supply, spraying, and chemical fluid transfer setups, the Coxreels 117-5-100 hand crank hose reel provides compact manual rewind storage for shorter high-capacity hose runs. Part of the 100 Series, this model is sized for 3/4" I.D. hose with a 100 ft hose capacity and a 4,000 PSI maximum pressure rating, giving buyers a reel-only option for applications that need more hose volume than smaller 3/8" or 1/2" configurations.
The 117-5-100 uses a direct hand crank rewind, which means the operator manually retrieves the hose for controlled wrap-up without relying on a spring mechanism. An adjustable tension brake helps prevent free-wheeling during payout, transport, or storage, while the open drum design makes hose placement easier to monitor during rewind. Its one-piece steel U shaped frame, ribbed discs with rolled edges, nitrile swivel seals, and CPC powder coat finish support use on carts, skids, service vehicles, shop walls, and equipment wash areas.

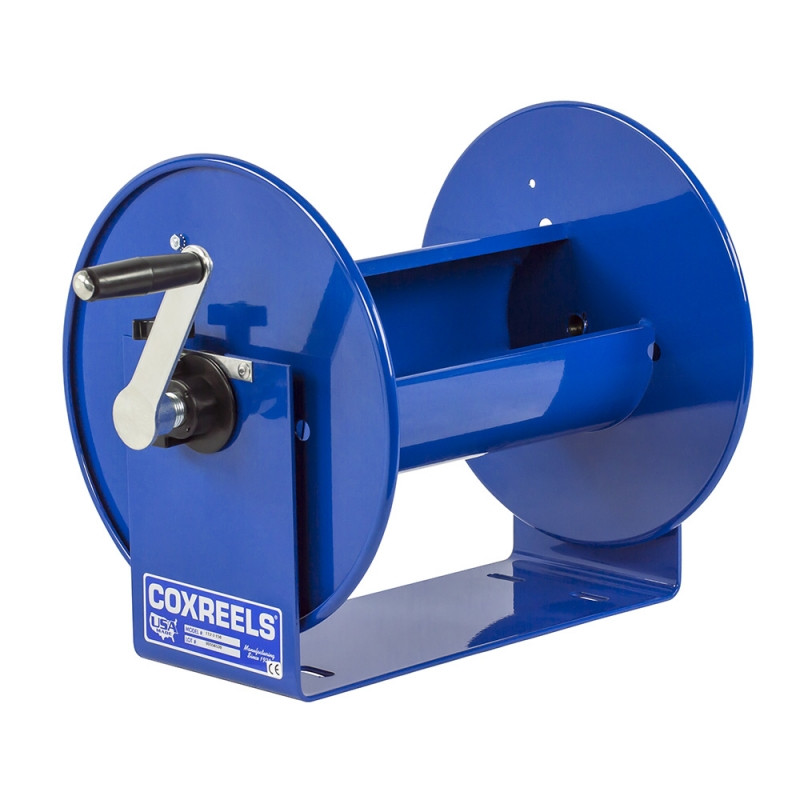

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 117-5-100 | Configuration: Less Hose | Standard Hose I.D.: 3/4" | Standard Hose O.D.: 1-1/4" | Standard Hose Capacity: 100 ft | Optional Capacity: 150 ft of 1/2" I.D. hose with reducer required | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 35 lb | Overall Dimensions: 23.25" W x 18" H x 17" L | Mounting Pattern: 10" M x 3" N | Base: 14" X x 6" Y | Drum Diameter: 5.5" | Drum Width: 12.5"
Features:
- Direct hand crank rewind allows the operator to retrieve and layer the hose manually.
- Adjustable tension brake helps control hose payout and prevent free-wheeling during operation, transport, or storage.
- Open drum design supports no-hassle hose wrap and makes hose position visible during rewind.
- Solid one-piece heavy gauge steel U shaped frame provides a compact, stable mounting structure.
- Machined from solid brass 90° full-flow NPT swivel supports fast hose installation and simple seal maintenance without removing the reel from its mount.
- CNC spun, ribbed discs with rolled edges provide added strength, hose protection, and operator safety.
- Durable proprietary CPC powder coat finish helps resist chips and rust in commercial and industrial settings.
Made in USA:
Applications:
- Pressure washing and washdown operations where 3/4" hose capacity is needed for larger hose assemblies.
- Water supply and ground maintenance work for parks, facilities, farms, landscape crews, and turf care teams.
- Agricultural spraying and farming setups where hose needs to be stored neatly on skids, trailers, or mobile units.
- Construction sites and equipment yards where manual rewind helps keep hose off the ground between jobs.
- Chemical fluid transfer applications when the hose, seals, pressure rating, fittings, and wetted materials are confirmed compatible with the fluid being handled.
FAQs:
- Q: What does less hose mean on the Coxreels 117-5-100?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose separately before installation. - Q: How much hose will this reel hold?
A: The standard capacity is 100 ft of 3/4" I.D. hose with a 1-1/4" hose O.D. The catalog also lists optional capacity for 150 ft of 1/2" I.D. hose with a reducer required. - Q: Can this reel be used for pressure washing?
A: Yes, when the hose, fittings, and connections are also rated for the pressure washer system. The reel is rated up to 4,000 PSI, but the complete assembly should always be checked before use. - Q: Why choose the 117-5-100 instead of a smaller 3/8" model?
A: Choose this model when the application calls for 3/4" hose capacity. The larger hose diameter may be preferred for water supply, washdown, spraying, or fluid transfer layouts that need more hose volume than smaller lines. - Q: What mounting space is required?
A: This reel measures 23.25" wide x 18" high x 17" long, with a 10" x 3" mounting pattern and a 14" x 6" base. Confirm the mounting surface has enough clearance for the reel, crank handle, hose movement, and connection points.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
