When you need controlled hose payout without spring rewind, the Coxreels 117-3-250 hand crank hose reel provides a compact storage solution for long hose runs in pressure washing, washdown, spraying, and fluid transfer work. Part of the 100 Series, this reel is sized for 3/8" I.D. hose with a 250 ft hose capacity and a 4,000 PSI maximum pressure rating, giving buyers a manual rewind option for high-pressure hose management where a powered or spring-driven reel is not required.
The 117-3-250 uses a direct hand crank rewind, an adjustable tension brake to help prevent free-wheeling during operation or transport, and an open drum layout for cleaner hose wrap. Its steel “U” shaped frame, rolled edges, ribbed discs, and CPC powder coat finish support everyday use in shops, service trucks, construction sites, farms, and pressure wash setups while helping keep hose off the floor and ready for the next job.

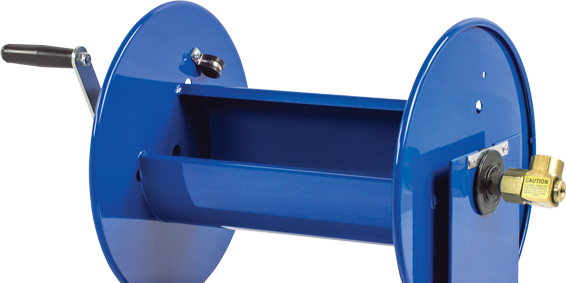

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 117-3-250 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 250 ft | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 30 lb | Overall Dimensions: 18.25" W x 18" H x 17" L | Mounting Pattern: 5.5" M x 3" N | Base: 9.5" X x 6" Y
Features:
- Direct hand crank rewind gives the operator manual control over hose retrieval.
- Adjustable tension brake helps prevent free-wheeling during hose payout, transport, or storage.
- Open drum design supports straightforward hose wrapping and visual inspection during rewind.

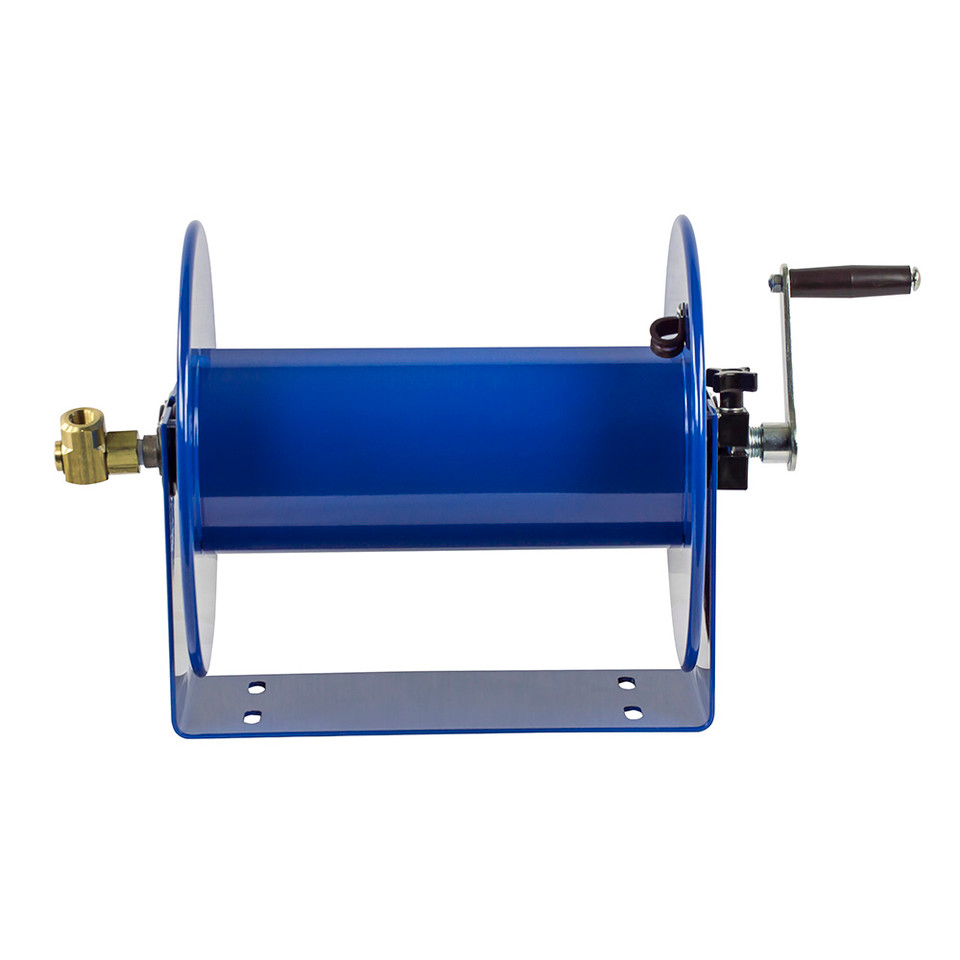

- Solid one-piece heavy gauge steel “U” shaped frame provides a compact mounting structure for shop, skid, cart, or vehicle use.
- CNC spun discs with rolled edges and ribbed construction add strength while helping protect the hose during storage.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet for hose installation and seal service access.
- CPC powder coat finish helps resist chips and rust in commercial and industrial work areas.
Made in USA:
Applications:
- Pressure washing and washdown setups for managing long high-pressure hose runs around equipment, work bays, and outdoor service areas.
- Agricultural spraying and pest control rigs where manual rewind helps organize hose on carts, skids, and mobile units.
- Construction sites and ground maintenance work where loose hose needs to be stored neatly between tasks.
- Fleet, utility, and service truck installations for carrying hose to remote jobs without relying on spring rewind.
- Chemical fluid transfer applications when the hose, seals, pressure rating, and wetted materials are compatible with the fluid being handled.
FAQs:
- Q: What does “less hose” mean on the Coxreels 117-3-250?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" I.D. hose separately and confirm that the hose matches the pressure, fluid, and temperature requirements of the application. - Q: What hose capacity does this reel hold?
A: This model is rated for up to 250 ft of 3/8" I.D. hose with a 5/8" hose O.D. Using hose with a different outside diameter may change the amount of hose the drum can hold. - Q: Can this reel be used for pressure washing?
A: Yes, this reel is rated up to 4,000 PSI and is commonly used for pressure washing when paired with a hose and fittings rated for the same service. Always confirm compatibility before installation. - Q: How is a hand crank reel different from a spring rewind reel?
A: A hand crank reel requires the operator to turn the crank to retrieve the hose. This gives simple manual control over rewind speed and hose placement without relying on an internal spring mechanism. - Q: What mounting space should be allowed for installation?
A: The 117-3-250 measures 18.25" wide x 18" high x 17" long, with a 5.5" x 3" mounting pattern and a 9.5" x 6" base
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
