For long 3/8" hose runs that need to reach without moving to the widest 100 Series frame, the Coxreels 117-3-400 hand crank hose reel provides manual hose storage for pressure washing, washdown, spraying, jetting, pest control, and fluid transfer work. This 100 Series reel is sized for 3/8" I.D. hose with a 400 ft hose capacity and a 4,000 PSI maximum pressure rating, helping operators keep high-pressure hose organized on trucks, trailers, skids, carts, benches, or fixed service points.
The 117-3-400 uses direct hand crank rewind, meaning the operator retrieves the hose manually by turning the crank and guiding the wrap onto the drum. An adjustable tension brake helps reduce free-wheeling during payout, storage, or transport, while the open drum design makes hose placement easier to monitor during rewind. Its one-piece steel U shaped frame, rolled ribbed discs, nitrile swivel seals, full-flow NPT swivel, and CPC powder coat finish support use in mobile service, farm, construction, industrial maintenance, wash bay, and spraying environments.

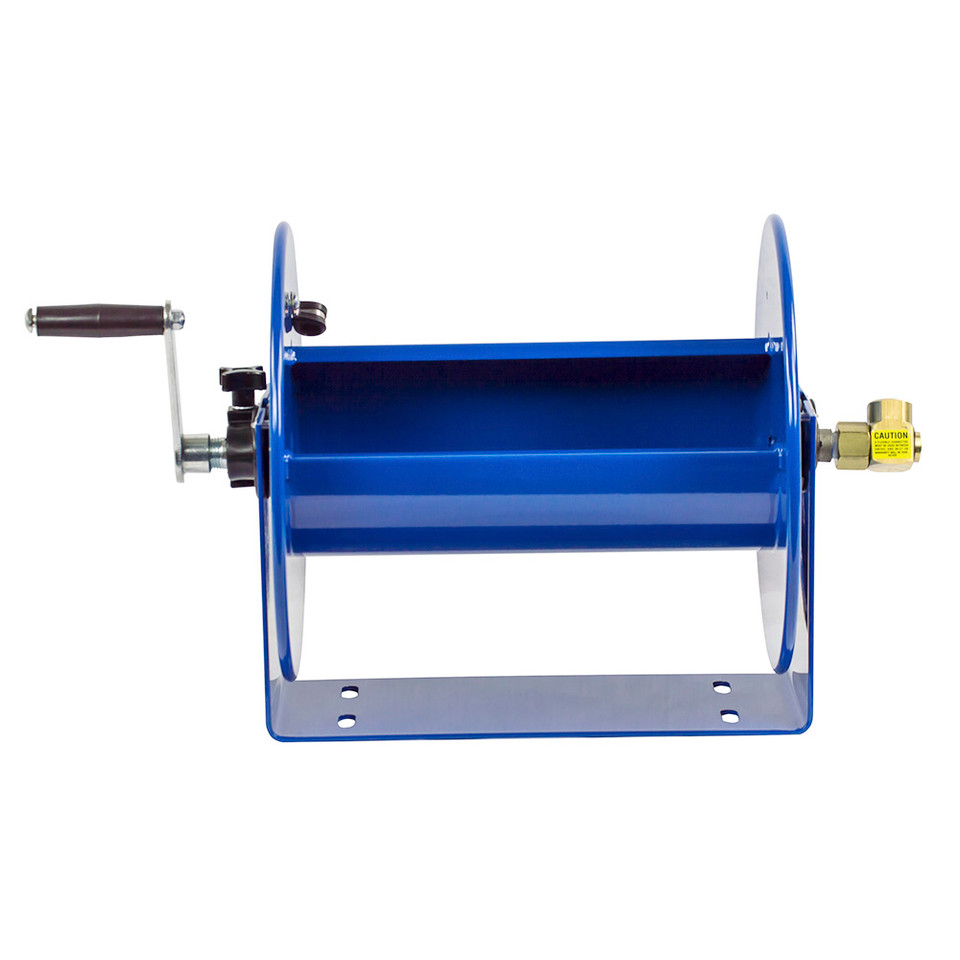

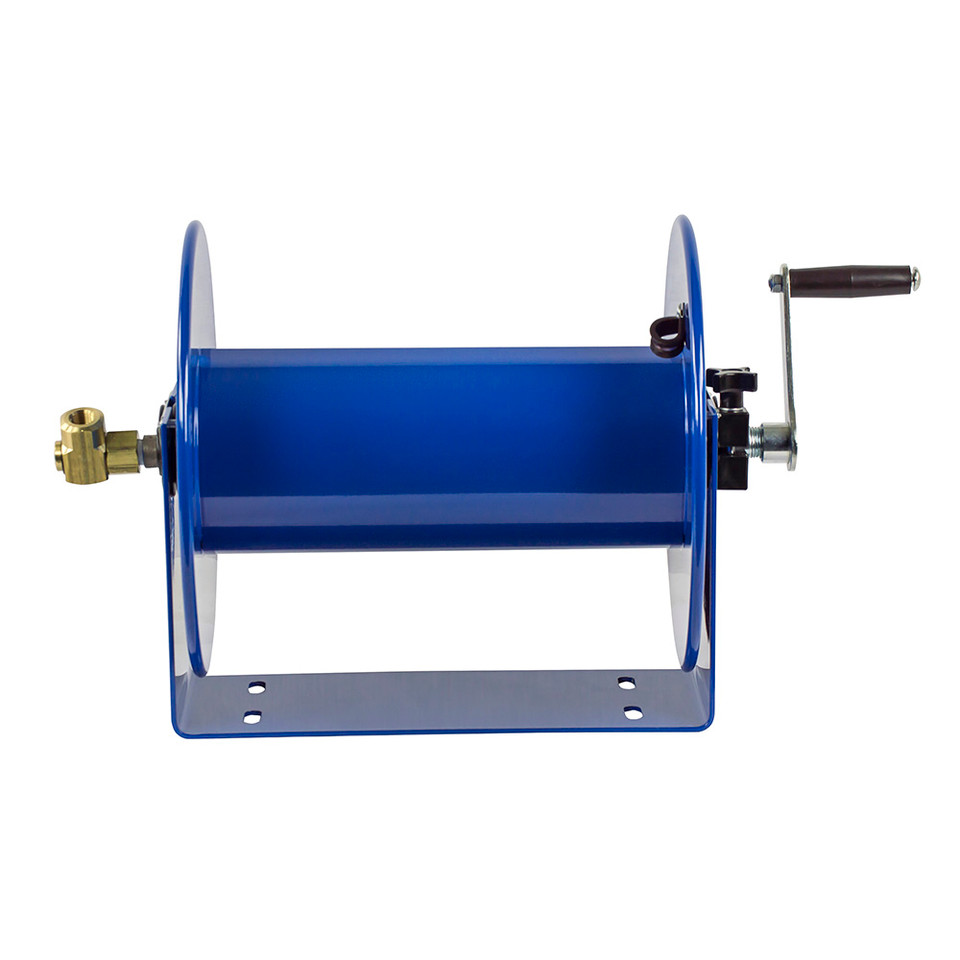

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 117-3-400 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 400 ft | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 33 lb | Overall Dimensions: 22.75" W x 18" H x 17" L | Mounting Pattern: 10" M x 3" N | Base: 14" X x 6" Y
Features:
- Direct hand crank rewind gives the operator manual control over hose retrieval and drum layering.
- Adjustable tension brake helps control payout speed and reduce free-wheeling during operation, storage, or vehicle transport.
- Open drum design supports straightforward hose wrapping and lets the operator monitor hose placement during rewind.
- Solid one-piece heavy gauge steel U shaped frame provides a stable mounting structure for shop, field, trailer, skid, cart, or service vehicle installation.
- Machined solid brass 90° full-flow NPT swivel supports hose installation and seal maintenance without removing the reel from its mount.
- CNC spun ribbed discs with rolled edges add strength while helping protect the hose during storage and handling.
- CPC powder coat finish helps resist chips and rust in commercial, industrial, agricultural, and mobile service environments.
Made in USA:
Applications:
- Pressure washing and washdown work where 400 ft of 3/8" hose capacity provides extended reach around equipment, vehicles, yards, and service areas.
- Jetting and pavement service setups where long high-pressure hose runs need controlled storage between jobs.
- Pest control and agricultural spraying rigs that require organized hose handling on trailers, skids, carts, or mobile units.
- Construction, utility, and field maintenance crews using long hose runs for cleaning, spraying, or high-pressure service tasks.
- Chemical fluid transfer applications when the hose, fittings, pressure rating, seals, and wetted materials are confirmed compatible with the fluid being handled.
FAQs:
- Q: What does less hose mean on the Coxreels 117-3-400?
A: It means this product is supplied as the reel only and does not include hose. The buyer must provide compatible 3/8" I.D. hose separately before installation. - Q: How much hose can this reel hold?
A: The 117-3-400 is rated for up to 400 ft of 3/8" I.D. hose with a 5/8" hose O.D. Hose with a different outside diameter may change the amount of hose the reel can store. - Q: Can this reel be used for pressure washing?
A: Yes, when the hose, fittings, and connections are also rated for the pressure washer system. The reel is rated up to 4,000 PSI, but the complete hose assembly should be checked before use. - Q: Why choose the 117-3-400 instead of the 117-3-250?
A: Choose the 117-3-400 when the job needs 400 ft of hose capacity instead of 250 ft. It provides additional reach for larger washdown areas, mobile rigs, agricultural spraying, and long-distance service work. - Q: What mounting clearance should be planned?
A: This model measures 22.75" wide x 18" high x 17" long, with a 10" x 3" mounting pattern and a 14" x 6" base. Leave room for the crank handle, hose movement, swivel connection, and operator access during rewind.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
