For extended 1/2" hose runs in pressure washing, spraying, washdown, pest control, and fluid transfer work, the Coxreels 117-4-350 hand crank hose reel gives operators long-capacity manual hose storage without relying on spring rewind. Part of the 100 Series, this reel is built for 1/2" I.D. hose with a 350 ft hose capacity and a 4,000 PSI maximum pressure rating, making it a strong choice for high-pressure hose management on trailers, skids, carts, service vehicles, and fixed wash stations.
The 117-4-350 uses direct hand crank rewind, meaning the operator turns the crank to retrieve the hose and guide it evenly onto the drum. An adjustable tension brake helps reduce free-wheeling during payout, transport, or storage, while the open drum design makes hose placement easier to monitor during rewind. Its one-piece steel U shaped frame, rolled ribbed discs, nitrile swivel seals, 1/2" NPT fluid path, and CPC powder coat finish support use in mobile service, agricultural spraying, construction cleanup, equipment washdown, and industrial maintenance environments.

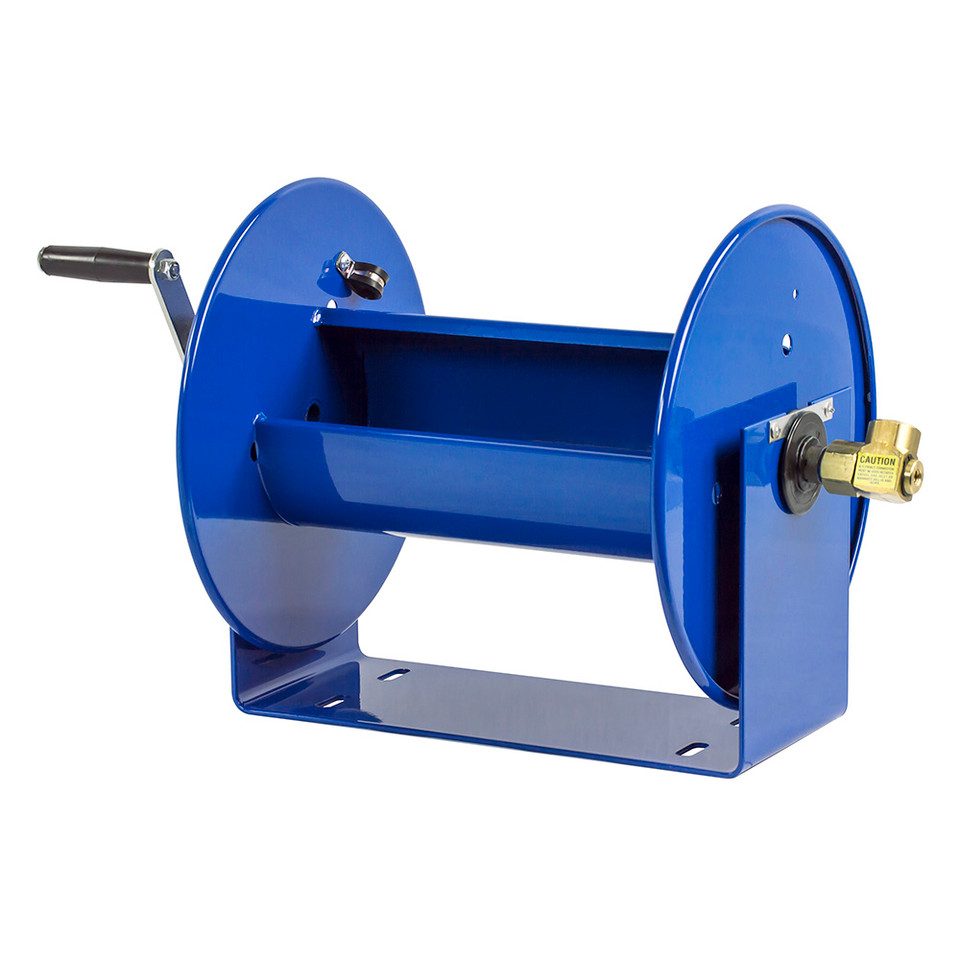

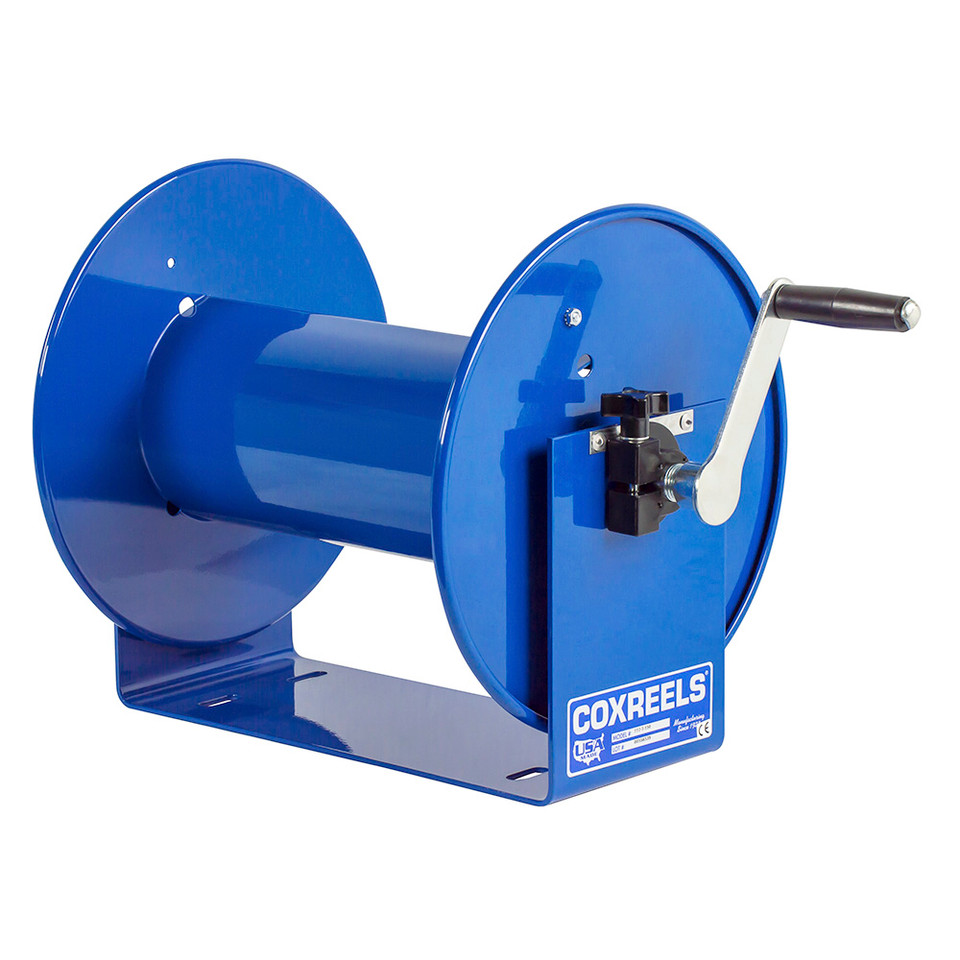

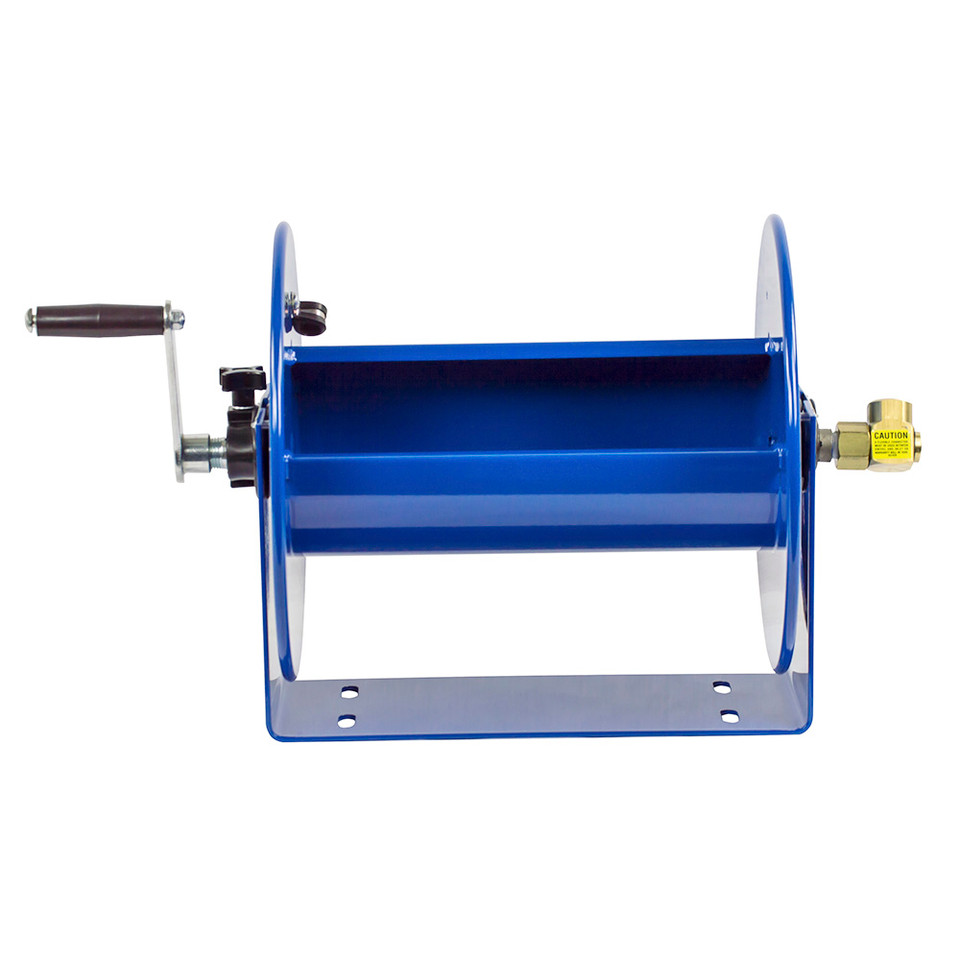

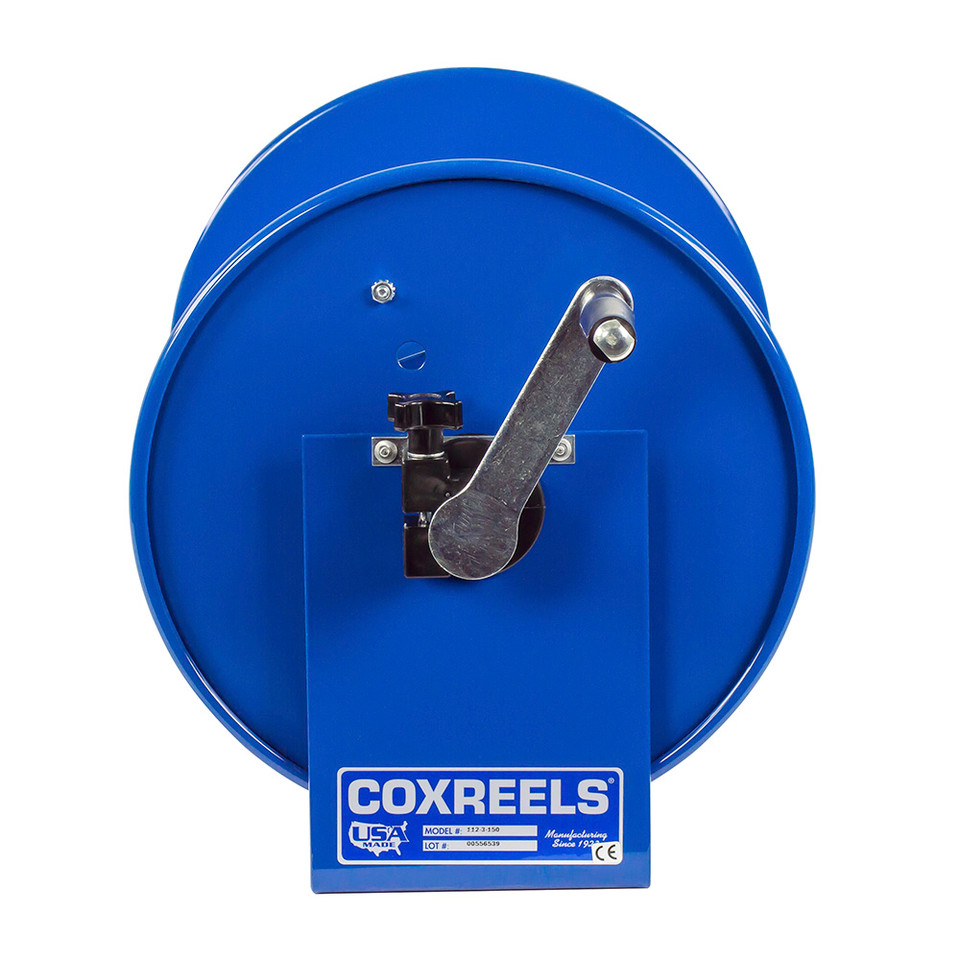

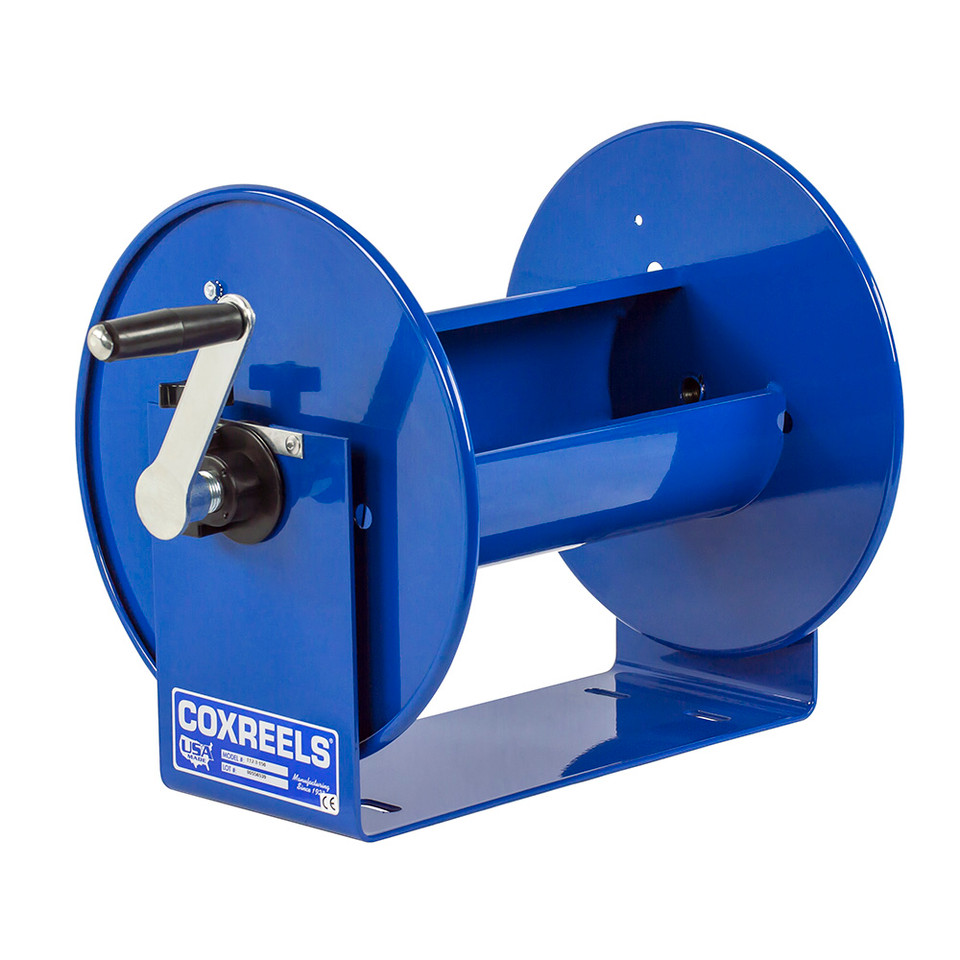

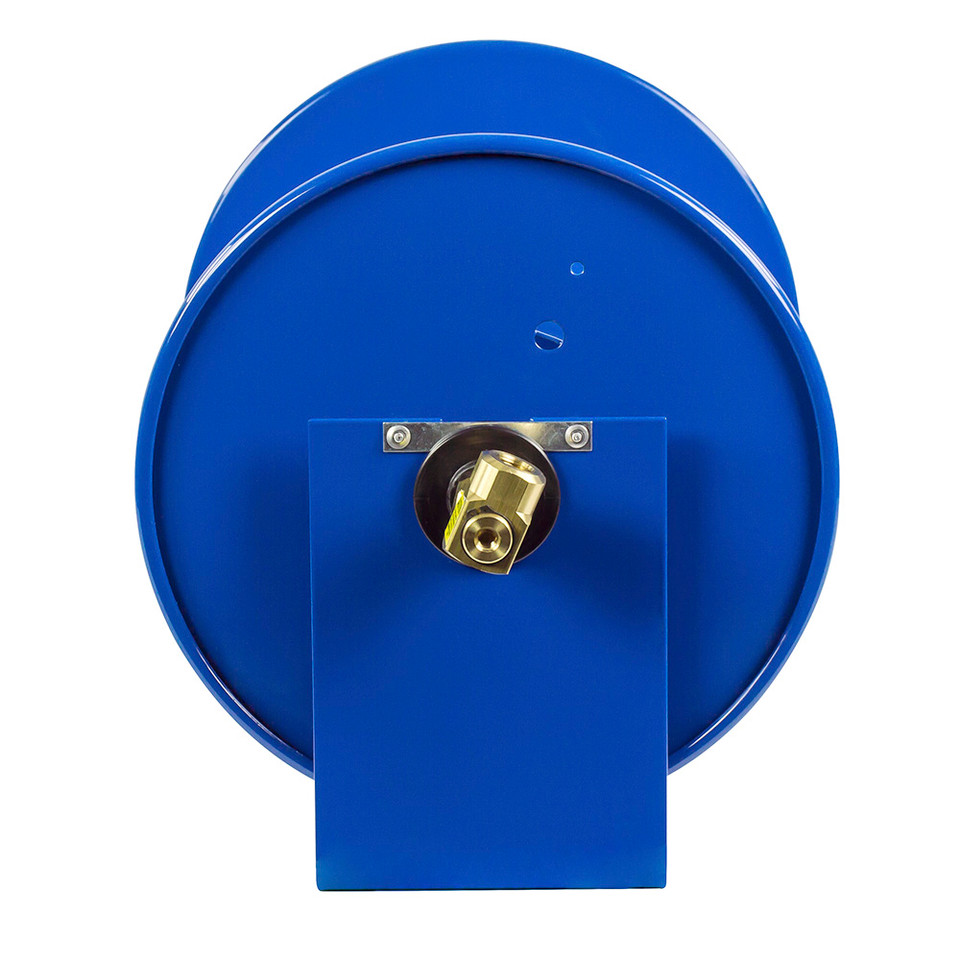

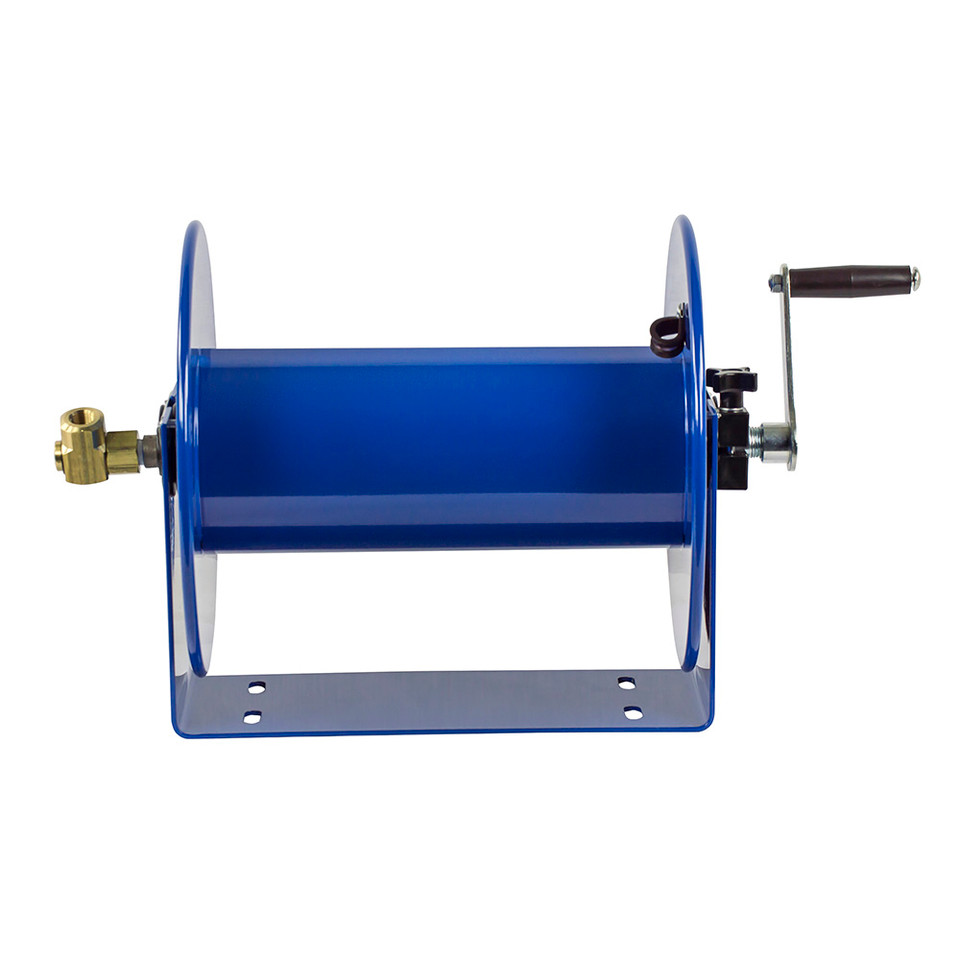

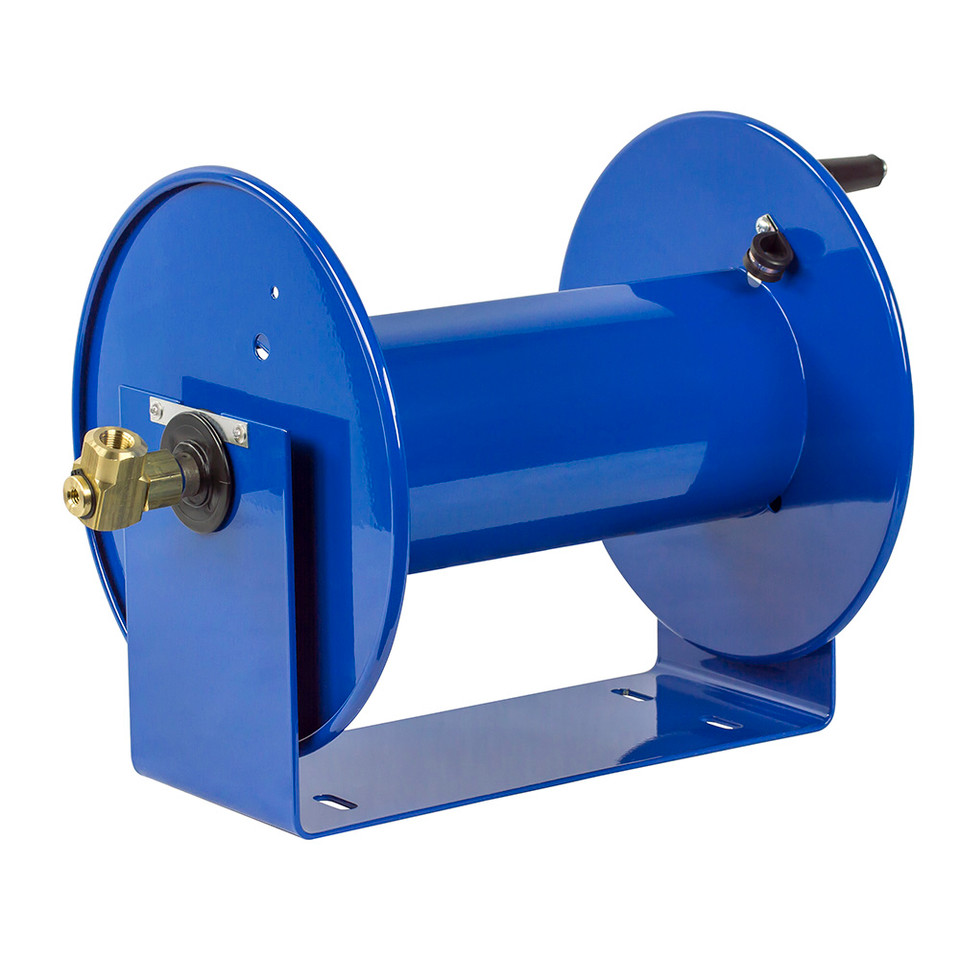

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 117-4-350 | Configuration: Less Hose | Standard Hose I.D.: 1/2" | Standard Hose O.D.: 7/8" | Standard Hose Capacity: 350 ft | Optional Capacity: 450 ft of 3/8" I.D. hose with reducer required | Max Pressure: 4,000 PSI | Hose Included: No | NPT Size: 1/2" | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 37 lb | Overall Dimensions: 28.25" W x 18" H x 17" L | Mounting Pattern: 15.5" M x 3" N | Base: 19.5" X x 6" Y | Drum: 5.5" Dia. x 18" W
Features:
- Direct hand crank rewind gives the operator manual control over long hose retrieval and drum layering.
- Adjustable tension brake helps control payout speed and reduce free-wheeling during operation, transport, or storage.
- Open drum design supports no-hassle hose wrapping and makes hose position visible during rewind.
- Solid one-piece heavy gauge steel U shaped frame provides a stable mounting structure for trailers, skids, carts, service trucks, benches, or fixed stations.
- Machined solid brass 90° full-flow NPT swivel supports hose installation and seal maintenance access.
- CNC spun ribbed discs with rolled edges add strength while helping protect the hose during storage and handling.
- CPC powder coat finish helps resist chips and rust in commercial, industrial, agricultural, and mobile service environments.
Made in USA:
Applications:
- Pressure washing and washdown operations where 350 ft of 1/2" hose capacity provides long reach around vehicles, machinery, yards, and service areas.
- Agricultural spraying and pest control rigs that need organized hose storage on trailers, skids, carts, or mobile units.
- Construction and utility work where long high-pressure hose runs are used for cleaning, spraying, or field service tasks.
- Ground maintenance, landscape, and turf care crews managing hose for water supply, washdown, and spraying support.
- Chemical fluid transfer applications when hose, seals, fittings, pressure rating, and wetted materials are confirmed compatible with the fluid being handled.
FAQs:
- Q: What does less hose mean on the Coxreels 117-4-350?
A: It means this product is supplied as the reel only and does not include hose. The buyer must provide compatible 1/2" I.D. hose separately before installation. - Q: How much hose can this reel hold?
A: The 117-4-350 is rated for 350 ft of 1/2" I.D. hose with a 7/8" hose O.D. The catalog also lists optional capacity for 450 ft of 3/8" I.D. hose when a reducer is used. - Q: Can this reel be used with a pressure washer?
A: Yes, when the hose, fittings, and connections are also rated for the pressure washer system. The reel has a 4,000 PSI maximum pressure rating, but the complete hose assembly should be checked before use. - Q: Why choose the 117-4-350 instead of the 117-4-225?
A: Choose the 117-4-350 when the application requires 350 ft of 1/2" hose capacity instead of 225 ft. It provides additional reach for larger washdown areas, mobile spraying rigs, long-distance cleaning work, and field service layouts. - Q: What mounting clearance should be planned?
A: This model measures 28.25" wide x 18" high x 17" long, with a 15.5" x 3" mounting pattern and a 19.5" x 6" base. Leave clearance for the crank handle, hose movement, swivel connection, and operator access during rewind.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Hose Reel
- Series
- 100 Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 7/8
- Hose Length (ft.)
- 350
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 4000
- Width (in.)
- 28.25
- Height (in.)
- 18
- Length (in.)
- 17
- Mounting Pattern (in.)
- 15.5M
- Mounting Pattern (in.)
- 3N
- Base (in.)
- 19.5X
- Base (in.)
- 6Y
