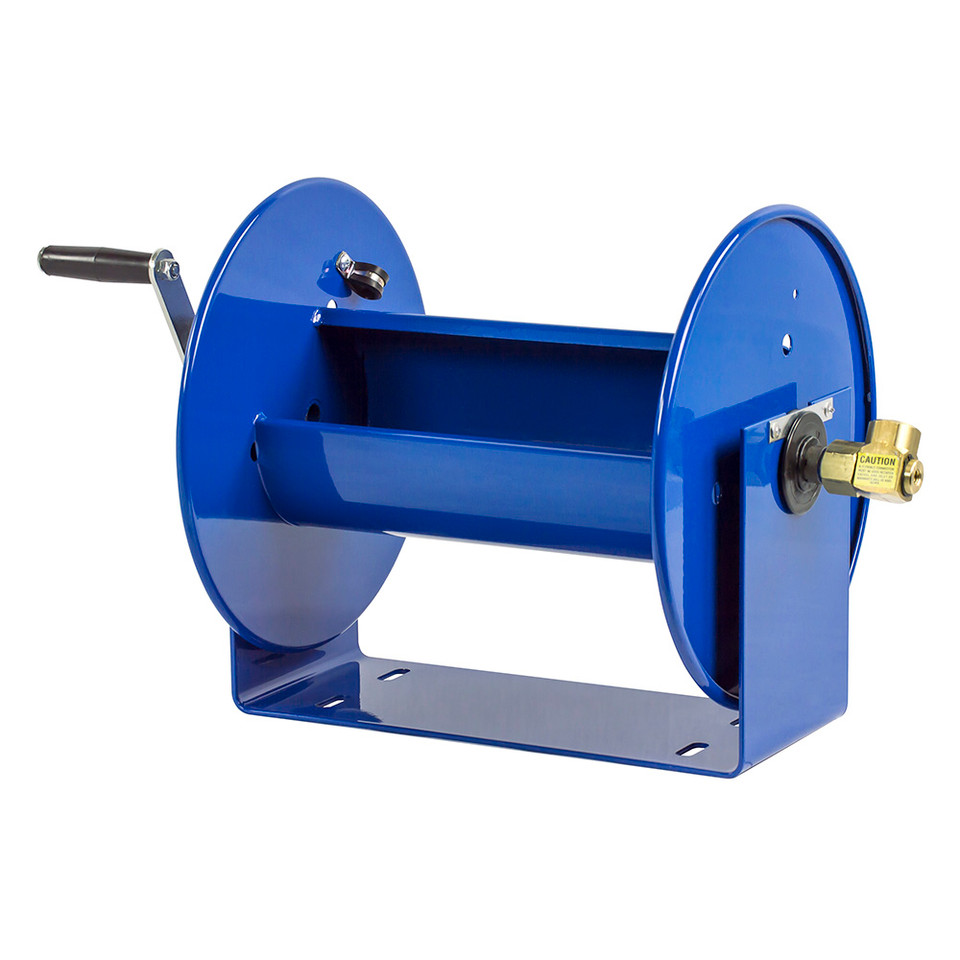

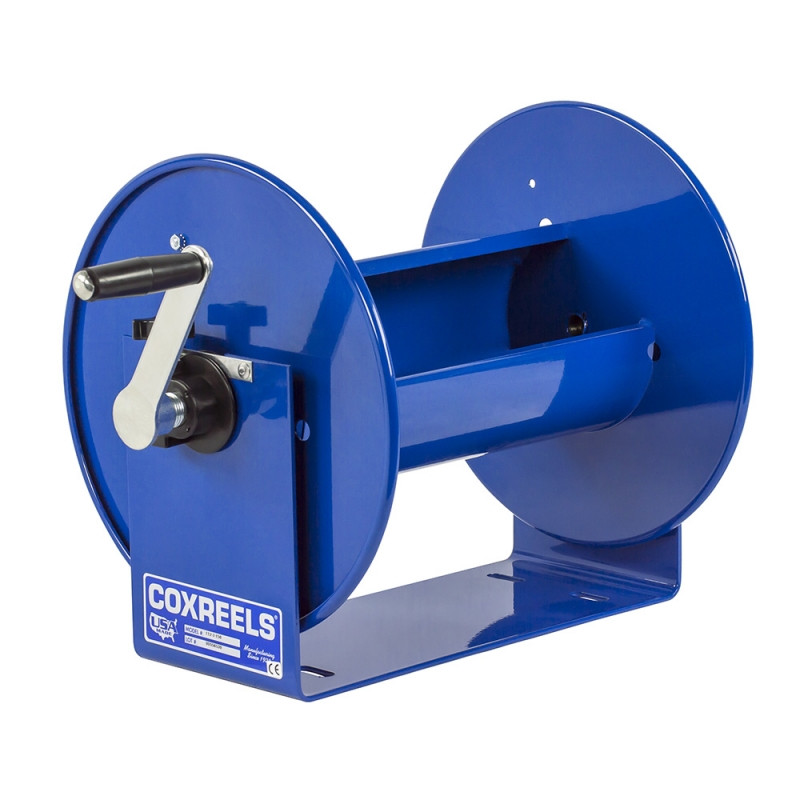

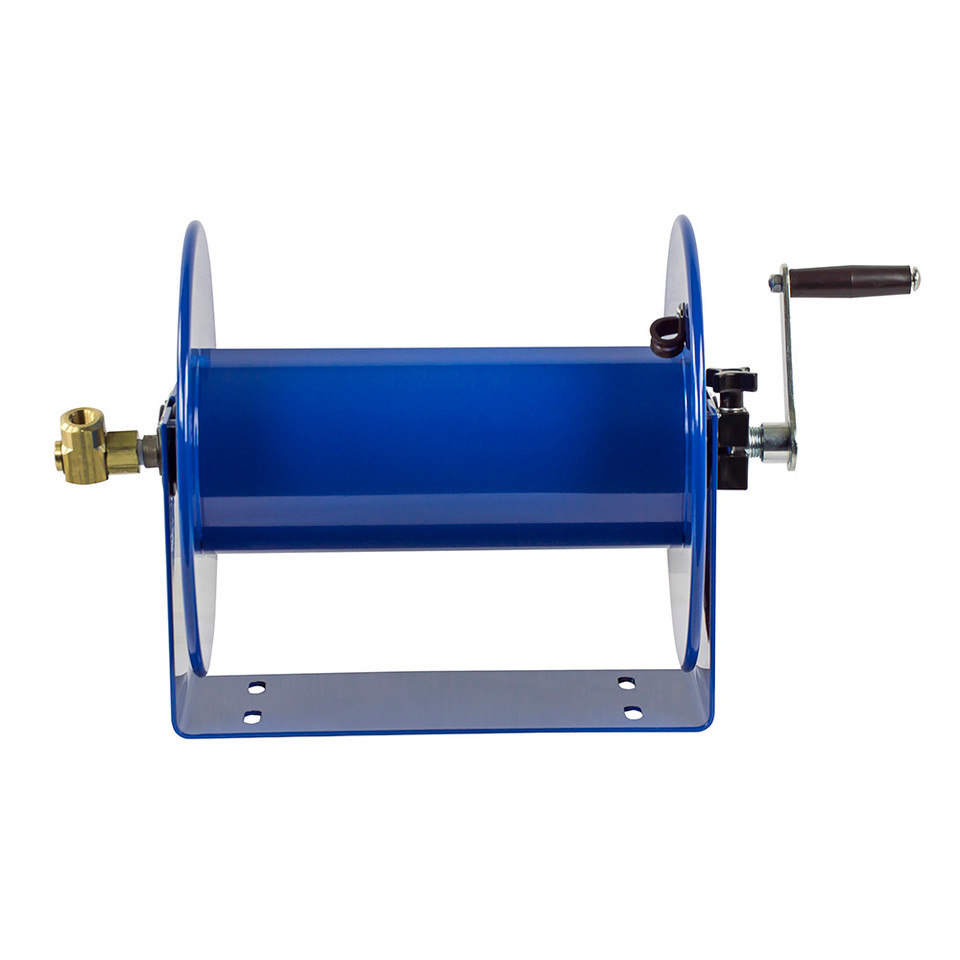

When a 100 ft reel is too short but a larger frame is unnecessary, the Coxreels 112-3-150 hand crank hose reel gives maintenance crews, washdown teams, sprayers, and mobile service operators a compact manual rewind option with added reach. Part of the 100 Series, this reel is sized for 3/8" I.D. hose with a 150 ft hose capacity and a 4,000 PSI maximum pressure rating, making it useful for high-pressure hose storage where controlled hand rewind is preferred over spring retraction.
The 112-3-150 uses a direct hand crank rewind, meaning the operator manually retrieves the hose with the crank handle for steady control during wrap-up. An adjustable tension brake helps prevent free-wheeling during operation, transport, or storage, while the open drum design supports cleaner hose layering. The steel U-shaped frame, rolled ribbed discs, brass 90° full-flow swivel, nitrile swivel seals, and CPC powder coat finish make this reel well-suited for pressure wash, pest control, spraying, washdown, construction, and utility service environments.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 112-3-150 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 150 ft | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 21 lb | Overall Dimensions: 22.75" W x 13" H x 12" L | Mounting Pattern: 10" M x 3" N | Base: 14" X x 6" Y
Features:
- Direct hand crank rewind gives the operator simple manual control over hose retrieval and storage.
- Adjustable tension brake helps control payout speed and reduce free-wheeling during use, transport, or storage.
- Open drum design supports smooth hose wrapping and makes it easier to monitor hose placement during rewind.
- Solid one-piece heavy gauge steel U shaped frame provides a compact mounting structure for benches, skids, carts, trailers, and service vehicles.
- CNC spun ribbed discs with rolled edges add strength while helping protect hose during storage and handling.
- External fluid path with machined solid brass 90° full-flow NPT swivel supports hose installation and seal maintenance without removing the reel from its mount.
- CPC powder coat finish helps resist chips and rust in commercial and industrial work settings.
Made in USA:
Applications:
- Pressure washing rigs and washdown stations where 150 ft of 3/8" hose capacity provides extra reach around equipment, vehicles, and work bays.
- Pest control and agricultural spraying setups that need organized hose storage on carts, skids, trailers, or mobile service units.
- Construction and pavement maintenance crews using high-pressure hose for cleaning, preparation, or jobsite service work.
- Industrial maintenance and utility service teams that prefer manual rewind for controlled hose retrieval between tasks.
- Chemical fluid transfer applications when the hose, seals, pressure rating, and wetted materials are confirmed compatible with the fluid being handled.
FAQs:
- Q: What does less hose mean on the Coxreels 112-3-150?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" I.D. hose separately before putting the reel into service. - Q: How much hose can this reel hold?
A: The 112-3-150 is rated for up to 150 ft of 3/8" I.D. hose with a 5/8" hose O.D. A hose with a larger outside diameter may reduce the amount of hose the reel can safely store. - Q: Can this reel be used for pressure washing?
A: Yes, when the hose, fittings, and connections are also rated for the pressure washing system. The reel is rated up to 4,000 PSI, but the complete assembly should be checked before use. - Q: Why would I choose the 112-3-150 instead of the 112-3-100?
A: Choose the 112-3-150 when the job needs 150 ft of hose capacity instead of 100 ft. It provides additional reach while staying in the compact 100 Series hand crank format. - Q: What mounting clearance should be planned?
A: This model measures 22.75" wide x 13" high x 12" long, with a 10" x 3" mounting pattern and a 14" x 6" base. Confirm the mounting surface and surrounding clearance before installation.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
