For extended hose runs in pressure washing, jetting, pest control, spraying, washdown, and fluid transfer work, the Coxreels 117-3-550 hand crank hose reel gives operators large-capacity manual hose storage in the compact 100 Series format. Built for 3/8" I.D. hose with a 550 ft hose capacity and a 4,000 PSI maximum pressure rating, this reel helps keep long high-pressure hose runs organized instead of loose, tangled, or exposed across the floor, truck bed, trailer, or jobsite.
The 117-3-550 uses direct hand crank rewind, meaning the operator manually retrieves the hose by turning the crank and guiding the hose onto the drum. An adjustable tension brake helps reduce free-wheeling during payout, transport, and storage, while the open drum design makes hose layering easier to monitor during rewind. Its steel U shaped frame, rolled ribbed discs, nitrile swivel seals, full-flow NPT swivel, and CPC powder coat finish support use in mobile service rigs, farms, construction sites, wash bays, industrial maintenance areas, and high-reach spraying setups.

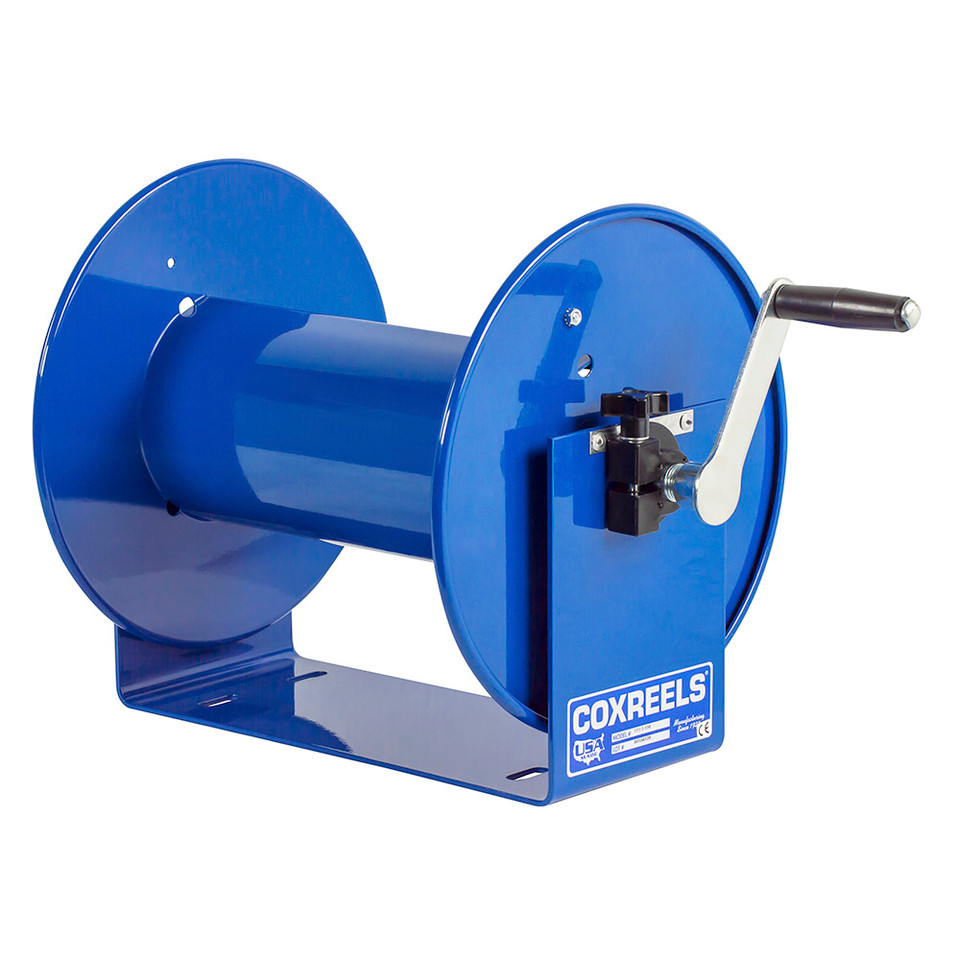

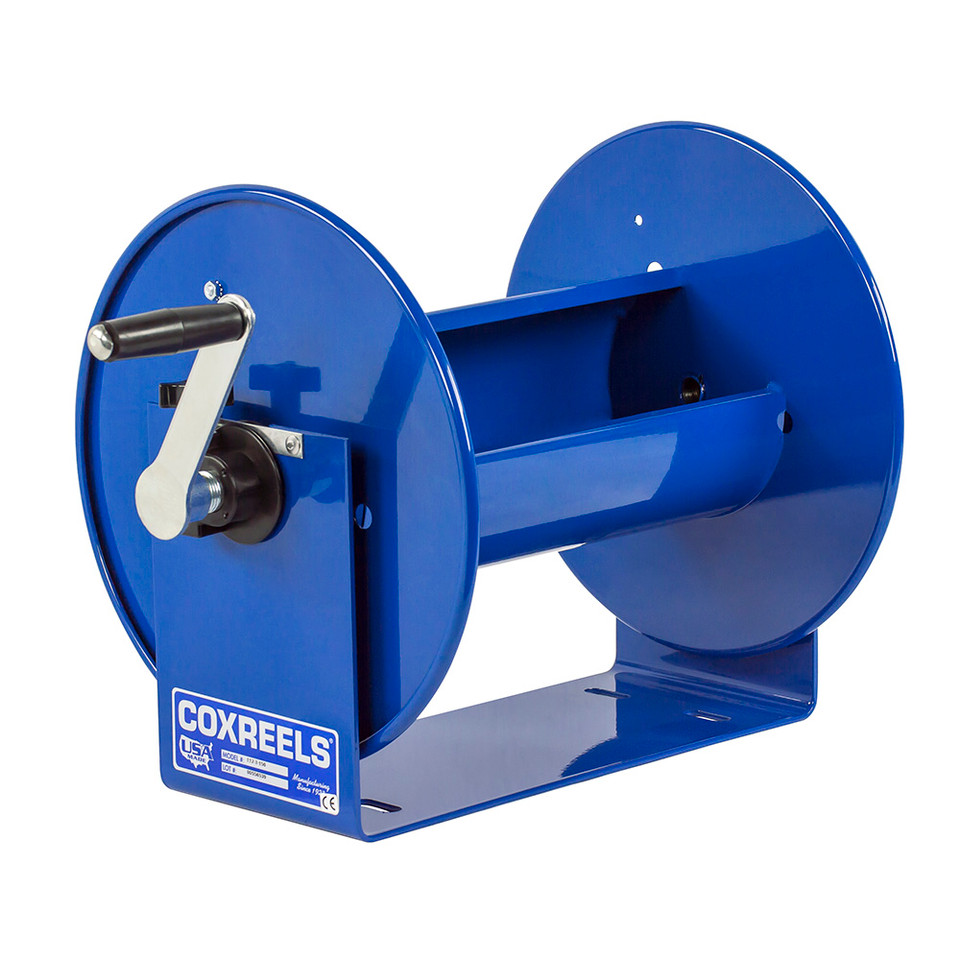

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 117-3-550 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 550 ft | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 35 lb | Overall Dimensions: 28.25" W x 18" H x 17" L | Mounting Pattern: 15.5" M x 3" N | Base: 19.5" X x 6" Y
Features:
- Direct hand crank rewind gives the operator manual control over long hose retrieval and drum layering.
- Adjustable tension brake helps control payout speed and reduce free-wheeling during operation, transport, or storage.
- Open drum design supports straightforward hose wrapping and lets the operator monitor hose position during rewind.
- Solid one-piece heavy gauge steel U shaped frame provides a stable structure for bench, floor, truck, trailer, skid, or wall mounting.
- Machined solid brass 90° full-flow NPT swivel supports hose installation and seal maintenance without removing the reel from its mount.
- CNC spun ribbed discs with rolled edges add strength while helping protect hose during storage and handling.
- CPC powder coat finish helps resist chips and rust in commercial, industrial, agricultural, and mobile service environments.
Made in USA:
Applications:
- Pressure washing and washdown work where 550 ft of 3/8" hose capacity provides extended reach across large yards, equipment areas, and service locations.
- Jetting and pavement service setups where long high-pressure hose runs need to be stored neatly between jobs.
- Pest control and agricultural spraying rigs that require organized hose storage on skids, trailers, carts, or mobile service vehicles.
- Construction, utility, and field maintenance crews use long hose runs for cleaning, spraying, or high-pressure service tasks.
- Chemical fluid transfer applications when the hose, fittings, pressure rating, seals, and wetted materials are confirmed compatible with the fluid being handled.
FAQs:
- Q: What does less hose mean on the Coxreels 117-3-550?
A: It means this product is supplied as the reel only and does not include hose. The buyer must provide compatible 3/8" I.D. hose separately before installation. - Q: How much hose can this reel hold?
A: The 117-3-550 is rated for up to 550 ft of 3/8" I.D. hose with a 5/8" hose O.D. Hose with a different outside diameter may change the amount of hose the reel can store. - Q: Can this reel be used for pressure washing?
A: Yes, when the hose, fittings, and connections are also rated for the pressure washer system. The reel is rated up to 4,000 PSI, but the complete hose assembly should be checked before use. - Q: Why choose the 117-3-550 instead of the 117-3-400?
A: Choose the 117-3-550 when the job requires 550 ft of 3/8" hose capacity instead of 400 ft. It provides additional reach for larger worksites, mobile rigs, agricultural spraying, and long-distance washdown tasks. - Q: What mounting clearance should be planned?
A: This model measures 28.25" wide x 18" high x 17" long, with a 15.5" x 3" mounting pattern and a 19.5" x 6" base. Leave room for the crank handle, hose movement, swivel connection, and operator access during rewind.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
