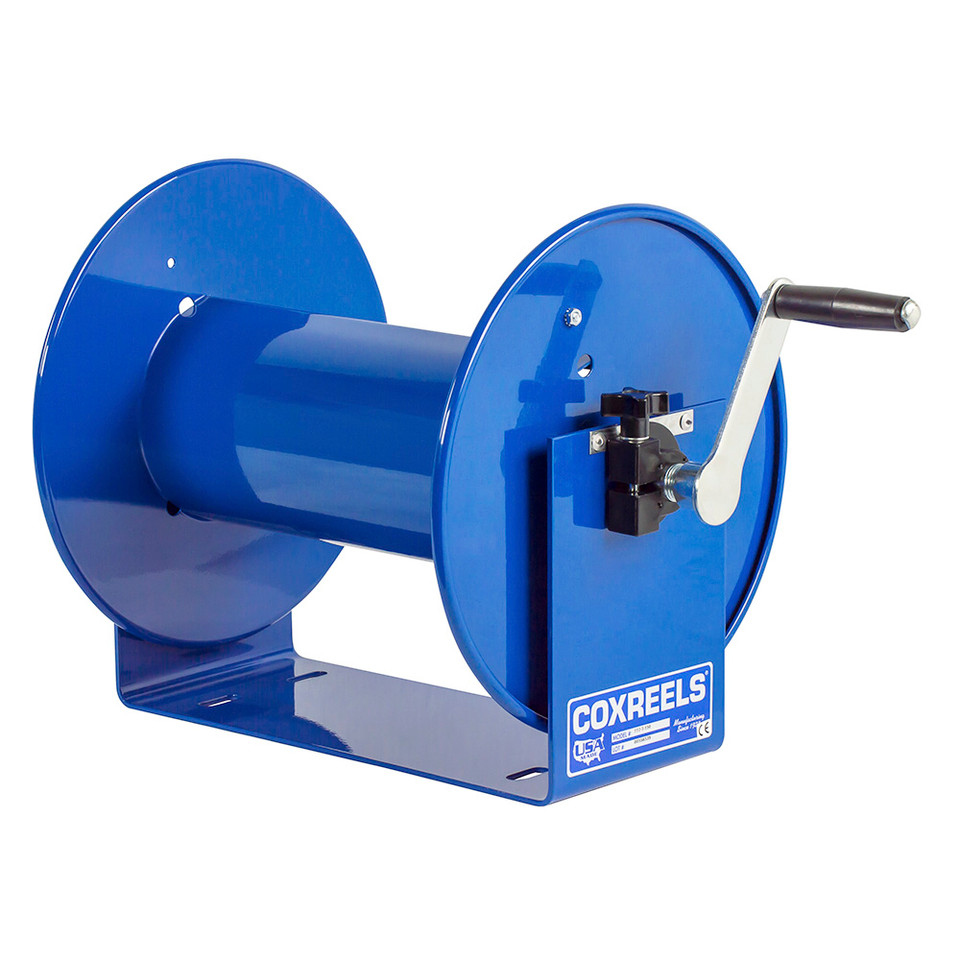

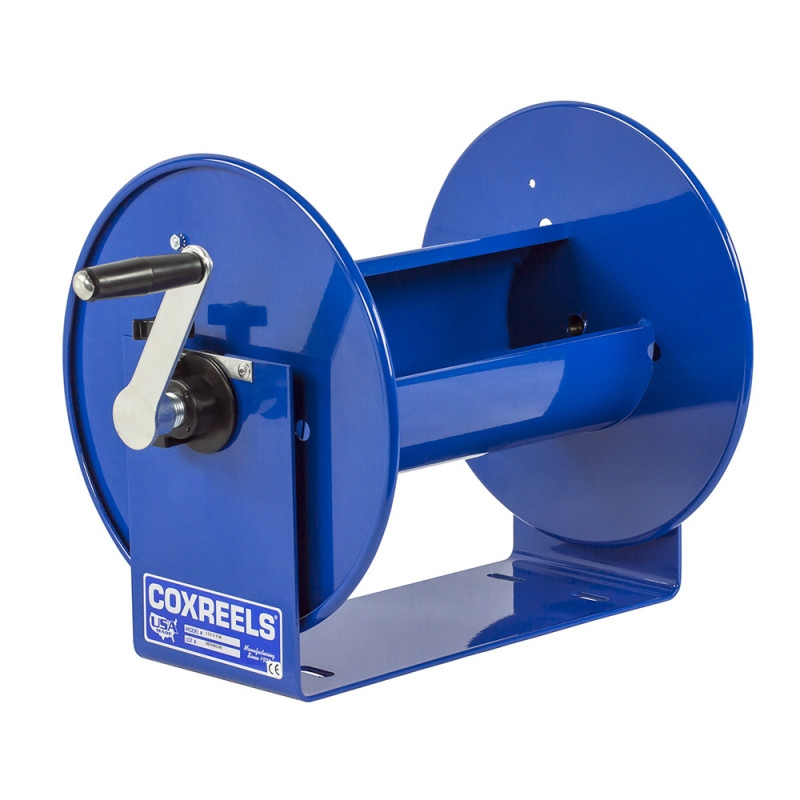

For 1/2" hose layouts that need a compact reel instead of a larger long-capacity frame, the Coxreels 112-4-75 hand crank hose reel provides controlled manual rewind for pressure washing, washdown, spraying, and fluid handling work. Part of the 100 Series, this model is sized for 1/2" I.D. hose with a 75 ft hose capacity and a 4,000 PSI maximum pressure rating, giving buyers a reel-only option for organizing high-pressure hose on carts, skids, service vehicles, benches, or wall-mounted stations.
The 112-4-75 uses direct hand crank rewind, meaning the operator turns the crank to retrieve and guide the hose onto the drum. An adjustable tension brake helps control payout and reduce free-wheeling during operation, storage, or transport, while the open drum design makes hose position easy to monitor during rewind. Its one-piece steel U shaped frame, rolled ribbed discs, nitrile swivel seals, full-flow NPT swivel, and CPC powder coat finish support everyday use in shop, farm, construction, wash bay, and mobile maintenance environments.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 112-4-75 | Configuration: Less Hose | Standard Hose I.D.: 1/2" | Standard Hose O.D.: 7/8" | Standard Hose Capacity: 75 ft | Optional Capacity: 100 ft of 3/8" I.D. hose with reducer required | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Approx. Weight: 21 lb | Overall Dimensions: 22.75" W x 13" H x 12" L | Mounting Pattern: 10" M x 3" N | Base: 14" X x 6" Y | Drum Diameter: 5.5" | Drum Width: 12.5"
Features:
- Direct hand crank rewind gives the operator mechanical control over hose retrieval and wrap placement.
- Adjustable tension brake helps prevent free-wheeling during hose payout, storage, transport, or mobile use.
- Open drum design supports smooth hose wrapping and allows visual monitoring as the hose is retrieved.
- Solid one-piece heavy gauge steel U shaped frame provides a compact mounting structure for shops, skids, carts, and service vehicles.
- Machined from solid brass 90° full-flow NPT swivel supports hose installation and seal maintenance without removing the reel from its mount.
- CNC spun ribbed discs with rolled edges provide strength, hose protection, and safer handling around the reel edges.
- Durable proprietary CPC powder coat finish helps resist chips and rust in commercial and industrial work areas.
Made in USA:
Applications:
- Pressure washing setups where 75 ft of 1/2" hose capacity provides useful reach without requiring a larger reel frame.
- Washdown stations in shops, maintenance bays, equipment yards, and outdoor service areas.
- Agricultural spraying and pest control rigs where hose needs to stay organized on carts, skids, trailers, or mobile units.
- Construction and facility maintenance work where manual rewind helps keep high-pressure hose off the ground between tasks.
- Chemical fluid transfer applications when the hose, fittings, pressure rating, seals, and wetted materials are confirmed compatible with the fluid being handled.
FAQs:
- Q: What does less hose mean on the Coxreels 112-4-75?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/2" I.D. hose separately before the reel can be used. - Q: How much hose can this reel hold?
A: The 112-4-75 is rated for 75 ft of 1/2" I.D. hose with a 7/8" hose O.D. The catalog also lists optional capacity for 100 ft of 3/8" I.D. hose when a reducer is used. - Q: Can this reel be used with a pressure washer?
A: Yes, when the hose, fittings, and connections are also rated for the pressure washer system. The reel has a 4,000 PSI maximum pressure rating, but the complete hose assembly should be checked before use. - Q: Why choose the 112-4-75 instead of a 3/8" hose reel?
A: Choose this model when the job calls for 1/2" hose capacity in a compact reel size. The larger hose diameter may be preferred for washdown, spraying, pressure cleaning, or fluid handling layouts that need more flow than smaller hose lines. - Q: What mounting clearance is required?
A: This reel measures 22.75" wide x 13" high x 12" long, with a 10" x 3" mounting pattern and a 14" x 6" base. Leave space for the crank handle, hose movement, swivel connection, and operator access during rewind.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
