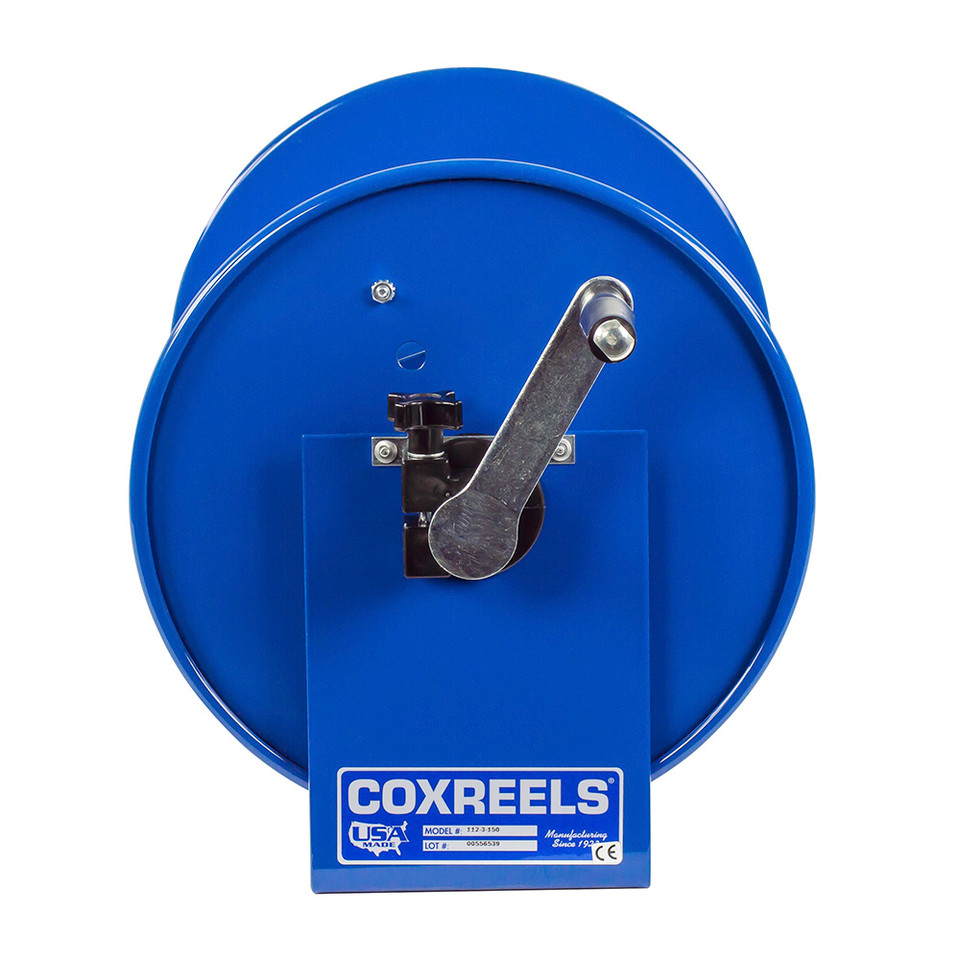

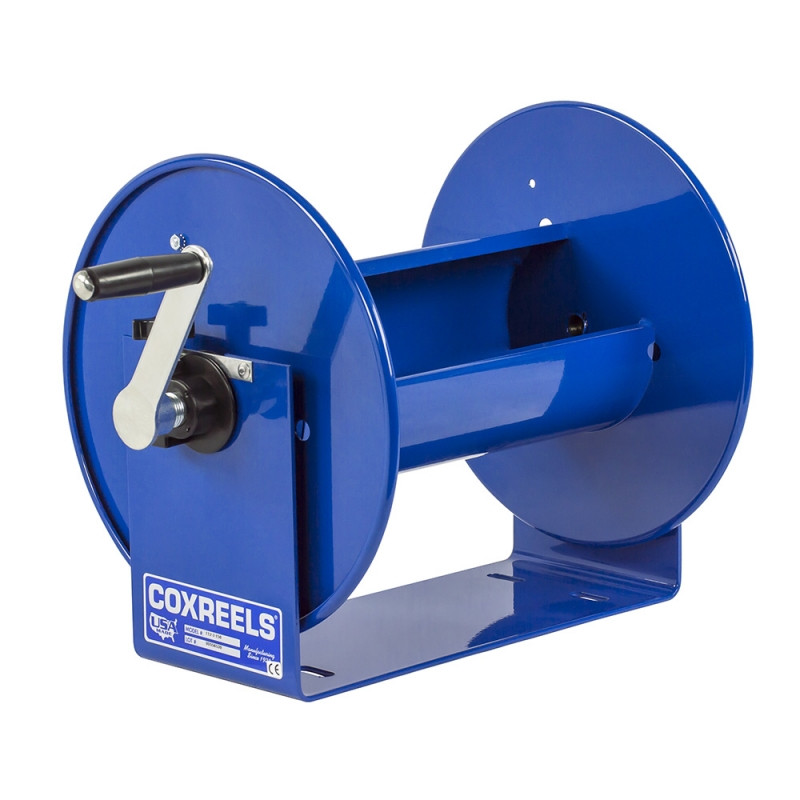

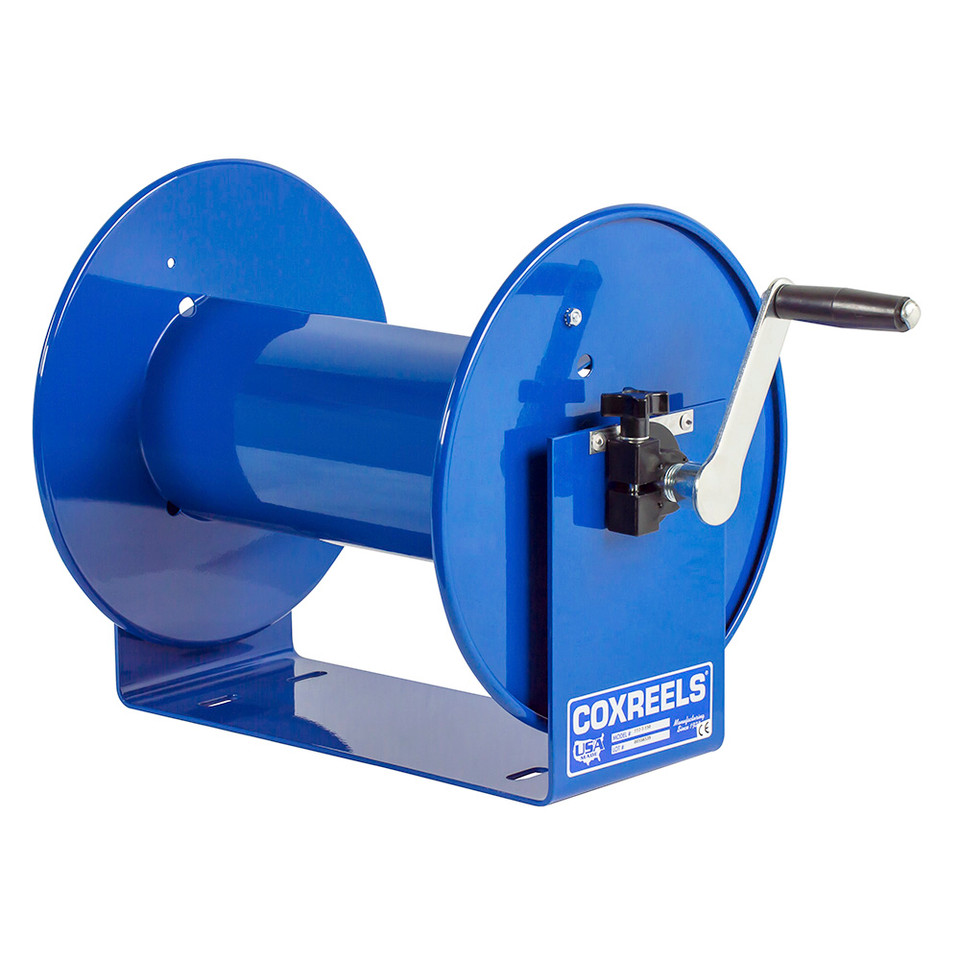

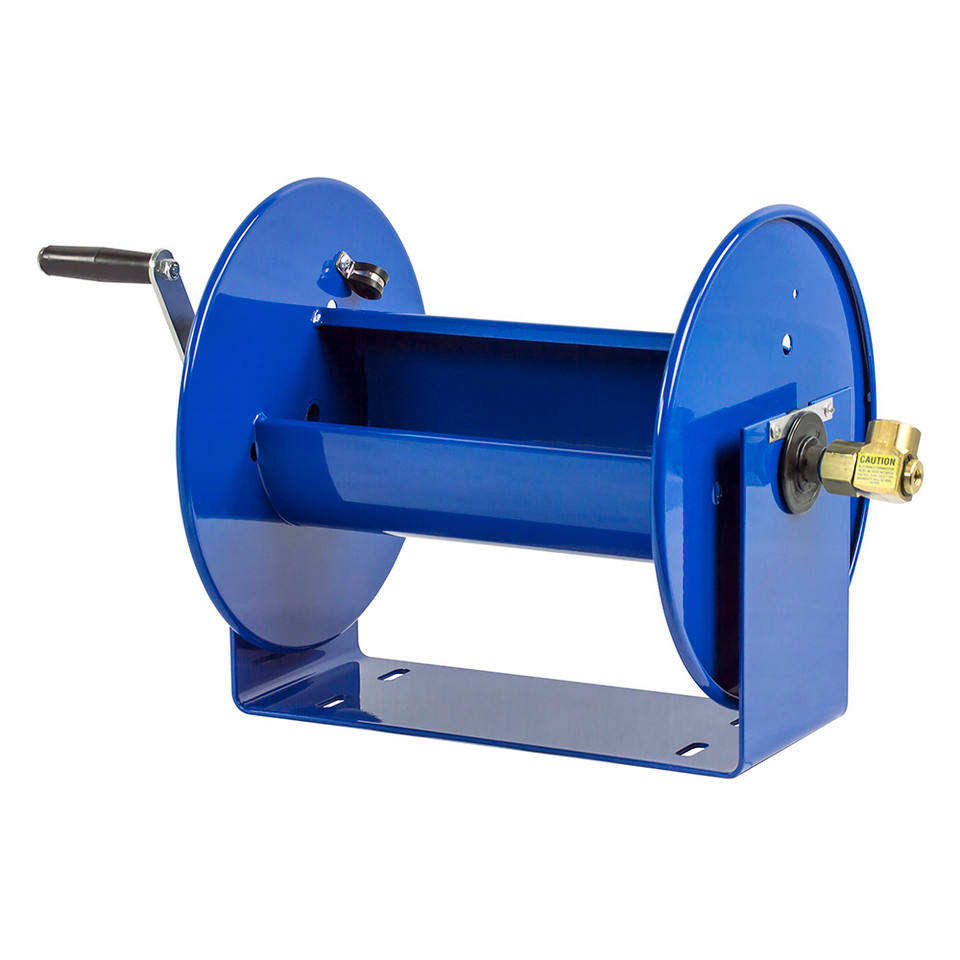

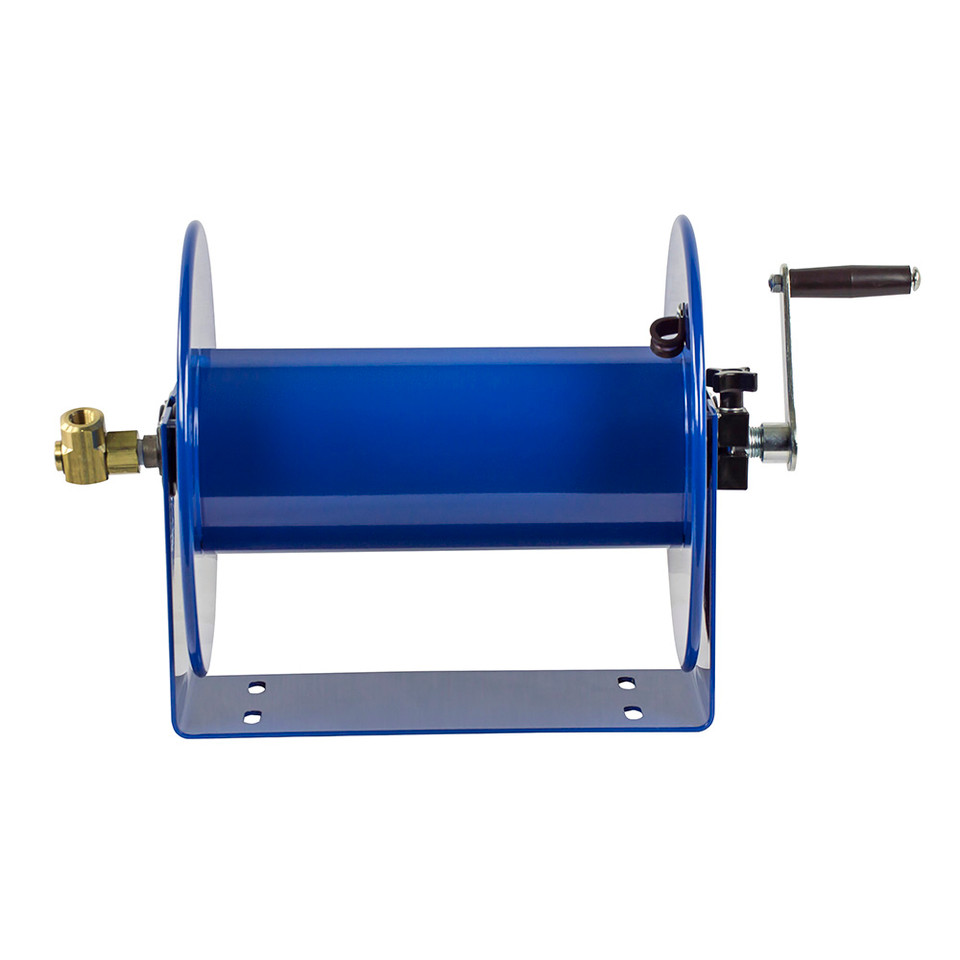

For compact hose storage in pressure washing, spraying, washdown, pest control, and light mobile service setups, the Coxreels 112-3-50 hand crank hose reel keeps shorter high-pressure hose runs organized without taking up unnecessary mounting space. Part of the 100 Series, this reel is sized for 3/8" I.D. hose with a 50 ft hose capacity and a 4,000 PSI maximum pressure rating, making it a practical reel-only option when the job calls for controlled manual rewind in a compact footprint.
The 112-3-50 uses direct hand crank rewind, so the operator controls hose retrieval by turning the crank rather than relying on an internal spring. An adjustable tension brake helps reduce free-wheeling during payout, transport, or storage, while the open drum layout makes it easier to guide the hose into an even wrap. With its steel U shaped frame, ribbed discs with rolled edges, brass 90° full-flow swivel, nitrile swivel seals, and CPC powder coat finish, this reel is suited for benches, carts, skids, trucks, trailers, and wall-mounted service points.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 112-3-50 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 50 ft | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 15 lb | Overall Dimensions: 14.5" W x 13" H x 12" L | Mounting Pattern: 4" M x 3" N | Base: 6" X x 6" Y
Features:
- Direct hand crank rewind gives the operator simple manual control over hose retrieval and wrap placement.
- Adjustable tension brake helps control hose payout and reduce free-wheeling during use, transport, or storage.
- Open drum design supports straightforward hose wrapping and allows the operator to monitor hose position during rewind.
- Solid one-piece heavy gauge steel U shaped frame provides a compact mounting structure for space-limited installations.
- CNC spun ribbed discs with rolled edges add strength while helping protect the hose during storage and handling.
- External fluid path with machined solid brass 90° full-flow NPT swivel supports hose installation and seal maintenance access.
- CPC powder coat finish helps resist chips and rust in commercial, shop, and mobile service environments.
Made in USA:
Applications:
- Compact pressure washing setups where 50 ft of 3/8" hose capacity provides reach without oversizing the reel.
- Washdown stations in workshops, equipment bays, service areas, and outdoor maintenance spaces.
- Pest control and spraying operations where a small manual reel helps keep hose organized on carts, skids, or trailers.
- Service trucks and utility vehicles that need high-pressure hose storage in a smaller mounting footprint.
- Chemical fluid transfer applications when hose, seals, fittings, pressure rating, and wetted materials are confirmed compatible with the fluid being handled.
FAQs:
- Q: What does less hose mean on the Coxreels 112-3-50?
A: It means this product is supplied as the reel only and does not include hose. The buyer must provide compatible 3/8" I.D. hose separately. - Q: How much hose can this reel hold?
A: The 112-3-50 is rated for up to 50 ft of 3/8" I.D. hose with a 5/8" hose O.D. A hose with a larger outside diameter may reduce the amount of hose the reel can hold. - Q: Can this reel be used for pressure washing?
A: Yes, when the hose, fittings, and connections are also rated for the pressure washer system. The reel is rated up to 4,000 PSI, but the complete assembly should be checked before use. - Q: Why choose the 112-3-50 instead of the 112-3-100?
A: Choose the 112-3-50 when the job only requires 50 ft of hose capacity or when mounting space is limited. It offers the same 3/8" hose size and 4,000 PSI pressure rating in a smaller reel format. - Q: What mounting space is required?
A: This reel measures 14.5" wide x 13" high x 12" long, with a 4" x 3" mounting pattern and a 6" x 6" base. Confirm clearance for the reel body, crank handle, hose movement, and connection points before installation.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
