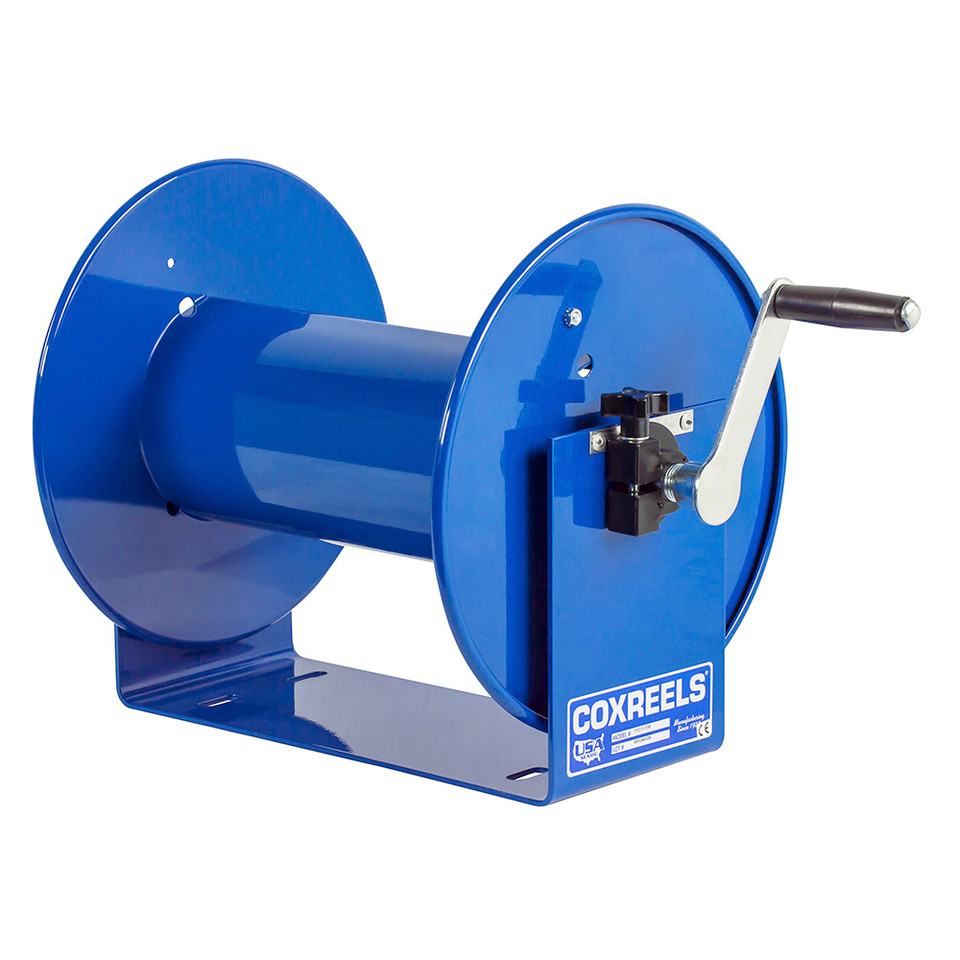

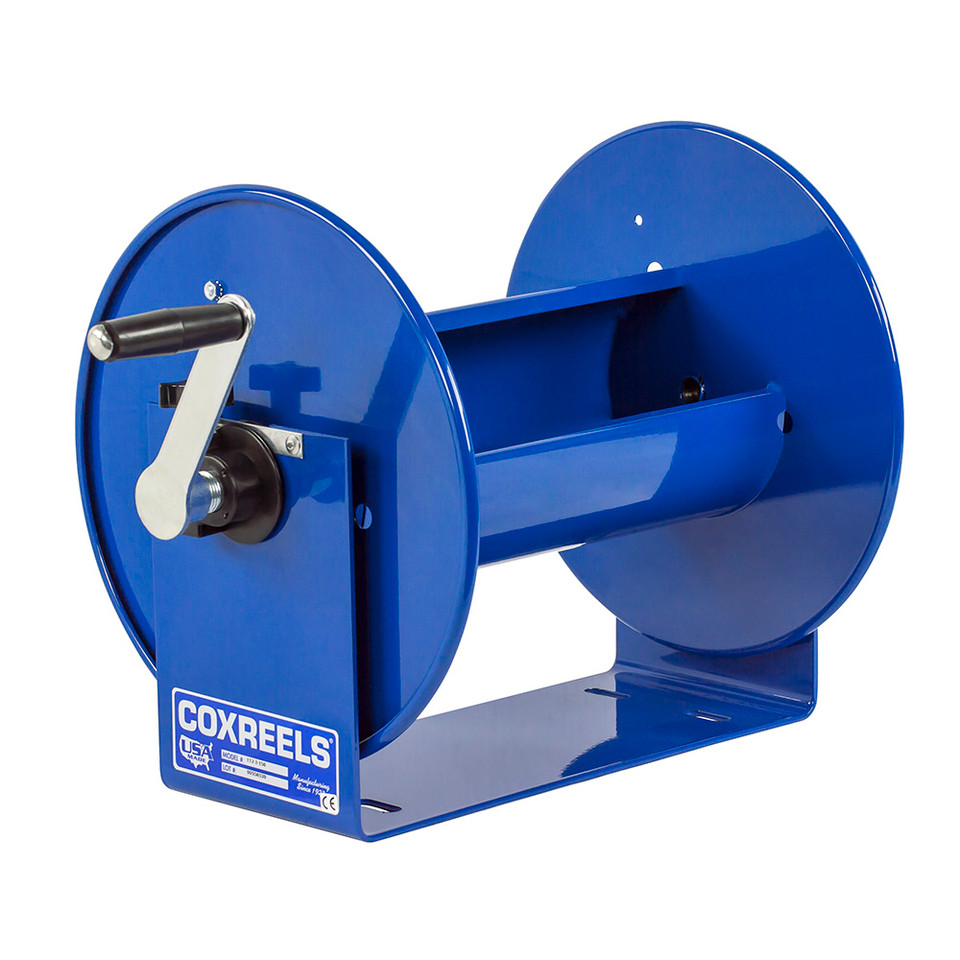

For pressure washing, washdown, spraying, and general fluid handling jobs that require a shorter hose run, the Coxreels 112-3-100 hand crank hose reel gives operators a compact way to store and rewind hose by hand. Part of the 100 Series, this model is built for 3/8" I.D. hose with a 100 ft hose capacity and a 4,000 PSI maximum pressure rating, making it a practical choice when high-pressure hose storage is needed without a spring rewind mechanism.
The 112-3-100 uses direct hand crank rewind for simple mechanical retrieval and an adjustable tension brake to help control hose payout during use, transport, or storage. Its open drum layout supports cleaner hose wrap, while the one-piece steel "U" shaped frame, ribbed discs, rolled edges, and CPC powder coat finish help the reel stand up to shop, service truck, construction, agricultural, and maintenance environments.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 100 Series | SKU: 112-3-100 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 100 ft | Max Pressure: 4,000 PSI | Hose Included: No | Swivel Seals: Nitrile | Rewind Type: Direct Hand Crank | Ship Weight: 19 lb | Overall Dimensions: 18.25" W x 13" H x 12" L | Mounting Pattern: 5.5" M x 3" N | Base: 9.5" X x 6" Y
Features:
- Direct hand crank rewind gives the operator manual control over hose retrieval and storage.
- Adjustable tension brake helps limit free-wheeling during hose payout, movement, or storage.
- Open drum design allows the hose to wrap cleanly and remain visible during rewind.
- Solid one-piece heavy gauge steel "U" shaped frame provides a stable compact mounting platform.
- Rolled edges and ribbed discs add structural strength while helping protect the hose during storage.
- External fluid path includes a machined solid brass 90° full-flow NPT swivel inlet for hose installation and seal maintenance access.
- CPC powder coat finish helps resist chips and rust in commercial and industrial work areas.
Made in USA:
Applications:
- Pressure washing setups where 100 ft of 3/8" hose capacity provides reach without taking up the space of a larger reel.
- Washdown stations in shops, maintenance areas, equipment yards, and outdoor workspaces.
- Agricultural spraying and pest control rigs where manual rewind keeps hose organized between service stops.
- Construction and facility maintenance crews that need a compact reel for high-pressure hose handling.
- Mobile service trucks, trailers, carts, and skids where a manually operated hose reel is preferred over spring rewind.
FAQs:
- Q: What does less hose mean for the Coxreels 112-3-100?
A: It means this product is supplied as the reel only, without hose installed. The buyer must supply compatible 3/8" I.D. hose separately. - Q: How much hose will this reel hold?
A: The 112-3-100 is rated for up to 100 ft of 3/8" I.D. hose with a 5/8" hose O.D. Hose with a larger outside diameter may reduce the usable capacity. - Q: Can this reel be used for pressure washing?
A: Yes, when paired with hose, fittings, and connections that are rated for the same service. The reel has a maximum pressure rating of 4,000 PSI, so the complete hose assembly should be checked before use. - Q: Why choose a hand crank reel instead of a spring rewind reel?
A: A hand crank reel uses manual rewind, allowing the operator to control the pace and hose placement during retrieval. It is a straightforward option for users who do not need automatic retraction. - Q: What mounting space is required?
A: This reel measures 18.25" wide x 13" high x 12" long, with a 5.5" x 3" mounting pattern and a 9.5" x 6" base. Confirm the mounting surface has enough clearance for the reel and hose movement.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3/8" | 5/8" | 50 | 1/4" | 1/2" | 85 | 4,000 / 15 | 1 |
| 112-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 / 19 | 2 |
| 112-3-150 | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 / 21 | 3 |
| 117-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 / 30 | 4 |
| 117-3-400 | 3/8" | 5/8" | 400 | 1/4" | 1/2" | 550 | 4,000 / 33 | 5 |
| 117-3-550 | 3/8" | 5/8" | 550 | 1/4" | 1/2" | 800 | 4,000 / 35 | 6 |
| 112-4-75 | 1/2" | 7/8" | 75 | 3/8" | 3/4" | 100 | 4,000 / 21 | 3 |
| 117-4-225 | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 / 31 | 5 |
| 117-4-350 | 1/2" | 7/8" | 350 | 3/8" | 3/4" | 450 | 4,000 / 37 | 6 |
| 117-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 1" | 150 | 4,000 / 35 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Hose Reel
- Series
- 100 Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 100
- Maximum Working Pressure (PSI)
- 4000
- Hose Included
- No
- Width (in.)
- 18.25
- Height (in.)
- 13
- Length (in.)
- 12
- Mounting Pattern (in.)
- 5.5M
- Mounting Pattern (in.)
- 3N
- Base (in.)
- 9.5X
- Base (in.)
- 6Y
