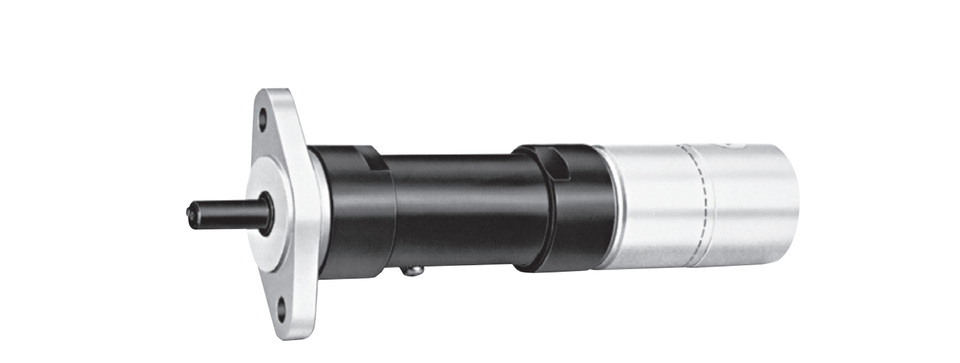

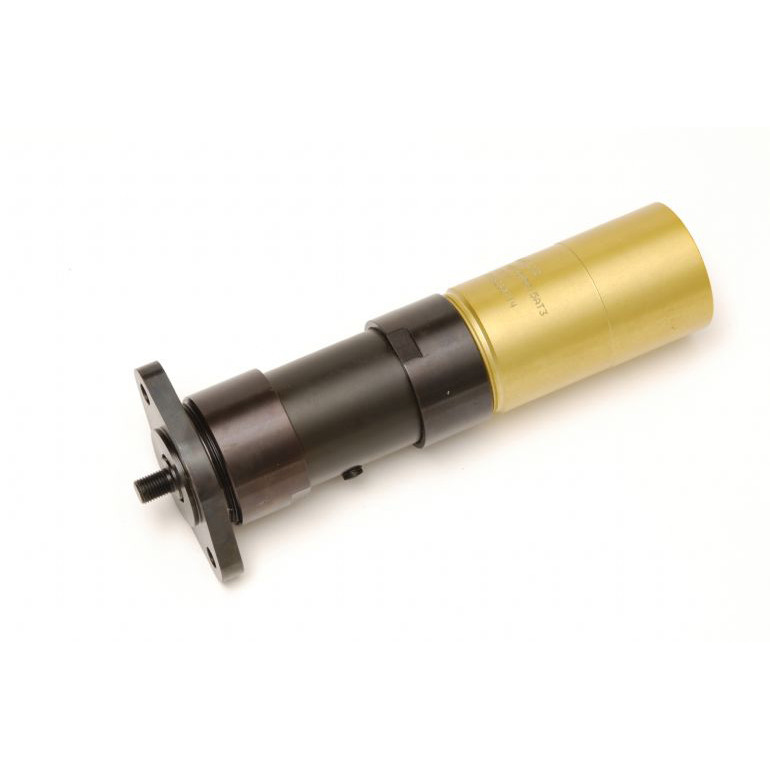

Ingersoll Rand M004RVR167AR3 Multi-Vane Reversible Air Motor | 0.31 HP | 85 RPM | 41.3 (ft-lbs) Starting Torque | 55.0 (ft-lbs) Stall Torque

Ingersoll Rand M004RVR167AR3 Multi-Vane Reversible Air Motor is engineered for demanding industrial applications requiring exceptional output torque together with the flexibility of bidirectional pneumatic operation. Rated at 0.31 HP and a free speed of 85 RPM, this multi-vane air motor is ideal for OEM machinery, indexing equipment, positioning systems, material handling applications, and heavy-duty automation where controlled, low-speed rotation is essential. Its reversible configuration enables smooth forward and reverse operation, making it well suited for equipment that must repeatedly change rotational direction.

The M004RVR167AR3 develops an impressive 41.3 lb-ft of starting torque, providing substantial breakaway force for moving heavily loaded equipment from a standstill. It also produces 55.0 lb-ft of stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. These manufacturer-published performance specifications help engineers and maintenance professionals accurately match the motor to demanding low-speed, high-torque pneumatic applications.

Type: Multi-Vane Air Motor | Model: M004RVR167AR3 | Rotation: Reversible | Power: 0.31 HP | Speed: 85 RPM | Starting Torque: 41.3 lb-ft | Stall Torque: 55.0 lb-ft

Features:

• Multi-vane pneumatic motor converts compressed air into dependable rotary power for industrial machinery.
• Reversible configuration allows convenient forward and reverse operation for bidirectional applications.
• 0.31 HP output delivers reliable pneumatic performance for compatible industrial equipment.
• 85 RPM free speed is optimized for applications requiring maximum torque at very low operating speeds.
• 41.3 lb-ft starting torque provides exceptional breakaway force for demanding startup conditions.
• 55.0 lb-ft stall torque serves as a manufacturer-published reference for evaluating maximum load capability during motor selection.

Made in USA:

Applications:

• Heavy-duty OEM machinery requiring reversible pneumatic rotary power.
• Industrial automation and manufacturing equipment operating at low speeds.
• Indexing, positioning, and transfer systems requiring high torque and bidirectional rotation.
• Material handling, conveyor, and processing equipment powered by compressed air.
• Replacement installations where the published performance specifications match the original equipment requirements.

FAQs:

• Q: Can the M004RVR167AR3 operate in both forward and reverse?
  A: Yes. This model is manufactured as a reversible air motor and supports bidirectional operation.
• Q: What is the rated operating speed?
  A: The manufacturer specifies a free speed of 85 RPM.
• Q: What does the 41.3 lb-ft starting torque indicate?
  A: Starting torque is the amount of torque available when the motor begins rotating the connected load. This model develops 41.3 lb-ft of starting torque.
• Q: What is stall torque?
  A: Stall torque is the maximum torque produced when the output shaft is prevented from rotating. The published stall torque for this model is 55.0 lb-ft.
• Q: What should be verified before selecting this air motor?
  A: Confirm horsepower, operating speed, torque ratings, rotation direction, shaft dimensions, mounting configuration, and compressed-air specifications using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
