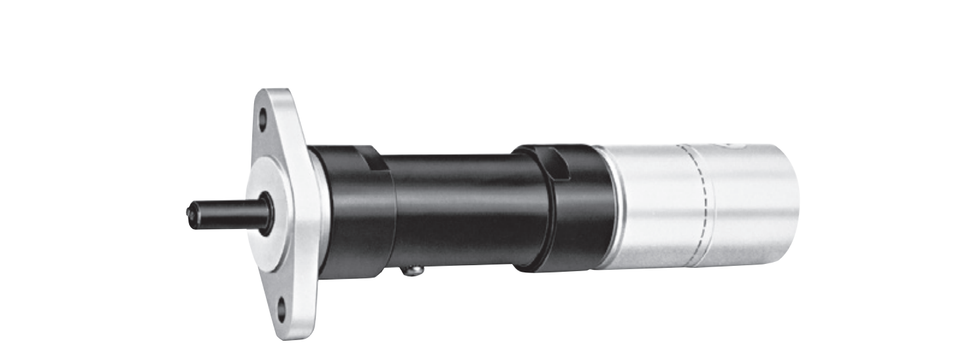

Ingersoll Rand M004RVR023AR3 Multi-Vane Reversible Air Motor is engineered to provide reliable pneumatic rotary power with the versatility of forward and reverse operation for demanding industrial applications. Rated at 0.34 HP with a free speed of 635 RPM, this multi-vane air motor is well suited for OEM machinery, automated manufacturing equipment, indexing mechanisms, positioning systems, and material handling applications where lower operating speeds and increased torque are required. Its reversible configuration enables convenient directional changes, making it ideal for equipment that performs repetitive bidirectional movements.
The M004RVR023AR3 develops 6.23 lb-ft of starting torque, providing substantial breakaway force to move connected equipment from a standstill. It also produces 8.30 lb-ft of stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. These manufacturer-published performance ratings provide engineers and maintenance professionals with dependable data for selecting the appropriate air motor for compatible industrial systems.
Type: Multi-Vane Air Motor | Model: M004RVR023AR3 | Rotation: Reversible | Power: 0.34 HP | Speed: 635 RPM | Starting Torque: 6.23 lb-ft | Stall Torque: 8.30 lb-ft
Features:
- Multi-vane pneumatic motor converts compressed air into dependable rotary power for industrial equipment.
- Reversible design allows convenient forward and reverse rotation for applications requiring bidirectional movement.
- 0.34 HP output provides consistent pneumatic performance for compatible machinery.
- 635 RPM free speed is ideal for controlled, lower-speed industrial applications requiring increased output torque.
- 6.23 lb-ft starting torque delivers strong breakaway performance for loaded startup conditions.
- 8.30 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum operating load.
Made in USA:
Applications:
- OEM machinery requiring reversible pneumatic rotary power.
- Industrial automation and assembly systems.
- Indexing, positioning, and transfer mechanisms.
- Material handling and conveying equipment powered by compressed air.
- Replacement installations where the published specifications match the original motor.
FAQs:
- Q: Can the M004RVR023AR3 operate in both forward and reverse?
A: Yes. This model features a reversible design for applications requiring bidirectional rotation. - Q: What is the rated operating speed?
A: The manufacturer specifies a free speed of 635 RPM. - Q: What does the 6.23 lb-ft starting torque represent?
A: Starting torque is the torque available when the motor begins rotating the connected load. This model delivers 6.23 lb-ft of starting torque. - Q: What is stall torque?
A: Stall torque is the maximum torque developed when the output shaft is prevented from rotating. The published stall torque for this model is 8.30 lb-ft. - Q: What should be confirmed before selecting this air motor?
A: Verify horsepower, operating speed, torque ratings, rotation requirements, shaft dimensions, mounting configuration, and compressed-air specifications using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Max. Power | Speed at Max. Power | Free Speed | Starting Torque | Stall Torque | Air Consumption at Max. Power | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| hp | kw | rpm | rpm | lb-ft | Nm | lb-ft | Nm | scfm | m³/m | lb | kg | |
| Non-Reversible — Direction of rotation is counterclockwise when facing the shaft | ||||||||||||
| M004RHR000AR3 | 0.50 | 0.37 | 10,000 | 18,000 | 0.40 | 0.54 | 0.53 | 0.72 | 20.0 | 0.57 | 2 1/16 | 0.95 |
| M004RHR004AR3 | 0.47 | 0.35 | 2,470 | 4,450 | 1.46 | 1.98 | 1.94 | 2.63 | 19.5 | 0.55 | 2 3/16 | 1.00 |
| M004RHR006AR3 | 0.47 | 0.35 | 1,490 | 2,680 | 2.42 | 3.28 | 3.22 | 4.37 | 19.5 | 0.55 | 2 3/16 | 1.00 |
| M004RHR011AR3 | 0.44 | 0.33 | 825 | 1,490 | 3.92 | 5.32 | 5.22 | 7.08 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR015AR3 | 0.44 | 0.33 | 610 | 1,095 | 5.32 | 7.21 | 7.10 | 9.63 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR023AR3 | 0.44 | 0.33 | 395 | 715 | 8.10 | 11.0 | 10.8 | 14.6 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR033AR3 | 0.44 | 0.33 | 280 | 505 | 11.5 | 15.6 | 15.4 | 20.8 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR050AR3 | 0.41 | 0.31 | 175 | 315 | *16.5 | *22.4 | *22.1 | *30.0 | 18.5 | 0.52 | 2 11/16 | 1.22 |
| M004RHR083AR3 | 0.41 | 0.31 | 106 | 190 | *27.5 | *37.3 | *36.7 | *49.7 | 18.5 | 0.52 | 2 11/16 | 1.22 |
| M004RHR167AR3 | 0.41 | 0.31 | 53 | 95 | *55.0 | *74.5 | *73.3 | *99.4 | 18.5 | 0.52 | 2 11/16 | 1.22 |
| Reversible | ||||||||||||
| M004RVR000AR3 | 0.40 | 0.30 | 8,000 | 16,000 | 0.32 | 0.43 | 0.42 | 0.57 | 19.0 | 0.54 | 2 1/16 | 0.95 |
| M004RVR004AR3 | 0.37 | 0.28 | 1,975 | 3,955 | 1.13 | 1.53 | 1.51 | 2.05 | 18.5 | 0.52 | 2 3/16 | 1.00 |
| M004RVR006AR3 | 0.37 | 0.28 | 1,190 | 2,380 | 1.88 | 2.55 | 2.51 | 3.40 | 18.5 | 0.52 | 2 3/16 | 1.00 |
| M004RVR011AR3 | 0.34 | 0.25 | 660 | 1,325 | 3.00 | 4.07 | 4.00 | 5.42 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR015AR3 | 0.34 | 0.25 | 485 | 975 | 4.07 | 5.52 | 5.43 | 7.36 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR023AR3 | 0.34 | 0.25 | 315 | 635 | 6.23 | 8.45 | 8.30 | 11.2 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR033AR3 | 0.34 | 0.25 | 225 | 450 | 8.85 | 12.0 | 11.8 | 16.0 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR050AR3 | 0.31 | 0.23 | 140 | 280 | *12.3 | *16.7 | *16.5 | *22.4 | 17.5 | 0.50 | 2 11/16 | 1.22 |
| M004RVR083AR3 | 0.31 | 0.23 | 84 | 169 | *20.6 | *27.9 | *27.5 | *37.3 | 17.5 | 0.50 | 2 11/16 | 1.22 |
| M004RVR167AR3 | 0.31 | 0.23 | 42 | 85 | *41.3 | *56.0 | *55.0 | *74.5 | 17.5 | 0.50 | 2 11/16 | 1.22 |
Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
