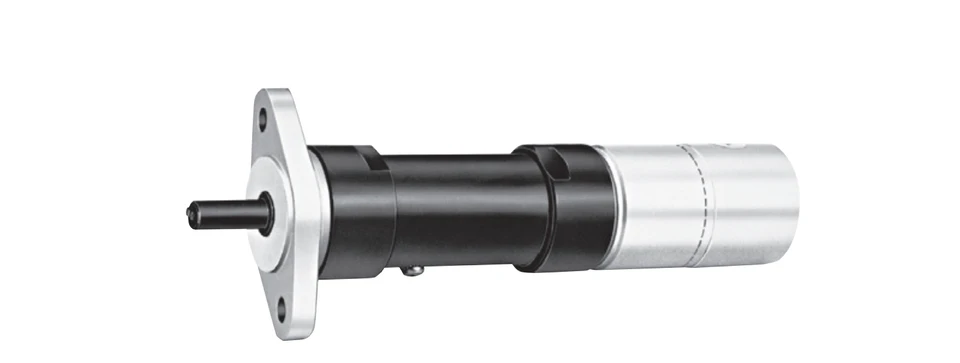

Ingersoll Rand M004RHR167AR3 Multi-Vane Non-Reversible Air Motor | 0.41 HP | 95 RPM | 55.0 (ft-lbs) Starting Torque | 73.3 (ft-lbs) Stall Torque

Ingersoll Rand M004RHR167AR3 Multi-Vane Non-Reversible Air Motor is engineered for applications requiring exceptional torque at very low operating speeds. Delivering 0.41 HP with a free speed of 95 RPM, this multi-vane pneumatic motor is well suited for heavy-duty OEM machinery, positioning systems, indexing equipment, material handling applications, and industrial processes where high rotational force is essential. Its non-reversible configuration is intended for equipment designed to operate continuously in a single rotational direction.

The M004RHR167AR3 produces an impressive 55.0 lb-ft of starting torque, enabling it to overcome significant startup resistance in demanding applications. It also develops 73.3 lb-ft of stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. These manufacturer-published performance ratings provide valuable selection criteria for engineers and maintenance professionals matching the motor to the torque and speed requirements of industrial equipment.

Type: Multi-Vane Air Motor | Model: M004RHR167AR3 | Rotation: Non-Reversible | Power: 0.41 HP | Speed: 95 RPM | Starting Torque: 55.0 lb-ft | Stall Torque: 73.3 lb-ft

Features:

• Multi-vane pneumatic motor converts compressed air into reliable rotary power for industrial equipment.
• Non-reversible configuration is designed for machinery requiring continuous one-direction operation.
• 0.41 HP output provides dependable pneumatic performance for compatible applications.
• 95 RPM free speed is optimized for applications requiring controlled low-speed operation and maximum available torque.
• 55.0 lb-ft starting torque delivers exceptional breakaway force for heavy startup loads.
• 73.3 lb-ft stall torque provides a manufacturer-specified reference for evaluating maximum load capability during motor selection.

Made in USA:

Applications:

• Heavy-duty OEM machinery requiring maximum pneumatic torque.
• Indexing and positioning systems operating at very low rotational speeds.
• Material handling and conveyor equipment with demanding startup loads.
• Industrial manufacturing and processing equipment powered by compressed air.
• Replacement installations where the published performance specifications match the original motor requirements.

FAQs:

• Q: Is the M004RHR167AR3 reversible?
  A: No. This model is manufactured as a non-reversible air motor for continuous operation in a single rotational direction.
• Q: What is the rated operating speed?
  A: The manufacturer specifies a free speed of 95 RPM.
• Q: What does the 55.0 lb-ft starting torque indicate?
  A: Starting torque is the torque available when the motor begins rotating the connected load. This model provides 55.0 lb-ft of starting torque for demanding startup conditions.
• Q: What is the significance of the 73.3 lb-ft stall torque?
  A: Stall torque is the maximum torque developed when the output shaft is prevented from rotating by the applied load. It serves as a selection reference and should not be considered a continuous operating torque.
• Q: What should be confirmed before installing this air motor?
  A: Verify horsepower, operating speed, torque ratings, rotation direction, shaft dimensions, mounting configuration, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
