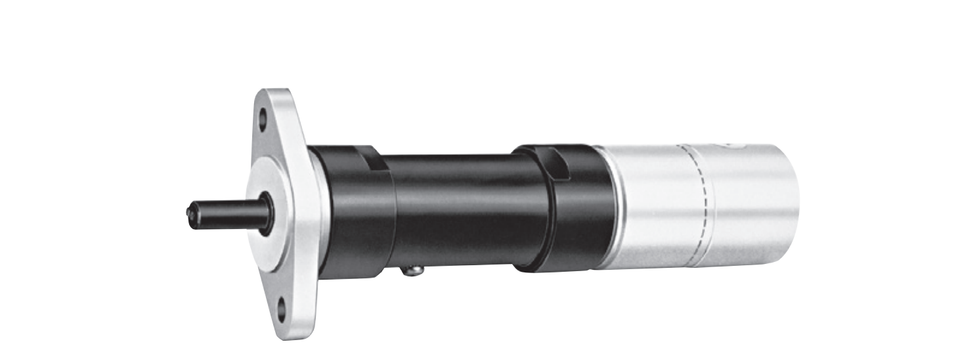

Ingersoll Rand M004RVR015AR3 Multi-Vane Reversible Air Motor is designed to deliver dependable pneumatic rotary power with the flexibility of forward and reverse operation for industrial applications. Rated at 0.34 HP with a free speed of 975 RPM, this multi-vane air motor is an excellent choice for OEM machinery, automated production systems, positioning equipment, and material handling applications where moderate operating speeds and bidirectional rotation are required. Its reversible configuration provides greater versatility for equipment that must alternate rotational direction during normal operation.
The M004RVR015AR3 develops 4.07 lb-ft of starting torque, providing the rotational force needed to initiate movement under load. It also produces 5.43 lb-ft of stall torque, representing the maximum torque generated when the output shaft is prevented from rotating. These published performance specifications enable engineers and maintenance personnel to accurately match the motor to the speed, torque, and operational requirements of compatible industrial equipment.
Type: Multi-Vane Air Motor | Model: M004RVR015AR3 | Rotation: Reversible | Power: 0.34 HP | Speed: 975 RPM | Starting Torque: 4.07 lb-ft | Stall Torque: 5.43 lb-ft
Features:
- Multi-vane pneumatic motor converts compressed air into dependable rotary power for industrial machinery.
- Reversible design supports both clockwise and counterclockwise rotation for applications requiring directional flexibility.
- 0.34 HP output provides consistent pneumatic performance for compatible equipment.
- 975 RPM free speed is well suited for controlled, medium-speed industrial applications.
- 4.07 lb-ft starting torque provides reliable breakaway force for starting loaded equipment.
- 5.43 lb-ft stall torque serves as a manufacturer-published reference when evaluating maximum load capacity.
Made in USA:
Applications:
- OEM machinery requiring reversible pneumatic drive.
- Industrial automation and assembly systems.
- Indexing, positioning, and transfer equipment.
- Packaging and material handling machinery powered by compressed air.
- Replacement installations where the published specifications match the original motor.
FAQs:
- Q: Can the M004RVR015AR3 operate in both forward and reverse?
A: Yes. This model is manufactured as a reversible air motor and is designed for applications requiring bidirectional rotation. - Q: What is the rated operating speed?
A: The manufacturer specifies a free speed of 975 RPM. - Q: What does the 4.07 lb-ft starting torque indicate?
A: Starting torque is the amount of torque available when the motor begins rotating the connected load. This model produces 4.07 lb-ft of starting torque. - Q: What is stall torque?
A: Stall torque is the maximum torque generated when the output shaft is prevented from rotating. The published stall torque for this model is 5.43 lb-ft. - Q: What should be verified before ordering this motor?
A: Confirm horsepower, operating speed, torque ratings, rotation requirements, shaft dimensions, mounting configuration, and compressed-air specifications using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Max. Power | Speed at Max. Power | Free Speed | Starting Torque | Stall Torque | Air Consumption at Max. Power | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| hp | kw | rpm | rpm | lb-ft | Nm | lb-ft | Nm | scfm | m³/m | lb | kg | |
| Non-Reversible — Direction of rotation is counterclockwise when facing the shaft | ||||||||||||
| M004RHR000AR3 | 0.50 | 0.37 | 10,000 | 18,000 | 0.40 | 0.54 | 0.53 | 0.72 | 20.0 | 0.57 | 2 1/16 | 0.95 |
| M004RHR004AR3 | 0.47 | 0.35 | 2,470 | 4,450 | 1.46 | 1.98 | 1.94 | 2.63 | 19.5 | 0.55 | 2 3/16 | 1.00 |
| M004RHR006AR3 | 0.47 | 0.35 | 1,490 | 2,680 | 2.42 | 3.28 | 3.22 | 4.37 | 19.5 | 0.55 | 2 3/16 | 1.00 |
| M004RHR011AR3 | 0.44 | 0.33 | 825 | 1,490 | 3.92 | 5.32 | 5.22 | 7.08 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR015AR3 | 0.44 | 0.33 | 610 | 1,095 | 5.32 | 7.21 | 7.10 | 9.63 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR023AR3 | 0.44 | 0.33 | 395 | 715 | 8.10 | 11.0 | 10.8 | 14.6 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR033AR3 | 0.44 | 0.33 | 280 | 505 | 11.5 | 15.6 | 15.4 | 20.8 | 19.0 | 0.54 | 2 3/8 | 1.09 |
| M004RHR050AR3 | 0.41 | 0.31 | 175 | 315 | *16.5 | *22.4 | *22.1 | *30.0 | 18.5 | 0.52 | 2 11/16 | 1.22 |
| M004RHR083AR3 | 0.41 | 0.31 | 106 | 190 | *27.5 | *37.3 | *36.7 | *49.7 | 18.5 | 0.52 | 2 11/16 | 1.22 |
| M004RHR167AR3 | 0.41 | 0.31 | 53 | 95 | *55.0 | *74.5 | *73.3 | *99.4 | 18.5 | 0.52 | 2 11/16 | 1.22 |
| Reversible | ||||||||||||
| M004RVR000AR3 | 0.40 | 0.30 | 8,000 | 16,000 | 0.32 | 0.43 | 0.42 | 0.57 | 19.0 | 0.54 | 2 1/16 | 0.95 |
| M004RVR004AR3 | 0.37 | 0.28 | 1,975 | 3,955 | 1.13 | 1.53 | 1.51 | 2.05 | 18.5 | 0.52 | 2 3/16 | 1.00 |
| M004RVR006AR3 | 0.37 | 0.28 | 1,190 | 2,380 | 1.88 | 2.55 | 2.51 | 3.40 | 18.5 | 0.52 | 2 3/16 | 1.00 |
| M004RVR011AR3 | 0.34 | 0.25 | 660 | 1,325 | 3.00 | 4.07 | 4.00 | 5.42 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR015AR3 | 0.34 | 0.25 | 485 | 975 | 4.07 | 5.52 | 5.43 | 7.36 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR023AR3 | 0.34 | 0.25 | 315 | 635 | 6.23 | 8.45 | 8.30 | 11.2 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR033AR3 | 0.34 | 0.25 | 225 | 450 | 8.85 | 12.0 | 11.8 | 16.0 | 18.0 | 0.51 | 2 3/8 | 1.09 |
| M004RVR050AR3 | 0.31 | 0.23 | 140 | 280 | *12.3 | *16.7 | *16.5 | *22.4 | 17.5 | 0.50 | 2 11/16 | 1.22 |
| M004RVR083AR3 | 0.31 | 0.23 | 84 | 169 | *20.6 | *27.9 | *27.5 | *37.3 | 17.5 | 0.50 | 2 11/16 | 1.22 |
| M004RVR167AR3 | 0.31 | 0.23 | 42 | 85 | *41.3 | *56.0 | *55.0 | *74.5 | 17.5 | 0.50 | 2 11/16 | 1.22 |
Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
