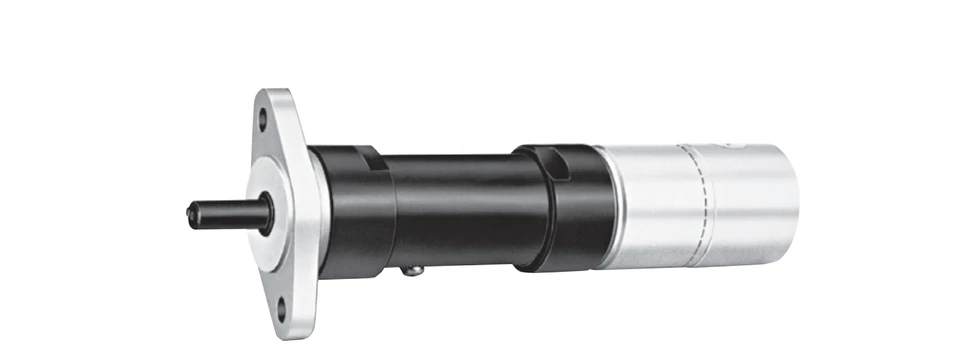

Ingersoll Rand M004RVR083AR3 Multi-Vane Reversible Air Motor | 0.31 HP | 169 RPM | 20.6 (ft-lbs) Starting Torque | 27.5 (ft-lbs) Stall Torque

Ingersoll Rand M004RVR083AR3 Multi-Vane Reversible Air Motor is designed to provide high-torque pneumatic performance with the flexibility of bidirectional operation for demanding industrial applications. Rated at 0.31 HP with a free speed of 169 RPM, this multi-vane air motor is ideal for OEM equipment, indexing systems, automated machinery, material handling equipment, and production processes that require controlled low-speed rotation together with forward and reverse capability. Its reversible configuration makes it well suited for equipment that frequently changes rotational direction while maintaining consistent pneumatic performance.

The M004RVR083AR3 develops 20.6 lb-ft of starting torque, providing substantial breakaway force for moving heavily loaded equipment from a standstill. It also generates 27.5 lb-ft of stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. These manufacturer-published performance values assist engineers and maintenance professionals in selecting the proper motor for applications requiring high torque, low operating speed, and reversible operation.

Type: Multi-Vane Air Motor | Model: M004RVR083AR3 | Rotation: Reversible | Power: 0.31 HP | Speed: 169 RPM | Starting Torque: 20.6 lb-ft | Stall Torque: 27.5 lb-ft

Features:

• Multi-vane pneumatic motor converts compressed air into dependable rotary power for industrial machinery.
• Reversible design supports both clockwise and counterclockwise rotation for bidirectional applications.
• 0.31 HP output provides reliable pneumatic performance for compatible equipment.
• 169 RPM free speed is optimized for applications requiring controlled, low-speed operation with increased output torque.
• 20.6 lb-ft starting torque delivers excellent breakaway force for demanding startup conditions.
• 27.5 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum load capability during motor selection.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Industrial automation and manufacturing equipment.
• Indexing, positioning, and transfer systems utilizing bidirectional motion.
• Material handling and conveyor equipment operating at low rotational speeds.
• Replacement installations where the published performance specifications match the original equipment requirements.

FAQs:

• Q: Can the M004RVR083AR3 operate in both forward and reverse?
  A: Yes. This model features a reversible design for applications requiring bidirectional rotation.
• Q: What is the rated operating speed?
  A: The manufacturer specifies a free speed of 169 RPM.
• Q: What does the 20.6 lb-ft starting torque represent?
  A: Starting torque is the torque available when the motor begins rotating the connected load. This model develops 20.6 lb-ft of starting torque.
• Q: What is stall torque?
  A: Stall torque is the maximum torque generated when the output shaft is prevented from rotating. The published stall torque for this model is 27.5 lb-ft.
• Q: What should be verified before installing this motor?
  A: Confirm horsepower, operating speed, torque ratings, rotation direction, shaft dimensions, mounting configuration, and compressed-air specifications using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
