Ingersoll Rand M004RHR050AR3 Multi-Vane Non-Reversible Air Motor | 0.41 HP | 315 RPM | 16.5 (ft-lbs) Starting Torque | 22.1 (ft-lbs) Stall Torque

Ingersoll Rand M004RHR050AR3 Multi-Vane Non-Reversible Air Motor is engineered to provide dependable low-speed pneumatic rotary power for industrial applications requiring substantial torque in a single rotational direction. Rated at 0.41 HP with a free speed of 315 RPM, this multi-vane air motor is ideal for OEM machinery, material handling equipment, production systems, and replacement applications where higher torque output is prioritized over rotational speed. Its non-reversible configuration is designed specifically for equipment that operates continuously in one direction.

The M004RHR050AR3 develops 16.5 lb-ft of starting torque, providing strong initial turning force for moving heavier loads from a standstill. It also delivers 22.1 lb-ft of stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. These published performance specifications assist engineers and maintenance professionals in selecting a pneumatic motor that closely matches the speed and load requirements of the intended equipment.

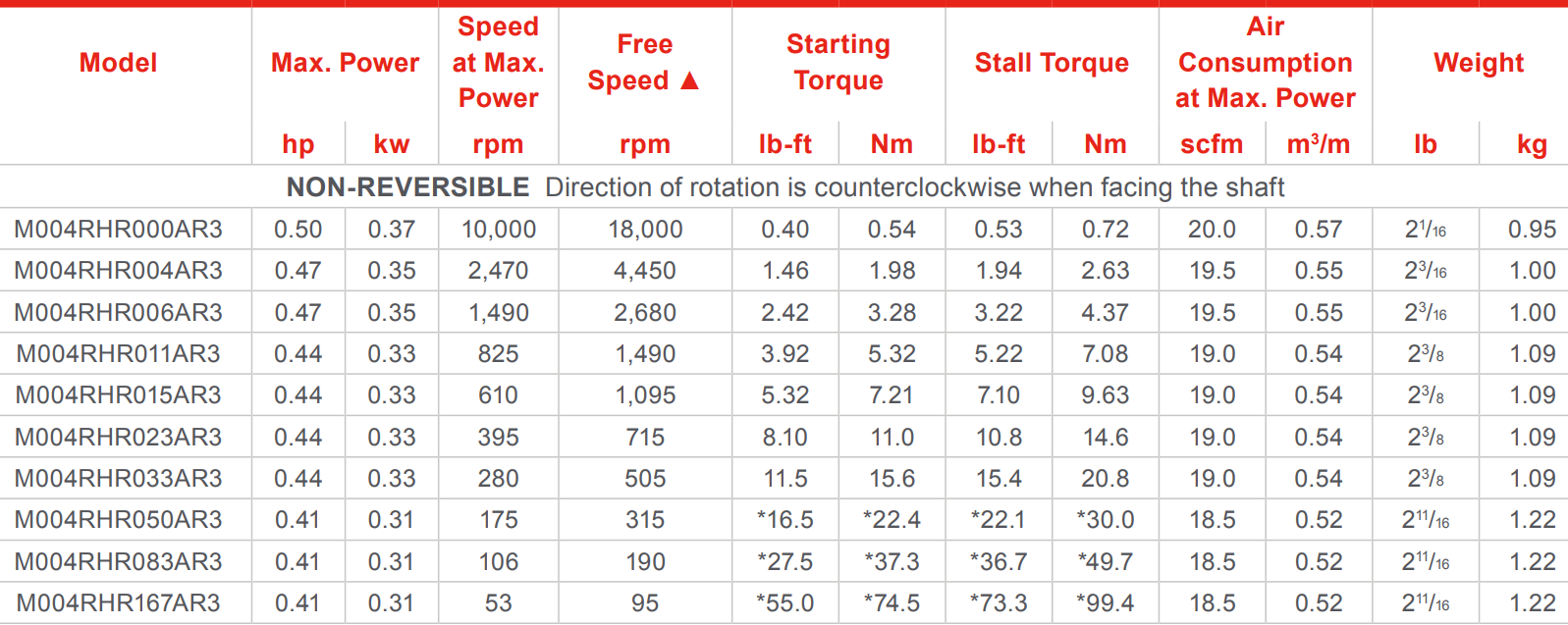

Type: Multi-Vane Air Motor | Model: M004RHR050AR3 | Rotation: Non-Reversible | Power: 0.41 HP | Speed: 315 RPM | Starting Torque: 16.5 lb-ft | Stall Torque: 22.1 lb-ft

Features:

• Multi-vane air motor converts compressed air into continuous rotary power for industrial machinery.
• Non-reversible configuration is intended for applications requiring one-direction operation.
• 0.41 HP output provides reliable pneumatic performance for compatible equipment.
• 315 RPM operating speed is suitable for applications demanding increased torque at lower rotational speeds.
• 16.5 lb-ft starting torque provides substantial initial turning force for loaded equipment.
• 22.1 lb-ft stall torque serves as a published reference when evaluating maximum load conditions during motor selection.

Made in USA:

Applications:

• OEM machinery requiring high-torque pneumatic rotary power.
• Material handling and conveyor equipment operating at lower rotational speeds.
• Industrial automation and manufacturing systems.
• Processing equipment powered by compressed air.
• Maintenance replacement installations where the published specifications match the existing motor.

FAQs:

• Q: Is the M004RHR050AR3 reversible?
  A: No. This model is manufactured as a non-reversible air motor for applications requiring continuous rotation in one direction.
• Q: What is the rated operating speed?
  A: The manufacturer specifies a free speed of 315 RPM.
• Q: What does the 16.5 lb-ft starting torque indicate?
  A: Starting torque is the amount of torque available when the motor begins rotating the connected load. This model is rated at 16.5 lb-ft.
• Q: What is stall torque?
  A: Stall torque is the maximum torque developed when the output shaft is prevented from rotating. The M004RHR050AR3 has a published stall torque of 22.1 lb-ft.
• Q: What should be verified before replacing an existing air motor?
  A: Confirm horsepower, operating speed, torque ratings, rotation direction, shaft dimensions, mounting configuration, and compressed-air requirements using the manufacturer catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
