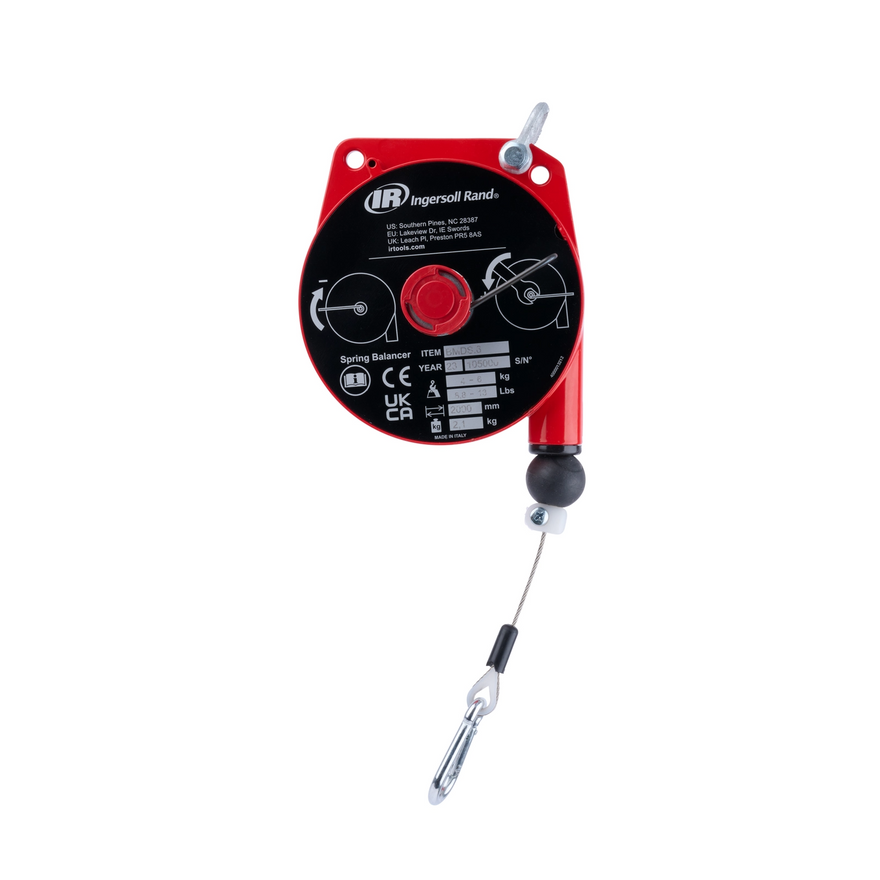

Ingersoll Rand BMDS-8 Medium Duty Spring Balancer | 6.5' Lift | 13.2 - 17.6 lbs Load Capacity | Short Cable

Designed for repetitive vertical movement of fixed loads in assembly, production, and service environments, the Ingersoll Rand BMDS-8 Medium Duty Spring Balancer provides an adjustable 13.2–17.6 lbs load capacity and 6.5 ft lift. Its short-cable configuration is intended for workstations where supported tools or manufacturing equipment need controlled vertical movement through a defined travel range. The spring-balancer design compensates for the weight of the supported load, allowing operators to raise or lower equipment with minimal effort.

The BMDS-8 features a cast aluminum body, stainless-steel cable, adjustable capacity, an adjustable stroke-limiting device, and an anti-friction cable guide. An upper suspension shackle is included for installation. The BMDS-8 also incorporates a safety device designed to prevent load dropping in the event of spring breakage. Its 6.5 ft lift and 5.5 lb balancer weight make it a suitable short-cable option within the BMD Series for loads from 13.2 to 17.6 lbs.

Type: Medium Duty Spring Balancer | Series: BMD Series | Model: BMDS-8 | Configuration: Short Cable | Load Capacity: 13.2–17.6 lbs | Lift: 6.5 ft | Balancer Weight: 5.5 lbs | Housing Material: Cast Aluminum | Cable Material: Stainless Steel

Features:

• Medium-duty spring-balancer design compensates for the weight of supported tools and manufacturing equipment during vertical movement.
• Adjustable capacity accommodates supported loads within the specified 13.2–17.6 lbs range.
• 6.5 ft lift provides controlled vertical travel for supported equipment.
• Short-cable configuration is suited to workstations requiring a defined vertical operating range.
• Cast aluminum body provides the specified housing construction.
• Stainless-steel cable provides the specified cable construction.
• Anti-friction cable guide helps guide the cable during extension and retraction.
• Adjustable stroke-limiting device allows the available cable travel to be controlled.
• Safety device helps prevent the load from dropping in the event of spring breakage.
• Upper suspension shackle is included for ease of installation.

Made in Italy:

Applications:

• Assembly stations where medium-weight pneumatic tools are used repeatedly within a defined area of movement.
• Production workstations requiring single-load balancing for compatible tools, fixtures, or manufacturing equipment.
• Automotive and equipment service applications using supported equipment within the 13.2–17.6 lbs capacity range.
• Maintenance workstations where controlled vertical movement can reduce the effort required to reposition equipment.
• Manufacturing applications requiring overhead balancing for compatible tools and equipment with a short vertical travel requirement.

FAQs:

• Q: What is the load capacity of the BMDS-8?
  A: The BMDS-8 has an adjustable load capacity of 13.2–17.6 lbs.
• Q: How much lift does the BMDS-8 provide?
  A: The BMDS-8 provides 6.5 ft of vertical cable travel.
• Q: What does short cable mean on the BMDS-8?
  A: Short cable identifies the BMDS-8 configuration within the BMD Series. This model provides 6.5 ft of lift for applications requiring a defined vertical operating range.
• Q: What materials are used in the BMDS-8?
  A: The balancer uses a cast aluminum body and stainless-steel cable.
• Q: Is the BMDS-8 load capacity adjustable?
  A: Yes. The BMDS-8 has adjustable capacity within its specified 13.2–17.6 lbs operating range.
• Q: Does the BMDS-8 include a safety device?
  A: Yes. The manufacturer specifies a safety device against load dropping due to spring breakage for the BMD Series, with the BMDS-2 identified as the exception.

Looking for more information about the Ingersoll Rand Spring Balancer? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
