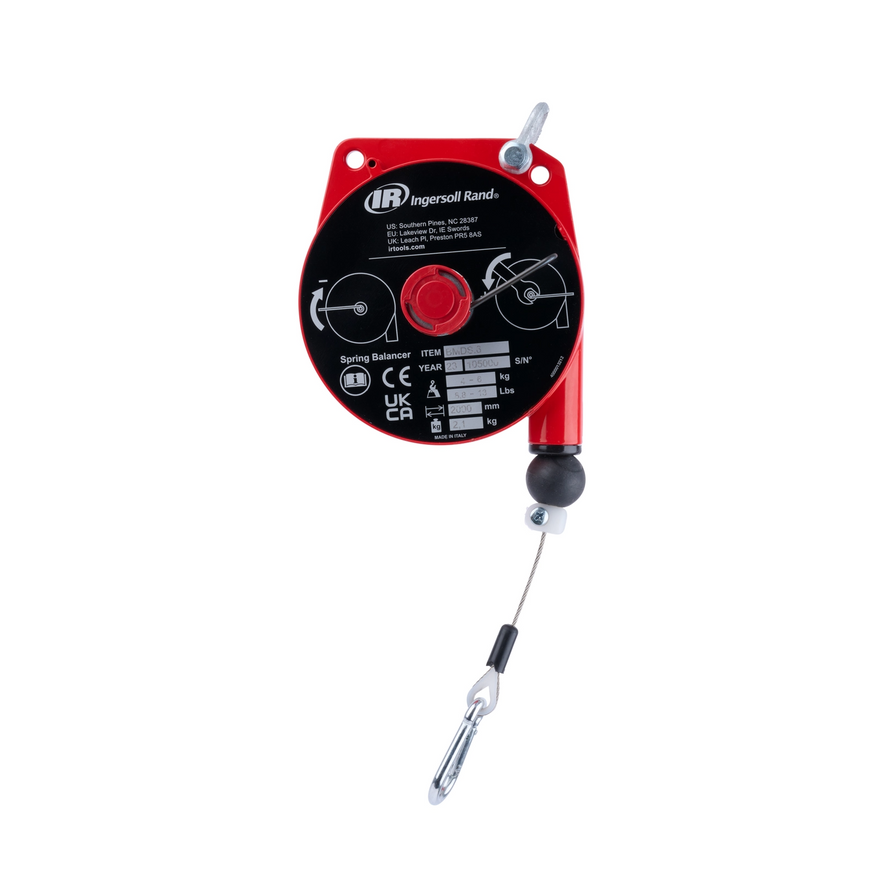

Ingersoll Rand BMDLN-8 Medium-Duty Spring Balancer is designed to support medium-weight tools and equipment during repetitive assembly, production, service, and maintenance operations. It provides a 13.2–17.6 lbs load capacity and 8.2 ft lift, while its long-cable configuration provides extended vertical travel for applications where supported equipment must be moved through a greater working range.
The BMDLN-8 is part of the BMDLN Series of medium-duty long-cable spring balancers. Its spring-balancer design helps compensate for the weight of the supported load, allowing compatible equipment to be positioned within the available cable travel. The 13.2–17.6 lbs capacity makes this model suitable for supported loads that fall within its specified range.
Type: Medium-Duty Spring Balancer | Series: BMDLN Series | Model: BMDLN-8 | Configuration: Long Cable | Load Capacity: 13.2–17.6 lbs | Lift: 8.2 ft
Features:
- Medium-duty spring-balancer design provides support for compatible tools and equipment during vertical movement.
- 13.2–17.6 lbs load capacity accommodates supported equipment within the specified operating range.
- 8.2 ft lift provides extended vertical travel for workstation applications.
- Long-cable configuration provides an extended working range for supported equipment.
- Spring-balancer operation helps compensate for the weight of supported equipment during positioning.
- Designed for applications requiring controlled support of medium-weight equipment within the specified capacity.
Made in Italy:
Applications:
- Assembly workstations where medium-weight tools require overhead support through an extended vertical range.
- Production stations using compatible tools or equipment weighing within the 13.2–17.6 lbs capacity range.
- Automotive service and maintenance applications requiring supported tool positioning.
- Manufacturing workstations where longer cable travel is useful for moving equipment between working positions.
- Repetitive operations where spring-assisted support can help reduce the effort required to reposition suspended equipment.
FAQs:
- Q: What is the load capacity of the BMDLN-8?
A: The BMDLN-8 is specified for loads from 13.2 to 17.6 lbs. - Q: How much lift does the BMDLN-8 provide?
A: The BMDLN-8 provides 8.2 ft of vertical lift. - Q: What does long cable mean on the BMDLN-8?
A: Long cable identifies the BMDLN configuration and provides 8.2 ft of lift for applications requiring an extended vertical working range. - Q: What type of equipment can be supported by the BMDLN-8?
A: The balancer is intended for compatible tools and equipment whose supported load falls within its specified 13.2–17.6 lbs capacity. - Q: Can the BMDLN-8 support a load above 17.6 lbs?
A: No. The specified load capacity is 13.2–17.6 lbs, so the supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Medium Duty | |||||
| BMDS-2 | 2.2 - 5.5 (1 - 2.5) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-4 | 4.4 - 8.8 (2 - 4) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-6 | 8.8 - 13.2 (4 - 6) | 5.1 (2.3) | 6.5 (2,000) | - | - |
| BMDS-8 | 13.2 - 17.6 (6 - 8) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BMDLN-4 | 4.4 - 6.6 (2 - 3) | 1.5 (0.7) | 6.5 (2,000) | - | - |
| BMDLN-6 | 8.8 - 13.2 (4 - 6) | 7.1 (3.2) | 8.2 (2,500) | - | - |
| BMDLN-8 | 13.2 - 17.6 (6 - 8) | 7.7 (3.5) | 8.2 (2,500) | - | - |
| BMDLN-10 | 17.6 - 22 (8 - 10) | 8.2 (3.7) | 8.2 (2,500) | - | - |
| BMDLN-12 | 22 - 30 (10 - 13.6) | 8.8 (4.0) | 8.2 (2,500) | - | - |
| BMDLLN-4 | 4.4 - 8.8 (2 - 4) | 6.6 (3.0) | 8.2 (2,500) | - | - |
| BMDLLN-6 | 8.8 - 13.2 (4 - 6) | 7.3 (3.3) | 8.2 (2,500) | - | - |

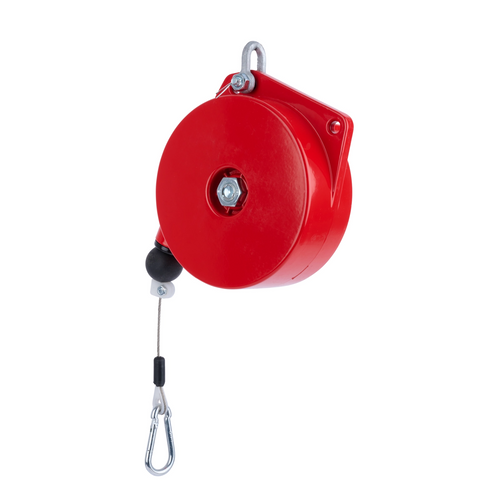

| BMDLLN-8 | 13.2 - 17.6 (6 - 8) | 7.9 (3.6) | 8.2 (2,500) | - | - |
| BMDLLN-10 | 17.6 - 22.0 (8 - 10) | 8.4 (3.8) | 8.2’ (2500) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
