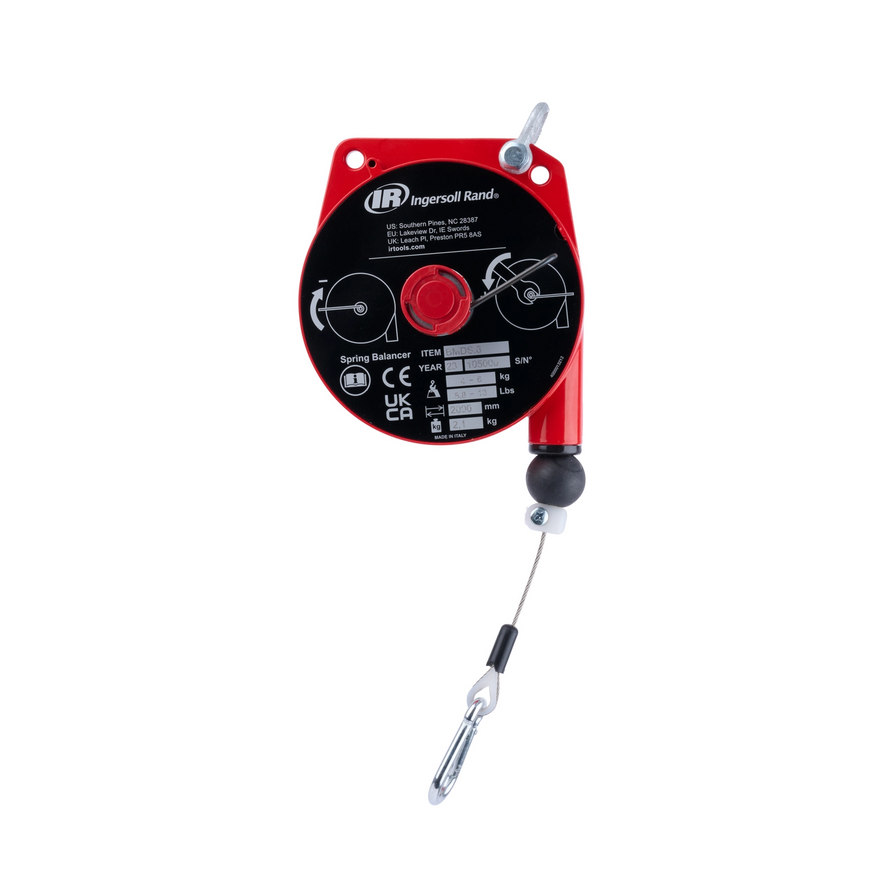

Ingersoll Rand BMDLLN-6 Medium-Duty Spring Balancer | 8.2' Lift | 8.8-13.2 lbs Load Capacity | Long Cable

Ingersoll Rand BMDLLN-6 Medium-Duty Spring Balancer is designed to support compatible tools and equipment during repetitive assembly, production, maintenance, and material-handling operations. It provides an 8.8–13.2 lbs load capacity and 8.2 ft lift, giving operators an extended vertical working range for suspended equipment. The long-cable configuration is suited to workstations where additional cable travel is needed for positioning a supported load.

The BMDLLN-6 is part of the BMDLLN Series and has a listed 7.3 lbs balancer weight. The spring-balancer design counters gravity to take away the weight of tools while in use, while the series incorporates red safety caps that help absorb the impact of a possible collision when the balancer is moved on rails and also protect the circlip and central pin.

Type: Medium-Duty Spring Balancer | Series: BMDLLN Series | Model: BMDLLN-6 | Configuration: Long Cable | Load Capacity: 8.8–13.2 lbs | Lift: 8.2 ft | Balancer Weight: 7.3 lbs

Features:

• Medium-duty spring-balancer design counters gravity to help take the weight of supported tools away while they are in use.
• 8.8–13.2 lbs load capacity accommodates compatible equipment within the specified operating range.
• 8.2 ft lift provides extended vertical travel for supported equipment.
• Long-cable configuration provides an extended working range for workstation applications.
• Red safety cap helps absorb the impact of a possible collision when the balancer is moved on rails.
• The red safety cap also protects the circlip and central pin.
• The spring-balancer family incorporates upgraded safety features intended to better protect the user and supported load.
• Updated ergonomics are intended to provide a more comfortable work environment during highly repetitive tool use.

Made in Italy:

Applications:

• Assembly workstations where medium-weight tools require overhead support through an extended vertical range.
• Production stations using compatible tools or equipment weighing within the 8.8–13.2 lbs capacity range.
• Automotive service and maintenance applications requiring supported tool positioning.
• Manufacturing workstations where longer cable travel is useful for moving supported equipment between working positions.
• Repetitive tool-use applications where spring balancing can help counter the weight of supported equipment.

FAQs:

• Q: What is the load capacity of the BMDLLN-6?
  A: The BMDLLN-6 is specified for loads from 8.8 to 13.2 lbs.
• Q: How much lift does the BMDLLN-6 provide?
  A: The BMDLLN-6 provides 8.2 ft of vertical lift.
• Q: What does long cable mean on the BMDLLN-6?
  A: Long cable identifies the BMDLLN configuration and provides 8.2 ft of lift for applications requiring an extended vertical working range.
• Q: What is the weight of the BMDLLN-6 balancer?
  A: The manufacturer brochure lists the BMDLLN-6 balancer weight as 7.3 lbs.
• Q: What is the purpose of the red safety cap?
  A: The red safety cap helps absorb the impact of a possible collision when the balancer is moved on rails and also protects the circlip and central pin.
• Q: Can the BMDLLN-6 support a load above 13.2 lbs?
  A: No. The specified load capacity is 8.8–13.2 lbs, so the supported load should remain within that range.

Looking for more information about the Ingersoll Rand Spring Balancer? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
