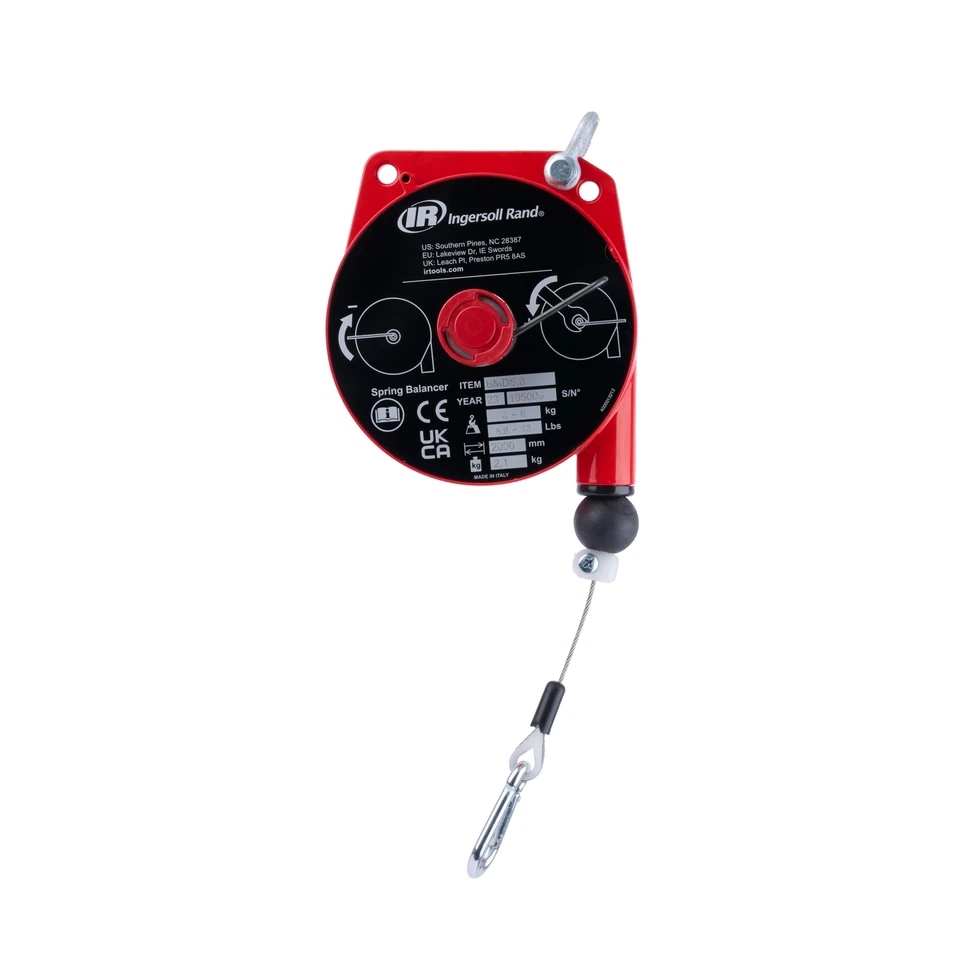

Ingersoll Rand BMDLN-6 Medium-Duty Spring Balancer is designed to support medium-weight power tools and equipment during repetitive assembly, production, service, and maintenance operations. It provides an 8.8–13.2 lbs load capacity and 8.2 ft lift, while its long-cable configuration provides an extended vertical working range for supported equipment. The spring-balancer design helps compensate for the weight of the suspended load, making it easier to raise and lower compatible equipment within the available travel.
The BMDLN-6 is part of the BMDLN Series of medium-duty long-cable spring balancers. Its 8.2 ft lift is suited to workstations requiring more vertical travel than the short-cable configuration, while the specified 8.8–13.2 lbs capacity accommodates compatible tools and equipment within that range. The load should remain within the manufacturer's specified capacity for proper balancer selection.
Type: Medium-Duty Spring Balancer | Series: BMDLN Series | Model: BMDLN-6 | Configuration: Long Cable | Load Capacity: 8.8–13.2 lbs | Lift: 8.2 ft
Features:
- Medium-duty spring-balancer design provides support for compatible tools and equipment during vertical movement.
- 8.8–13.2 lbs load capacity accommodates supported equipment within the specified operating range.
- 8.2 ft lift provides extended vertical travel for workstation applications.
- Long-cable configuration provides greater vertical travel than the short-cable BMD models.
- Spring-balancer operation helps compensate for the weight of supported equipment during positioning.
- Designed for applications requiring controlled support of medium-weight equipment within the specified capacity.
Applications:
- Assembly workstations where medium-weight tools require overhead support through an extended vertical range.
- Production stations using compatible tools or equipment weighing within the 8.8–13.2 lbs capacity range.
- Automotive service and maintenance applications requiring supported tool positioning.
- Manufacturing workstations where longer cable travel is useful for moving equipment between working positions.
- Repetitive operations where spring-assisted support can help reduce the effort required to reposition suspended equipment.
FAQs:
- Q: What is the load capacity of the BMDLN-6?
A: The BMDLN-6 is specified for loads from 8.8 to 13.2 lbs. - Q: How much lift does the BMDLN-6 provide?
A: The BMDLN-6 provides 8.2 ft of vertical lift. - Q: What does long cable mean on the BMDLN-6?
A: Long cable identifies the BMDLN configuration and provides 8.2 ft of lift for applications requiring an extended vertical working range. - Q: What type of equipment can be supported by the BMDLN-6?
A: The balancer is intended for compatible tools and equipment whose supported load falls within its specified 8.8–13.2 lbs capacity. - Q: Can the BMDLN-6 be used with a load above 13.2 lbs?
A: No. The specified load capacity is 8.8–13.2 lbs, so the supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Medium Duty | |||||
| BMDS-2 | 2.2 - 5.5 (1 - 2.5) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-4 | 4.4 - 8.8 (2 - 4) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-6 | 8.8 - 13.2 (4 - 6) | 5.1 (2.3) | 6.5 (2,000) | - | - |
| BMDS-8 | 13.2 - 17.6 (6 - 8) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BMDLN-4 | 4.4 - 6.6 (2 - 3) | 1.5 (0.7) | 6.5 (2,000) | - | - |
| BMDLN-6 | 8.8 - 13.2 (4 - 6) | 7.1 (3.2) | 8.2 (2,500) | - | - |
| BMDLN-8 | 13.2 - 17.6 (6 - 8) | 7.7 (3.5) | 8.2 (2,500) | - | - |
| BMDLN-10 | 17.6 - 22 (8 - 10) | 8.2 (3.7) | 8.2 (2,500) | - | - |
| BMDLN-12 | 22 - 30 (10 - 13.6) | 8.8 (4.0) | 8.2 (2,500) | - | - |
| BMDLLN-4 | 4.4 - 8.8 (2 - 4) | 6.6 (3.0) | 8.2 (2,500) | - | - |
| BMDLLN-6 | 8.8 - 13.2 (4 - 6) | 7.3 (3.3) | 8.2 (2,500) | - | - |
| BMDLLN-8 | 13.2 - 17.6 (6 - 8) | 7.9 (3.6) | 8.2 (2,500) | - | - |
| BMDLLN-10 | 17.6 - 22.0 (8 - 10) | 8.4 (3.8) | 8.2’ (2500) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Balancer
- Capacity (lbs)
- 8.8-13.2
- Lift (ft.)
- 8.2
- Housing Material
- Aluminum
- Cable Material
- Stainless Steel
- Series
- BMDLN
