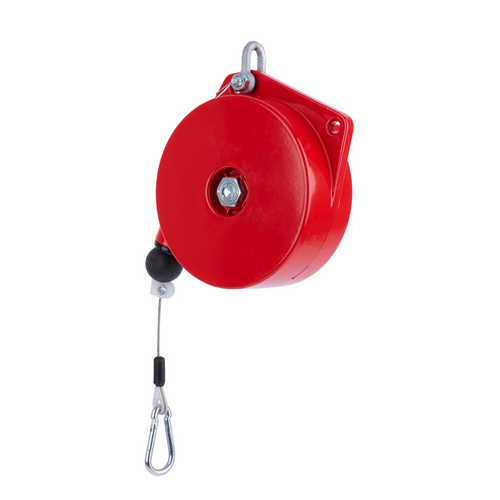

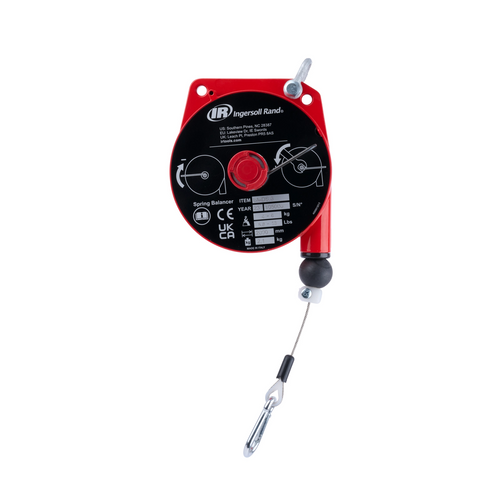

Ingersoll Rand BMDLN-12 Medium-Duty Spring Balancer | 8.2' Lift | 22-30 lbs Load Capacity | Long Cable

Ingersoll Rand BMDLN-12 Medium-Duty Spring Balancer is designed to support medium-weight tools and equipment during repetitive assembly, production, service, and maintenance operations. It provides a 22–30 lbs load capacity and 8.2 ft lift, while its long-cable configuration provides extended vertical travel for applications where supported equipment needs to move through a greater working range. The spring-balancer design helps counter the weight of supported tools while they are in use.

The BMDLN-12 is part of the BMDLN Series of medium-duty spring balancers and is specified for loads from 22 to 30 lbs. Its 8.2 ft lift provides extended vertical travel, making it suitable for workstations where a longer cable range is required. The series also incorporates enhanced safety features, including red safety caps designed to help absorb the impact of a possible collision when the balancer is moved on rails and to protect the circlip and central pin.

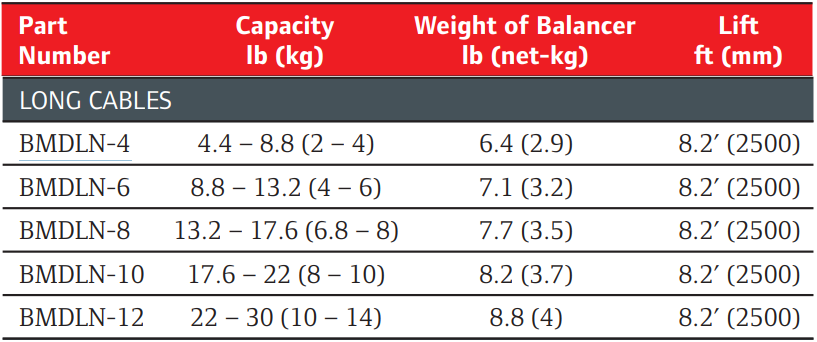

Type: Medium-Duty Spring Balancer | Series: BMDLN Series | Model: BMDLN-12 | Configuration: Long Cable | Load Capacity: 22–30 lbs | Lift: 8.2 ft | Balancer Weight: 8.8 lbs

Features:

• Medium-duty spring-balancer design helps counter the weight of supported tools during use.
• 22–30 lbs load capacity accommodates supported equipment within the specified range.
• 8.2 ft lift provides extended vertical travel for supported equipment.
• Long-cable configuration provides an extended working range for applications requiring additional vertical movement.
• Red safety cap helps absorb the impact of a possible collision when the balancer is moved on rails.
• Safety cap also protects the circlip and central pin.
• The BMDLN Series is designed for repetitive tool use where controlled support can make vertical positioning easier.

Made in Italy:

Applications:

• Assembly workstations where medium-weight tools require overhead support through an extended vertical range.
• Production stations using compatible tools or equipment weighing within the 22–30 lbs capacity range.
• Automotive service and maintenance applications requiring supported tool positioning.
• Manufacturing workstations where longer cable travel is useful for moving equipment between working positions.
• Repetitive tool-use applications where spring balancing can help counter the weight of supported equipment.

FAQs:

• Q: What is the load capacity of the BMDLN-12?
  A: The BMDLN-12 is specified for loads from 22 to 30 lbs.
• Q: How much lift does the BMDLN-12 provide?
  A: The BMDLN-12 provides 8.2 ft of vertical lift.
• Q: What does long cable mean on the BMDLN-12?
  A: Long cable identifies the BMDLN configuration and provides 8.2 ft of lift for applications requiring an extended vertical working range.
• Q: What is the balancer weight?
  A: The BMDLN-12 has a listed balancer weight of 8.8 lbs.
• Q: What is the purpose of the red safety cap?
  A: The red safety cap is designed to help absorb the impact of a possible collision when the balancer is moved on rails and also serves as protection for the circlip and central pin.
• Q: Can the BMDLN-12 support a load above 30 lbs?
  A: No. The specified load capacity is 22–30 lbs, so the supported load should remain within that range.

Looking for more information about the Ingersoll Rand Spring Balancer? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
