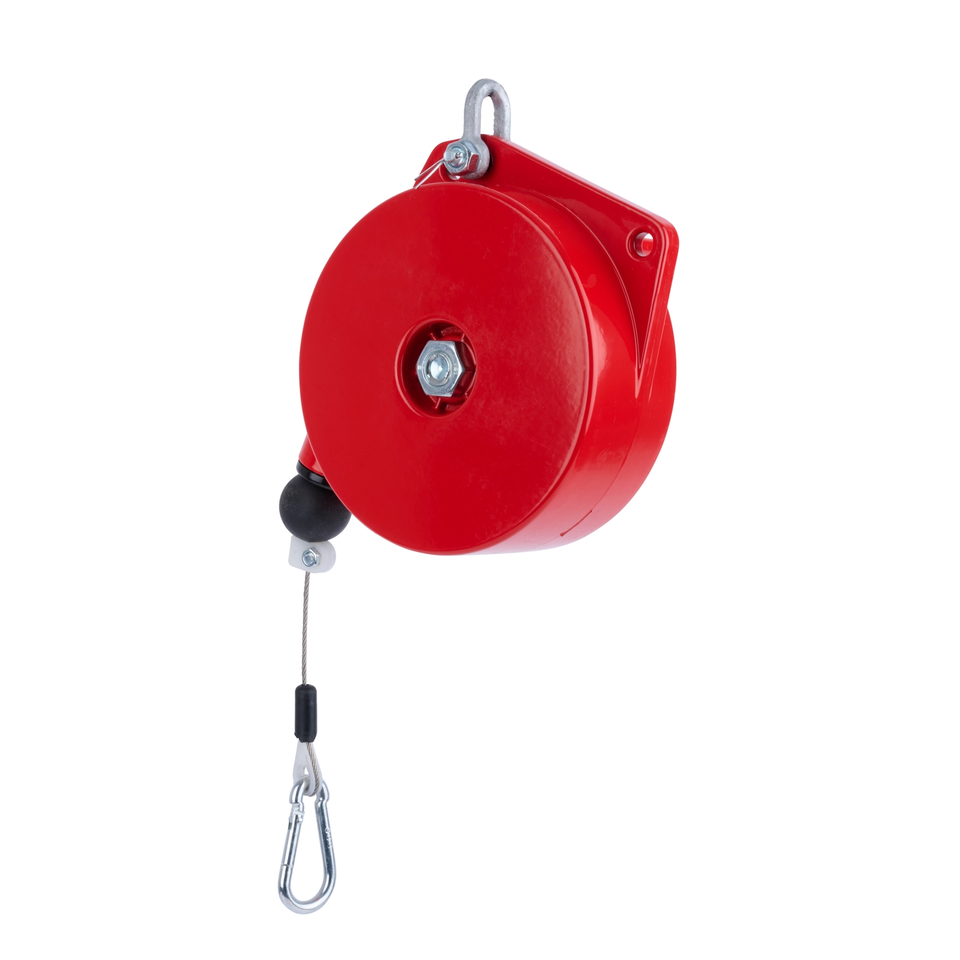

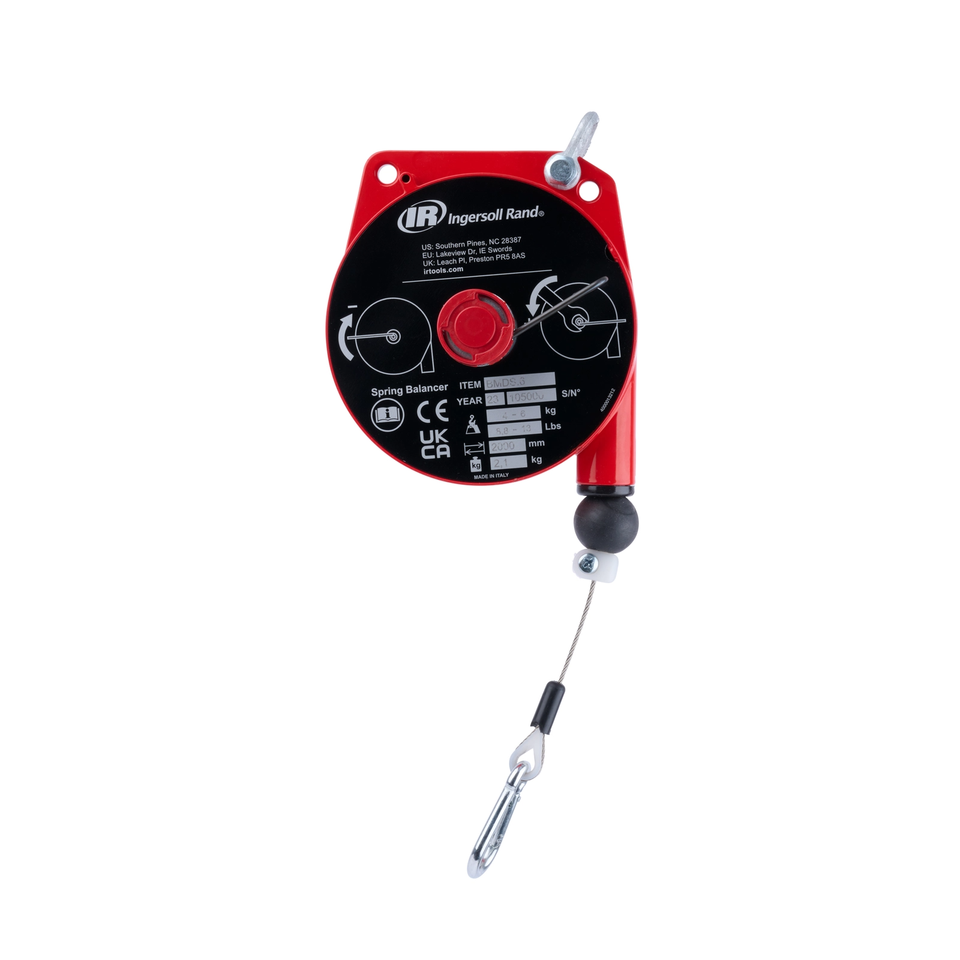

Ingersoll Rand BMDLLN-8 Medium-Duty Spring Balancer is designed to support compatible tools and equipment during repetitive assembly, production, service, and maintenance operations. It provides a 13.2–17.6 lbs load capacity and 8.2 ft lift, while its long-cable configuration provides extended vertical travel for workstations where supported equipment needs to move through a greater working range.
The BMDLLN-8 is part of the BMDLLN Series of medium-duty long-cable spring balancers. Its spring-balancer design helps compensate for the weight of the supported load during vertical positioning, while the 8.2 ft lift provides the specified cable travel. This model is intended for compatible tools and equipment with a total supported load within the 13.2–17.6 lbs range.
Type: Medium-Duty Spring Balancer | Series: BMDLLN Series | Model: BMDLLN-8 | Configuration: Long Cable | Load Capacity: 13.2–17.6 lbs | Lift: 8.2 ft
Features:
- Medium-duty spring-balancer design provides support for compatible tools and equipment during vertical movement.
- 13.2–17.6 lbs load capacity accommodates supported equipment within the specified operating range.
- 8.2 ft lift provides extended vertical travel for workstation applications.
- Long-cable configuration provides an extended working range for supported equipment.
- Spring-balancer operation helps compensate for the weight of supported equipment during positioning.
- Designed for applications requiring controlled support of medium-weight equipment within the specified capacity.
Made in Italy:
Applications:
- Assembly workstations where medium-weight tools require overhead support through an extended vertical range.
- Production stations using compatible tools or equipment weighing within the 13.2–17.6 lbs capacity range.
- Automotive service and maintenance applications requiring supported tool positioning.
- Manufacturing workstations where longer cable travel is useful for moving supported equipment between working positions.
- Repetitive tool-use applications where spring-assisted support can help reduce the effort required to reposition suspended equipment.
FAQs:
- Q: What is the load capacity of the BMDLLN-8?
A: The BMDLLN-8 is specified for loads from 13.2 to 17.6 lbs. - Q: How much lift does the BMDLLN-8 provide?
A: The BMDLLN-8 provides 8.2 ft of vertical lift. - Q: What does long cable mean on the BMDLLN-8?
A: Long cable identifies the BMDLLN configuration and provides 8.2 ft of lift for applications requiring an extended vertical working range. - Q: What type of equipment can be supported by the BMDLLN-8?
A: The balancer is intended for compatible tools and equipment whose total supported load falls within its specified 13.2–17.6 lbs capacity. - Q: Can the BMDLLN-8 support a load above 17.6 lbs?
A: No. The specified load capacity is 13.2–17.6 lbs, so the supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Medium Duty | |||||
| BMDS-2 | 2.2 - 5.5 (1 - 2.5) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-4 | 4.4 - 8.8 (2 - 4) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-6 | 8.8 - 13.2 (4 - 6) | 5.1 (2.3) | 6.5 (2,000) | - | - |
| BMDS-8 | 13.2 - 17.6 (6 - 8) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BMDLN-4 | 4.4 - 6.6 (2 - 3) | 1.5 (0.7) | 6.5 (2,000) | - | - |
| BMDLN-6 | 8.8 - 13.2 (4 - 6) | 7.1 (3.2) | 8.2 (2,500) | - | - |
| BMDLN-8 | 13.2 - 17.6 (6 - 8) | 7.7 (3.5) | 8.2 (2,500) | - | - |
| BMDLN-10 | 17.6 - 22 (8 - 10) | 8.2 (3.7) | 8.2 (2,500) | - | - |
| BMDLN-12 | 22 - 30 (10 - 13.6) | 8.8 (4.0) | 8.2 (2,500) | - | - |
| BMDLLN-4 | 4.4 - 8.8 (2 - 4) | 6.6 (3.0) | 8.2 (2,500) | - | - |
| BMDLLN-6 | 8.8 - 13.2 (4 - 6) | 7.3 (3.3) | 8.2 (2,500) | - | - |
| BMDLLN-8 | 13.2 - 17.6 (6 - 8) | 7.9 (3.6) | 8.2 (2,500) | - | - |
| BMDLLN-10 | 17.6 - 22.0 (8 - 10) | 8.4 (3.8) | 8.2’ (2500) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Balancer
- Capacity (lbs)
- 13.2-17.6
- Lift (ft.)
- 8.2
- Housing Material
- Aluminum
- Cable Material
- Stainless Steel
- Series
- BMDLLN
