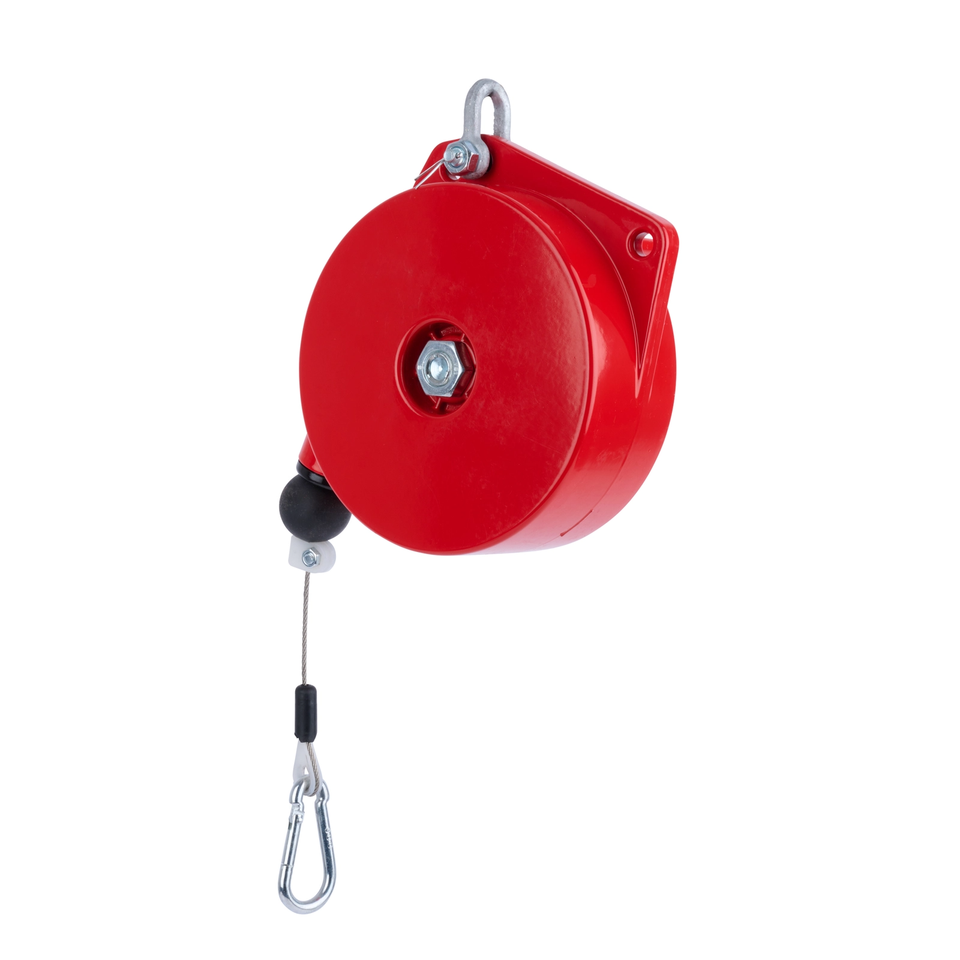

Ingersoll Rand BMDLLN-4 Medium-Duty Spring Balancer is designed to support compatible tools and equipment during repetitive assembly, production, service, and maintenance operations. It provides a 4.4–8.8 lbs load capacity and 8.2 ft lift, while its long-cable configuration provides extended vertical travel for workstations where supported equipment needs to move through a greater working range.
The BMDLLN-4 is part of the BMD Series of medium-duty long-cable spring balancers. Its spring-balancer design helps counter the weight of the supported load during vertical positioning, while the 8.2 ft lift provides the specified range of cable travel. The 4.4–8.8 lbs capacity makes this model suitable for compatible equipment that falls within its rated load range.
Type: Medium-Duty Spring Balancer | Series: BMDLLN Series | Model: BMDLLN-4 | Configuration: Long Cable | Load Capacity: 4.4–8.8 lbs | Lift: 8.2 ft
Features:
- Medium-duty spring-balancer design supports compatible tools and equipment during vertical movement.
- 4.4–8.8 lbs load capacity accommodates supported equipment within the specified operating range.
- 8.2 ft lift provides extended vertical travel for workstation applications.
- Long-cable configuration provides an extended working range for supported equipment.
- Spring-balancer operation helps counter the weight of supported equipment during positioning.
- Designed for applications requiring controlled support of medium-weight equipment within the specified capacity.
Made in Italy:
Applications:
- Assembly workstations where medium-weight tools require overhead support through an extended vertical range.
- Production stations using compatible tools or equipment weighing within the 4.4–8.8 lbs capacity range.
- Automotive service and maintenance applications requiring supported tool positioning.
- Manufacturing workstations where longer cable travel is useful for moving equipment between working positions.
- Repetitive operations where spring-assisted support can help reduce the effort required to reposition suspended equipment.
FAQs:
- Q: What is the load capacity of the BMDLLN-4?
A: The BMDLLN-4 is specified for loads from 4.4 to 8.8 lbs. - Q: How much lift does the BMDLLN-4 provide?
A: The BMDLLN-4 provides 8.2 ft of vertical lift. - Q: What does long cable mean on the BMDLLN-4?
A: Long cable identifies the BMDLLN configuration and provides 8.2 ft of lift for applications requiring an extended vertical working range. - Q: What type of equipment can be supported by the BMDLLN-4?
A: The balancer is intended for compatible tools and equipment whose supported load falls within its specified 4.4–8.8 lbs capacity. - Q: Can the BMDLLN-4 support a load above 8.8 lbs?
A: No. The specified load capacity is 4.4–8.8 lbs, so the supported load should remain within that range.

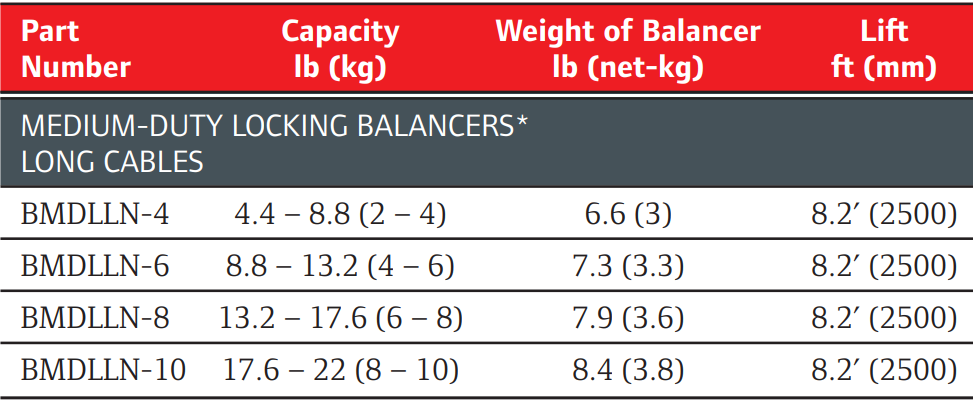

| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Medium Duty | |||||
| BMDS-2 | 2.2 - 5.5 (1 - 2.5) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-4 | 4.4 - 8.8 (2 - 4) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-6 | 8.8 - 13.2 (4 - 6) | 5.1 (2.3) | 6.5 (2,000) | - | - |
| BMDS-8 | 13.2 - 17.6 (6 - 8) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BMDLN-4 | 4.4 - 6.6 (2 - 3) | 1.5 (0.7) | 6.5 (2,000) | - | - |
| BMDLN-6 | 8.8 - 13.2 (4 - 6) | 7.1 (3.2) | 8.2 (2,500) | - | - |
| BMDLN-8 | 13.2 - 17.6 (6 - 8) | 7.7 (3.5) | 8.2 (2,500) | - | - |
| BMDLN-10 | 17.6 - 22 (8 - 10) | 8.2 (3.7) | 8.2 (2,500) | - | - |
| BMDLN-12 | 22 - 30 (10 - 13.6) | 8.8 (4.0) | 8.2 (2,500) | - | - |
| BMDLLN-4 | 4.4 - 8.8 (2 - 4) | 6.6 (3.0) | 8.2 (2,500) | - | - |
| BMDLLN-6 | 8.8 - 13.2 (4 - 6) | 7.3 (3.3) | 8.2 (2,500) | - | - |
| BMDLLN-8 | 13.2 - 17.6 (6 - 8) | 7.9 (3.6) | 8.2 (2,500) | - | - |
| BMDLLN-10 | 17.6 - 22.0 (8 - 10) | 8.4 (3.8) | 8.2’ (2500) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
