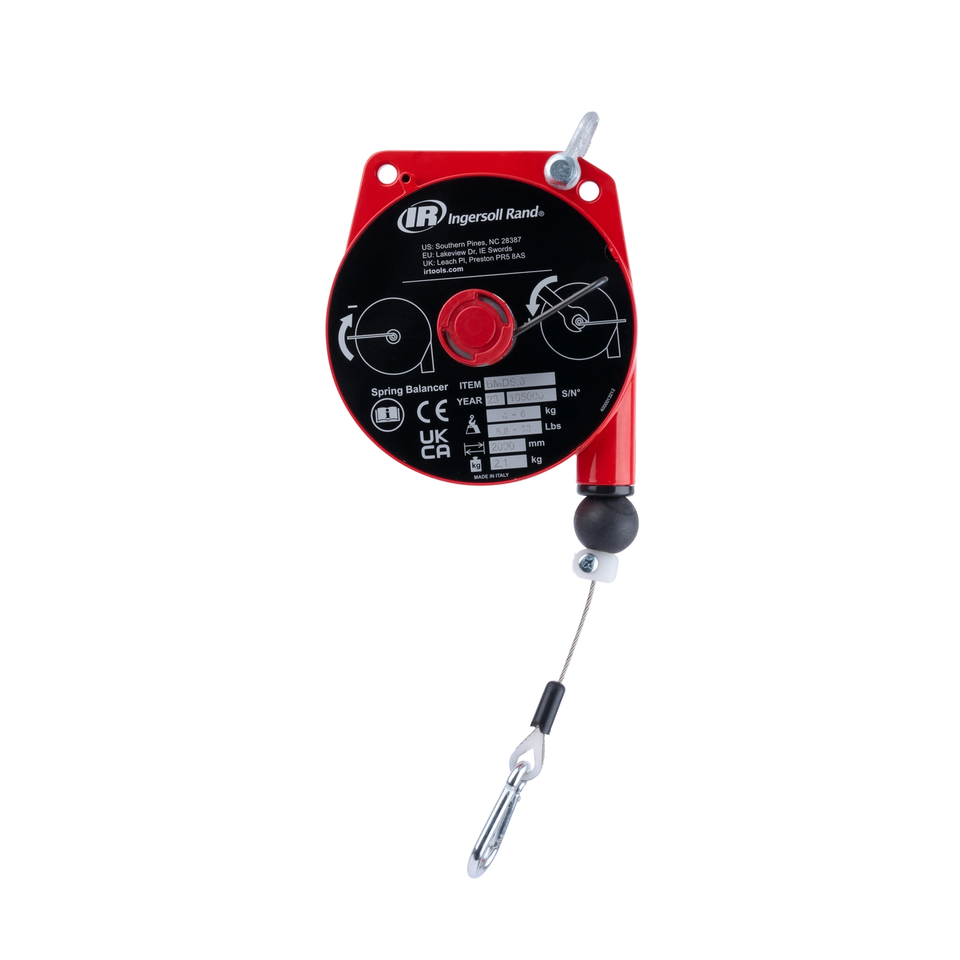

Ingersoll Rand BMDLLN-10 Medium-Duty Spring Balancer is designed to support compatible tools and equipment during repetitive assembly, production, service, and maintenance operations. It provides a 17.6–22 lbs load capacity and 8.2 ft lift, while its long-cable configuration provides an extended vertical working range for suspended equipment. The spring-balancer design helps counter the weight of the supported load, making it easier to position compatible equipment during repetitive operations.
The BMDLLN-10 is the highest-capacity model in the BMDLLN Series, with a listed 8.4 lbs balancer weight. It features a rugged cast aluminum body, stainless-steel cable, adjustable capacity, an adjustable stroke-limiting device, and an anti-friction cable guide. The balancer also includes a ratchet locking device that prevents the load from retracting when the cable is extended, while the upper suspension shackle facilitates installation.
Type: Medium-Duty Spring Balancer | Series: BMDLLN Series | Model: BMDLLN-10 | Configuration: Long Cable | Load Capacity: 17.6–22 lbs | Lift: 8.2 ft | Balancer Weight: 8.4 lbs | Housing Material: Cast Aluminum | Cable Material: Stainless Steel
Features:
- Medium-duty spring-balancer design helps counter the weight of supported tools and equipment during use.
- 17.6–22 lbs load capacity accommodates compatible equipment within the specified operating range.
- 8.2 ft lift provides extended vertical travel for supported equipment.
- Long-cable configuration provides an extended working range for workstation applications.
- Rugged cast aluminum body provides the specified housing construction.
- Stainless-steel cable provides the specified cable construction.
- Adjustable capacity allows the balancer to be matched to supported loads within its rated range.
- Adjustable stroke-limiting device allows the available cable travel to be controlled.
- Anti-friction cable guide helps guide the cable during extension and retraction.
- Ratchet locking device prevents the load from retracting when the cable is extended.
- Upper suspension shackle is included on the balancer for ease of installation.
Made in Italy:
Applications:
- Assembly workstations where medium-weight tools require overhead support through an extended vertical range.
- Production stations using compatible tools or equipment weighing within the 17.6–22 lbs capacity range.
- Automotive service and maintenance applications requiring supported tool positioning.
- Manufacturing workstations where longer cable travel is useful for moving supported equipment between working positions.
- Repetitive tool-use applications where a locking spring balancer can provide controlled support and positioning.
FAQs:
- Q: What is the load capacity of the BMDLLN-10?
A: The BMDLLN-10 is specified for loads from 17.6 to 22 lbs. - Q: How much lift does the BMDLLN-10 provide?
A: The BMDLLN-10 provides 8.2 ft of vertical lift. - Q: What does long cable mean on the BMDLLN-10?
A: Long cable identifies the BMDLLN configuration and provides 8.2 ft of lift for applications requiring an extended vertical working range. - Q: Does the BMDLLN-10 have a locking mechanism?
A: Yes. The BMDLLN Series incorporates a ratchet locking device that prevents the load from retracting when the cable is extended. - Q: What is the weight of the BMDLLN-10?
A: The manufacturer lists the BMDLLN-10 balancer weight as 8.4 lbs. - Q: What materials are used in the BMDLLN-10?
A: The balancer uses a cast aluminum body and stainless-steel cable. - Q: Can the BMDLLN-10 support a load above 22 lbs?
A: No. The specified load capacity is 17.6–22 lbs, so the complete supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Medium Duty | |||||
| BMDS-2 | 2.2 - 5.5 (1 - 2.5) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-4 | 4.4 - 8.8 (2 - 4) | 4.4 (2.0) | 6.5 (2,000) | - | - |
| BMDS-6 | 8.8 - 13.2 (4 - 6) | 5.1 (2.3) | 6.5 (2,000) | - | - |
| BMDS-8 | 13.2 - 17.6 (6 - 8) | 5.5 (2.5) | 6.5 (2,000) | - | - |
| BMDLN-4 | 4.4 - 6.6 (2 - 3) | 1.5 (0.7) | 6.5 (2,000) | - | - |
| BMDLN-6 | 8.8 - 13.2 (4 - 6) | 7.1 (3.2) | 8.2 (2,500) | - | - |
| BMDLN-8 | 13.2 - 17.6 (6 - 8) | 7.7 (3.5) | 8.2 (2,500) | - | - |
| BMDLN-10 | 17.6 - 22 (8 - 10) | 8.2 (3.7) | 8.2 (2,500) | - | - |
| BMDLN-12 | 22 - 30 (10 - 13.6) | 8.8 (4.0) | 8.2 (2,500) | - | - |
| BMDLLN-4 | 4.4 - 8.8 (2 - 4) | 6.6 (3.0) | 8.2 (2,500) | - | - |
| BMDLLN-6 | 8.8 - 13.2 (4 - 6) | 7.3 (3.3) | 8.2 (2,500) | - | - |
| BMDLLN-8 | 13.2 - 17.6 (6 - 8) | 7.9 (3.6) | 8.2 (2,500) | - | - |
| BMDLLN-10 | 17.6 - 22.0 (8 - 10) | 8.4 (3.8) | 8.2’ (2500) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
