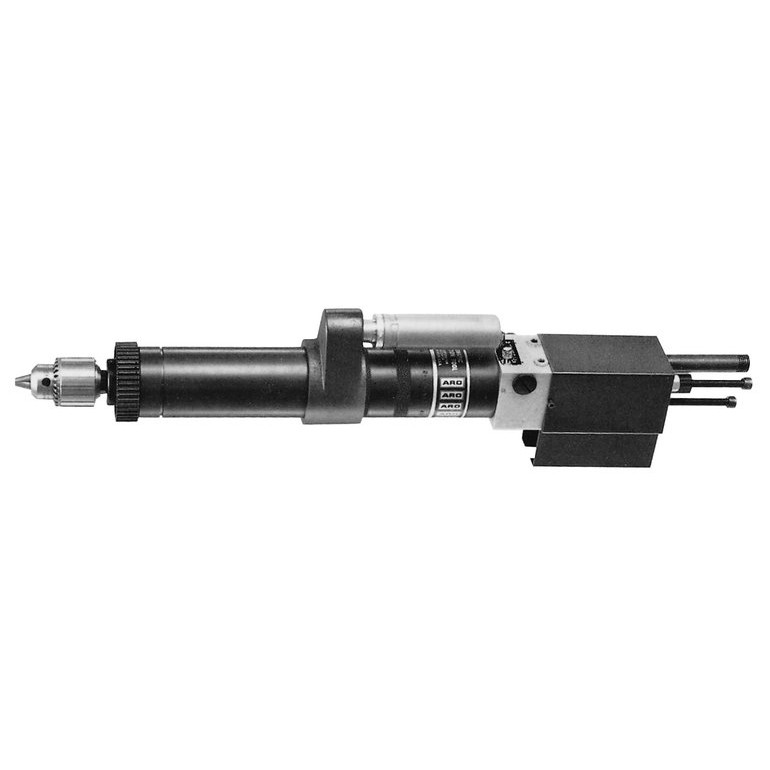

Ingersoll Rand 8255-A5-1 is a Par-A-Matic Series Self-Feed Air Drill configured for controlled, repetitive drilling in automated and fixture-mounted machining applications. This model combines a 0.50 HP pneumatic motor with a 500 RPM free speed and double gear reduction, providing a low-speed spindle configuration for applications where controlled drilling is required. The -1 configuration provides a 1-1/4 in. (32 mm) stroke, while the model has a 5/16 in. nominal drilling capacity in SAE 1213 steel.
The Par-A-Matic self-feed arrangement uses compressed air for spindle rotation and feed/control functions. A double-acting air piston provides controlled forward and retract strokes, with needle-valve controls for adjusting those movements. The adjustment screw provides infinite stroke-length settings, while the built-in four-way valve allows both manual and remote operation. Ball-bearing spindle support provides controlled spindle guidance, and the muffled exhaust helps reduce operating noise. The manufacturer specification identifies a 5/16 in. standard chuck capacity, 1/4 in. NPT male air inlet, and 5/16 in. recommended hose I.D.
Type: Self-Feed Air Drill | Series: Par-A-Matic | Model: 8255-A5-1 | Capacity: 5/16 in. | Motor Power: 0.50 HP | Free Speed: 500 RPM | Gear Reduction: Double | Stroke Length: 1-1/4 in. (32 mm) | Sound Level: 74 dB(A) | Standard Chuck Capacity: 5/16 in. | Air Inlet: 1/4 in. NPT Male | Recommended Hose I.D.: 5/16 in.
Features:
- The built-in four-way valve permits both manual and remote operation.
- The double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retract strokes.
- The adjustment screw provides infinite stroke-length settings.
- Ball-bearing spindle support provides precision spindle guidance.
- The muffled exhaust helps provide quieter pneumatic operation.
- Double gear reduction provides the drive configuration specified for the 500 RPM model.
- The 1-1/4 in. stroke provides controlled spindle travel for compatible production fixtures.
- The 5/16 in. standard chuck accommodates compatible drill tooling within the manufacturer's specified capacity.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Production drilling — performing repeatable holemaking operations where controlled pneumatic feed and retract movement are required.
- Fixture-mounted machining — integrating the drill into dedicated production fixtures where the 1-1/4 in. stroke provides the required spindle travel.
- Metal fabrication — drilling SAE 1213 steel within the manufacturer's stated nominal capacity.
- Secondary machining — adding repeatable drilling cycles to production equipment without continuous manual feed control.
- Automated drilling equipment — using the four-way valve for manual or remote operation in suitable pneumatic control systems.
FAQs:
- Q: What is the correct motor power for the 8255-A5-1?
A: The manufacturer specification identifies the Par-A-Matic series as a 0.50 HP configuration. The “.05 HP” shown in the supplied product title appears to be a catalog/listing entry error and should be verified before publication. - Q: What is the free speed of the 8255-A5-1?
A: The 8255-A5-1 has a 500 RPM free speed. - Q: What does the “-1” suffix indicate?
A: The -1 configuration provides a 1-1/4 in. (32 mm) stroke. - Q: What does double gear reduction mean?
A: It identifies the double gear reduction configuration used to provide the 500 RPM spindle speed. - Q: What are the material-specific drilling capacities?
A: The manufacturer lists 1/4 in. (6.4 mm) in Type 304 stainless steel, 5/16 in. (7.9 mm) in SAE 1213 steel, 11/32 in. (8.7 mm) in 2024-T4 aluminum, and 13/32 in. (10.3 mm) in wood, medium or FRP. - Q: What is the standard chuck capacity?
A: The standard chuck capacity is 5/16 in. - Q: Can this self-feed drill be operated remotely?
A: Yes. The built-in four-way valve permits both manual and remote operation.
| SKU | STROKE LENGTHS IN (MM) |
FREE SPEED RPM |
*NOMINAL DRILLING CAPACITIES | THRUST @ 90PSI LBS (N) |
AIR CONSP.‡ AT WORKING SPEED FT³/CYCLE (L/CYCLE) |
SOUND LEVEL DBA |
STANDARD CHUCK CAPACITY IN (MM) |
GEAR REDUCTION |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL TYPE 304 |
STEEL SAE 1213 |
ALUMINUM 2024-T4 |
WOOD MED. OR FRP |
||||||||
| BANT-A-MATIC SERIES | |||||||||||
| 8245-203-1* | 1-1/4” (32) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-1 | 1-1/4” (32) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-1 | 1-1/4” (32) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-1 | 1-1/4” (32) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-1 | 1-1/4” (32) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-2 | 2.0” (51) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-2 | 2.0” (51) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-2 | 2.0” (51) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-2 | 2.0” (51) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-2 | 2.0” (51) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-3 | 3.0” (76) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-3 | 3.0” (76) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-3 | 3.0” (76) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-3 | 3.0” (76) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-3 | 3.0” (76) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| PAR-A-MATIC SERIES | |||||||||||
| *8255-172-1 | 1-1/4” (32) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-1 | 1-1/4” (32) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-1 | 1-1/4” (32) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-1 | 1-1/4” (32) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-1 | 1-1/4” (32) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (7.9) | Single |
| 8255-A14-1 | 1-1/4” (32) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-1 | 1-1/4” (32) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-1 | 1-1/4” (32) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
Looking for more information about Ingersoll Rand Self-Feed Air Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Self-Feed Air Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Self-Feed Drill
- RPM
- 500
- Gear Reduction
- Double
- Sound Level (dbA)
- 74
- Stroke Length (in.)
- 1-1/4
- Stroke Length (mm)
- 32
- Nominal Drilling Capacities Wood Med. or FRP
- 13/32 (10.3)
- Nominal Drilling Capacities Stainless Steel Type 304
- 1/4 (6.4)
- Nominal Drilling Capacities Steel SAE 1213
- 5/16 (7.9)
- Nominal Drilling Capacities Aluminum 2024-T4
- 11/32 (8.7)
- Capacity (in.)
- 5/16
- Power (hp)
- .05
- Air Inlet
- 1/4" NPT Male
- Hose Size (in.)
- 5/16
