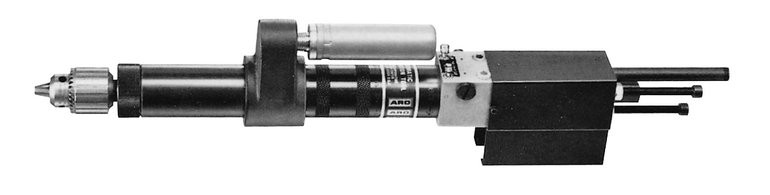

Ingersoll Rand 8245-101-1 is a Bant-A-Matic Series Self-Feed Air Drill built for automated and fixture-mounted drilling where repeatable feed and retract movement are required. Its 0.25 HP pneumatic motor operates at a 10,000 RPM free speed, while the double gear reduction configuration provides the spindle drive arrangement specified for this model. The 8245-101-1 has a 3/16 in. (4.8 mm) nominal drilling capacity in steel, a 1-1/4 in. (32 mm) stroke, and 90 lb (400 N) thrust at 90 PSI.
The self-feed mechanism uses a double-acting air piston for controlled forward and retract strokes. A built-in four-way valve permits both manual and remote operation, while needle-valve controls allow the forward and retract rates to be adjusted. The adjustment screw provides infinite stroke-length settings within the model's specified stroke configuration. Ball-bearing spindle support provides controlled spindle rotation, and the muffled exhaust helps reduce operating noise. Air consumption is 1.5 ft³/cycle (42 L/cycle) at working speed, with a 77 dB(A) sound level.
Type: Self-Feed Air Drill | Series: Bant-A-Matic | Model: 8245-101-1 | Motor Power: 0.25 HP (.20 kW) | Free Speed: 10,000 RPM | Gear Reduction: Double | Stroke Length: 1-1/4 in. (32 mm) | Thrust at 90 PSI: 90 lb (400 N) | Air Consumption at Working Speed: 1.5 ft³/cycle (42 L/cycle) | Sound Level: 77 dB(A) | Standard Chuck Capacity: 1/4 in. (6.4 mm)
Features:
- Built-in four-way valve enables both manual and remote operation.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of forward and retract strokes to suit the drilling operation.
- Adjustment screw provides infinite stroke-length settings for controlled feed travel.
- Ball-bearing spindle support provides precision spindle guidance.
- Double gear reduction provides the drive configuration specified for the 10,000 RPM model.
- Muffled exhaust helps reduce operating noise during pneumatic operation.
- The 1/4 in. standard chuck accommodates compatible drill tooling within the manufacturer's specified capacity.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Production drilling — performing repetitive holemaking operations where controlled pneumatic feed and retract movement are required.
- Fixture-mounted machining — integrating a self-feed drill into dedicated production fixtures and automated drilling equipment.
- Metalworking — drilling small holes in materials within the manufacturer's stated drilling-capacity range.
- Secondary machining — adding repeatable drilling operations to manufacturing processes without relying on continuous manual feed.
- Automated assembly operations — using the manual or remote four-way valve configuration where controlled drill cycling is required.
FAQs:
- Q: What is the free speed of the 8245-101-1?
A: The 8245-101-1 has a 10,000 RPM free speed. - Q: What is the motor power?
A: The drill uses a 0.25 HP (.20 kW) pneumatic motor. - Q: What does double gear reduction mean?
A: It identifies the double gear reduction configuration used in this Bant-A-Matic model's spindle drive. - Q: What is the stroke length?
A: The 8245-101-1 has a 1-1/4 in. (32 mm) stroke length. - Q: How much thrust does the drill provide?
A: The specified thrust is 90 lb (400 N) at 90 PSI. - Q: What is the standard chuck capacity?
A: The standard chuck capacity is 1/4 in. (6.4 mm). - Q: What is the air consumption?
A: Air consumption is 1.5 ft³/cycle (42 L/cycle) at working speed. - Q: What materials can this model drill?
A: The manufacturer lists nominal capacities of 1/64 in. (0.4 mm) in Type 304 stainless steel, 1/32 in. (0.8 mm) in SAE 1213 steel, 1/16 in. (1.6 mm) in 2024-T4 aluminum, and 1/8 in. (3.2 mm) in wood, medium or FRP.
| SKU | STROKE LENGTHS IN (MM) |
FREE SPEED RPM |
*NOMINAL DRILLING CAPACITIES | THRUST @ 90PSI LBS (N) |
AIR CONSP.‡ AT WORKING SPEED FT³/CYCLE (L/CYCLE) |
SOUND LEVEL DBA |
STANDARD CHUCK CAPACITY IN (MM) |
GEAR REDUCTION |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL TYPE 304 |
STEEL SAE 1213 |
ALUMINUM 2024-T4 |
WOOD MED. OR FRP |
||||||||
| BANT-A-MATIC SERIES | |||||||||||
| 8245-203-1* | 1-1/4” (32) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-1 | 1-1/4” (32) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-1 | 1-1/4” (32) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-1 | 1-1/4” (32) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-1 | 1-1/4” (32) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-2 | 2.0” (51) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-2 | 2.0” (51) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-2 | 2.0” (51) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-2 | 2.0” (51) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-2 | 2.0” (51) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-3 | 3.0” (76) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-3 | 3.0” (76) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-3 | 3.0” (76) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-3 | 3.0” (76) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-3 | 3.0” (76) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| PAR-A-MATIC SERIES | |||||||||||
| *8255-172-1 | 1-1/4” (32) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-1 | 1-1/4” (32) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-1 | 1-1/4” (32) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-1 | 1-1/4” (32) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-1 | 1-1/4” (32) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (7.9) | Single |
| 8255-A14-1 | 1-1/4” (32) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-1 | 1-1/4” (32) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-1 | 1-1/4” (32) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
Looking for more information about Ingersoll Rand Self-Feed Air Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Self-Feed Air Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Feed Drill
- RPM
- 10000
- Gear Reduction
- Double
- Stroke Length (in.)
- 1 - 1/4
- Nominal Drilling Capacities Wood Med. or FRP
- 1/8
- Nominal Drilling Capacities Stainless Steel Type 304
- 1/64
- Nominal Drilling Capacities Steel SAE 1213
- 1/32
- Nominal Drilling Capacities Aluminum 2024-T4
- 1/16
- Capacity (in.)
- 3/16
- Power (hp)
- .25
- Air Inlet
- 1/8" NPT Male
- Hose Size (in.)
- 1/4
