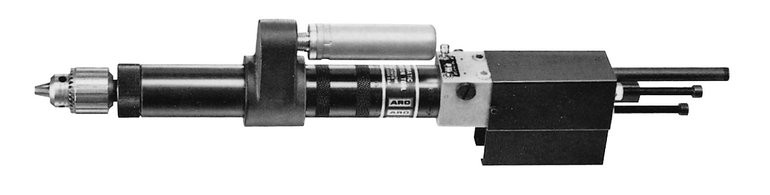

Ingersoll Rand 8245-203-2 is a Bant-A-Matic Series Self-Feed Air Drill designed for automated and fixture-mounted drilling applications where controlled feed and retract movement are required. This model combines a 0.25 HP pneumatic motor with a 19,000 RPM free speed and single gear reduction. The -2 configuration provides a 2 in. (51 mm) stroke, while the model's nominal drilling capacities are specified for SAE 1213 steel, 2024-T4 aluminum, and wood, medium, or FRP.
The feed drill uses compressed air for spindle rotation and feed/control functions. Its rotary vane air motor provides a high power-to-size ratio, while the double-acting air piston provides controlled forward and retract strokes. Needle-valve controls allow adjustment of the forward and retract strokes, and the adjustment screw provides infinite stroke-length settings. Ball-bearing spindle support is designed for precision and long service life, while the muffled exhaust helps provide a quieter work environment. The tool uses a 1/4 in. (6.4 mm) standard chuck, a 1/8 in. NPT male air inlet, and a 1/4 in. recommended hose I.D.
Type: Feed Drill | Series: Bant-A-Matic | Model: 8245-203-2 | Capacity: 3/16 in. | Power: 0.25 HP | Free Speed: 19,000 RPM | Gear Reduction: Single | Stroke Length: 2 in. (51 mm) | Thrust: 90 lb (400 N) at 90 PSI | Air Consumption: 1.5 ft³/cycle (42 L/cycle) at working speed | Sound Level: 77 dB(A) | Standard Chuck Capacity: 1/4 in. (6.4 mm) | Air Inlet: 1/8 in. NPT Male | Recommended Hose I.D.: 1/4 in.
Features:
- The self-feed configuration provides controlled forward and retract movement for repetitive drilling operations.
- The rotary vane air motor provides spindle rotation while maintaining a compact tool configuration.
- The double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retract strokes.
- The adjustment screw provides infinite stroke-length settings for application-specific feed travel.
- Ball-bearing spindle support provides precision and long service life.
- The muffled exhaust helps provide a quieter work environment during pneumatic operation.
- The tool requires only simple pneumatic circuitry for installation.
- The 1/4 in. standard chuck accommodates compatible drill tooling within the manufacturer's specified capacity.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Aerospace machining — suitable for repetitive drilling operations such as rivet-hole applications when the tool's capacity and operating parameters match the work.
- Appliance manufacturing — performing repeatable panel and frame drilling operations.
- Furniture production — producing compatible dowel holes in seats, frames, or backs.
- Metal fabrication — drilling sheet-metal and cast-component applications within the specified capacity.
- Vehicle and recreational-vehicle components — performing compatible holes in components such as mounts, hinges, frames, and body components.
- Windows, doors, and cabinets — producing compatible hinge, pilot, or dowel holes where the drill's capacity is appropriate.
FAQs:
- Q: What is the free speed of the 8245-203-2?
A: The 8245-203-2 has a 19,000 RPM free speed. - Q: What is the motor power?
A: This Bant-A-Matic self-feed drill uses a 0.25 HP pneumatic motor. - Q: What does the “-2” suffix indicate?
A: The -2 configuration identifies the 2 in. (51 mm) stroke version of the 8245-203 model family. - Q: What does single gear reduction mean?
A: It identifies the single gear reduction configuration used in the spindle drive of this 19,000 RPM model. - Q: What is the thrust rating?
A: The catalog specifies 90 lb (400 N) thrust at 90 PSI. - Q: What is the standard chuck capacity?
A: The standard chuck capacity is 1/4 in. (6.4 mm). - Q: What is the air inlet size?
A: The tool uses a 1/8 in. NPT male air inlet, with a recommended 1/4 in. hose I.D. - Q: What are the nominal drilling capacities?
A: The catalog lists 1/64 in. (0.4 mm) in SAE 1213 steel, 1/32 in. (0.8 mm) in 2024-T4 aluminum, and 1/16 in. (1.6 mm) in wood, medium or FRP. No Type 304 stainless-steel capacity is listed for the 8245-203 configuration.
| SKU | STROKE LENGTHS IN (MM) |
FREE SPEED RPM |
*NOMINAL DRILLING CAPACITIES | THRUST @ 90PSI LBS (N) |
AIR CONSP.‡ AT WORKING SPEED FT³/CYCLE (L/CYCLE) |
SOUND LEVEL DBA |
STANDARD CHUCK CAPACITY IN (MM) |
GEAR REDUCTION |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL TYPE 304 |
STEEL SAE 1213 |
ALUMINUM 2024-T4 |
WOOD MED. OR FRP |
||||||||
| BANT-A-MATIC SERIES | |||||||||||
| 8245-203-1* | 1-1/4” (32) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-1 | 1-1/4” (32) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-1 | 1-1/4” (32) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-1 | 1-1/4” (32) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-1 | 1-1/4” (32) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-2 | 2.0” (51) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-2 | 2.0” (51) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-2 | 2.0” (51) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-2 | 2.0” (51) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-2 | 2.0” (51) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-3 | 3.0” (76) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-3 | 3.0” (76) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-3 | 3.0” (76) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-3 | 3.0” (76) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-3 | 3.0” (76) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| PAR-A-MATIC SERIES | |||||||||||
| *8255-172-1 | 1-1/4” (32) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-1 | 1-1/4” (32) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-1 | 1-1/4” (32) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-1 | 1-1/4” (32) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-1 | 1-1/4” (32) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (7.9) | Single |
| 8255-A14-1 | 1-1/4” (32) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-1 | 1-1/4” (32) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-1 | 1-1/4” (32) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
Looking for more information about Ingersoll Rand Self-Feed Air Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Self-Feed Air Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
